ATEN CS1782A - 2-Port KVMP Switch, USB, DVI, Dual Link/CH7.1, Audio
CA-775290
Delivery
Payment options
Our advantages
- — Garantía: 1 Year Warranty
- — Devolución y cambio hasta 30 días
- — Mejor precio
Find similar

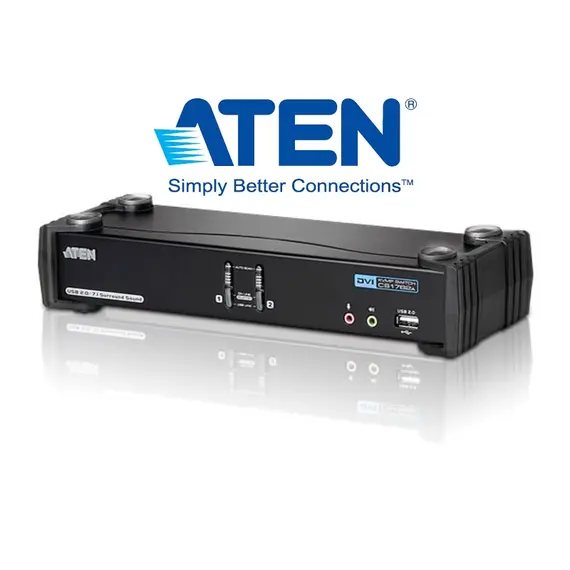

The CS1782A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
Specifications
| Computer Connections | 2 |
| Port Selection | Hotkey, Pushbutton, Mouse |
| Connectors | |
| Console Ports | 2 x USB Type A Female (rear panel) 1 x DVI-I Female (White) 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel) 1 x 3.5mm Audio Jack Female (Blue) 1 x 3.5mm Audio Jack Female (Gray) 1 x 3.5mm Audio Jack Female (Black) 1 x 3.5mm Audio Jack Female (Orange) 2 x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear panel) |
| KVM Ports | 2 x USB Type B Female 2 x DVI-I Female (White) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Blue) 2 x 3.5mm Audio Jack Female (Gray) 2 x 3.5mm Audio Jack Female (Black) 2 x 3.5mm Audio Jack Female (Orange) 2 x 3.5mm Audio Jack Female (Pink) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (1 x front panel, 1 x rear panel) |
| Switches | |
| Power Selected | 2 x Pushbutton |
| LEDs | |
| USB Link | 2 (Green) |
| On Line /Selected | 2 (Orange) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | DVI Dual Link: 2560 x 1600 @ 60Hz; DVI Single Link: 1920 x 1200 @ 60Hz |
| Scan Interval | 1–99 seconds (default: 5 secs) |
| Power Consumption | DC5.3V:3.3W:41BTU |
| Environmental | |
| Operating Temperature | 0 -50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.90 kg ( 1.98 lb ) |
| Dimensions (L x W x H) | 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.) |
Main
Brand
ATEN
Display
3D
No
Features
Funcionamiento 24/7
No
Network
Soporte 10G
No
Other features
3.5 mm (1/8-pul) dentro
No
Conector de 2,5 mm
No
Performance
2.4 GHz
No
5 GHz
No
