ATEN CS74U - 4-Port USB VGA/Audio KVM Switch
CA-775280
Delivery
Payment options
Our advantages
- — Garantía: 1 Year Warranty
- — Devolución y cambio hasta 30 días
- — Mejor precio
Find similar

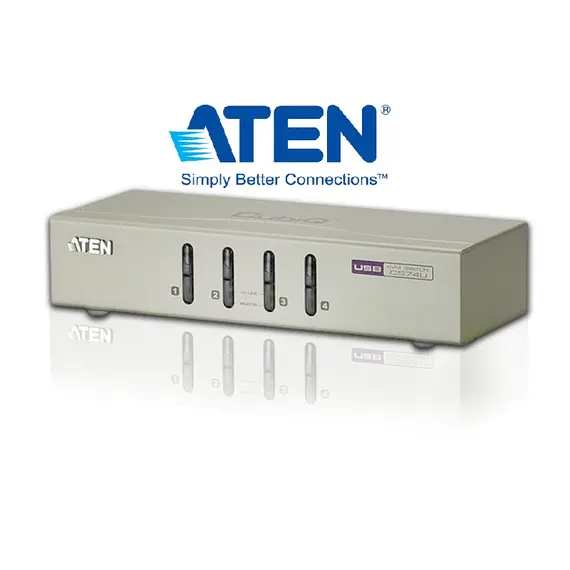

The CS74U 4-Port USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (keyboard and mouse, audio and VGA monitor).
With the CS74U, you can access computers conveniently using port selection pushbuttons located on the unit’s front panel.
Specifications
| Computer Connections | 4 |
| Port Selection | Pushbutton |
| Connectors | |
| Console Ports | 2 x USB Type A Female (Black) 1 x HDB-15 Female (Blue) 1 x mini stereo Jack Female (Pink) 1 x mini stereo Jack Female (Green) |
| KVM Ports | 4 x SPHD-18 Female (Green) |
| Power | 1 x DC 5V Jack (Spare) |
| LEDs | |
| Online | 4 (Orange) |
| Selected | 4 (Green) |
| Switches | |
| Selected | 4 x Pushbuttons |
| Video | 2048 x 1536 @ 60 Hz; DDC2B |
| Power Consumption | DC5V:0.177W:5BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.64 kg ( 1.41 lb ) |
| Dimensions (L x W x H) | 20.00 x 7.65 x 4.40 cm (7.87 x 3.01 x 1.73 in.) |
