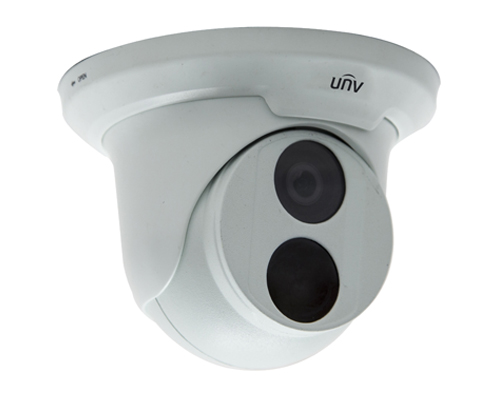

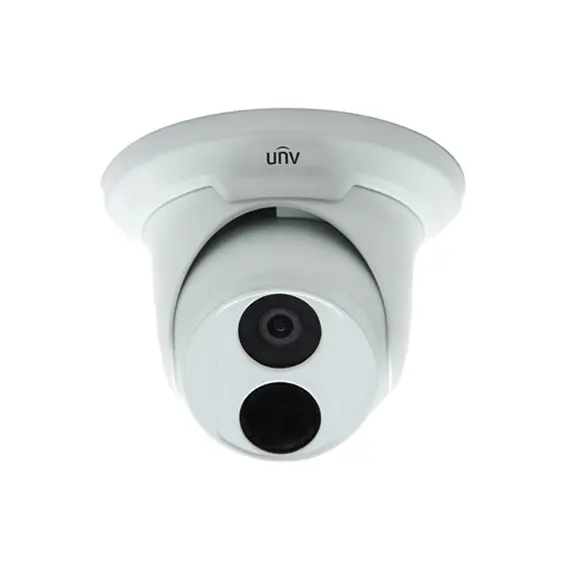

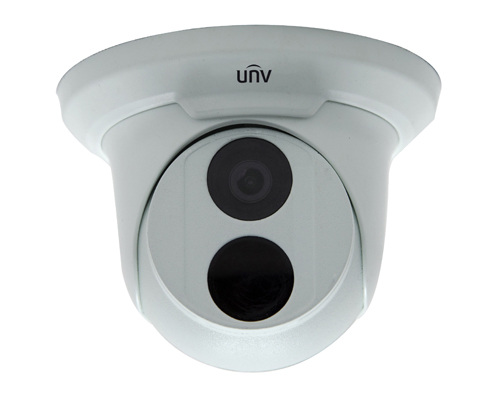

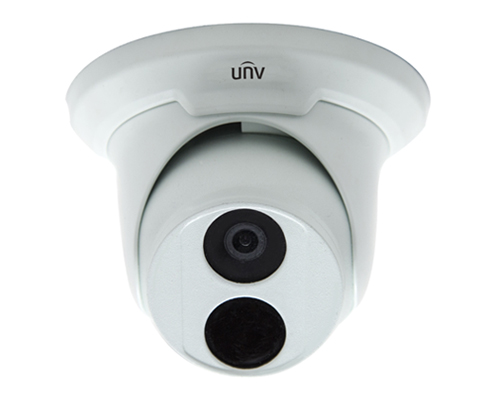

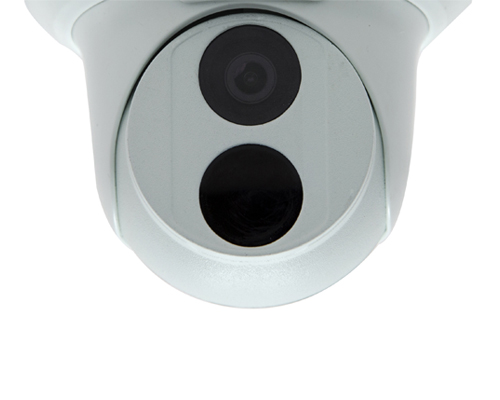

UNIVIEW IPC3614SR3-DPF28 4MP Network IR Fixed Dome
- — Гарантия: 1 Год гарантии
- — Возврат и обмен до 30 дней
- — Лучшая цена
|
Camera |
||||
|
Sensor |
1/3", 4megapixel, progressive scan, CMOS |
|||
|
Lens |
2.8mm@F1.8 |
|||
|
Angle of view(H) |
101.8° |
|||
|
Shutter |
Auto/Manual, 1/6~1/100000 s |
|||
|
Min. Illumination |
Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR |
|||
|
IR |
30m (98ft) IR range |
|||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|||
|
WDR |
120 dB |
|||
|
AWB(Auto white balance) |
Auto/manual |
|||
|
Gain Control |
Auto/manual |
|||
|
Noise Reduction |
2D/3D |
|||
|
Video |
||||
|
Max. Resolution |
2592×1520 |
|||
|
Video Compression |
H.265, H.264, MJPEG |
|||
|
Frame Rate |
4MP (2592×1520): Max.20 fps; 4MP (2560×1440): Max.25 fps 3MP (2048×1520): Max.30 fps; 1080P (1920×1080): Max. 30 fps |
|||
|
Video Streaming |
Triple |
|||
|
9:16 Corridor Mode |
Supported |
|||
|
Evaluative Metering |
Supported |
|||
|
OSD |
Up to 8 OSDs |
|||
|
Motion Detection |
Up to 2 areas |
|||
|
Privacy Mask |
Up to 8 areas |
|||
|
Smart |
||||
|
Behavior Detection |
Intrusion, crossing line, motion detection |
|||
|
Intelligent Identification |
Face detection, Defocus, Scene Change |
|||
|
Statistical Analysis |
People counting |
|||
|
Network |
||||
|
Protocols |
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
|||
|
Compatible Integration |
ONVIF,API |
|||
|
Interface |
||||
|
Network |
10M/100M Base-TX Ethernet |
|||
|
General |
||||
|
Power |
12 V DC, or PoE (IEEE802.3 af) |
|||
|
Power consumption: Max 5.5W |
||||
|
Dimensions (Ø x H) |
Φ126 x 94 mm (Ø5.0” x 3.7”) |
|||
|
Weight |
0.33 kg (0.73lb) |
|||
|
Operating Conditions |
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
|||
|
Ingress Protection |
IP67 |
|||
