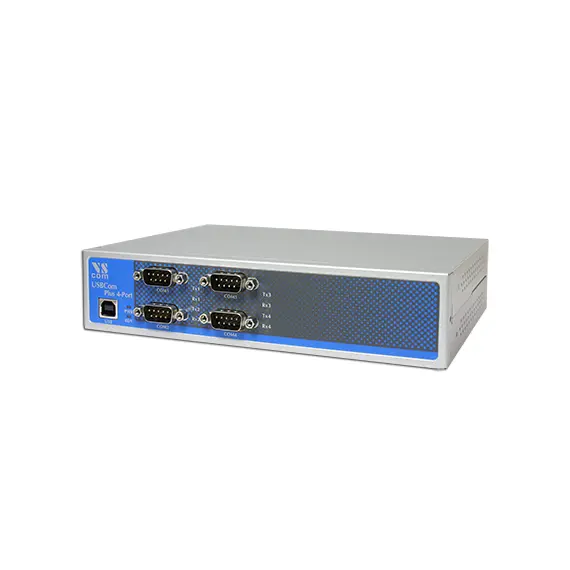

VSCOM USB- 4COM PLUS 232 - USB to 4x RS232 ports DSub-9 male
- — Гарантия: 1 Год гарантии
- — Возврат и обмен до 30 дней
- — Лучшая цена
The modern USB-4COM Plus 232 adapter connects 4 x RS232 devices to your PC by one USB 2.0 High Speed port. The serial ports, USB and the power supply are ESD protected, compliant to IEC 61000-4-2 (8kV contact/16kV air discharges). USB-4COM Plus 232 works in bus-powered mode, but a DCin connector for external wide range voltage is also provided.
All serial ports support RS232. Standard Drivers are available for all major operating systems.
The USB 2.0 High-Speed enables serial data rates of up to 1000kbps. The device also allows every non-standard bitrate.
A USB-out (type A) connector at the rear side allows easy expansion of serial ports by simple concatenation of further USB-COM Plus modules; we call it "USB-Through" feature.
Features
- 4 x RS232 ports
- USB 2.0 High Speed interface
- USB, serial ports and power supply ESD protected
- Robust metal case
- Serial speed max. 1000 kbps
- 19-inch and Wall mounting options
- Bus powered or ext. DCin 9-54V
- Easy port expansion via USB-Out type A connector
- Wide range operating temperature (-25°C - +75°C)
Specifications
| USB-Input | USB 2.0 High Speed, USB 1.1 compliant |
| Connector | USB type B |
| Circuits | FTDI FT4232H Genesys GL850G |
| No. of Ports/Type | 4 x RS232 |
| Connector | DB-9 male |
| Protection | 16kV ESD surge protection |
| Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Mark, Space |
| Flow Control | RTS/CTS, XON/XOFF |
| Baudrate | 180bps - 921.6/1000kbps |
| LEDs | TxD/RxD for each port |
| Connector | USB 2.0 High Speed type A, 500mA @5V at rear side |
| Drivers | Windows 2000 to Windows 10 (x86 and x64) Windows Server 2000 to 2016 (x86 and x64) Linux (Kernel 2.6 and later built-in) Mac OS X |
| Installation | The driver is already installed (Linux), or installs by automatic Download after Device connection (Windows). |
| Input Voltage | 5V (USB) 9-54V Dcin |
| Power Consumption | Bus-powered: 5V 500mA via USB Self-powered: DCin 9 - 54V, 3W + 3W for Port Expansion |
| Port Expansion | DCin supply is compulsory to support Port Expansion. |
| Connector | Bus powered: USB Type B, no external supply Self powered: 3-Pin Terminal Block |
| Case | 0.8mm sheet metal |
| Weight | 0.9kg, w/h box 1.5kg |
| Dimensions | 196×147×44 mm³ (W×L×H) |
| Packaged | 310×192×60 mm³ |
| Mounting | 19-inch Rack Wall mount |
| Operating Temp | −25°C - 75°C |
| Storage Temp | −30°C – 85°C |
| Ambient Humidity | 5-95% non condensing |
| Declarations | CE, FCC |
| EMI | EN 55022 Class B EN 61000-3-2: Limits of harmonic current emissions EN 61000-3-3: Limitation of voltage changes 47 CFR FCC Part 15 Subpart B |
| EMS (EN 55024) | EN 61000-4-3: Radiated RFI EN 61000-4-4: Electrical Fast Transient EN 61000-4-5: Surge EN 61000-4-6: Induced RFI EN 61000-4-8: Power Frequency Magnetic Field EN 61000-4-11: Power supply dips |
| ESD | EN 61000-4-2 4kV contact 8kV air for Serial Ports USB DCin Power connector |
| MTBF | 39.4 Years @ 25°C 22.7 Years @ 45°C |
| Standard | Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7 |
| Packing list | USB-4COM Plus 232 device USB 2.0 High-Speed cable Mounting brackets for 19-inch rack Wallmount plates Terminal block for Power Supply 4 rubber feet for table mode |
