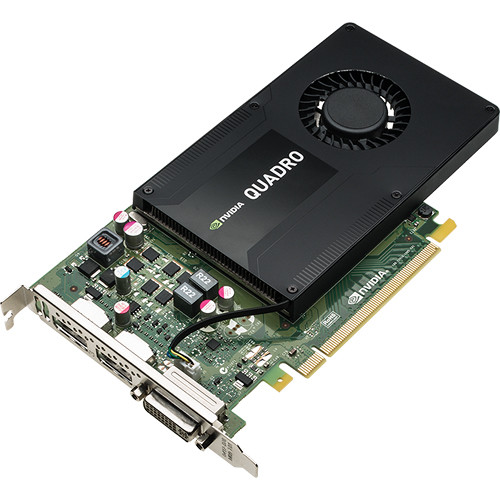

NVIDIA Quadro K2200 4GB GDDR5 Dual DVI DP

• Procesador gráficoQuadro K2200
• Capacidad memoria de adaptador gráfico4 GB
• Tipo de interfazPCI Express x16 2.0
• Todas las caracterícticas

Accelerate your creativity withNVIDIA® Quadro®—the world’s mostpowerful workstation graphics.

The NVIDIA Quadro K2200 delivers exceptionalpower-efficient 3D application performance. 4 GB ofGDDR5 GPU memory with fast bandwidth enablesyou to create large, complex models, and a flexiblesingle-slot form factor makes it compatible with eventhe most space and power-constrained chassis. Plus,an all-new display engine drives up to four displayswith DisplayPort 1.2 support for ultra-high resolutionsup to 3840x2160 @ 60 Hz with 30-bit color.Quadro cards are certified with a broad range ofsophisticated professional applications, tested byleading workstation manufacturers, and backed bya global team of support specialists, giving you thepeace of mind to focus on doing your best work.Whether you’re developing revolutionary products ortelling spectacularly vivid visual stories, Quadro givesyou the performance to do it brilliantly.

Popular API Support

Supports Shader Model 5.0, OpenGL 4.4, DirectX 11, CUDA, Direct3D, and other APIs to provide software with direct, low-level access to the graphics processing and computational power of the card

Supports DP 1.2 MST Technology

Not only can the card support three directly connected displays, thanks to MST (Multi Stream Transport) technology it is possible to drive up to four displays through a DisplayPort output when using separately available MST hubs

Parallel Computing Capabilities

• SMX Architecture: a streaming multi-processor design that delivers greater processing power and efficiency than earlier architectures
• Support for all CUDA 6 features, including Unified Memory, Dynamic Parallelism and Dedicated Shared Memory
• Programming support for CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Python, and Fortran

3D Graphics Architecture

• Scalable geometry architecture
• Hardware tessellation engine
• FXAA/TSAA dedicated antialiasing engine
• Bindless Textures
• Up to 16K x 16K texture and render processing
• Transparent multisampling and super sampling
• 16x angle independent anisotropic filtering
• 32-bit per component floating point texture filtering and blending
• Up to 64X full scene antialiasing (FSAA)
• Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
• Dedicated H.264 encoder (requires application support)
• Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)
• Quadro Boost: Automatically increases GPU engine throughput to maximize application performance

Stereoscopic 3D Support

3D types supported include NVIDIA 3D Vision Pro and 3D Vision, 3D DLP, interleaved, and passive stereo. It also supports quad-buffered stereo

NVIDIA Scalable Geometry Engine

Improves geometry performance across a broad range of CAD, DCC, and medical applications, enabling you to work interactively with models and scenes that are much more complex than ever before

Audio Support

Supported via DisplayPort and HDMI (HDMI requires separately available DisplayPort to HDMI adapter):

• Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC, DTS-HD, TrueHD
• Data rates of 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176 kHz, and 192 kHz
• Word sizes of 16-bit, 20-bit, and 24-bit

NVIDIA Parallel DataCache

Supports a true cache hierarchy combined with on-chip shared memory. L1 and L2 caches drive exception throughput, accelerating features such as real-time ray tracing, physics, and texture filtering

Ultra-Quiet Cooling System

Virtually silent cooling design enables lower acoustics for an ultra-quiet desktop environment

Additional Features

• Unified driver architecture (UDA) for simplified deployment and management in an enterprise setting
• Enterprise management tools
• Supports HBR2: Allows the data from a DisplayPort output to travel at up to 5.4 GB/s
• Internal 400 MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85 Hz)
• Supports Quad buffered stereo 3D content for OpenGL-based 3D software
• Underscan/overscan compensation and hardware scaling
• Support for NVIDIA Quadro Mosaic, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management Tools
• Bindless textures
• Supports Deep Color (12-bit per channel color)
• Supports multi GPU configurations when combined with other compatible NVIDIA-based devices

PCI Express 2.0 Host Interface

PCIe 2.0 doubles the bandwidth for a given interface width compared to PCIe 1.0. For example, an x8 slot in PCIe 2.0 is the equivalent of a x16 slot in PCIe 1.0
