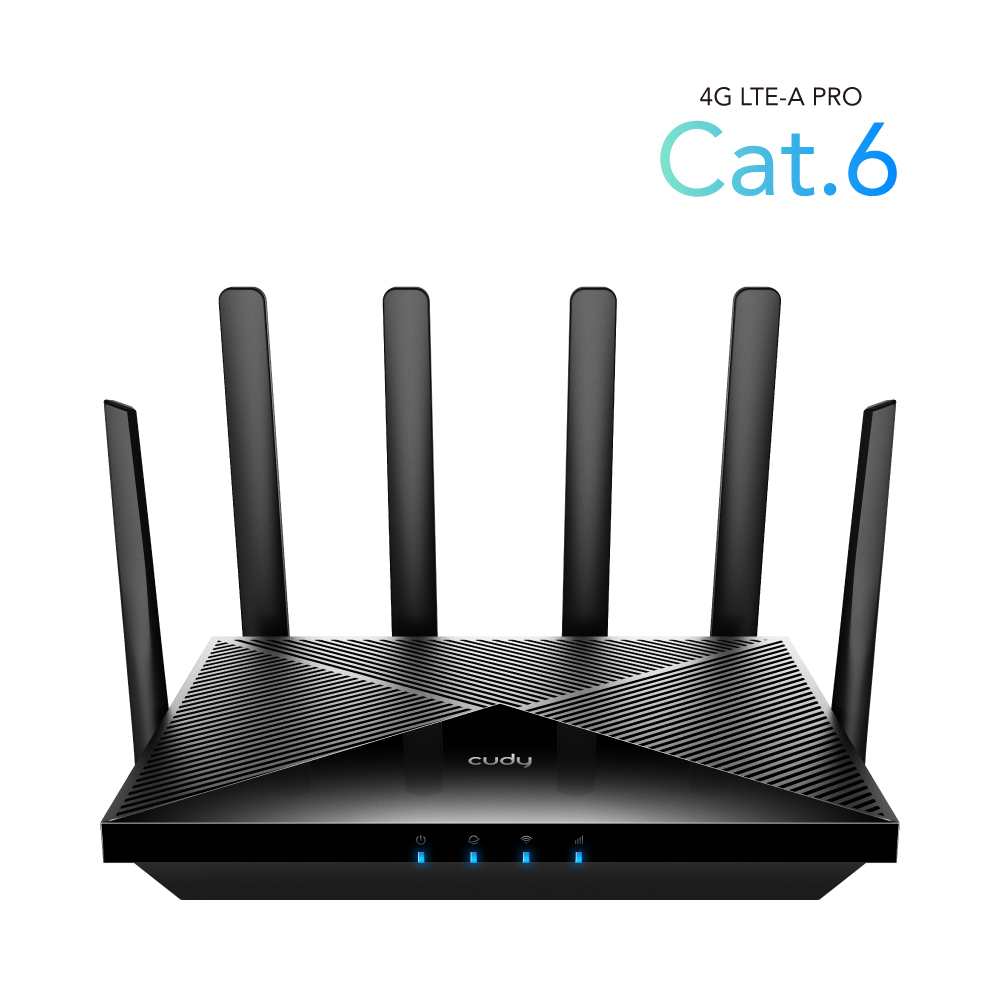

Cudy LT700 - Wireless Router, Gigabit Ethernet, Dual-band (2.4GHz / 5GHz), 4G, Black
- — Garantie: 1 year warranty
- — Retour et échange jusqu'à 30 jours
- — Meilleur prix
● 4G LTE advanced CAT.6 CPE
● AC1200 dual band Wi-Fi
● Dual SIM slots (Nano)
● 4*Gigabit Ethernet Ports
● 4*Detachable Cellular Antennas
● 2*Fixed WiFi Antennas
● DNS over Cloudflare/Google
● WireGuard/OpenVPN/PPTP/L2TP/Zerotier
Redundant SIM Slots
Dual SIM slots provide redundancy and keep the device always online. Both SIM slots can be filled, you can choose whether to use SIM card 1 or SIM card 2, or auto select by Cudy.
WAN Internet, 4G Backup
Set WAN/LAN port as WAN to enable Cudy use the landline internet from WAN, and 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you.
External SMA Antenna connector
Combined with 4 detachable SMA Antenna interface to connect outdoor cellular antennas for better and stable signal.
4G Band Lock
4G band lock make it possible to lock the 4G working frequency to one or several bands to keep the stability of operation.
TTL Settings
Support manual set TTL values to meet ISP's requirement(such as Verizon, Visible).
Support set IPv4 TTL and IPv6 HL Values.
DNS over TLS
Support DNS Encryption with CloudFlare or Google, protects your privacy, prevents eavesdropping and manipulation of DNS data via man-in-the-middle attacks.
Specifications
| Model | 4G LTE CAT 6 Wi-Fi Router | |||
| Data Speed | Wi-Fi | 2.4GHz (802.11n/g/b, MIMO 300Mbps) | ||
| 5GHz (802.11ac/an/a, MIMO 867Mbps) | ||||
| LTE | LTE FDD: Max 300Mbps (DL)/50Mbps (UL) | |||
| LTE TDD: Max 226Mbps (DL)/48Mbps (UL) | ||||
| DC-HSPA+ | 42 Mbps (DL)/11.5 Mbps (UL) | |||
| WCDMA | WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) | |||
| Hardware | CPU: Mediatek Dual Core 880MHz | |||
| 4G Module: Quectel EG120K (Qualcomm) | ||||
| DRAM: 256MB (2Gbit) DDR3 | ||||
| Flash: 16MB (128Mbit) | ||||
| 4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN | ||||
| 2 x SIM Slots (Nano) | ||||
| 1 x WPS Button | ||||
| 1 x Reset Button | ||||
|
2 x Fixed WiFi Antennas |
||||
| 4 x Detachable Cellular Antennas | ||||
| LED indicators (Power, WiFi, Internet,Signal) | ||||
| Software | DHCP:Server, Client List, Address Reservation | |||
| NAT:Port Forwarding, Port Triggering, UPnP, DMZ | ||||
| Firewall: Mac Filter, IP Filter, Domain Filter | ||||
| DDNS: Compatible with 15 more DDNS providers | ||||
| VPN: WireGuard/OpenVPN/PPTP/L2TP/Zerotier | ||||
| DNS over TLS: Cloudflare/Google | ||||
| Schedule: Schedule Reboot /Wi-Fi Schedule | ||||
| Internet Protocol version 4 or 6 (IPv4/IPv6) | ||||
| Quality of Service (QoS) | ||||
| TTL configuration (Extend/Spoof) | ||||
| Band Selection | ||||
| Mobile Frequency Band | Europe/Middle East/Africa/Asia Pacific/Brazil | LTE-FDD:B1/B3/B5/B7/B8/B20/B28 | ||
| LTE-TDD: B38/B40/B41 | ||||
| WCDMA: B1/B3/B5/B8 | ||||
| North America | LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71 | |||
| LTE-TDD: B41 | ||||
| WCDMA: B2/B4/B5 | ||||
| Physical | Product Dimension: 253x152.5x48.2mm (LxWxH) | |||
| Package Dimension: 415x265x90mm (LxWxH) | ||||
| Power | AC Power Adapter: Input: 90~260V Output: 12V, 1.5A | |||
| DC input (12V-1.5A) Barrel Plug | ||||
| SMS | Send Message | |||
| Receive Message | ||||
| Environmental | Operation Temperature: 0° C to +45° C | |||
| Storage Temperature: -40° C to +70° C | ||||
| Relative Humidity: 5% to 95% Non-Cond | ||||
| Package Contents | 4G LTE WiFi Router | |||
| Power Adapter | ||||
| RJ45 Ethernet Cable | ||||
| Quick Installation Guide | ||||
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or Linux, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) | |||
