Delock D87297 - USB Type-C™ 3.1 Docking Station, 4K, 30Hz
- — Garantie: ans de garantie
- — Retour et échange jusqu'à 30 jours
- — Meilleur prix

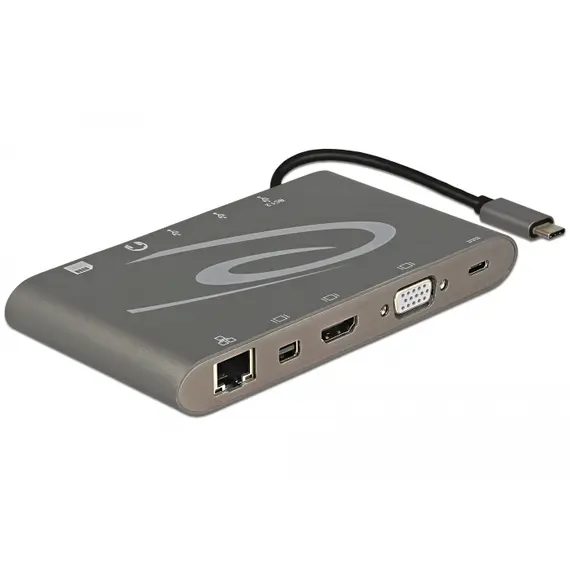

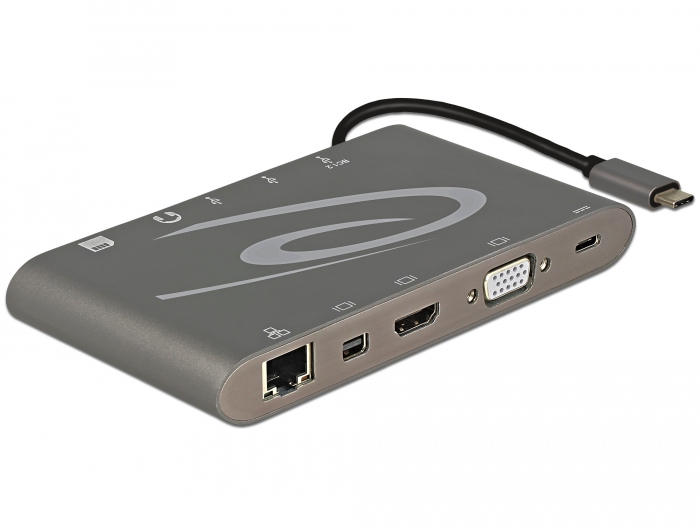

This Delock docking station can be connected to a computer with a USB-C ™ Alt-Mode or Thunderbolt ™ 3 port and provides a variety of interfaces. Two monitors can be turned on simultaneously on mini DisplayPort HDMI ports, alternatively a single monitor on VGA output. Three USB ports that allow peripheral connection, and connections for headphones, gigabit network, as well as SD / SD micro card reader
Note
The product is a Multi-Stream-MST (MV) hub and supports the Displayport 1.2 extended desktop configuration. When using Mac OS, the same image is displayed on both ports (mirroring), both ports cannot be used independently.
Specifications
- • Connectors:
- Front side:
- 1 Gigabit LAN 10/100/1000 Mb / s RJ45 Female
- 1 x Mini DisplayPort 20 Female Female
- 1 x HDMI-A 19 Female Female
- 1 x VGA 15 pin Female
- One USB port Type CC ™ (power supply)
- Back side:
- 3 x USB 3.0 Type - Female
- 1 x 3.5mm headphone 4 pin socket
- 1 x SD / SDHC / SDXC / MMC slot
- 1 x Micro SD / SDHC / slot SDXC
- USB type ™ C ™
- • HDMI and DisplayPort ports Support: Extended and mirrored,
- Resolution up to 2560 x 1440 @ 60 Hz or 3840 x 2160 @ 30 Hz
- (depending on system and connected hardware)
- • VGA resolution up to 1920 x 1080 @ 60 Hz
- • Audio and video signal transmission
- • Output power: max. 10 W Total,
- 1 x USB type - Maximum female. 7.5 W,
- 2 x USB type - maximum female. 5 W (integrated)
- • Input power: 1 x female USB-C type ™ 60 W
- • Metal structure
- • Rubber pads for safe grip and safe standing
- • Total cable length. Author: ca. 18 cm
- • Color: Dark gray
- Dimensions (LxWxH): approx. 13.7 x 7.5 x 1.7 cm
System Requirements
• Windows 8.1 / 8.1-64 / 10 / 10-64, Windows 10 Mobile, Former Android 6.0, Mac OS ex 10.9
• Device with USB-C port ™ Free and DisplayPort replacement mode or with Thunderbolt port ™ Free
