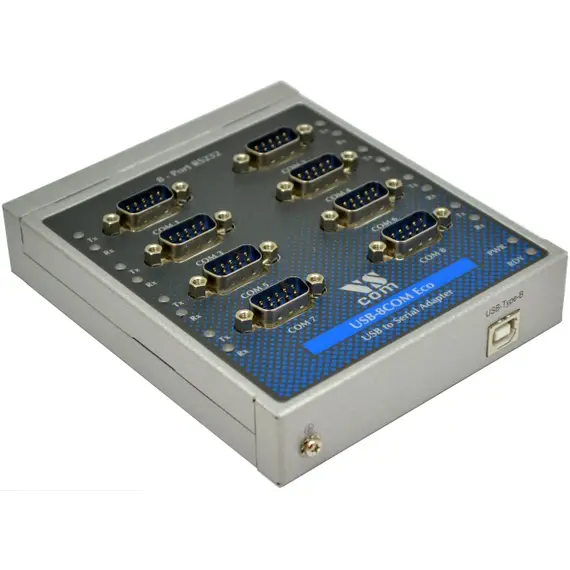

VSCOM USB- 8COM ECO - USB to 8x RS232 ports DSub-9 male
- — Garantie: ans de garantie
- — Retour et échange jusqu'à 30 jours
- — Meilleur prix
FeaturesThe USB-8COM ECO provides easy serial port expansion over USB 2.0 connecting to high speed RS232 devices. All USB-xCOM Eco converters are fully ESD and surge protected, bus powered and accommodated in a small metal case. Furthermore, it can operate across a large range of temperatures to cope with harsh operating conditions. Lastly, DIN-Rail and wall-mounting options are available.
Easy Serial Ports Configuration
The serial ports support all 9 signals of RS232 protocol. LEDs for PWR, RDY and TxD/RxD for each port clearly show the activity status for the user. Com Port drivers are available for Windows, Linux and Mac OS X. "USBCOM Configuration Utility" allows easy access to special Windows driver options to optimise settings and performance.
High Speed Rates and ESD Protection
USB 2.0 High Speed connection allows serial data rates of up to 460.8kbps. Every non-standard bitrate (e.g. 31250bps for MIDI) can easily be set up. USB-xCOM ECO systems are fully ESD protected at the USB and serial port interfaces.
Features
- USB 2.0 to 8 x RS232 ports
- High-speed serial ports 460.8kbps
- Driver for Windows, Linux, Mac OS X
- LEDs for Power/Ready and TxD/RxD activity
- ESD protection on USB and serial ports
- Bus-powered
- Ruggedized metal housing
- DIN-Rail and wall mount options
- Wide range of operating temperatures
Specifications
- USB-Input: USB 2.0 High Speed/USB 1.1 compliant
- Connector: USB type B
- Circuits: FTDI FT4232H/Genesys GL850G
- No. of Ports/Type: 8 x RS232
- Connector: DB-9 male
- Protection: 16kV ESD surge protection
- Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Data Bits: 7, 8
- Stop Bits: 1, 2
- Parity: None, Even, Odd, Mark, Space
- Flow Control: RTS/CTS, XON/XOFF
- Baudrate: 180bps - 460.8/500kbps
- LEDs: TxD/RxD for each port
- Drivers: Windows 2000 to Windows 10 (x86 and x64)/Windows Server 2000 to 2016 (x86 and x64)/Linux (Kernel 3.4 and later built-in)/Mac OS X
- Input VoltageЖ 5V (USB)
- Power Consumption: max 420mA, 2.1W
- Connector: USB Type B, bus-powered, no external supply
- Case: 0.8mm sheet metal
- Weight: 150g, w/h box 0.6kg
- Dimensions: 108×129×25 mm³ (W×L×H)
- Packaged: 155×168×58 mm³
- Mounting: Desktop use / DIN-Rail (optional) / Wall mount (optional)
- Operating Temp: −25°C - 75°C
- Storage Temp: −30°C – 85°C
- Ambient Humidity: 5-95% non condensing
- Declarations: CE, FCC
- EMI: EN 55022 Class B / 47 CFR FCC Part 15 Subpart B
- EMS (EN 55024): EN 61000-4-3: Radiated RFI / EN 61000-4-4: Electrical Fast Transient / EN 61000-4-5: Surge / EN 61000-4-6: Induced RFI / EN 61000-4-8: Power Frequency Magnetic Field / EN 61000-4-11: Power supply dips
- ESD: EN 61000-4-2 4kV contact 8kV air for / Serial Ports / USB
- MTBF: 28.1 Years @ 25°C / 16.2 Years @ 45°C
- Standard: Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7
- Packing list: USB-8COM ECO device / USB 2.0 High-Speed cable / 4 rubber feet for table mode
