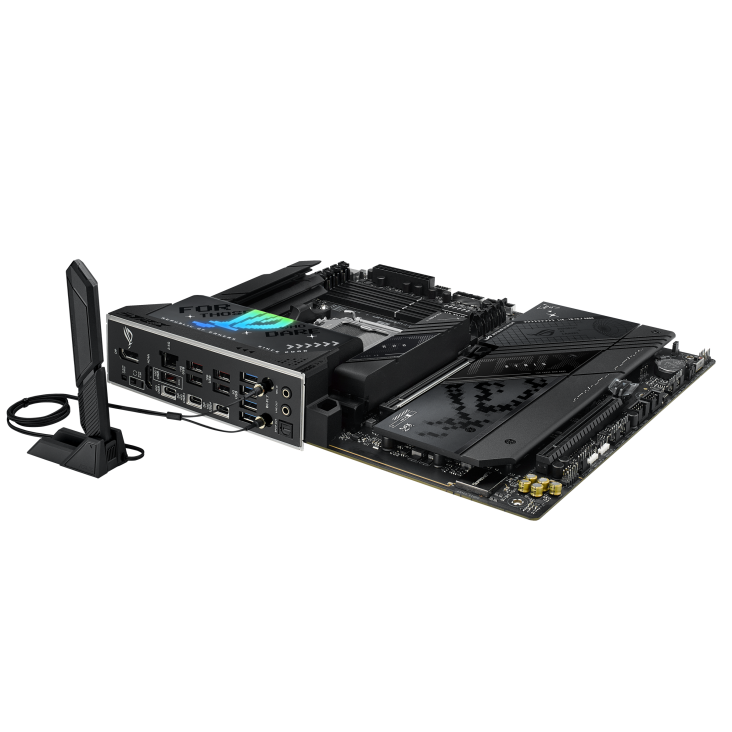

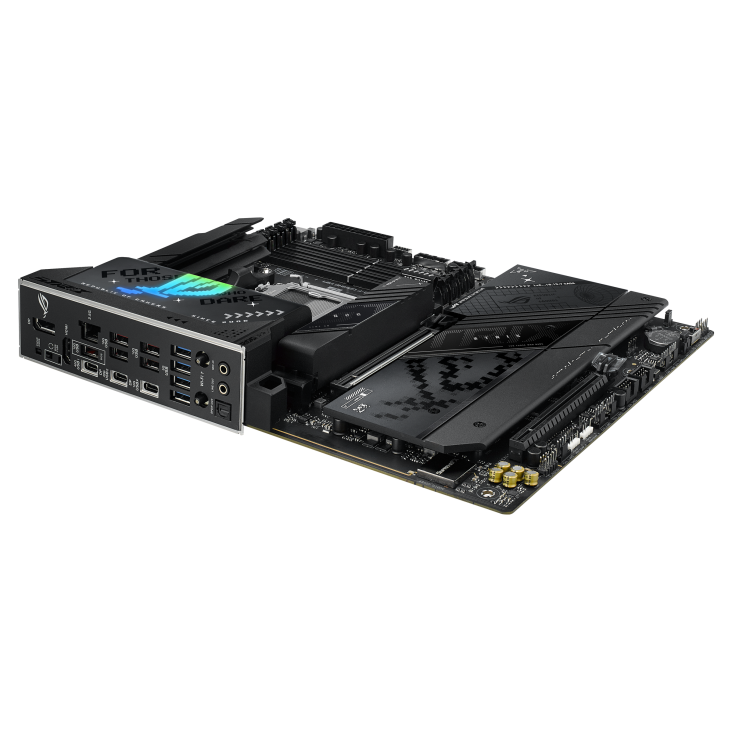

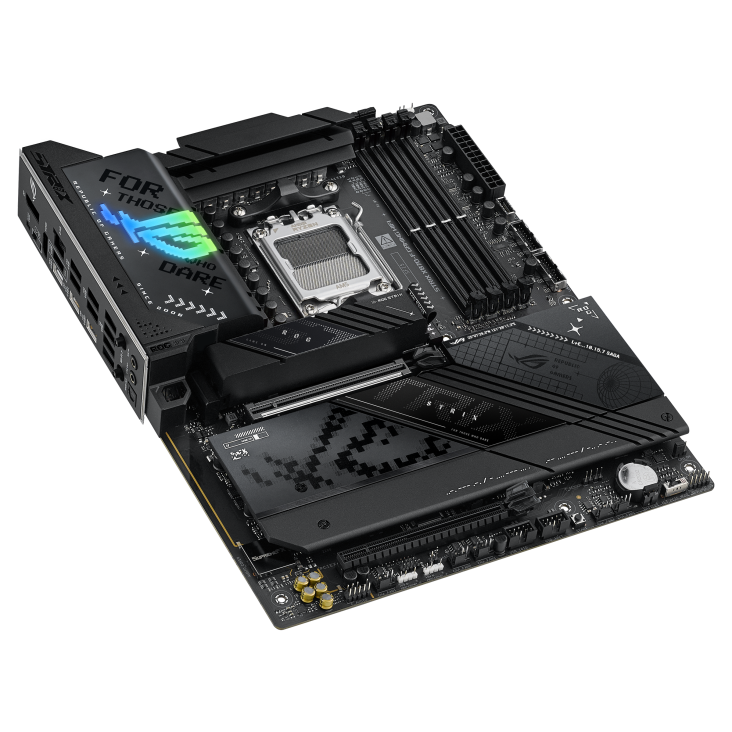

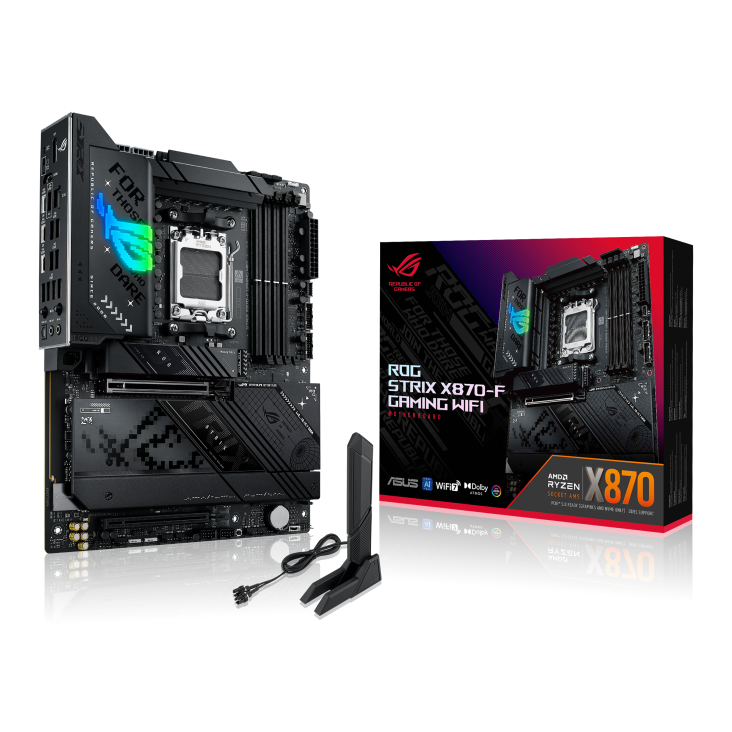

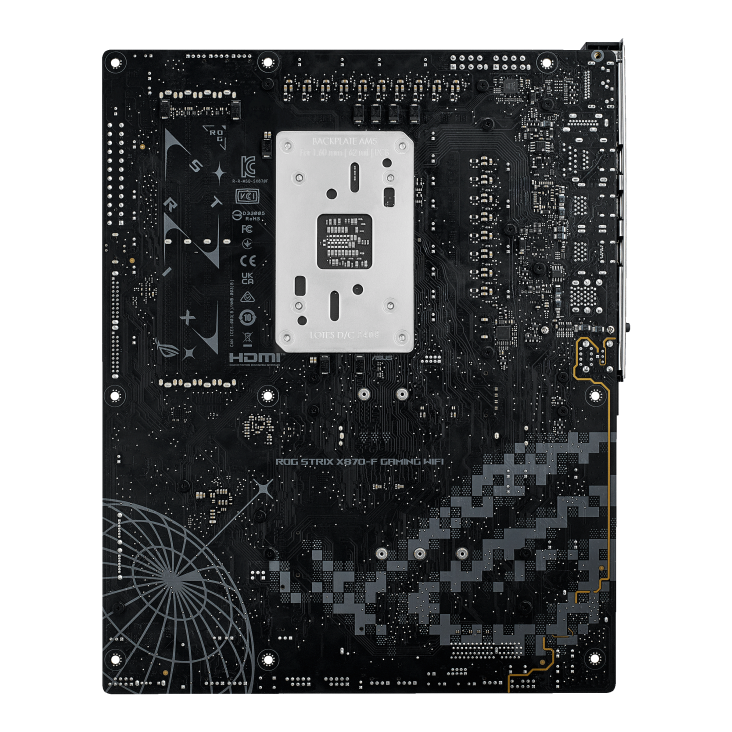

ASUS ROG STRIX X870-F GAMING WIFI - Motherboard, AMD X870, Socket AM5, ATX
- — Гарантия: 3 года гарантии
- — Возврат и обмен до 14 дней
- — Лучшая цена
Основные характеристики
- ПроизводительASUS
- Сокет процессораAM5
- Чипсет материнской платыAMD X870
- Формат материнской платыATX
- Поддерживаемые типы памятиDDR5-SDRAM
- Количество слотов памяти4
- Количество M.2 (M) слотов4
- Максимальная внутренняя память192 GB
- Совместимые серии процессоровAMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
- Основной стандарт Wi-FiWi-Fi 7 (802.11be)
- BluetoothДа
- ВидеовыходыHDMI, DisplayPort
- Порты USB-C (задняя панель)USB4, USB 3.2 Gen 2
- Профиль производительностиAMD EXPO
- Цвет товараЧёрный
- Гарантия3 года гарантии
ASUS AI INTELLIGENCE
AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
*Features may vary by model.
Performance OVERCLOCKING
DYNAMIC OC SWITCHER
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
CORE FLEX
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
ASYNCHRONOUS CLOCK
For next-level frequency flexibility, the ROG Strix X870-F features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.
PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
Performance MEMORY
DDR5 DOMINATION
The Strix X870-F is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
PLAY IN STYLE
UNDENIABLY ROG STRIX

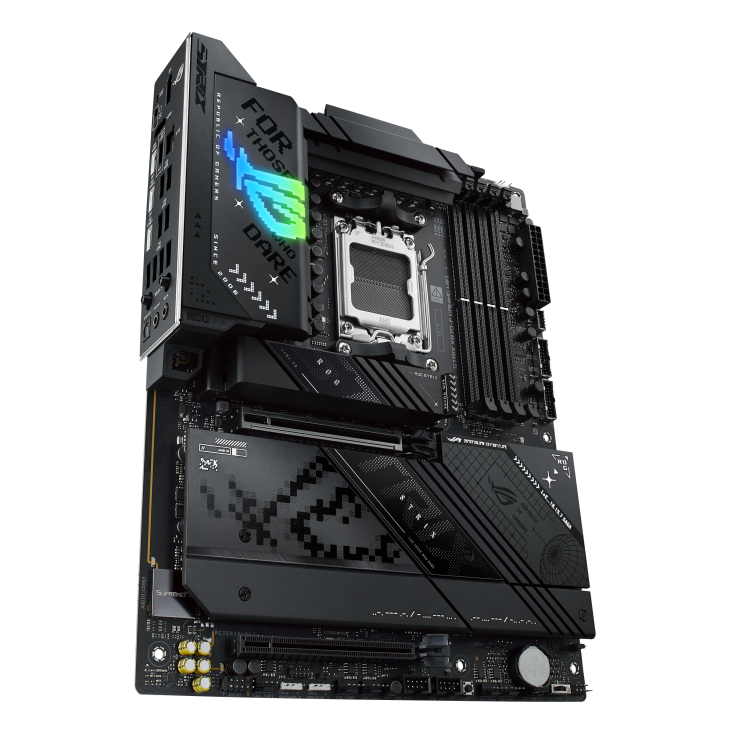

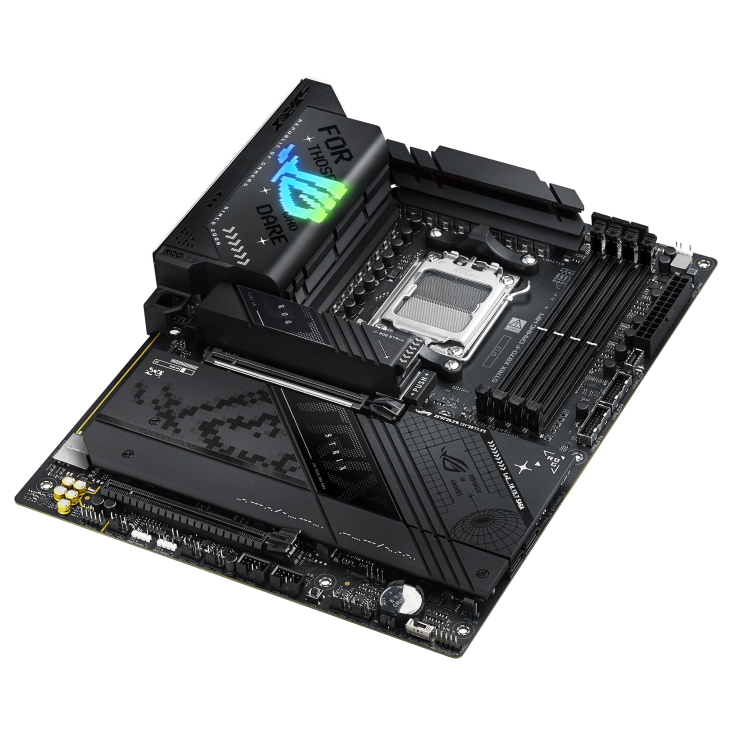

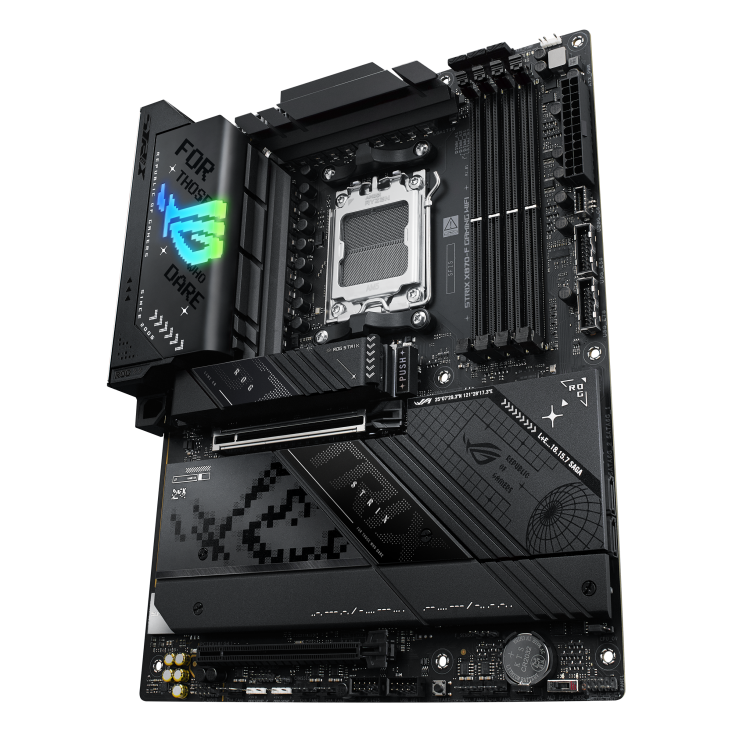

The ROG Strix X870-F is sleek and understated, empowering you to seamlessly combine it with a wide range of system components. Its deep black PCB and matching metallic heatsinks create a dark and intense look, while a touch of RGB lighting on the I/O shroud lets you either stay under the radar or make a bold statement.
OUTSHINE THE COMPETITION
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, a Strix X870E/X870 motherboard delivers. With USB 4.0 onboard along with robust overclocking¹ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
1. Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by the system manufacturer or retailer. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability. GD-106.
© 2024 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, Radeon, Ryzen and combinations thereof are trademarks of Advanced Micro Devices, Inc. Other product names used in this publication are for identification purposes only and may be trademarks of their respective owners.
Dare to Be Green
We at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.

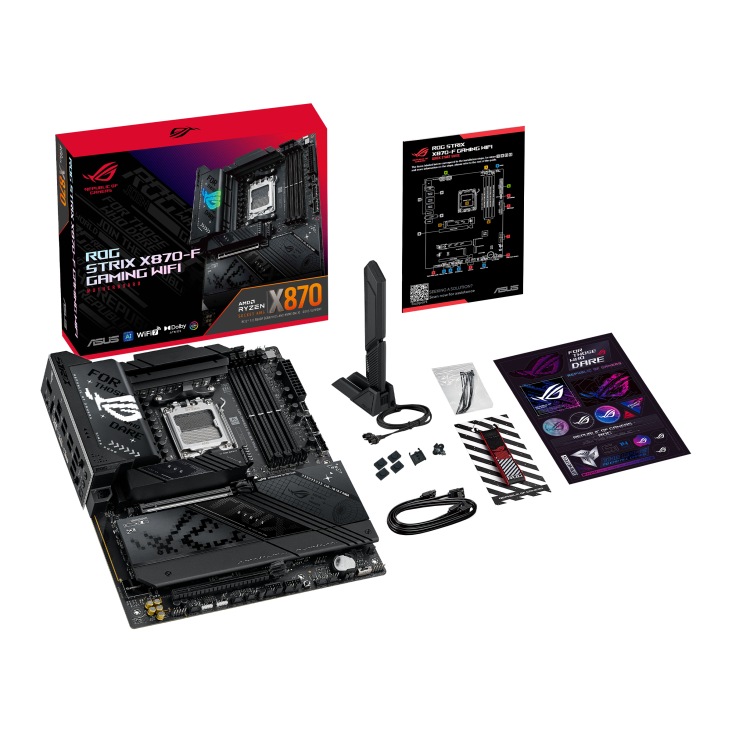

Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
Manufacturer site
Поиск похожих товаров по основным характеристикам
Все характеристики 63
Общие4
- Гарантия
- 3 года гарантии
- Производитель
- ASUS
- Код продукта
- 90MB1IV0-M0EAY0
- EAN/UPC код
- 4711387732045, 0197105732049, 197105732049
Процессор3
Производительность2
- Профиль производительности
- AMD EXPO
- Чипсет материнской платы
- AMD X870
Характеристики3
- Выходные звуковые каналы
- 7.1 канала
- Семейство чипсета материнской платы
- AMD
- Формат материнской платы
- ATX
Память8
- ECC сompatibility
- ECC и без ECC
- Каналы памяти
- Dual-channel
- Количество слотов памяти
- 4
- Максимальная внутренняя память
- 192 GB
- Небуферизованная память
- Да
- Поддерживаемая частота памяти (макс)
- 8000 MHz
- Поддерживаемые типы памяти
- DDR5-SDRAM
- Тип слотов памяти
- DIMM
Слоты расширения2
- Количество M.2 (M) слотов
- 4
- Слоты PCI Express x16 (Gen 4.x)
- 1
Сеть7
- Bluetooth
- Да
- Wi-Fi
- Да
- Wi-Fi стандартов
- Wi-Fi 7 (802.11be)
- Версия Bluetooth
- 5.4
- Основной стандарт Wi-Fi
- Wi-Fi 7 (802.11be)
- Подключение Ethernet
- Да
- Тип Ethernet интерфейса
- 2.5 Gigabit Ethernet, Быстрый Ethernet, Гигабитный Ethernet

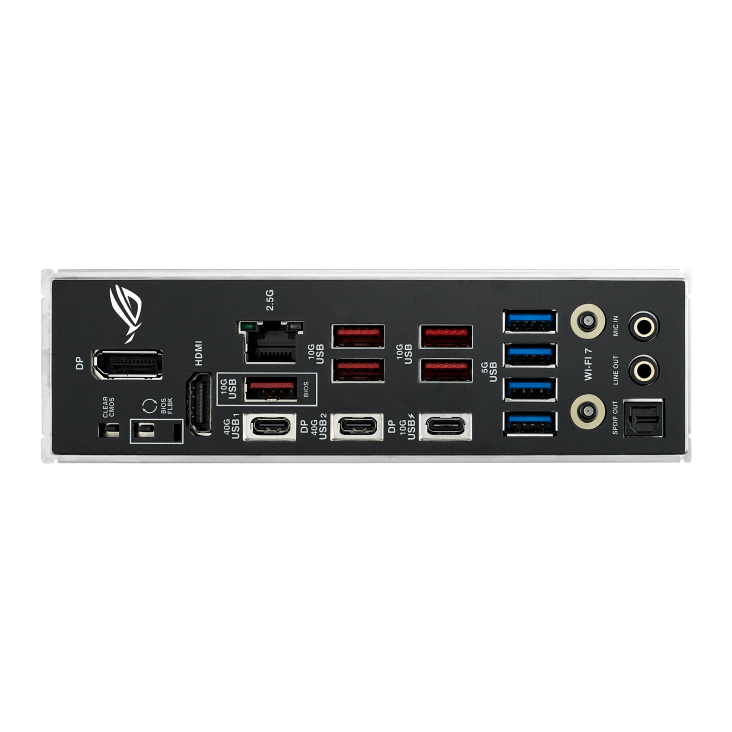

Порты и интерфейсы10
- Видеовыходы
- HDMIDisplayPort
- Количество HDMI портов
- 1
- Количество портов DisplayPort
- 1
- Количество портов Ethernet LAN ( RJ-45)
- 1
- Количество портов USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- 4
- Количество портов USB 3.2 Gen 2 (3.1 Gen 2) Type-A
- 5
- Количество портов USB 3.2 Gen 2 (3.1 Gen 2) Type-С
- 1
- Количество портов USB4 Gen 3x2
- 2
- Линейный вход микрофона
- Да
- Порты USB-C (задняя панель)
- USB4USB 3.2 Gen 2
BIOS3
- Кнопка сброса CMOS
- Да
- Размер памяти BIOS
- 256 Мбит
- Тип BIOS
- UEFI AMI
Вес и размеры2
- Глубина
- 244 мм
- Ширина
- 305 мм
Внутренние разъёмы10
- EPS разъем питания (8-конт)
- Да
- Аудиоразъем передней панели
- Да
- Количество разъемов SATA III
- 2
- Количество разъемов вентилятора корпуса
- 5
- Разъем Chassis intrusion
- Да
- Разъем вентилятора центрального процессора
- Да
- Разъем питания ATX (24-конт.)
- Да
- Разъемы USB 2.0
- 2
- Разъемы USB 3.2 Gen 1 (3.1 Gen 1)
- 2
- Разъёмы USB 3.2 Gen 2x2
- 1
Графический адаптер1
- Поддержка технологии параллельной обработки
- Не поддерживается
Дизайн1
- Цвет товара
- Чёрный
Контроллеры накопителей6
- Количество поддерживаемых дисков памяти
- 6
- Количество поддерживаемых жестких дисков
- 2
- Поддерживаемые интерфейсы носителя
- M.2, SATA III
- Поддерживаемые типы накопителей
- Жесткий диск, Твердотельный накопитель (SSD)
- Поддержка RAID
- Да
- Уровни RAID
- 0, 1, 5, 10
Разъёмы на задней панели1
- Порт выхода S/PDIF
- Да
