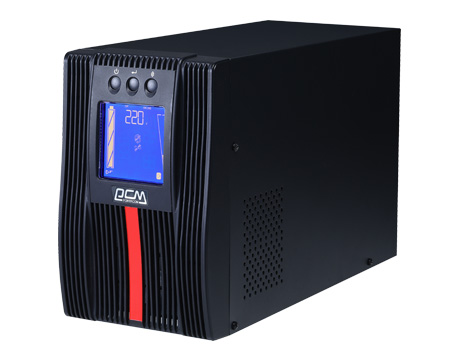

Powercom Macan - 3000VA UPS
- — Гарантия: 2 Years. Battery 1 Year Only
- — Возврат и обмен до 30 дней
- — Лучшая цена
- Выходная мощность3000 ВА
- USB портДа
- Все характеристики
POWERCOM MAC Online UPS series provide pure sine wave output for electronic devices. MAC online UPS are design as the safe guard of high-class computer, data center and server. MAC series contain power factor 1.0, output pure sinewave and double conversion topology, brings up great quality output and UPS performance. MAC series added Diagram LCD Display and Six sections Fan Regulation for information indication directly and operating environment quietly, upgrades user experience and working quality. POWERCOM MAC series combine with high tech design and better model performance is the best choice for high-class computer, data center and server.
| UPS | |||||||
|---|---|---|---|---|---|---|---|
| Model |
MAC-1000 |
MAC-1500 |
MAC-2000 |
MAC-3000 |
MAC-6000 |
MAC-10000 |
|
| Capacity(VA) |
1000 VA |
1500 VA |
2000 VA |
3000 VA |
6000 VA |
10000 VA |
|
| Capacity(Watts) |
1000 W |
1500 W |
2000 W |
3000 W |
6000 W |
10000 W |
|
| Form |
Tower Type |
||||||
| Phase |
Single Phase |
||||||
| Energy Saving |
Yes - ECO Mode Efficiency > 94% |
||||||
INPUT |
|||||||
| Voltage |
100 / 110 / 120 /127 or 208 / 220 / 230 / 240 VAC |
208 / 220 / 230 / 240 VAC |
|||||
| Voltage Range | 60 - 144 Vac, < 25% Load 120 - 276 Vac, < 25% Load 70 - 144 Vac, < 50% Load 140 - 276 Vac, < 50% Load 80 - 144 Vac, < 75% Load 160 - 276 Vac, < 75% Load 90 - 144 Vac, < 100% Load 180 - 276 Vac, < 100% Load |
120 - 276 Vac, < 25% Load 140 - 276 Vac, < 50% Load 160 - 276 Vac, < 75% Load 180 - 276 Vac, < 100% Load |
|||||
| Frequency Range |
50 / 60 Hz (Auto Sensing) |
||||||
| Power Factor |
> 0.97 |
||||||
| Cold Start |
Yes |
||||||
OUTPUT |
|||||||
| Rated Power Factor |
1.0 |
||||||
| Waveform |
Pure Sine Wave |
||||||
| Voltage |
100* / 110* / 120 / 127 VAC ± 2% or 208* / 220 / 230 / 240 VAC ± 2% |
208* / 220 / 230 / 240 VAC ± 2% |
|||||
| Frequency |
50 / 60 Hz ± 0.25 Hz |
||||||
| Transfer Time |
0 ms |
||||||
| Harmonic Distortion |
2.5% THD at Linear Load |
||||||
| Crest Factor |
3 : 1 |
||||||
| EPO Function |
Option |
||||||
PROTECTION |
|||||||
| Overload | Line Mode | 105% - 120% for 30 seconds
121% - 150% for 10 seconds |
|||||
| Battery Mode | 101% - 109% for 10 seconds
110% - 120% for 3 seconds |
||||||
| Surge Protection |
IEC 61000-4-5 Level 3 |
||||||
| Bypass |
Internal Bypass(Automatic and Manual) |
||||||
| Short Circuit Protection |
UPS Output Cut Off Immediately |
||||||
BATTERY |
|||||||
| Type |
12V 9Ah |
12V 7Ah |
12V 7Ah |
12V 9Ah |
12V 7Ah |
12V 9Ah |
|
| Quantity |
2 |
4 |
6 |
6 |
20 |
20 |
|
| Sealed, Maintenance Free |
YES |
||||||
| Typical Recharge Time |
4 Hr to 90% |
||||||
| External Battery Cabinet |
Option |
||||||
|
12V 7Ah*6, 24Vdc |
12V 7Ah*8, 48Vdc |
12V 7Ah*12, 72Vdc |
12V 7Ah*20, 240Vdc |
12V 9Ah*20, 240Vdc |
|||
| External Battery Connector |
Option |
||||||
MANAGEMENT & COMMUNICATION |
|||||||
| LCD Control Panel |
YES |
||||||
| Communication Port |
RS232, USB(B-type) |
||||||
| SNMP Slot |
Option |
||||||
| Audible Alarms |
YES |
||||||
PHYSICAL |
|||||||
| Dimensions(WxDxH)(mm) |
144 x 357 x 228 |
191 x 406 x 327 |
257 x 590 x 570 |
||||
| Weights(Kgs) |
10.4 |
16.4 |
20.3 |
22.9 |
78 |
88.4 |
|
| Shipping Dimensions(mm) |
249 x 448 x 359 |
292 x 500 x 455 |
380 x 710 x 735 |
380 x 710 x 735 |
|||
| Shipping Weights(Kgs) |
11.5 |
18.4 |
22.3 |
24.9 |
87 |
97.4 |
|
