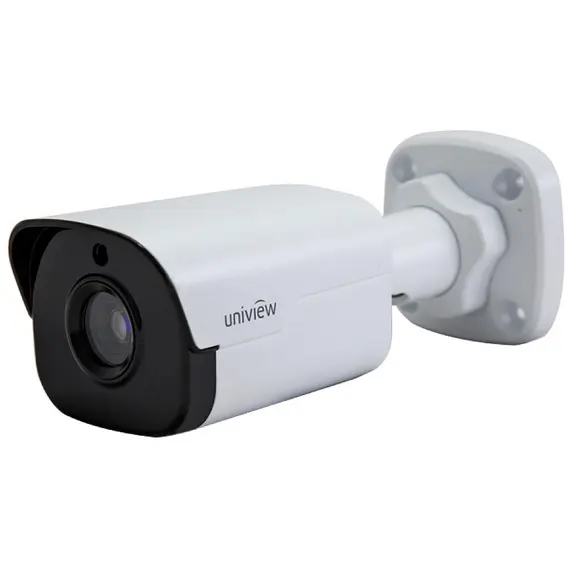

UNIVIEW Bullet IPC2124SR3-DPF120 4MP WDR Network IR Mini Bullet Camera
- — Гарантия: 1 Год гарантии
- — Возврат и обмен до 30 дней
- — Лучшая цена
|
Camera |
||||
|
Sensor |
1/3", progressive scan,4.0 megapixel, CMOS |
|||
|
Lens |
12.0mm@F1.8 |
|||
|
Angle of View(H) |
25° |
|||
|
Shutter |
Auto/Manual, 1/6~1/100000 s |
|||
|
Minimum Illumination |
Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on |
|||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|||
|
Digital noise reduction |
2D/3D DNR |
|||
|
S/N |
>55dB |
|||
|
IR Range |
Up to 30m (98 ft) IR range |
|||
|
Defog |
Digital Defog |
|||
|
WDR |
120dB |
|||
|
Video |
||||
|
Video Compression |
Ultra 265,H.265, H.264, MJPEG |
|||
|
H.264 code profile |
Baseline profile, Main Profile, High Profile |
|||
|
Frame Rate |
Main Stream:4MP (2592×1520): Max. 20 fps，4MP (2560×1440): Max. 25 fps，3MP (2048×1520): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max.30fps |
|||
|
9:16 Corridor Mode |
Supported |
|||
|
HLC |
Supported |
|||
|
BLC |
Supported |
|||
|
OSD |
Up to 8 OSDs |
|||
|
Privacy Mask |
Up to 8 areas |
|||
|
ROI |
Up to 8 areas |
|||
|
Motion Detection |
Up to 4 areas |
|||
|
Smart |
||||
|
Behavior Detection |
Intrusion, cross line, motion detection |
|||
|
Intelligent Identification |
Face detection, Defocus, Scene Change |
|||
|
Statistical Analysis |
People counting |
|||
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|||
|
Network |
||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
|||
|
Compatible Integration |
ONVIF(Profile S, Profile G), API |
|||
|
Interface |
||||
|
Network |
1 RJ45 10M/100M Base-TX Ethernet |
|||
|
General |
||||
|
Power |
12 V DC±25%, or PoE (IEEE802.3 af) |
|||
|
Power consumption: Max 6.4 W |
||||
|
Dimensions (L × W × H) |
157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”) |
|||
|
Working Environment |
-35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing) |
|||
|
Ingress Protection |
IP67 |
|||
|
Reset Button |
Supported |
|||
