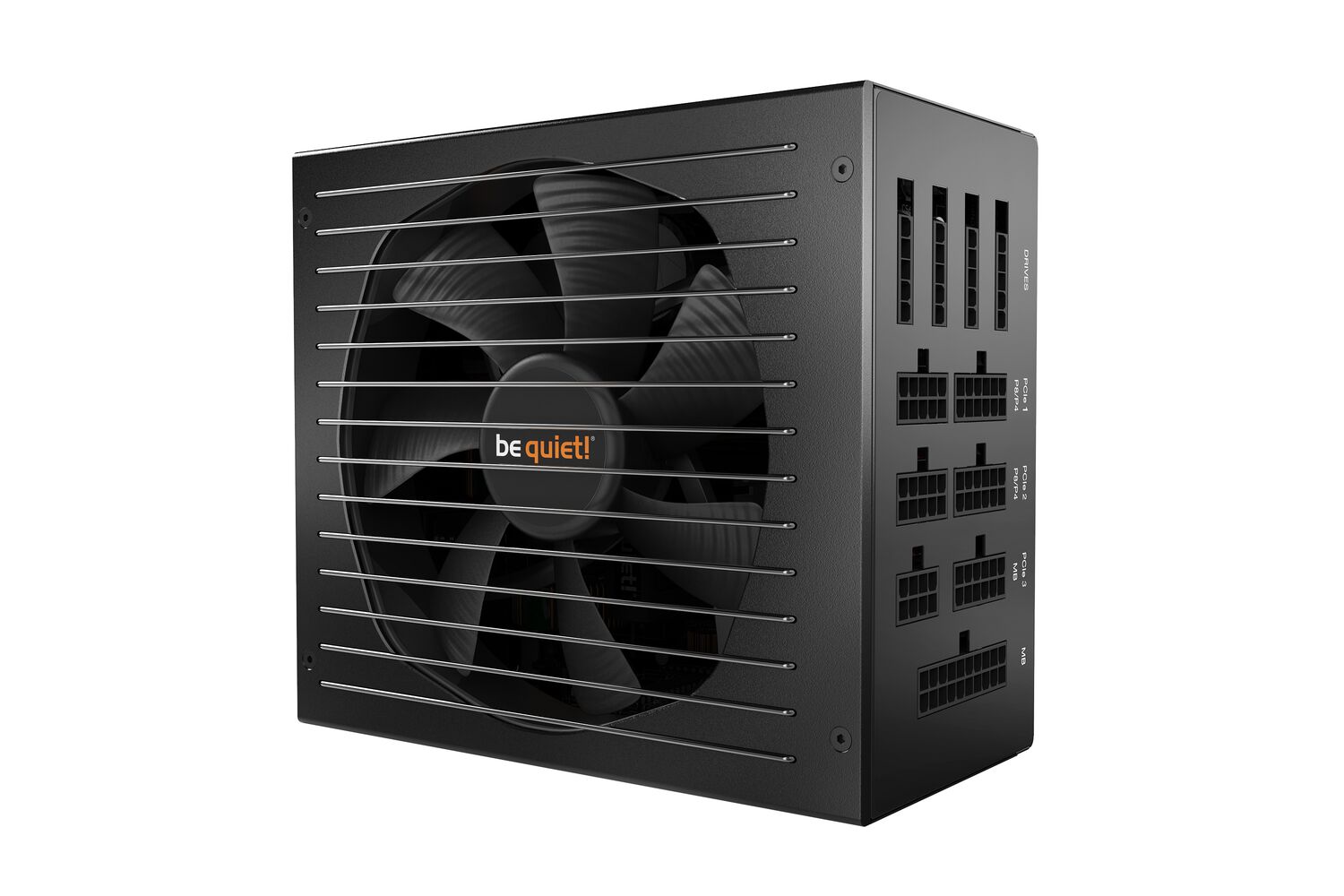

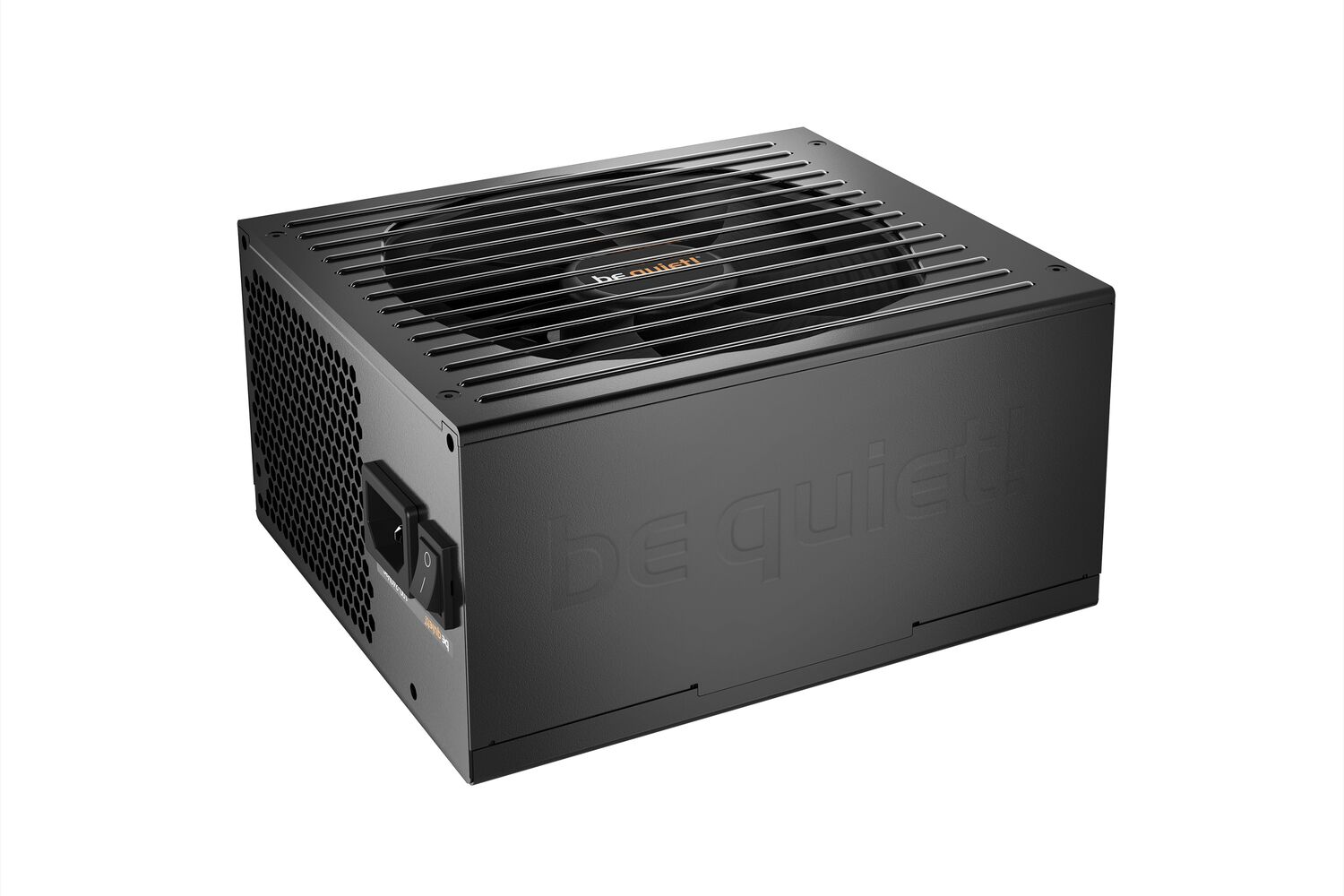

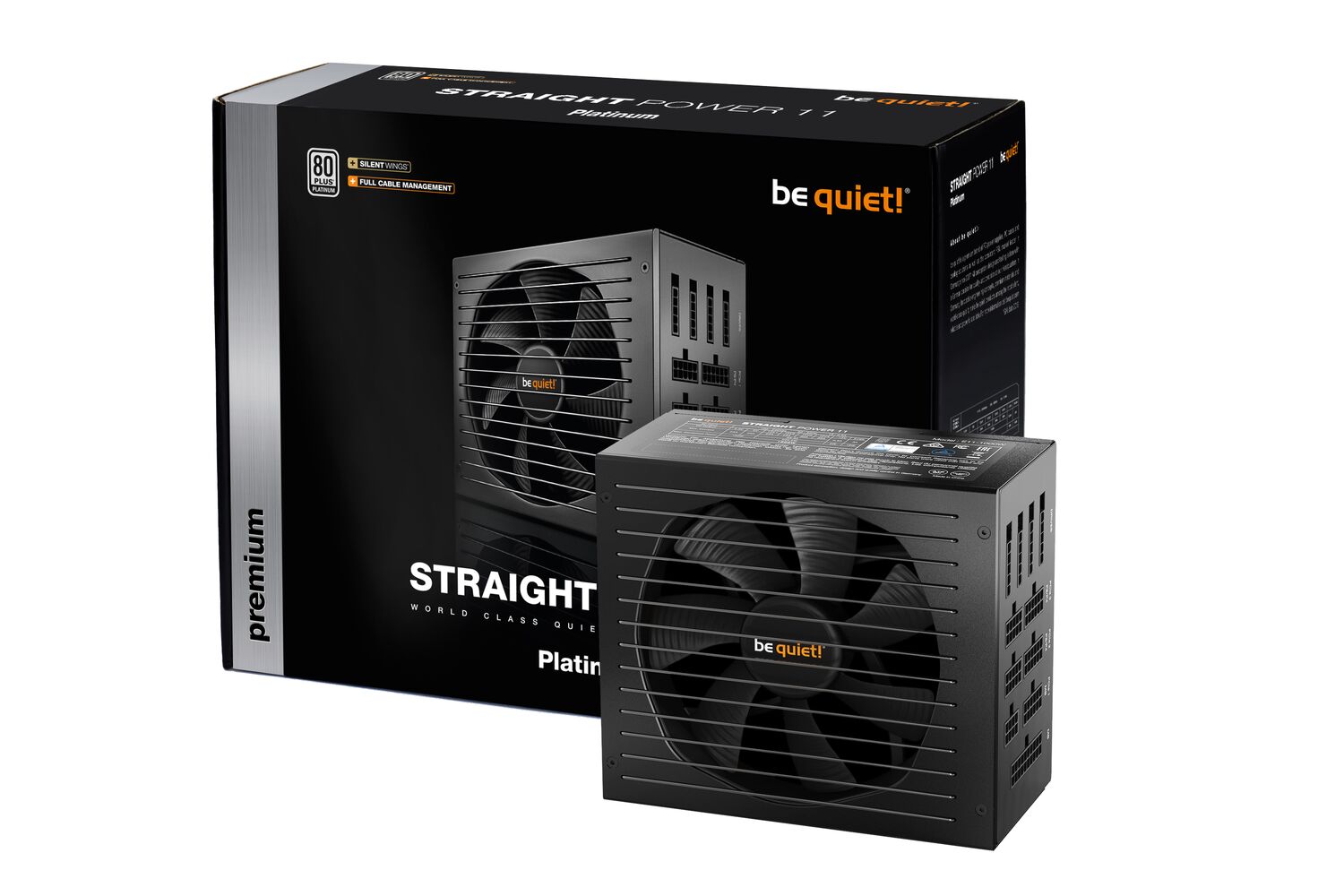

be quiet! Straight Power 11 - Power Supply Unit, 1000W, Platinum, 20+4 pin ATX, Black

Livraison
Payment options
Our advantages
  • — Garantie: 5 Years Warranty
  • — Retour et échange jusqu'à 30 jours
  • — Meilleur prix
Find similar

80 PLUS PLATINUM CERTIFIED
One of the highest efficiency certificates available
Straight Power 11 Platinum 1000W is certified with 80 PLUS Platinum efficiency, reaching up to 94.1%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.

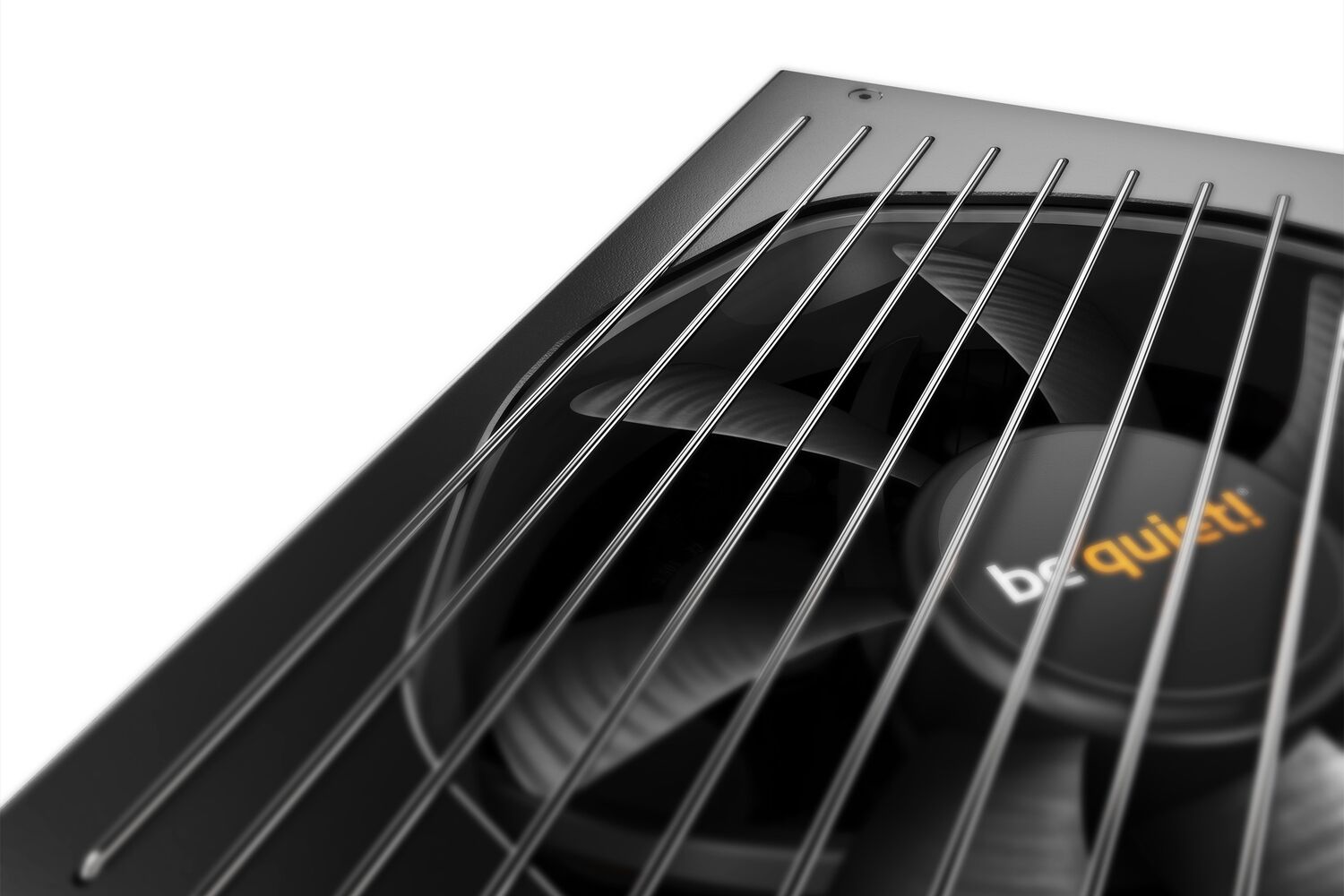

SILENT WINGS 3 FAN
Provides virtually inaudible operation
The high-end Silent Wings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.

FUNNEL-SHAPED FAN OPENING
Higher cooling performance
The fan inlet of the Straight Power 11 Platinum 1000W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.

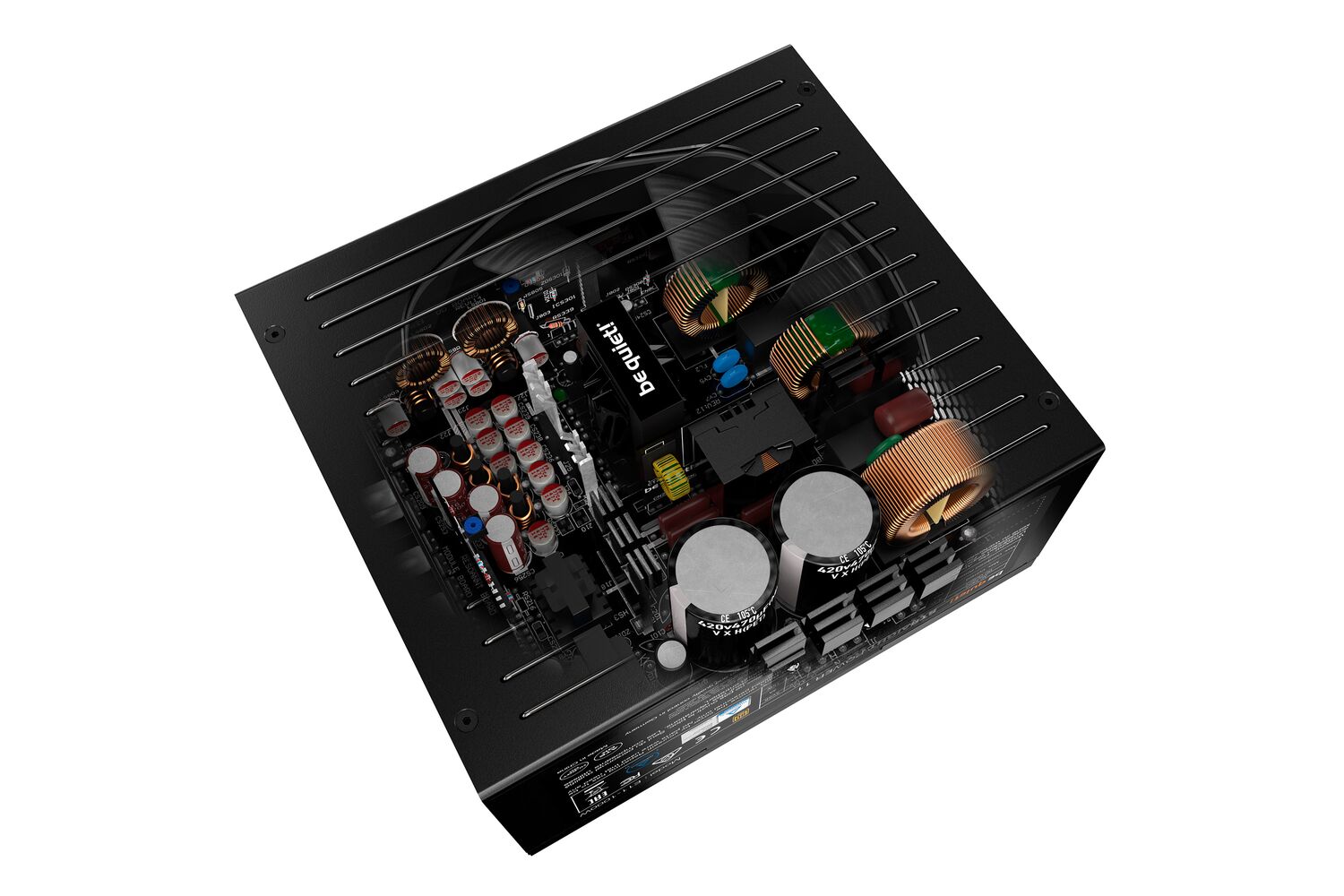

WIRE-FREE DESIGN INSIDE THE PSU
Pushing the longevity of components to a maximum
An absolute innovation: The Straight Power 11 Platinum 1000W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.

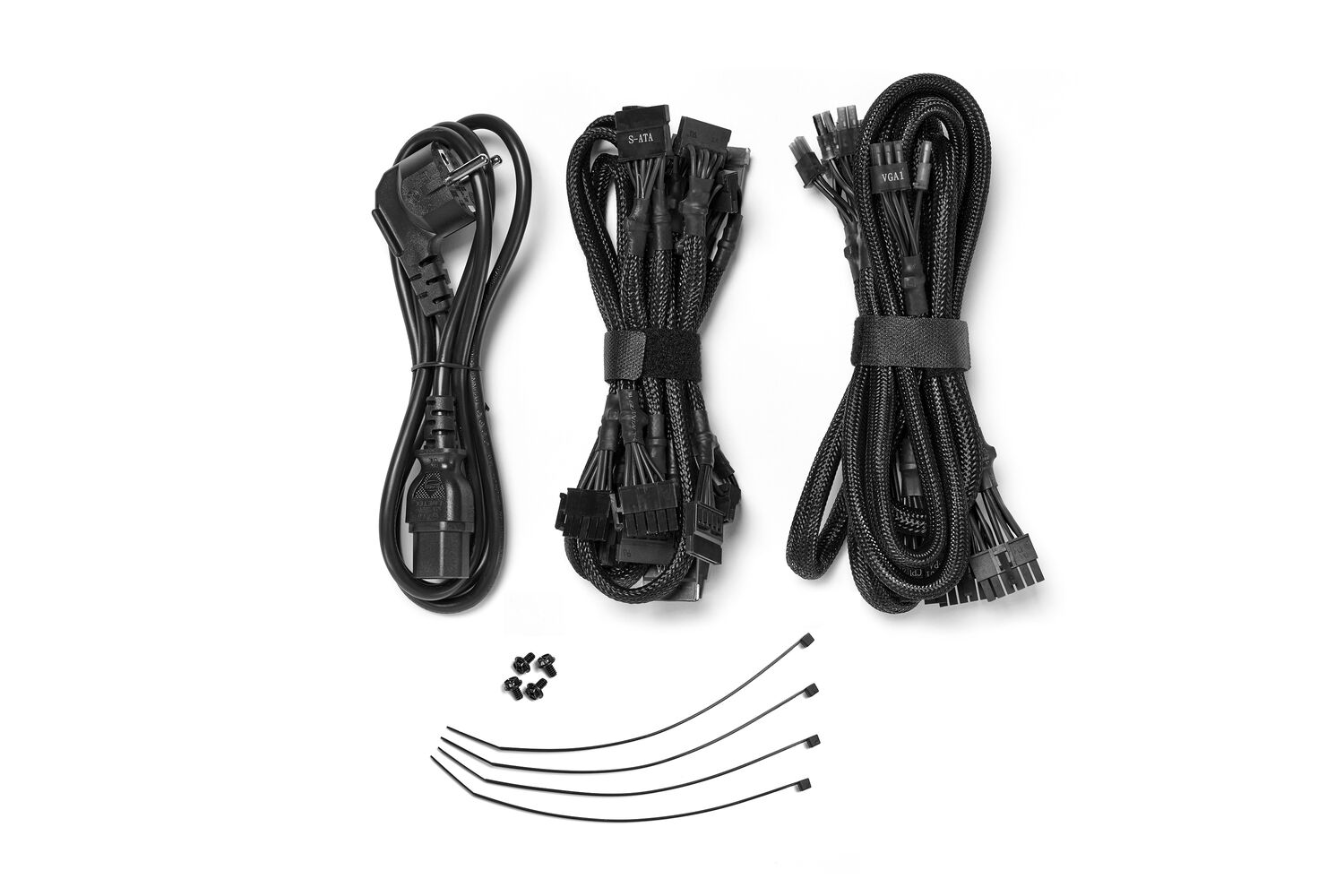

MODULAR CABLES
Utmost convenience and compatibility
Thanks to the modular cables, all cables that serve no purpose in the system are left out. For this reason, systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.

STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced full bridge, LLC and Synchronous Rectifier (SR) technology it provides unmatched signal stability and unbeatable power efficiency. The DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions ensures reliable operation for the next generation of processors and graphics cards.

JAPANESE 105° CAPACITORS
A testament to high quality
Only the best components are used in Straight Power 11 Platinum 1000W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life.

Manufacturer site

Main
Brand
be quiet!
Garantie
5 Years Warranty
Design
Diamètre du ventilateur
13.5 cm
Emplacement du ventilateur
Haut
Nombre de ventilateurs
1 ventilateur(s)
Type de refroidissement
Active
Vitesse du ventilateur
0 - 2600 tr/min
Couleur du produit
Noir
Logistics data
Hauteur du casier principal (externe)
34,6 cm
Largeur du casier principal (externe)
28,2 cm
Longueur du casier principal (externe)
65,1 cm
Poids brut du casier principal (externe)
24 kg
Other features
Longueur du câble EPS
70 cm
Manuel d'utilisation
Oui
Niveau de bruit (mode charge complète, 100 %)
28,1 dB
Niveau de bruit (mode silencieux, 50 %)
8 dB
Niveau de bruit (mode silencieux, < 30 %)
7,8 dB
Serre-câbles inclus
Oui
Technologie de Traitement en parallèle
Dual Graphics
Vis incluses
Oui
Packaging data
Hauteur du colis
102 mm
Largeur du colis
248 mm
Poids du paquet
3,43 kg
Profondeur du colis
328 mm
Type d'emballage
Box
Performance
Certification
CE, CB, TÜV, FCC, cTUVus, RCM (Australia), BSMI, CU (Russia)
Facteur de forme de l'unité d'alimentation
ATX
Niveau sonore
28,1 dB
Technologie de roulement
FDB
Temps moyen entre pannes
100000 h
Utilité
PC
Version ATX
2.51
Version EPS
2.92
Ports & interfaces
Connecteur d'alimentation du lecteur de disquette
1
Connecteur de la carte mère
20+4 pin ATX
Connecteur électrique EPS (4+4 broches)
Oui
Connecteur EPS power (8-pin)
Oui
Connecteurs d'alimentation PCI Express (6 +2 pin)
6
Longueur de câble d'alimentation de carte-mère
60 cm
Longueur du câble d'alimentation PCI Express
60 cm
Nombre de câbles d'alimentation SATA
11
Nombre de PATA connecteurs de puissance
4
Power
Courant d'entrée
13/6.5 A
Courant de sortie max (+12 V1)
22 A
Courant de sortie max (+12 V2)
22 A
Courant de sortie max (+12 V3)
30 A
Courant de sortie max (+12 V4)
30 A
Courant de sortie max (+12V)
83,3 A
Courant de sortie max (+3.3V)
25 A
Courant de sortie max (+5V)
25 A
Courant de sortie max (+5Vsb)
3 A
Courant de sortie max (-12V)
0,5 A
Dispositifs de protection électrique
Sur-courant, Sur-alimentation, Surtension, Surchauffe, Court-circuit, Sous-tension
Efficacité
94,1 %
Facteur de puissance
0,99
Fréquence d'entrée AC
50/60 Hz
Puissance combinée (+12 V)
999,6 W
Puissance combinée (+3,3 V)
150 W
Puissance combinée (+5V)
150 W
Puissance combinée (+5Vsb)
15 W
Puissance combinée (-12V)
6 W
Puissance de crête
1070 W
Temps de maintien
20 ms
Tension d'entrée AC
100 - 240 V
Type de Correcteur de Factueur de Puissance (CFP)
Actif
Technical details
Certificats de durabilité
RoHS,ENERGY STAR
Weight & dimensions
Hauteur
86 mm
Largeur
150 mm
Poids
1.87 kg
Profondeur
170 mm

Recherche automatique de vidéos par nom de produit (le résultat peut ne pas correspondre au produit présenté sur notre site web).

Additionnel (mmo_77465860_1579091487_9955_5396.pdf, 1,323 Kb) [Télécharger]
