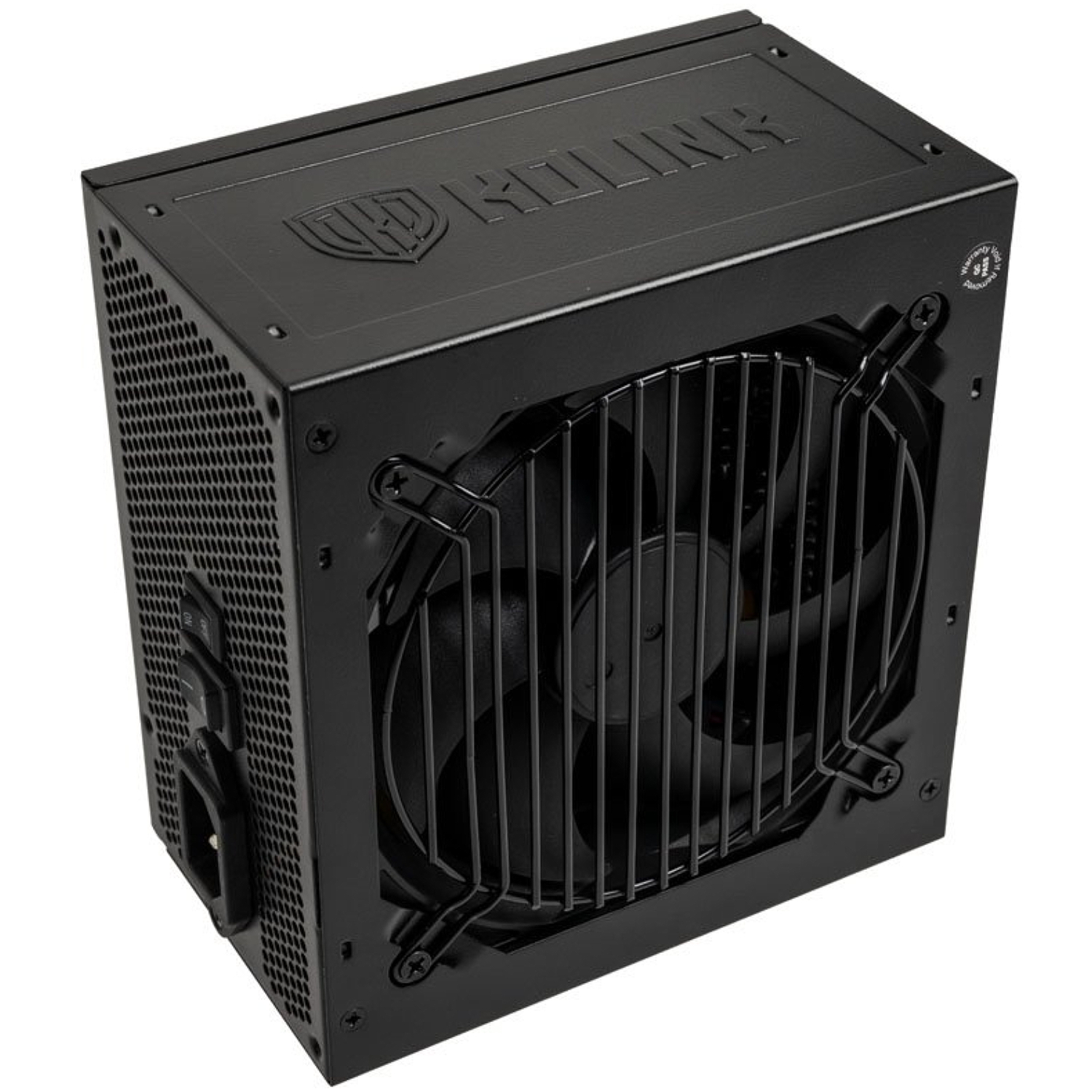

Kolink Regulator KL-R750FG - Power Supply Unit, 750W (ATX 3.0), 80 PLUS, Gold

Kolink REGULATOR ATX3.0 PSU Features:

• ATX 3.0 / PCIe 5.0 compatible with 12VHPWR 600W connector
• Switchable Semi-Fanless Mode
• 100% Japanese capacitors
• Super quiet 120mm FDB fan
• Compact design with a 14cm depth
• Extensive safety functions (OVP, UVP, OPP, SCP, OCP, OTP, SIP)

Detailed Description

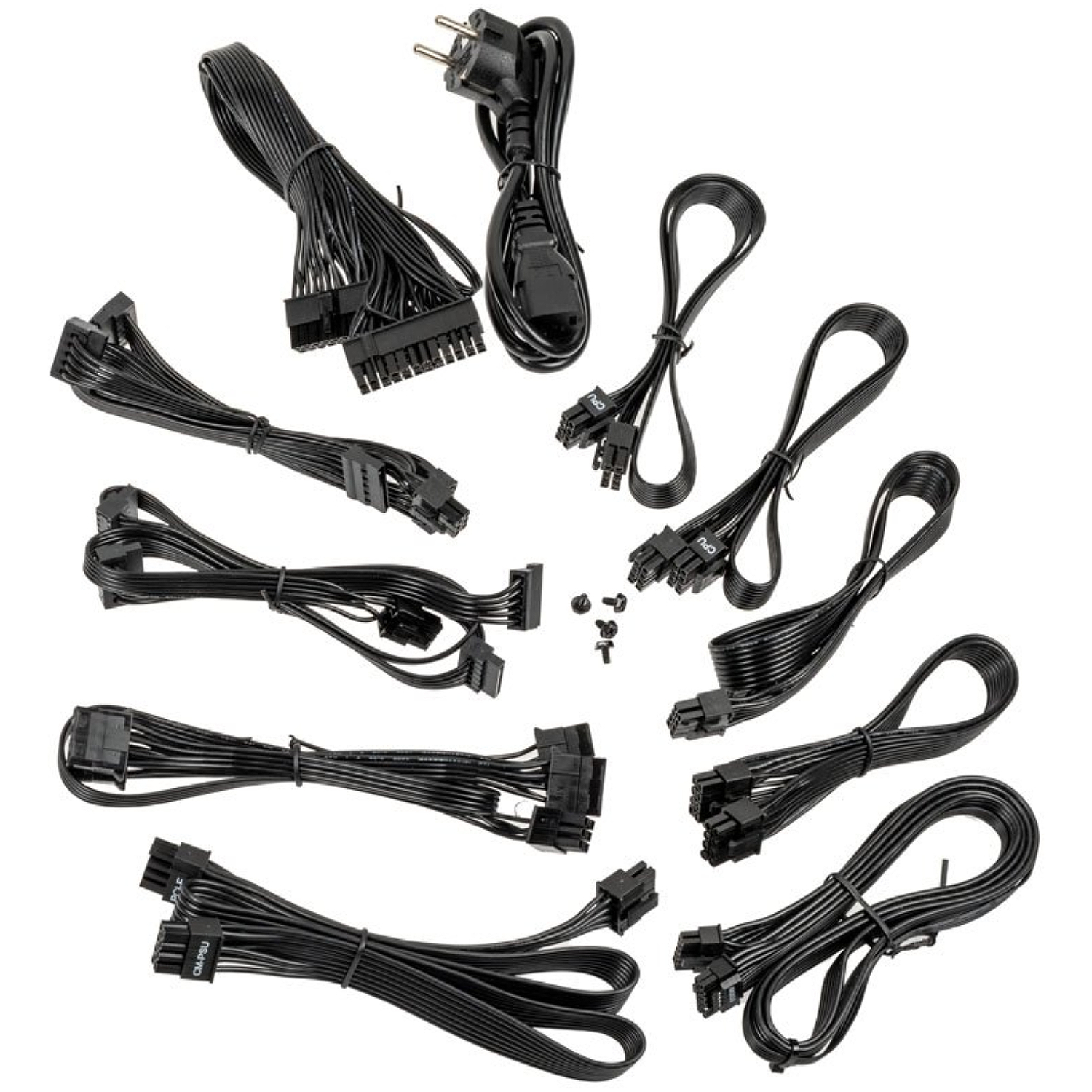

ATX 3.0 Ready with 12VHPWR 600W Connector

The REGULATOR series utilizes an LLC + DC/DC single-rail design, offering full ATX 3.0 and PCIe 5.0 compatibility. Modern graphics cards can draw up to 600W through the included 12VHPWR cable (AWG16), eliminating the need for additional adapters.

Switchable Semi-Fanless Mode

A dedicated semi-fanless mode can be activated via a switch next to the power button. Key features include:

• Passive cooling up to 40% load for whisper-quiet performance under light to medium loads.
• Fan activation at higher loads or temperatures to support cooling.
• Option to disable semi-fanless mode for continuous low-speed fan operation, even under light loads.

100% Japanese Capacitors

The REGULATOR series uses premium Japanese capacitors to ensure exceptional performance, durability, and reliability.

Super-Quiet FDB Fan

A 120mm Fluid Dynamic Bearing (FDB) fan provides:

• Enhanced longevity and durability.
• Optimized blade design for improved airflow with reduced noise.
• 8mm spacing between the grill and blades for minimized turbulence.

Stable Voltages with Low Ripple

With tight voltage regulation across the entire load range, the REGULATOR series ensures stability and enhanced longevity for connected components.

Strikingly Compact Design

The REGULATOR's carefully curated circuit board layout enables a compact housing just 14cm deep, making installation quick and easy, even in space-constrained systems.

Extensive Protective Functions

The REGULATOR series incorporates a comprehensive 7-fold protection system, including:

• Overvoltage protection (OVP)
• Undervoltage protection (UVP)
• Overpower protection (OPP)
• Short-circuit protection (SCP)
• Overcurrent protection (OCP)
• Overtemperature protection (OTP)
• Surge and inrush protection (SIP)
