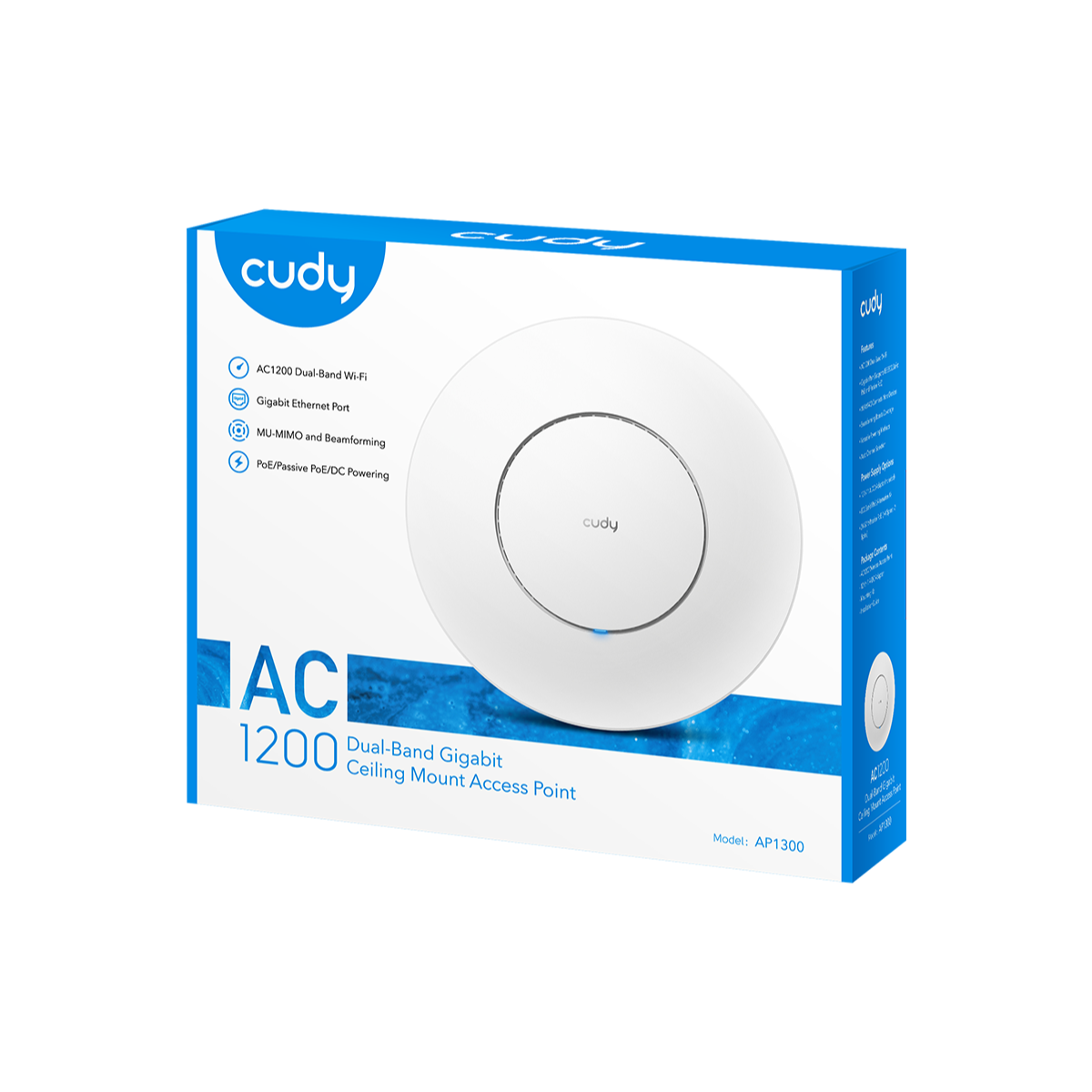

Cudy AP1300 - Wireless Access Points, Outdoor, 867Mbit/s, Power over Ethernet (PoE), White
- — Garantía: 1 year warranty
- — Devolución y cambio hasta 30 días
- — Mejor precio
The Cudy AP1300 AC1200 Dual Band Gigabit Wi-Fi Access Point features MU-MIMO technology to facilitate efficient data transmission to multiple devices simultaneously, even during heavy usage.
The beamforming technology further improves coverage by directing signals towards connected devices.
The Cudy AP1300 is mesh-ready, enabling seamless coverage through automatic client switching between access points. This is particularly useful for maintaining uninterrupted Wi-Fi calling or live streaming while moving within a space.
It supports flexible wired-and-wireless hybrid backhaul options, providing a choice between simple wireless mesh backhaul and hybrid backhaul for enhanced performance.
With multiple operational modes, such as Access Point, Wi-Fi Router, Range Extender, and WISP, the Cudy AP1300 Access Points accommodates diverse networking needs.
Advanced business features like Captive Portal, Band Steering, Auto Channel Optimization, and Self-Organizing Mesh are available for more sophisticated deployments.
The Cudy AP1300 operates on Wi-Fi 5 (802.11ac/n/g/b/a) standards and supports both 2.4 GHz and 5 GHz frequencies with up to 867 Mbps and 300 Mbps signal rates respectively.
It offers features like Multiple SSID, Captive Portal, Seamless Roaming Mesh, Band Steering, and more for comprehensive wireless management.
Specifications
| Hardware Features | Highlights | CPU: 880 MHz Dual-Core Processor |
| Flash: 16 MB (128 Mbit) | ||
| DDR: 128 MB (1 Gbit) | ||

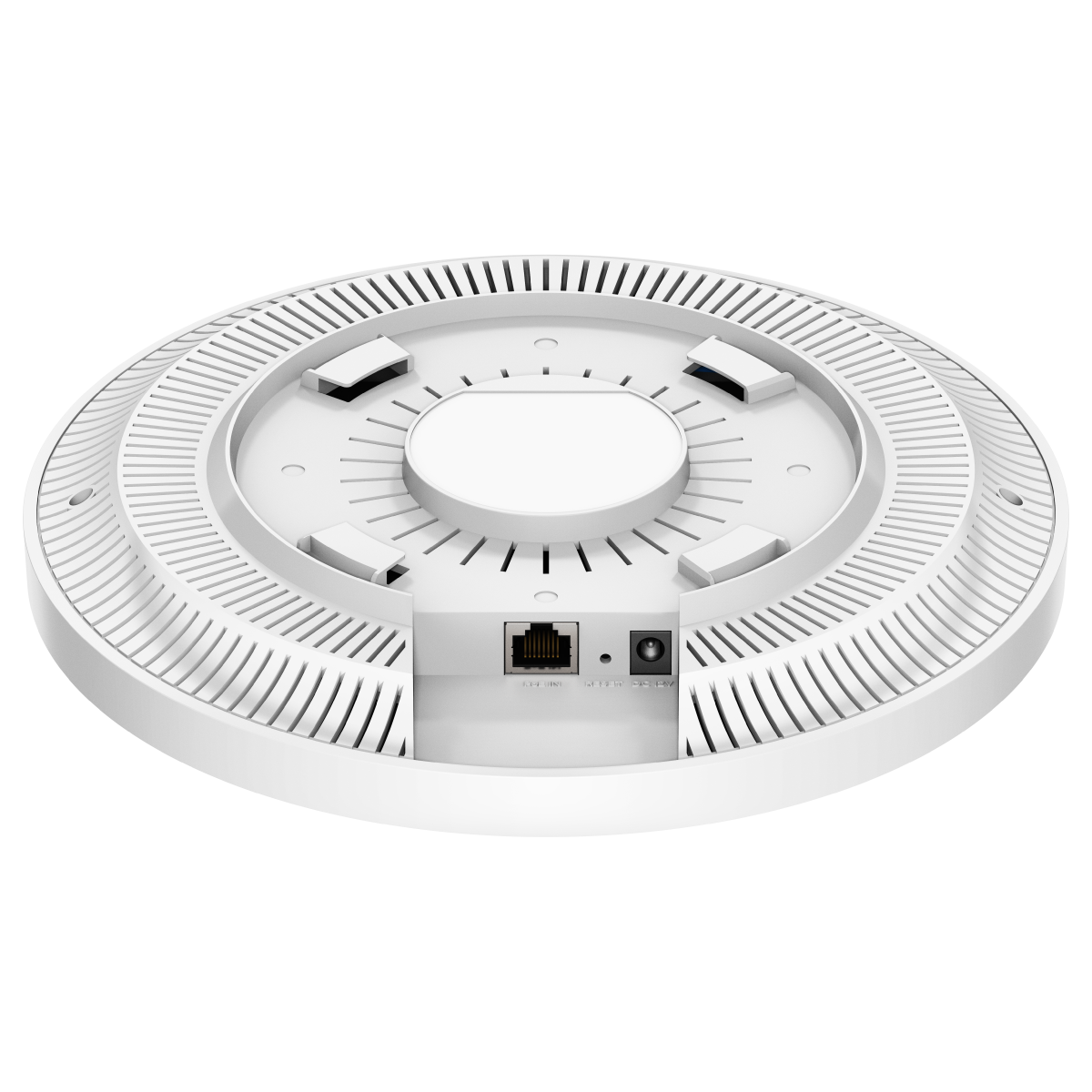

| Interface | 1× Gigabit Ethernet Port (PoE In) | |
| 1× Reset Button | ||
| 1× DC Jack | ||
| Power Supply | 802.3af/at PoE | |
| 24-57 V Passive PoE (+4,5pins; -7,8pins) | ||
|
12 V ⎓ 1A DC |
||
| Power Consumption | Idle: 4 W | |
|
PoE Max: 11 W DC Max: 7.5 W |
||
| Dimensions ( W×D×H ) | 232×232×57.1mm | |
| Antenna Type |
4× Internal Omni-directional Antennas |
|
| Mounting | Ceiling/Wall Mounting (Kit included) | |
| Wireless Function | Wireless Standards |
Wi-Fi 5 (802.11ac/n/g/b/a) |
| Frequency | 2.4 GHz and 5 GHz | |
| Signal Rate | 5 GHz: Up to 867 Mbps | |
| 2.4 GHz: Up to 300 Mbps | ||
| Channel Width | 20/40/80 MHz | |
|
Wireless Functions (Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023) (Features with △ require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28) |
Multiple SSID* | |
| Captive Portal* | ||
| Seamless Roaming Mesh△ | ||
| Self-Organizing Mesh△ | ||
| Band Steering* | ||
| Auto Channel Optimization* | ||
| Enable/Disable Wireless Radio | ||
| Transmit Power Control | ||
| QoS (WMM) | ||
| MU-MIMO | ||
| Beamforming | ||
| Rate Limit | ||
| Reboot Schedule | ||
| Wireless Schedule | ||
| Wireless Encryption | WPA-PSK | |
| WPA2-PSK | ||
| WPA-PSK/WPA2-PSK | ||
|
Security (Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023) |
IP/MAC Filtering | |
| AP Isolation* | ||
| Operating Modes | Wireless Access Point Mode | |
| Wireless Router Mode | ||
| Wireless Extender Mode | ||
| WISP Mode | ||

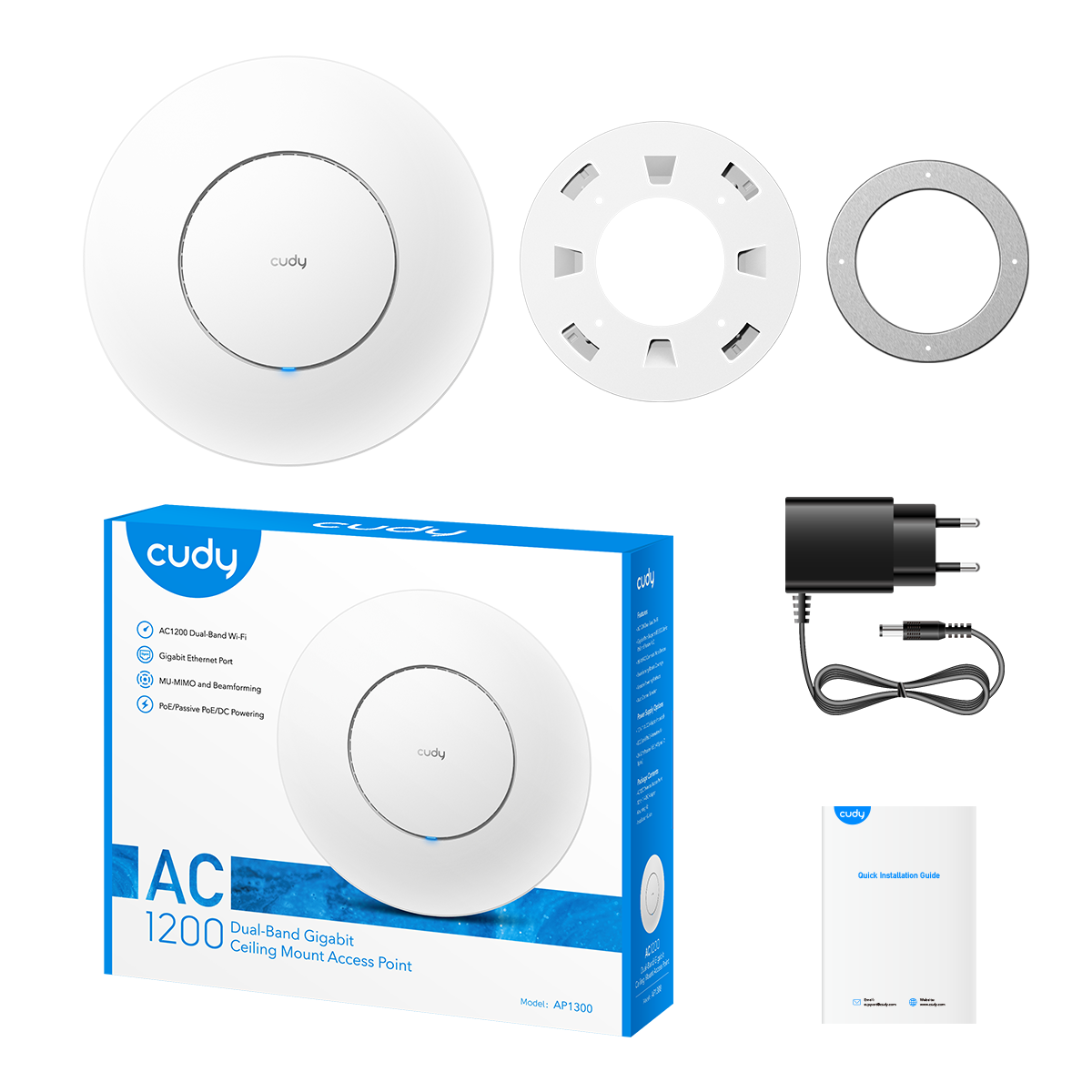

| Package Content | Access Point | |
| DC Adapter | ||
| Mounting Kit | ||
| Installation Guide | ||
| Environments | Operating Temperature: 0~40 °C (32~104 °F) | |
| Storage Temperature: -40~70 °C (-40~158 °F) | ||
| Operating Humidity: 10~90% RH non-condensing | ||
| Storage Humidity: 5~90% RH non-condensing | ||
| System Requirements | Windows, MAC OS, NetWare, UNIX, or Linux | |
| Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Javascript-enabled browser | ||
| A fiber/cable/DSL Modem, or other devices providing wired internet | ||
| Subscription with an internet service provider for internet access | ||
| A power socket for AC power supply, or PoE power supply | ||
|
Advanced business AP features require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023. Mesh features require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28. |
||
