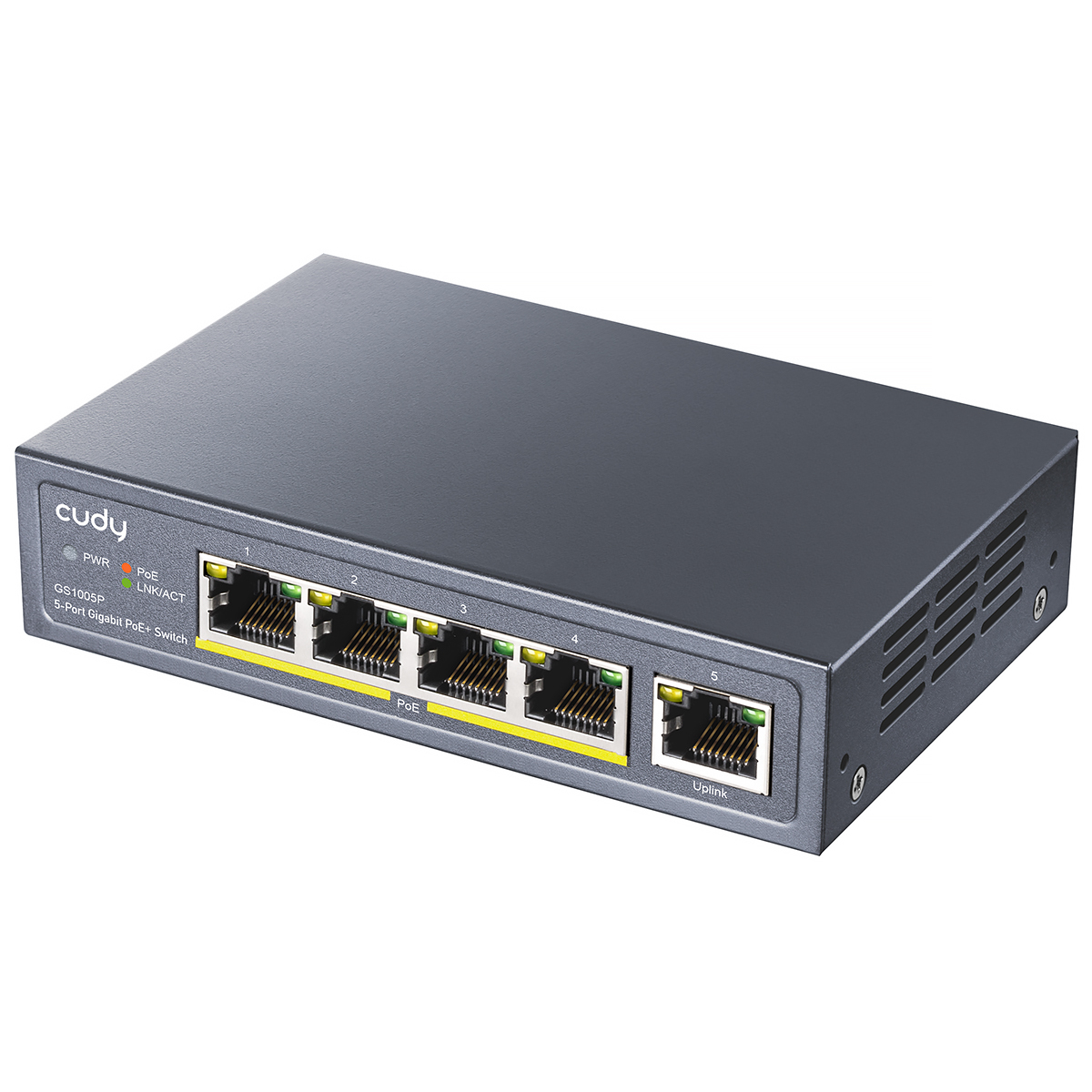

Cudy GS1005P - Network Switch, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Grey
- — Garantie: 1 year warranty
- — Retour et échange jusqu'à 30 jours
- — Meilleur prix
- Quantité de ports Ethernet RJ-45 de commutation de base5
- Type de port Ethernet RJ-45 de commutation de baseGigabit Ethernet (10/100/1000)
- Connexion Ethernet, supportant l'alimentation via ce port (PoE)Oui
- Toutes les caractéristiques
● Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
● Provides 5 10/100/1000Base-TX ports
● 60W PoE power output total
● High back-plane bandwidth 10Gbps
● IEEE802.3x Flow control
● EMI standards complies with FCC, CE class B
4-Port PoE+ and 1-Port Uplink
● 10/100/1000 Mbps Ethernet Ports
● IEEE 802.3af/802.3at compliant
● 65W total PoE Power supply.
● Ideal for installations of 4 PoE/PoE+ devices
● Pin assignment: alternative 1/2 (+), 3/6 (-).
Wall Mount & Desktop
● Provide a variety of installation methods for easy deployment in any environment
● Support Wall mount installation
● Support Desktop installation
Heat Dissipation
● Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment.
● Venting holes help to dissipate heat quickly and ensure stable product operation
Auto-sensing technology
● Auto-sensing technology delivers up to 32W to an 802.3at PoE+ device with backwards compatibility for 802.3af PoE (15.4W) devices
Port-Power-Prioritization
● Port-Power-Prioritization technology ensure continuous power supply of key nodes.
Lightning protection
● Electrostatic standard: contact 4KV, air 6
Specification
| Item | Description | |||
| Power | Power supply | External Power Adaptor | ||
| Voltage Range | DC48~57V | |||
| Switch Consumption | <5W | |||
| Ethernet | Speed | 1~5 Port : 10/100/1000Mbps | ||
| Uplink: 10/100/1000Mbps | ||||
| Transmission Distanc | 100Meter (328ft) | |||
| Network Switch | Ethernet Standard | IEEE 802.3/802.3u/802.3ab/802.3af/at | ||
| Switching capacity | 10G | |||
| Transfer Rate | 14,880pps for 10Mbps | |||
| 148,800pps for 100Mbps | ||||
| 1,488,000pps for 1000Mbps | ||||
| MAC Address | 2K MAC address table | |||
| LINK/ACT | On | Green | The port is connecting | |
| Blinks | - | The port is receiving or transmitting data | ||
| Off | - | The port is not linked successfully with the device | ||
| POE | On | Orange | PD is connected | |
| OFF | - | No PD is connected or power forwarding fails | ||
| Capacity | 60W | |||
| PoE pin assignmnet | V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) | |||
| Environment | Working Temperature | 0~40℃ | ||
| Storage Temperature | -40~70℃ | |||
| Humidity Non condesing | 0~90% | |||
| Mechanical | Dimension | 119 x 85 x 28mm | ||
| Color | Gray | |||
