Cudy GS1024 - Network Switch, Gigabit Ethernet (10/100/1000), Black

• Type de port Ethernet RJ-45 de commutation de baseGigabit Ethernet (10/100/1000)
• Connexion Ethernet, supportant l'alimentation via ce port (PoE)Oui
• Type de commutateurUnmanaged
• Toutes les caractéristiques

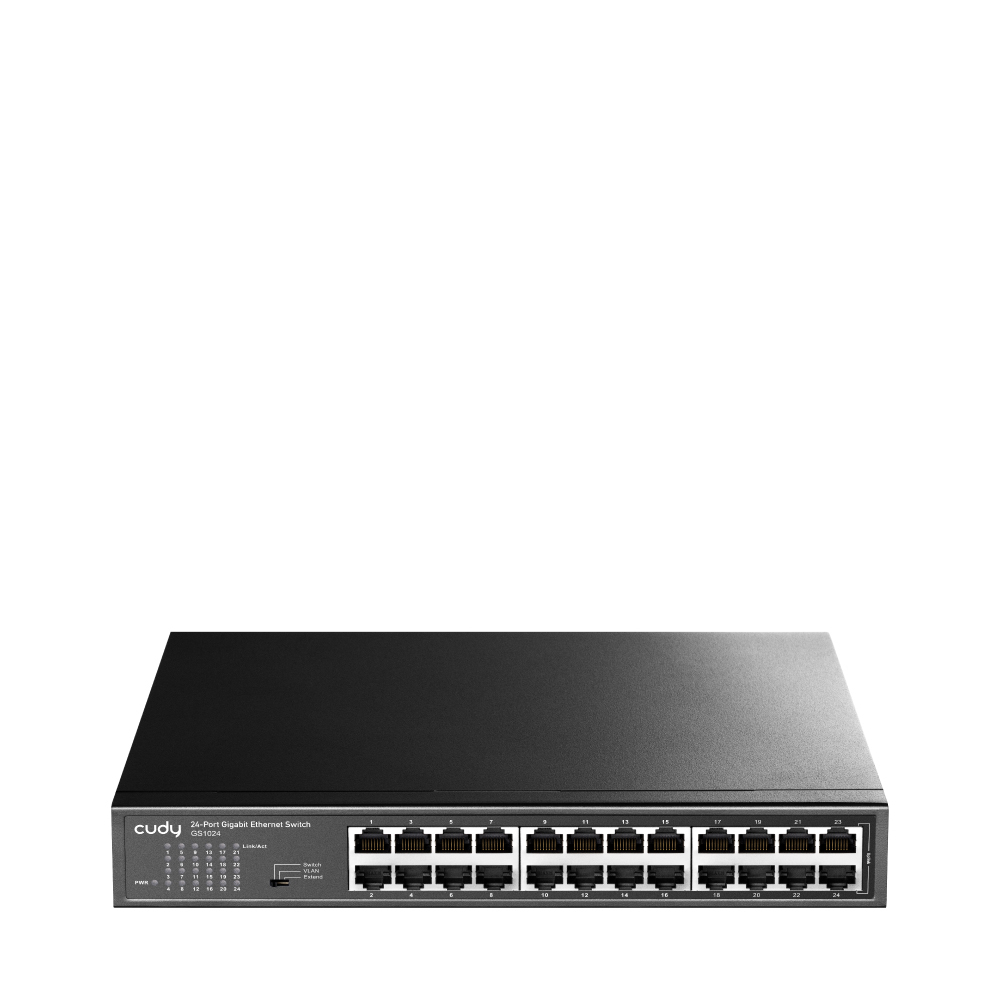

Unmanaged 24-port 10/100/1000 Mbps switch with internal carrier

Metal ears for the cabinet are included in the package.

● Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
● 24 10/100/1000Mbps Auto Negotiation, Auto MDI/MDIX ports provide smart switching abilities
● Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
● Store-and-Forward switching method
● Supports 8K MAC address auto-learning and auto-aging

Specifications

• Chipset: RTL8382L+2*RTL8218B+2*RTL8231
• Standards: IEEE 802.3、IEEE 802.3u、IEEE802.3ab、IEEE802.3x、IEEE802.3az
• Number of Ports: 24 x 10/100/1000Mbps Auto-Negotiation ports
• Network Media (Cable): 10Base-T: UTP category 3,4,5 cable (maximum 100m)
• 100Base-Tx: UTP category 5,5e cable (maximum 100m)
• 1000Base-T: UTP category 5e,6 cables (maximum 100m)
• Transfer Method: Store-and-Forward
• MAC Address Table: 8K
• Switching Capacity: 48Gbps
• Packet Forwarding Rate: 35.7Mbps
• Packet Buffer: 4.1 Mbit
• Jumbo Frame: 9K Bytes
• LED indicators: Per-Port: 10M/100M Link/ACT: Orange, 1000M Link/ACT: Green, Per Device Power： Green
• Power Supply    AC 100-240V/50-60Hz 12//1.5A internal power
• Power Consumption    Maximum: 15W(220V/50Hz)
• Dimensions ( W x D x H )    440*140*44mm
• Environment  Operating Temperature: 0℃ ~ 40℃
• Storage Temperature: -40℃ ~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage humidity: 5%~90% non-condensing
