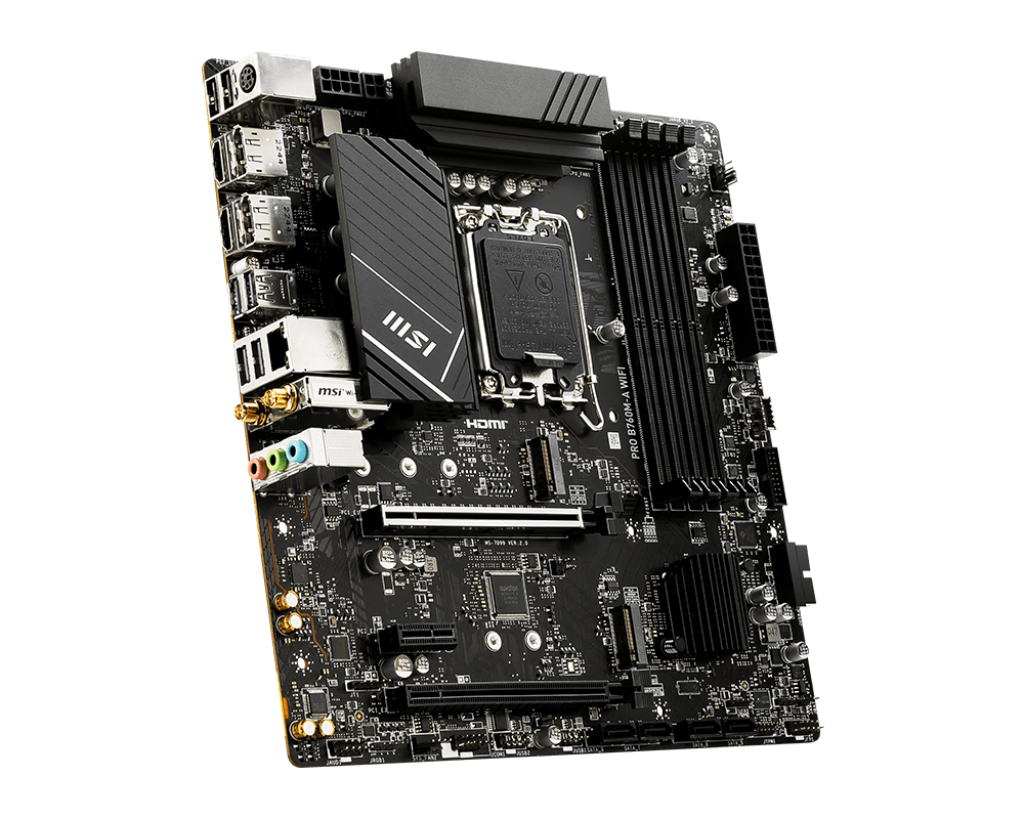

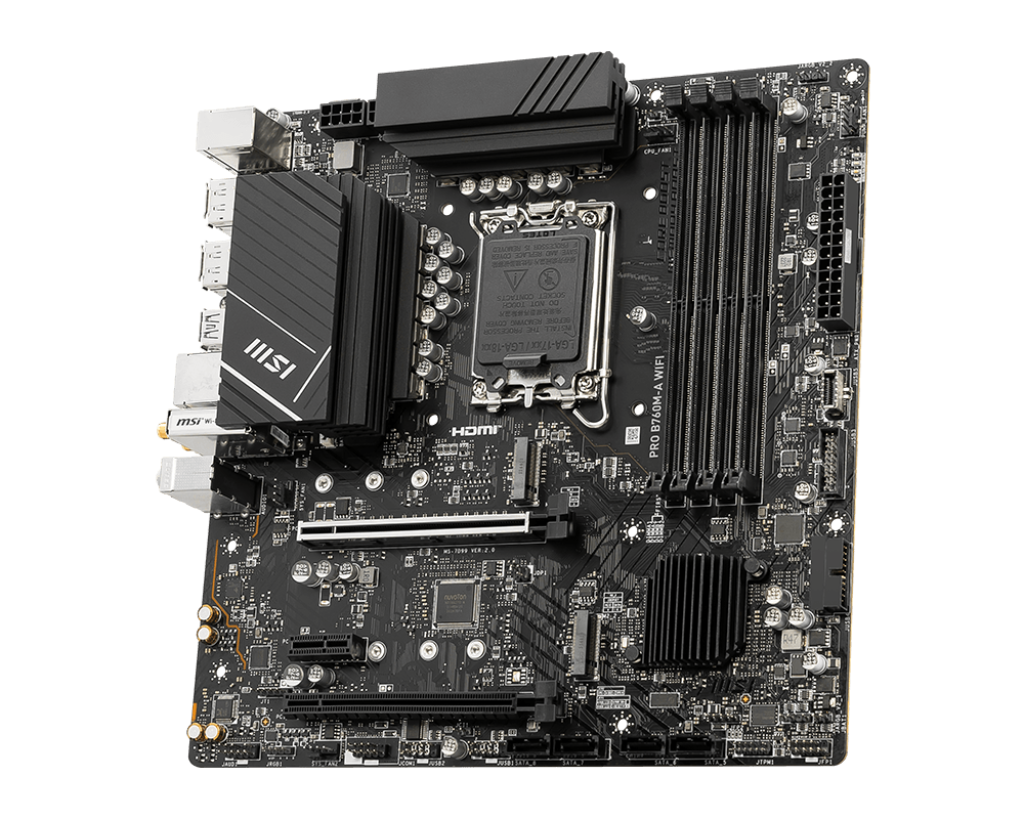

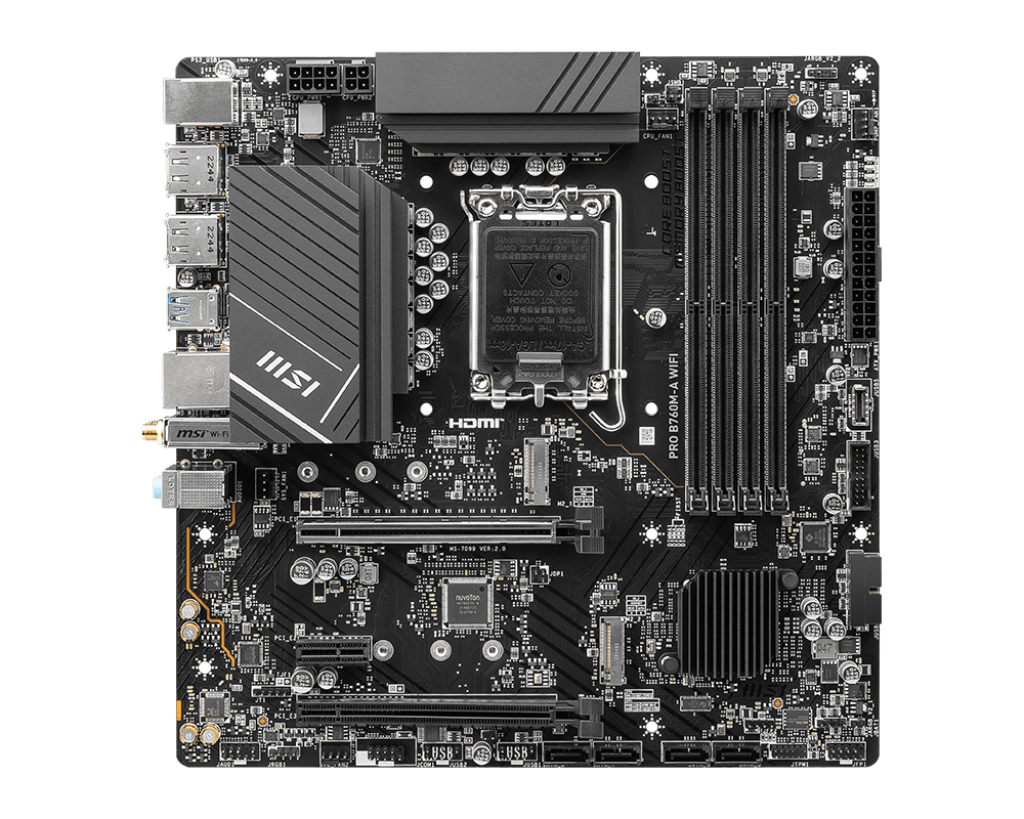

MSI MB PRO B760M-A WIFI - Motherboard, Intel B760, LGA 1700, micro ATX

Livraison
Payment options
Our advantages
  • — Garantie: 1 year warranty
  • — Retour et échange jusqu'à 30 jours
  • — Meilleur prix
Find similar
  • Socket de processeur (réceptable de processeur)LGA 1700 (Socket V)
  • Processeurs compatiblesIntel® Celeron®, Intel® Pentium® Gold
  • Carte mère chipsetIntel B760
  • Types de mémoire pris en chargeDDR5-SDRAM
  • Nombre de logements pour mémoire4
  • Elément de forme de carte mèreMicro ATX
  • Toutes les caractéristiques

PRO B790M-A WIFI

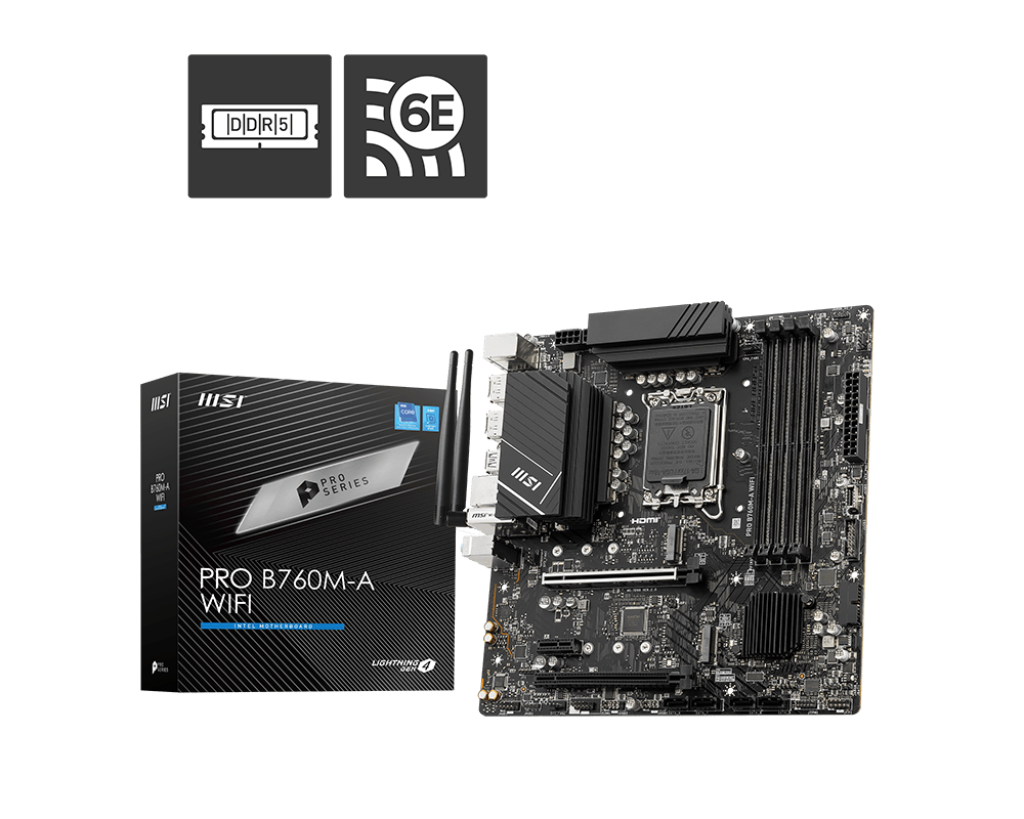

PRO B760M-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Manufacturer site

Main
Brand
MSI
Garantie
1 year warranty
BIOS
Capacité de mémoire du BIOS
256 Mbit
Cavalier CMOS d'effacement
Oui
Type de BIOS
UEFI AMI
Version ACPI
6.4
Version du BIOS de gestion du système (SMBIOS)
3.5
Expansion slots
PCI Express x1 emplacement (Gen 3.x)
2
Features
Canaux de sortie audio
7.1 canaux
Carte mère chipset
Intel B760
Elément de forme de carte mère
Micro ATX
famille de composant de produits
Intel
Puce audio
Realtek ALC897
Type de source d'alimentation
ATX
Internal I/O
Connecteur ATX (24-pin)
Oui
Connecteur audio panneau avant
Oui
Connecteur CPU FAN
Oui
Connecteur TPM
Oui
Connecteurs USB 2.0
4
connecteurs USB 3.2 Gen 1 (3.1 Gen 1)
4
Connecteurs USB 3.2 Gen 2 (3.1 Gen 2)
1
Nombre de connecteurs SATA III
4
Memory
Canaux de mémoire
Dual-channel
Mémoire interne maximale
192 Go
Nombre de logements pour mémoire
4
Non-ECC
Oui
Prise en charge de la mémoire vitesse d'horloge
6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Type de support (slot)
DIMM
Types de mémoire pris en charge
DDR5-SDRAM
Vitesse d'horloge de la mémoire prise en charge (max)
6800 MHz
Network
Bluetooth
Oui
Modèle du Bluetooth
5.3
Norme Wi-Fi
Wi-Fi 6 (802.11ax)
Standards wifi
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Type d'interface Ethernet
2.5 Gigabit Ethernet
Wifi
Oui
Processor
Fabricant de processeur
Intel
Socket de processeur (réceptable de processeur)
LGA 1700 (Socket V)
Nombre max. de processeurs SMP
1
Processeurs compatibles
Intel® Celeron®, Intel® Pentium® Gold

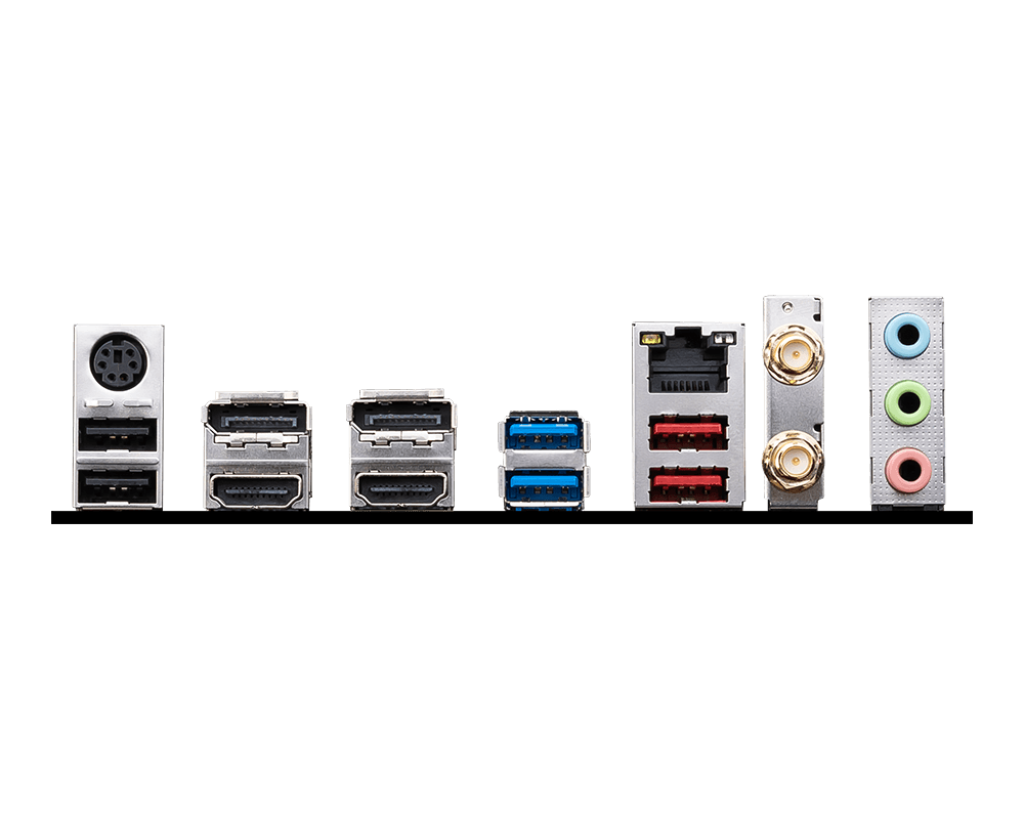

Rear panel I/O ports
Nombre de port ethernet LAN (RJ-45)
1
Quantité d'interface DisplayPorts
2
Quantité de ports de type A USB 3.2 Gen 1 (3.1 Gen 1)
2
Quantité de ports de type A USB 3.2 Gen 2 (3.1 Gen 2)
2
Quantité de ports HDMI
2
Quantité de Ports USB 2.0
2
Storage controllers
Interfaces de lecteur de stockage prises en charge
M.2, SATA III
Niveaux RAID
0, 1, 5, 10
Weight & dimensions
Largeur
243,8 mm
Profondeur
243,8 mm

Recherche automatique de vidéos par nom de produit (le résultat peut ne pas correspondre au produit présenté sur notre site web).

Additionnel (mmo_109826977_1683066482_4834_21930.pdf, 774 Kb) [Télécharger]
