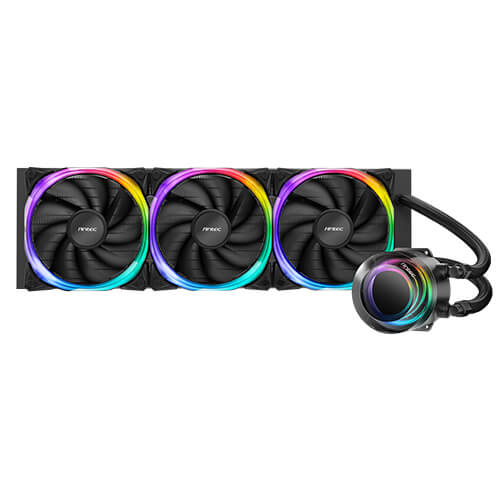

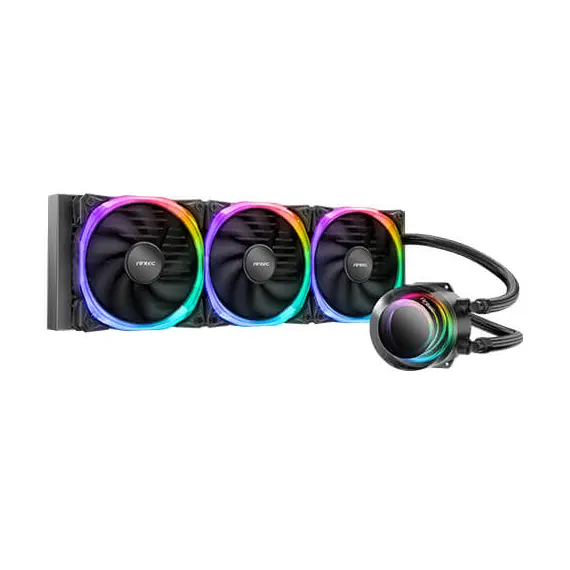

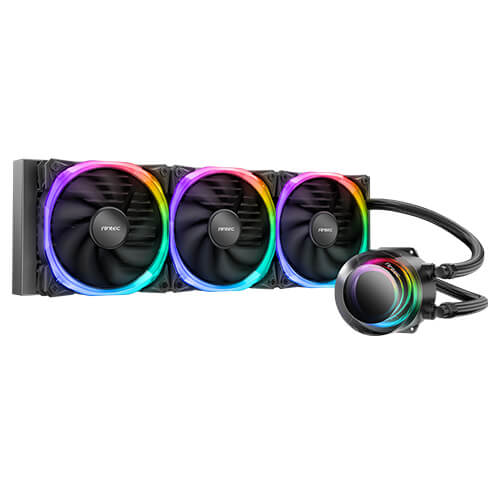

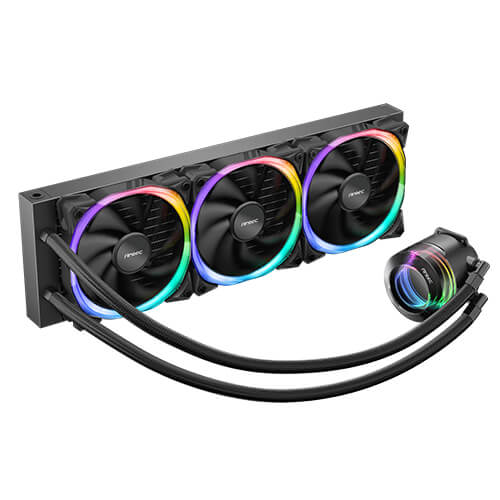

ANTEC Vortex 360 - ARGB Liquid CPU Cooler, Black
0-761345-74047-0
Delivery
Payment options
Our advantages
- — Warranty: 3 Years Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar

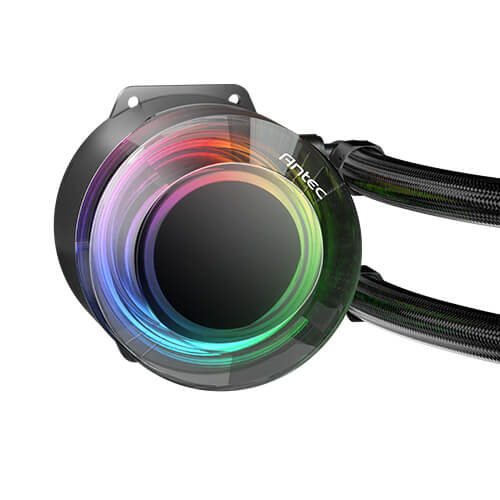

Suspended Spiral Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

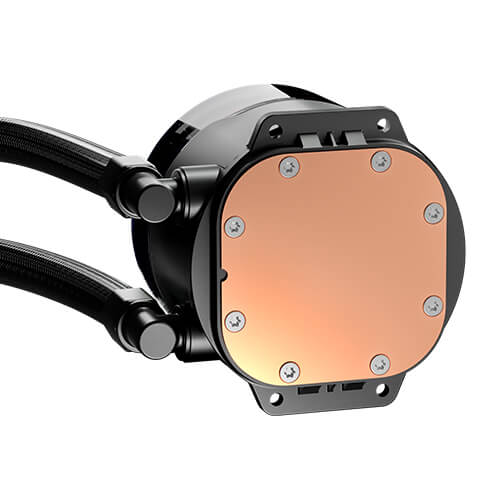

Highly Efficient Cooling Pump
Performance data tested with Vortex 360 on AMD Ryzen 5600x

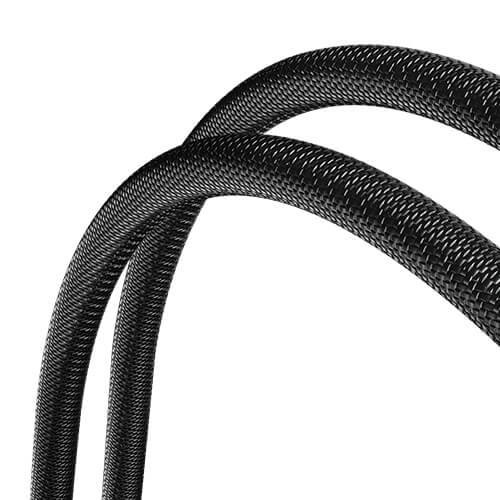

EPDM High-Density Tubing
The EPDM high-density tubing is very durable, making less loss of liquid.

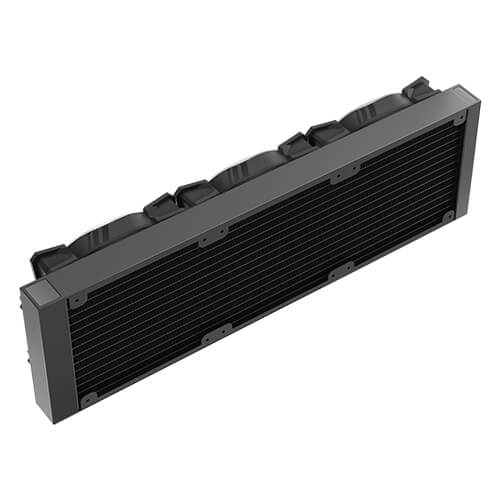

Superior Fin Density
Massive 13 fins dissipate heat rapidly.

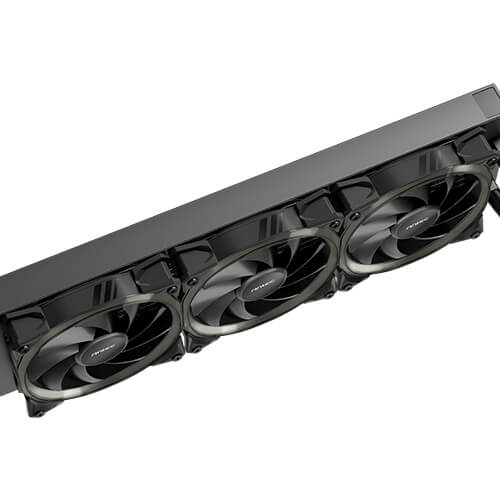

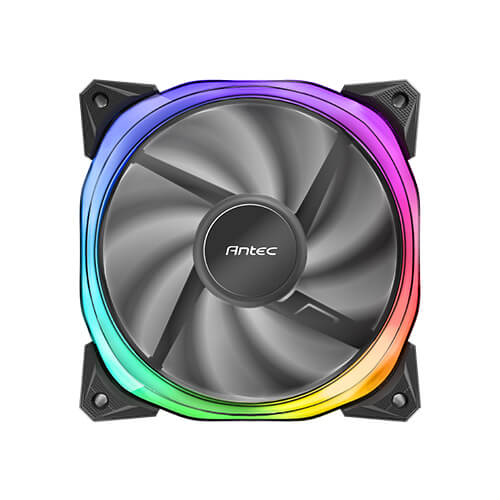

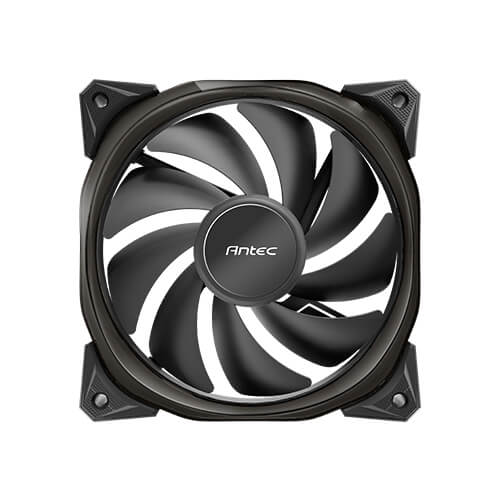

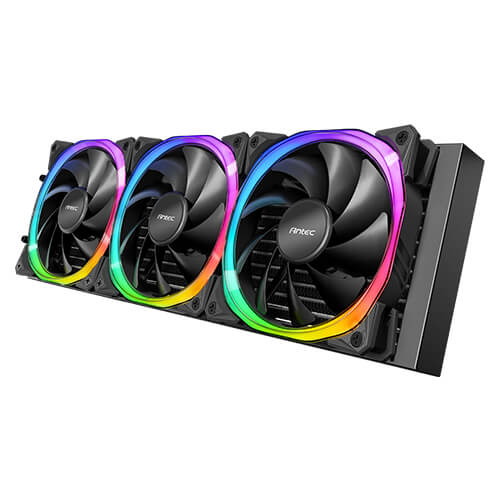

Antec Fusion PWM ARGB Fan
The Vortex 240 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.
Main
Brand
Antec
Warranty
3 Years Warranty
Product code
0-761345-74047-0
Cooling
Fan noise level
31.24 dB(A)
Design
360° rotational base
No
Color of product
Black
Fan type
PWM Fan
LED Type
Addressable RGB
Magnetic charging connector
No
Radiator material
Aluminium
Display
3D
No
Features
24/7 operation
No
4K Ultra HD upscaling
No
64-bit computing
No
Connector shielding
No
Fan lifespan
40,000 h
Latching connectors
No
Pump lifespan
40,000 hours
Socket circuit breaker
No
Supported processor sockets
Intel : LGA 115X / 1200 / 1700 / 20XX / AMD : AM3 / AM4 / TR4 / AM5
Operational conditions
Operating temperature (T-T)
-10°C ~ +60°C
Other features
2.5 mm connector
No
3.5 mm (1/8-inch) in
No
64-bit computing
No
Charging connector
Docking connector
No
Packaging content
AC adapter included
No
CPU socket spacer(s)
No
Packaging data
AC adapter included
No
Performance
2.4 GHz
No
360 camera support
No
360 video player support
No
3D
No
5 GHz
No
Bearing type
Hydraulic Bearing
Built-in power socket
No
Fan speed (max)
2000±10% RPM
Fan speed (min)
600±200 RPM
Maximum airflow
57.93 CFM
Minimum air pressure
2.11 mmH₂O
Pump connector
3-pin
Pump fan speed
2800±10% RPM
Pump flow rate
≥ 1300 mL/min
Pump noise level
≤ 28 dB(A)
Pump water pressure
1.4 M
Ports & interfaces
AC (power) in
No
Docking connector
No
EPS power connector (4+4 pin)
No
EPS power connector (8-pin)
No
LED connector type
3-pin
Lightning connector
No
Power
Fan rated voltage
DC 12 V
LED rated voltage
DC 5 V
Minimum startup voltage
≥ 5.0 V
Operating voltage
DC 12 V
Pump consumed power
3.0 W
Pump rated current
0.25±20% A
Rated current
FAN : ≤ 0.21 A | LED : ≤ 0.58 A
Thermal Design Power (TDP)
280 W
Weight & dimensions
Fan dimensions
120 x 120 x 25 mm
Pump dimensions
￠67 x 48.5 mm
Radiator depth
27 mm
Radiator height
397 mm
Radiator width
120 mm
