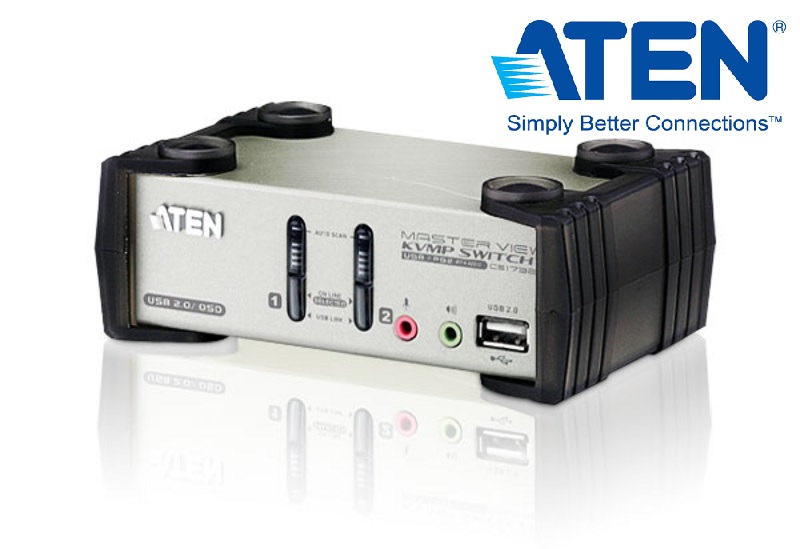

ATEN CS1732B - 2-Port KVM Switch, USB 2.0 with OSD
CA-775387
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
Specifications
| Computer Connections | 2 |
| Port Selection | Hotkey, Pushbutton, OSD, Mouse |
| Connectors | |

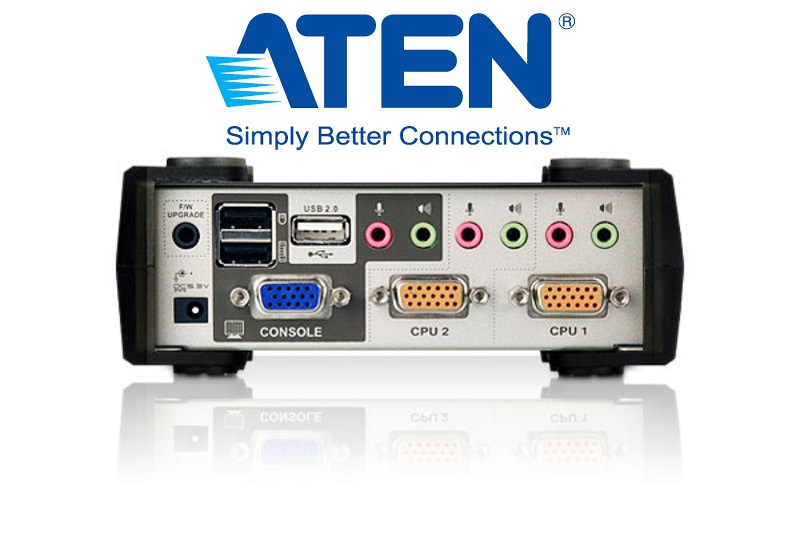

| Console Ports | 2 x USB Type A Female (Black) 1 x HDB-15 Female (Blue) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink) |
| KVM Ports | 2 x SPHD-15 Female (Yellow) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink) |
| Firmware Upgrade | 1 x 4-conductor 3.5mm Jack (Black) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (White) |
| Switches | |
| Selected | 2 x Pushbutton |
| LEDs | |
| Online / Selected | 2 (Orange) |
| USB Link | 2 (Green) |
| Emulation | |
| Keyboard / Mouse | PS/2; USB |
| Video | 2048 x 1536 @ 60Hz; DDC2B |
| Scan Interval | 1-255 Seconds (Default: 5 sec.) |
| Power Consumption | DC5.3V:2.53W:37BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.55 kg ( 1.21 lb ) |
| Dimensions (L x W x H) | 14.00 x 8.80 x 5.55 cm (5.51 x 3.46 x 2.19 in.) |
