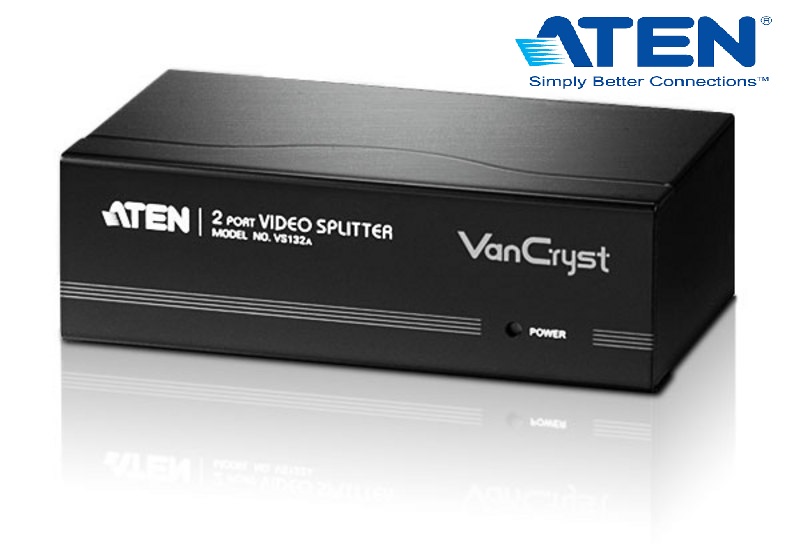

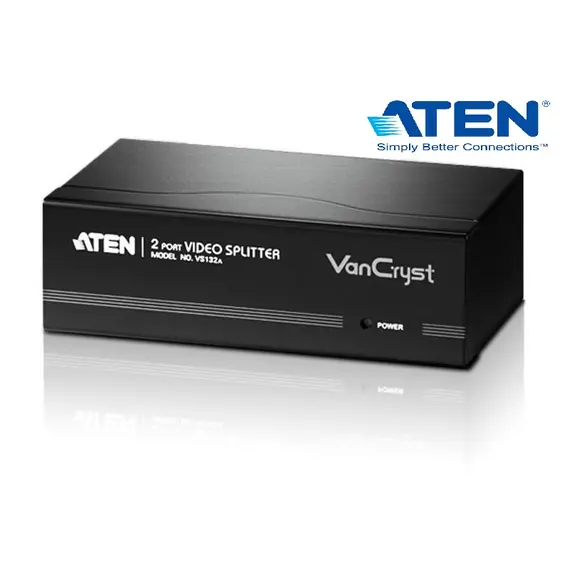

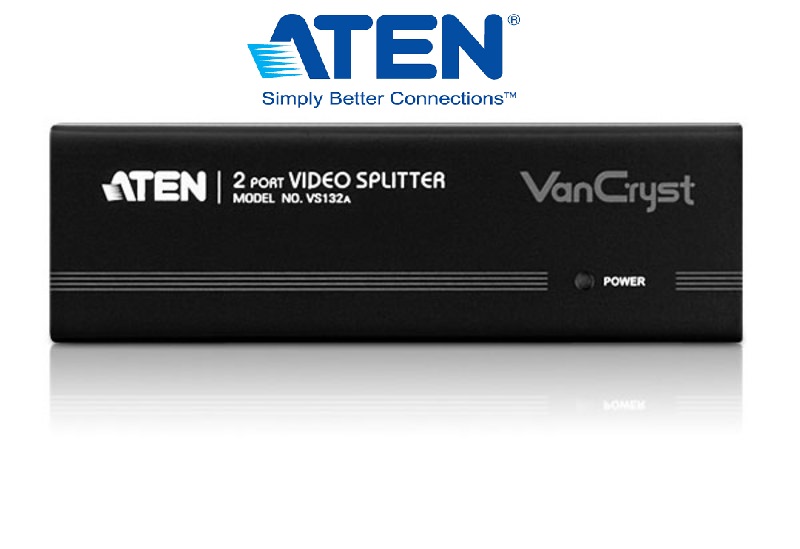

The VS132A Video Splitter is a boosting device that duplicates a video signal from one source to 2 output devices. Cascadable to three levels, the VS132A provides up to 8 video signals, in addition to extending transmission distance up to 30 m, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS132A is your best choice.
Applications include:
• Financial - the remote display of stock market information
• Education - the remote display of lectures and lessons to halls and classrooms
• Business - the remote display of addresses to overflow rooms; video conferencing; and demos
Specification

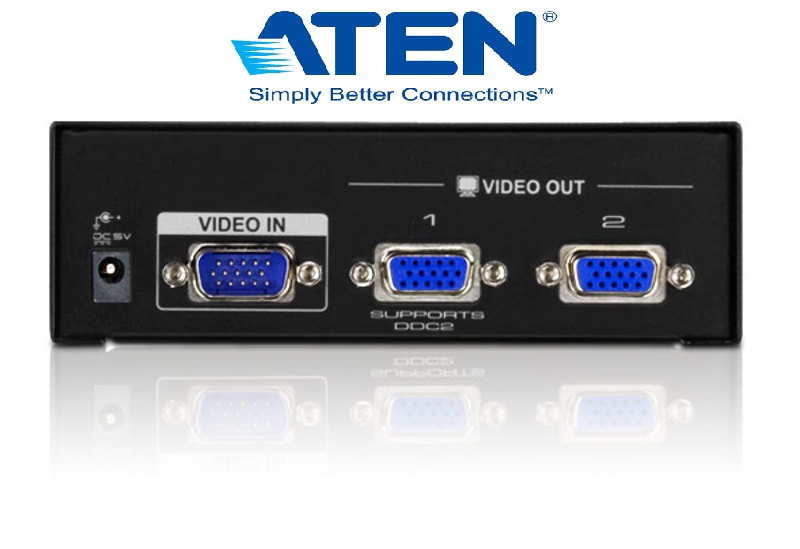

| Video Input | |
| Interfaces | 1 x HDB-15 Male (Blue) |
| Impedance | 75 Ω |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 2 x HDB-15 Female (Blue) |
| Impedance | 75 Ω |
| Video | |
| Max. Bandwidth | 450 MHz |
| Max. Resolution | Up to 2048 x 1536 |
| Max. Distance | Up to 30 m |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5V:0.62W:3BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.42 kg ( 0.93 lb ) |
| Dimensions (L x W x H) | 13.00 x 7.51 x 4.40 cm (5.12 x 2.96 x 1.73 in.) |
