ATEN VS134A - 4-Port VGA Splitter (450MHz)
CA-775755
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar

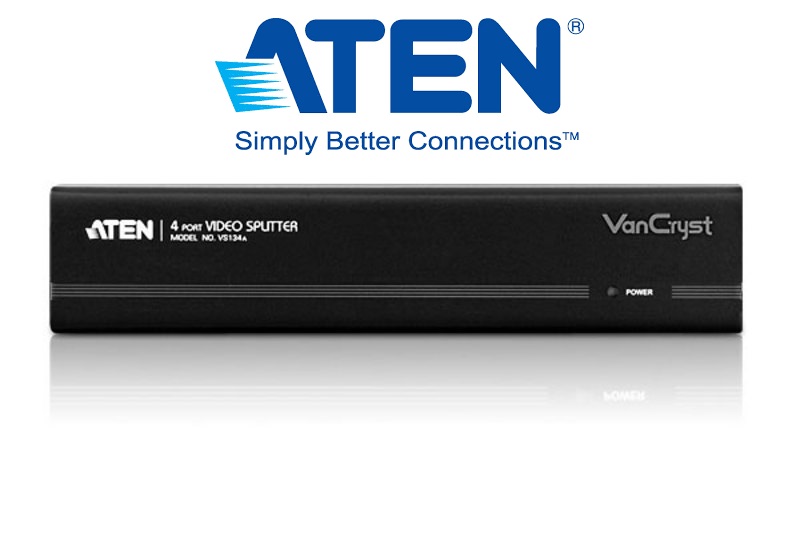

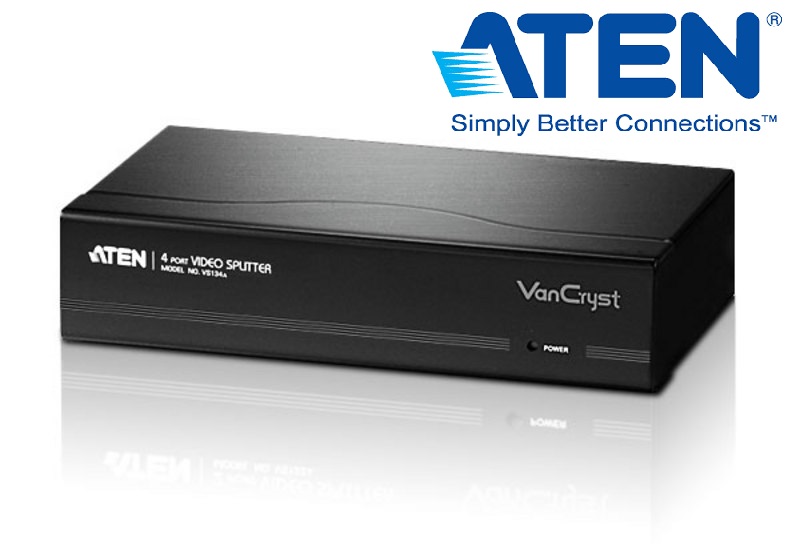

The VS134A Video Splitter is a boosting device that duplicates a video signal from one source to 4 output devices. Cascadable to three levels, the VS134A provides up to 64 video signals, in addition to extending transmission distance up to 30 m, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS134A is your best choice.
Applications include:
• Financial - the remote display of stock market information
• Education - the remote display of lectures and lessons to halls and classrooms
• Business - the remote display of addresses to overflow rooms; video conferencing; and demos
Specifications
| Video Input | |
| Interfaces | 1 x HDB-15 Male (Blue) |
| Impedance | 75 Ω |
| Max. Distance | 1.8 m |
| Video Output | |

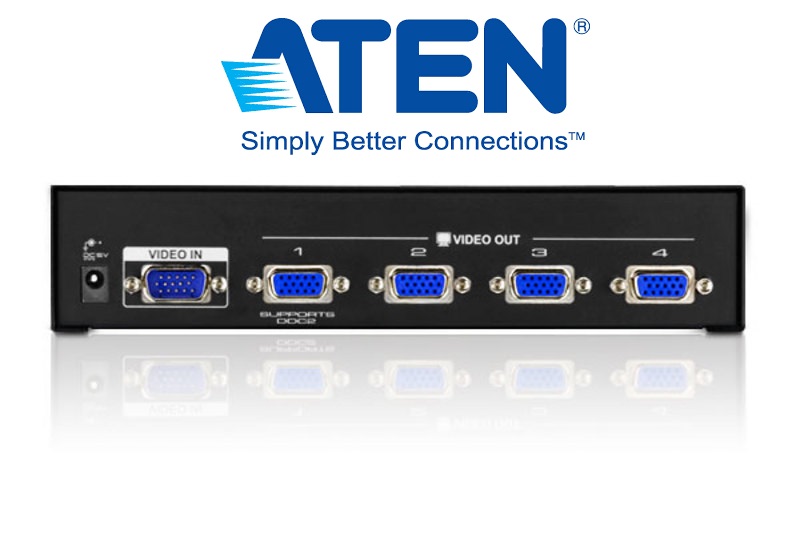

| Interfaces | 4 x HDB-15 Female (Blue) |
| Impedance | 75 Ω |
| Video | |
| Max. Bandwidth | 450 MHz |
| Max. Resolution | Up to 2048 x 1536 |
| Max. Distance | Up to 30 m |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5V:0.9W:4BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.61 kg ( 1.34 lb ) |
| Dimensions (L x W x H) | 20.00 x 7.51 x 4.40 cm (7.87 x 2.96 x 1.73 in.) |
Main
Brand
ATEN
Product code
CA-775755
Other features
2.5 mm connector
No
3.5 mm (1/8-inch) in
No
64-bit computing
No
Packaging content
AC adapter included
No
Packaging data
AC adapter included
No
Performance
2.4 GHz
No
5 GHz
No
Ports & interfaces
AC (power) in
No
