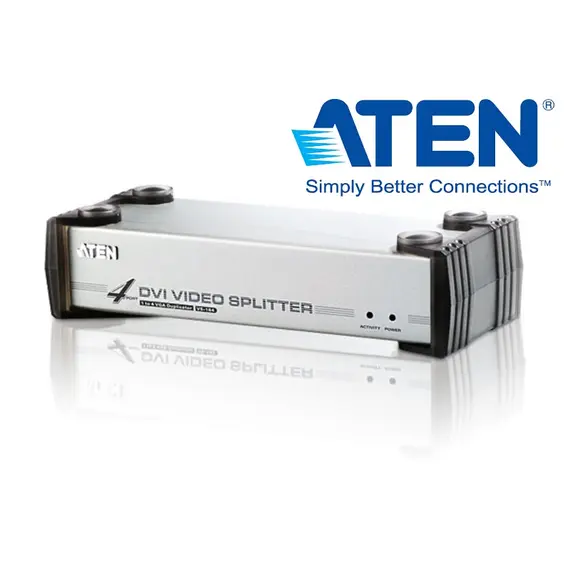

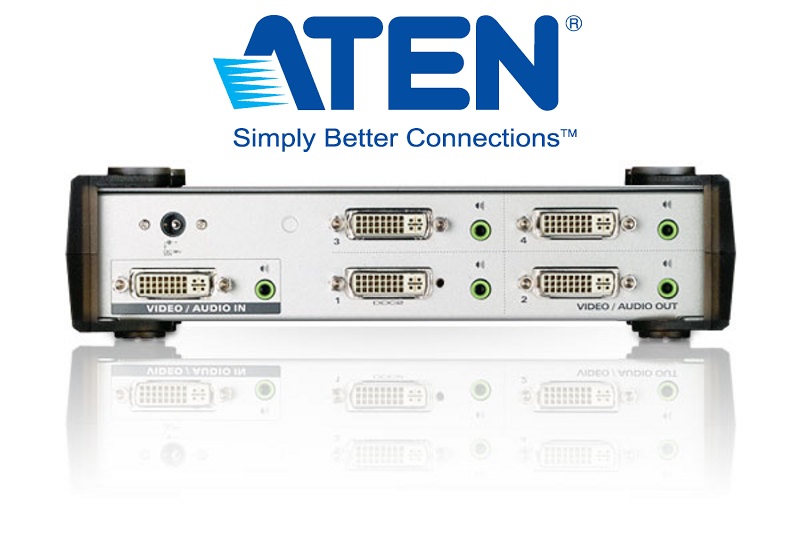

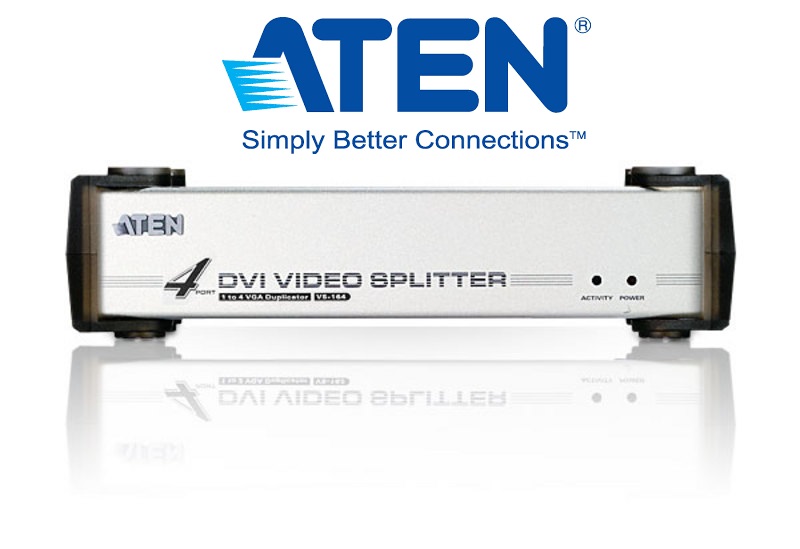

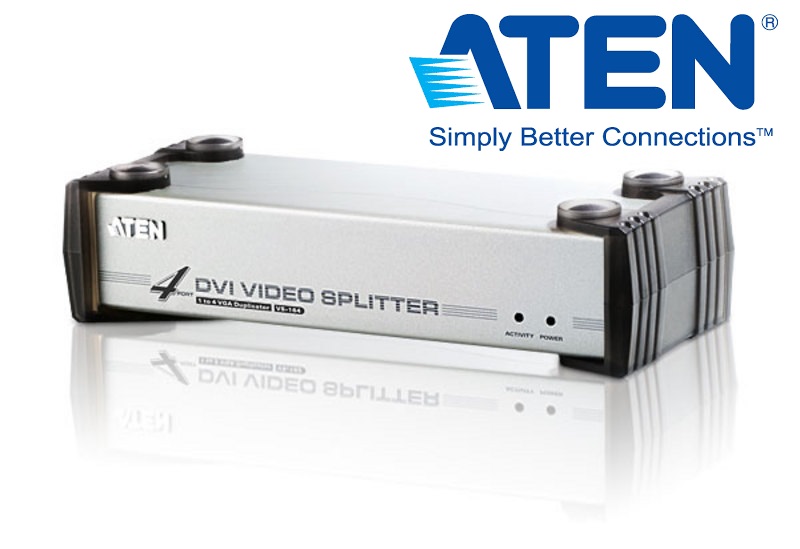

ATEN VS164 - 4-Port DVI Video Splitter
CA-775775
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
VS164 Video Splitter provides DVI video and audio input signals to 4 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
Specifications
| Video Input | |
| Interfaces | 1 x DVI-I Female (White) |
| Impedance | 100 Ω |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 4 x DVI-I Female (White) |
| Impedance | 100 Ω |
| Video | |
| Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz |
| Compliance | HDCP Compatible |
| Max. Resolution | Up to 1920 x 1200 |
| Max. Distance | Up to 5 m |
| Audio | |
| Input | 1 x Mini Stereo Jack Female (Green) |
| Output | 4 x Mini Stereo Jack Female (Green) |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5.3V:3.95W:19BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.72 kg ( 1.59 lb ) |
| Dimensions (L x W x H) | 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.) |
