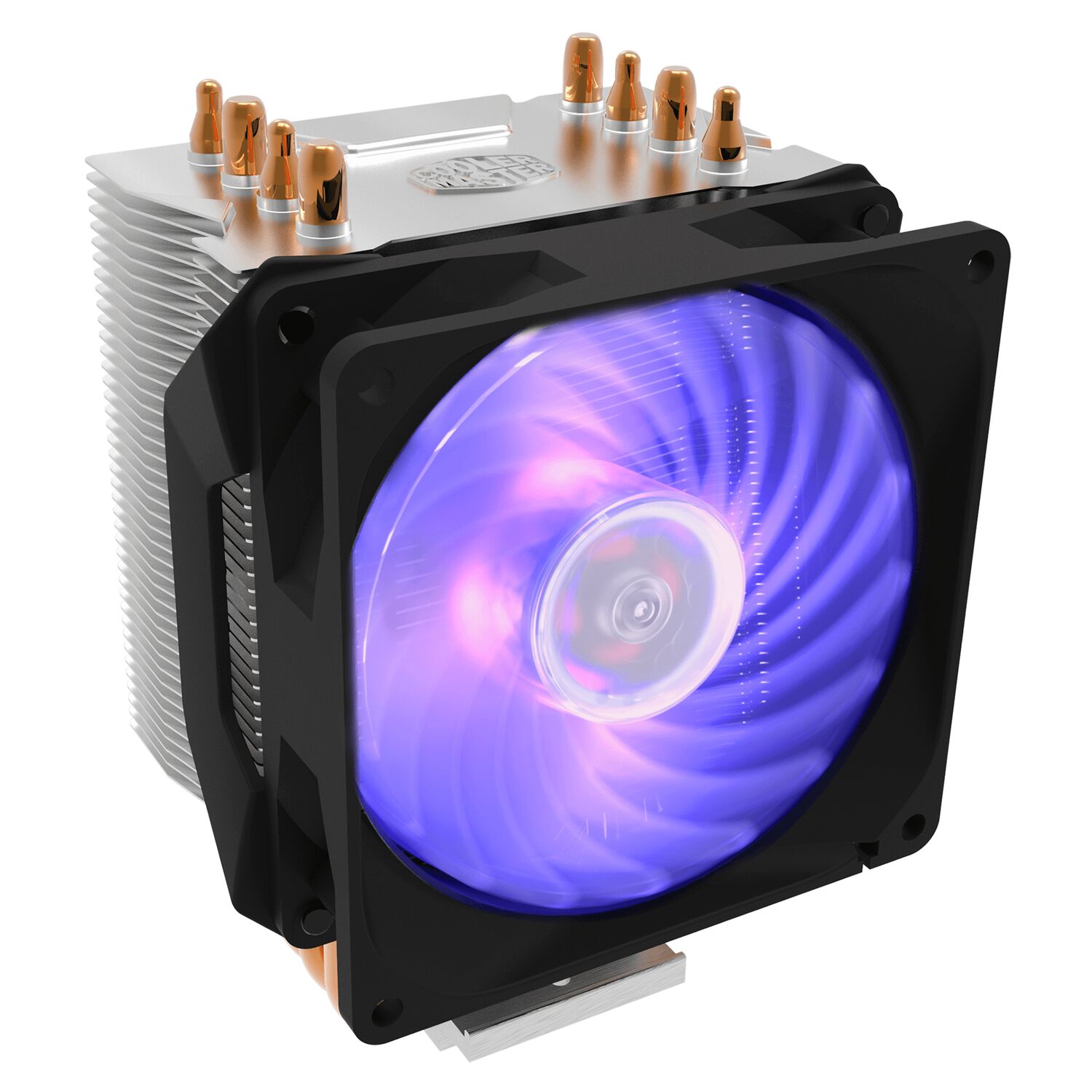

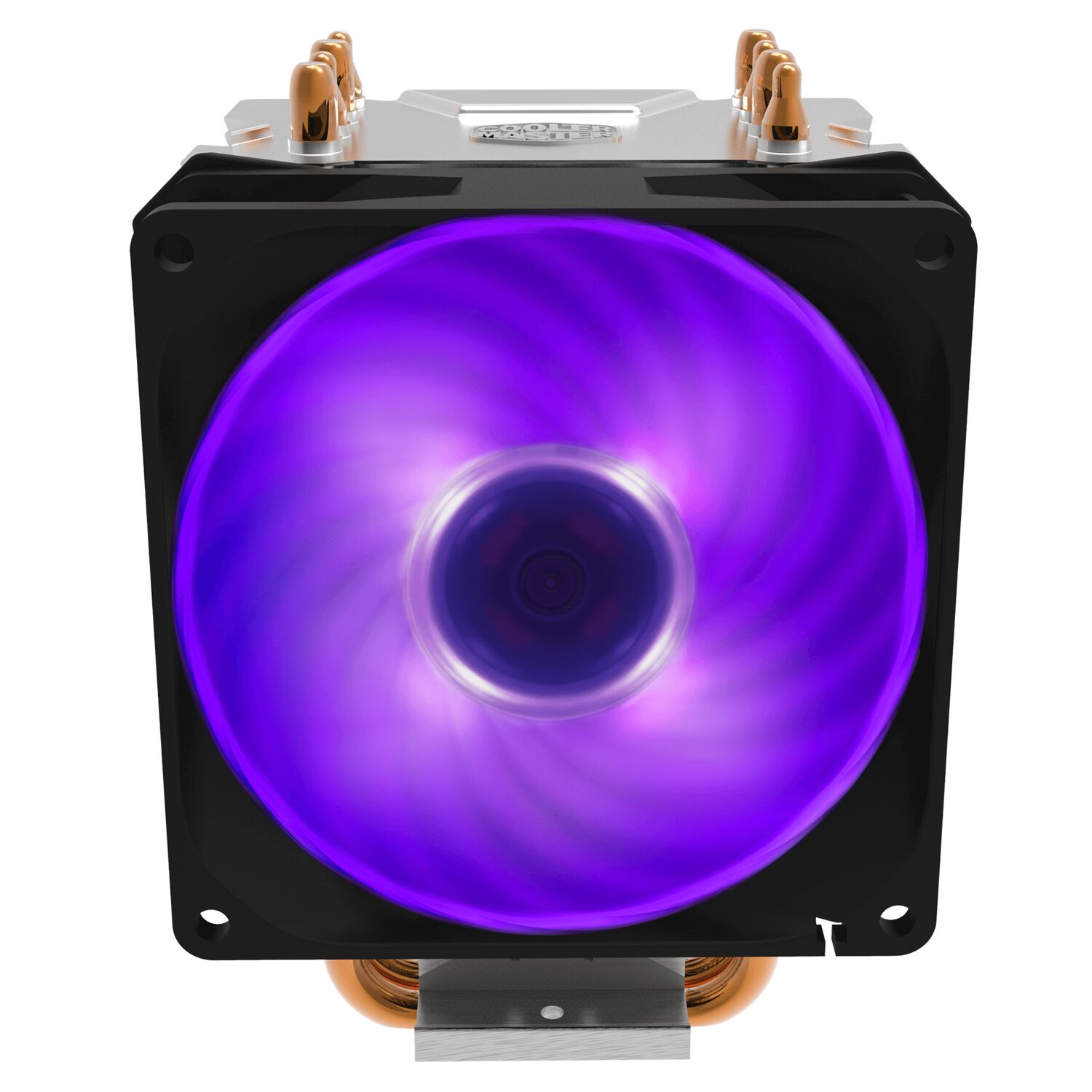

Cooler Master Hyper H410R RGB Processor 9.2 cm Black, Silver, RR-H410-20PC-R1

92MM PWM FAN WITH RGB LIGHTING
Wide speed range PWM fan that comes with RGB LED lighting

RGB LED CONTROLLER
The wired RGB LED controller allows for customizable colors and effects with just the touch of a button

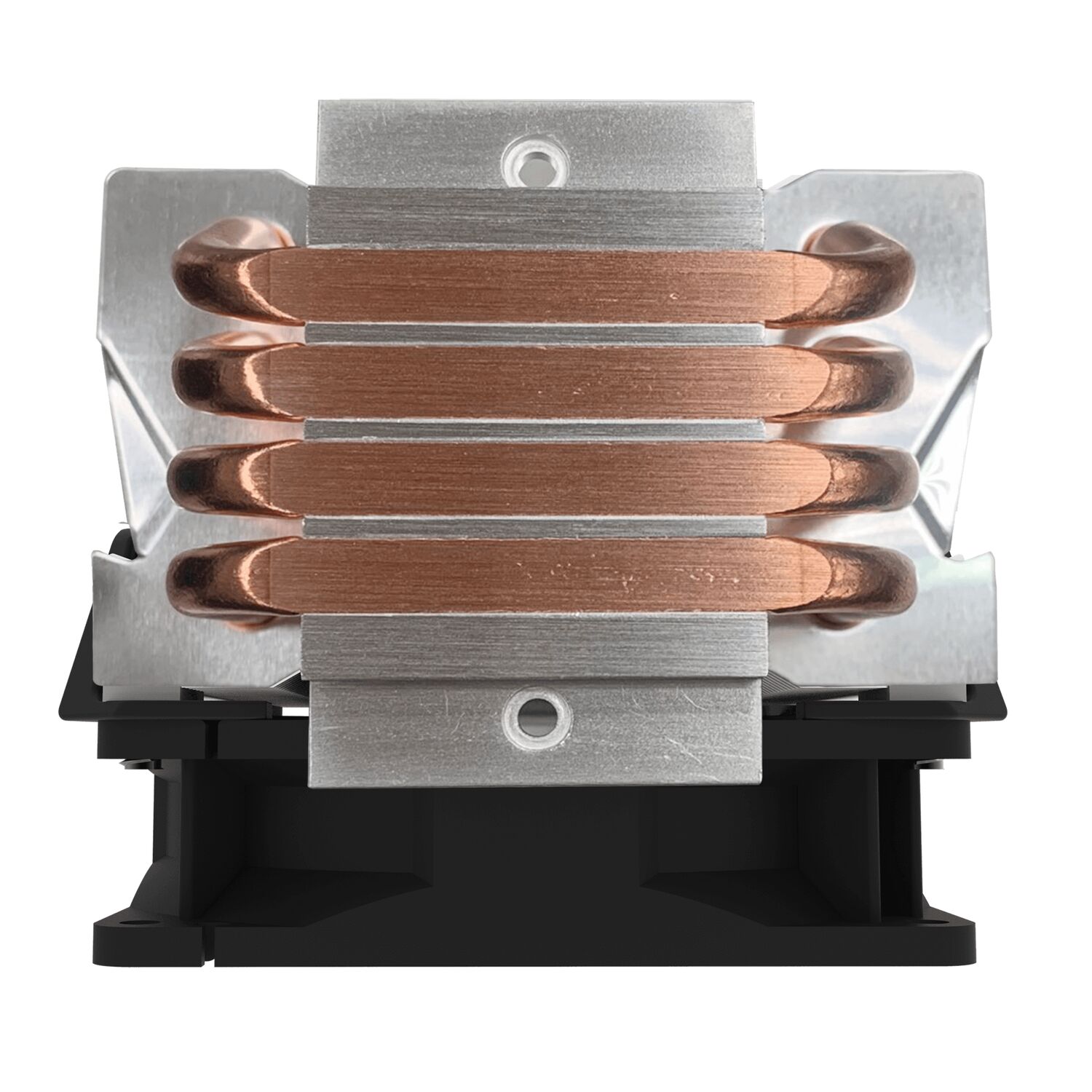

DIRECT CONTACT TECHNOLOGY
4 heat pipes with Exclusive Direct Contact Technology providing effective and excellent heat dissipation

PRECISE AIR FLOW
Precise stacked fin array decreases airflow resistance which allows for cooler air flow into the heatsink

XTRAFLO PWM FAN
Comes with RGB LEDs and wide speed range can be fine-tuned for maximum cooling performance or silent operation

EASY INSTALLATION
Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.

Manufacturer site

Main

Brand

Cooler Master

Warranty

2 Years Warranty

Product code

RR-H410-20PC-R1

EAN/UPC code

4719512094679, 0884102067099

Design

Fins material

Aluminium

Illumination colour

Multi

Number of heat pipes

4

Product colour

Black, Silver

Display

3D

No

Other features

2.5 mm connector

No

3.5 mm (1/8-inch) in

No

64-bit computing

No

Heatsink dimensions (W x D x H)

63.5 x 90 x 136 mm

Mean time to failure (MTTF)

40000 h

Packaging content

AC adapter included

No

Packaging data

AC adapter included

No

Performance

2.4 GHz

No

5 GHz

No

Fan diameter

9.2 cm

Maximum air pressure

1.79 mmH2O

Maximum airflow

34.1 cfm

Noise level (high speed)

29 dB

Noise level (low speed)

6 dB

Rotational speed (max)

2000 RPM

Rotational speed (min)

600 RPM

Suitable for

Processor

Supported processor sockets

LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+

Type

Cooler

Ports & interfaces

AC (power) in

No

Power

Maximum current

0.4 A

Power consumption (typical)

2.28 W

Rated current

0.24 A

Weight & dimensions

Depth

102 mm

Fan dimensions

92 x 92 x 25 mm

Height

136 mm

Width

83.4 mm
