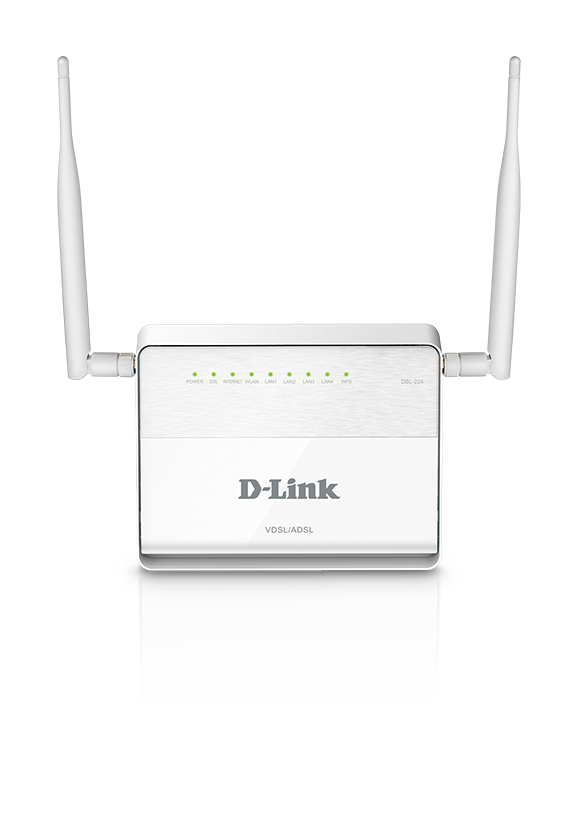

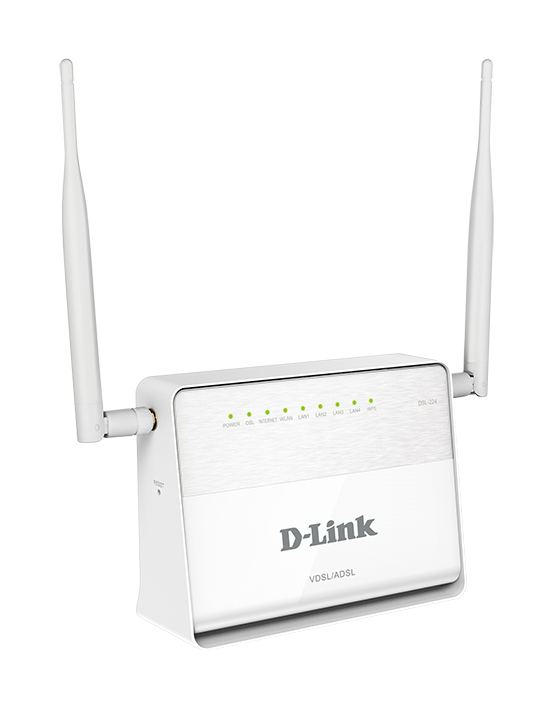

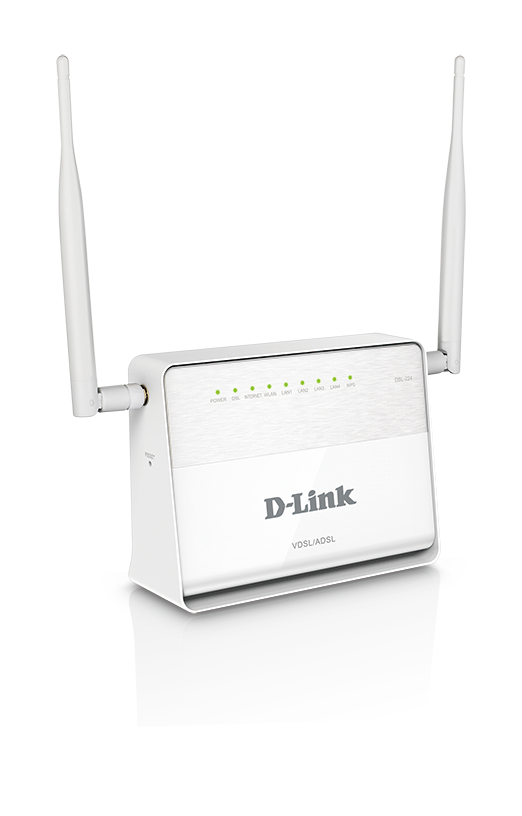

D-Link DSL-224 - Wireless Router, Fast Ethernet, Single-Band, (2.4 GHz), Black

Delivery
Payment options
Our advantages
  • — Warranty: 2 Years Warranty
  • — Return and exchange up to 30 days
  • — Best price
Find similar

The DSL-224 VDSL2/ADSL2+ Wireless N300 4-port router is everything you need for high-speed internet access for your entire home or offices. It combines both VDSL2/ADSL2+ modem and high-end wireless router together to create a single, easy-to-use device that connects to the Internet, and shares that connection with all your devices.

The DSL-224combines the functionality of a high-speed VDSL2/ADSL2+ broadband modem and a wireless router in one device, eliminating the need for separate modem and wireless router devices. Connect to your VDSL2/ADSL2+Internet Service Provider with downlink speeds of up to 100Mbps, then immediately share the Internet connection with both wireless and wired devices. Additionally, the DSL-224 gives you the option to connect to your broadband modem via WAN/LAN Ethernet port giving you the freedom to access the Internet via VDSL2/ADSL2+, Cable, or other connection types.

The DSL-224 VDSL2/ADSL2+ is perfect for home and office environments. Its high-speed wireless provides reliable connections to wireless devices, while Fast Ethernet LAN ports give you speedy wired connection speeds. 802.11n wireless gives you the bandwidth to stream HD multimedia and feature-rich content across your home, so you can browse the Internet and stream digital media at combined speeds of up to 300 Mbps1 across two separate bands.

Manufacturer site

Main
Brand
D-Link
Warranty
2 Years Warranty
Product code
DSL-224/R1A
Mobile networking
3G
No
4G
No
Networking
10G support
No
2G
No
3G
No
4G WiMAX
No
Auto MDI/MDI-X
No
Bluetooth
No
Broadcast storm control
No
Antenna
Antenna gain level (max)
2 dBi
Antenna type
External
Antennas quantity
2
Design
LED indicators
On/off switch
Yes
Product colour
White
Product type
Tabletop router
DSL features
ADSL
Yes
ADSL2
Yes
VDSL
Yes
VDSL2
Yes
Features
Built-in processor
Yes
Certification
CE, RoHS
Firmware upgradeable
Yes
Flash memory
8 MB
Internal memory
32 MB
Management features
Quality of Service (QoS) support
Yes
Web-based management
Yes
Web-based setup wizard
Yes
WPS push button
Mobile network
3G
No
4G
No
Network
Cabling technology
10/100Base-T(X)
Ethernet LAN data rates
10,100 Mbit/s
Ethernet LAN interface type
Fast Ethernet
LTE
No
Networking standards
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
VPN Passthrough
Yes
VPN support
IPSec/PPTP/L2TP/PPPoE
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40
Storage temperature (T-T)
-20 - 70
Ports & interfaces
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
4
Memory card slot(s)
RJ-11 ports quantity
1
USB port
No
Power
Power source type
AC
Protocols
DHCP client
Yes
DHCP server
Yes
Universal Plug and Play (UPnP)
Security
Filtering
IP address filtering
Yes
MAC address filtering
Yes
Network address translation (NAT)
Security algorithms
WDS,WEP,WMM,WPA,WPA2,WPS
Stateful Packet Inspection (SPI)
System event log
URL filtering
Yes
System requirements
Mac operating systems supported
WAN connection
3G/4G USB modem compatibility
DSL WAN
Ethernet WAN
Yes
SIM card slot
No
WAN connection type
RJ-11
Weight & dimensions
Depth
26 mm
Height
114 mm
Width
172 mm
Wireless LAN features
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
Wi-Fi band
No
Wi-Fi standards
802.11b,802.11g,Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)
300 Mbit/s
WLAN data transfer rate (max)
100 Mbit/s
Automated video search by product name (the results maybe not the some as product in our store).

Manual (mmo_75032099_1568722187_6365_15282.pdf, 5,697 Kb) [Download]

Additional (mmo_75032099_1568721071_5844_30020.pdf, 3,487 Kb) [Download]
