DeLOCK 87687 - Cable Gender Changer TTL/CMOS RS-232, Black
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price

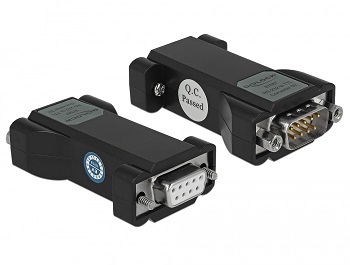

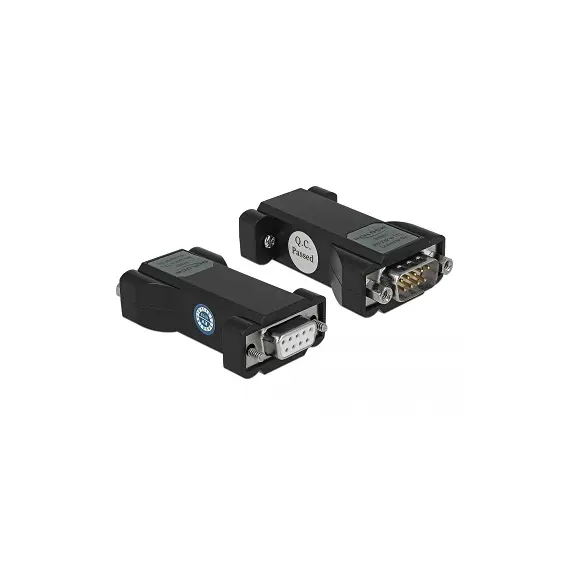

This RS-232 serial to TTL / CMOS converter by Delock converts RS-232 signals to compatible TTL / CMOS 5 V levels and is suitable for connection to industrial controls, level shifter, microcontrollers etc. The converter can be screwed directly between two DB9 connectors without an additional power supply.
Specification
• Connectors:
1 x serial RS-232 DB9 female with screws
1 x serial TTL / CMOS DB9 male with nuts
• Auto data flow control
• Plug & Play
• Data transfer: asynchronous, full duplex
• Data transfer rate: 300 bps - 115.2 Kbps
• ±3 kV ESD protection for all serial signals
• Housing material: plastic
• Colour: black
• Operating temperature: -40 °C ~ 85 °C
• Relative humidity: 5 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 63 x 34 x 18 mm
• Bus Power from RS-232: TXD, RTS or DTR
• No external power supply needed
System requirements
• Device with a free RS-232 port
Package content
• Converter RS-232 to TTL / CMOS
