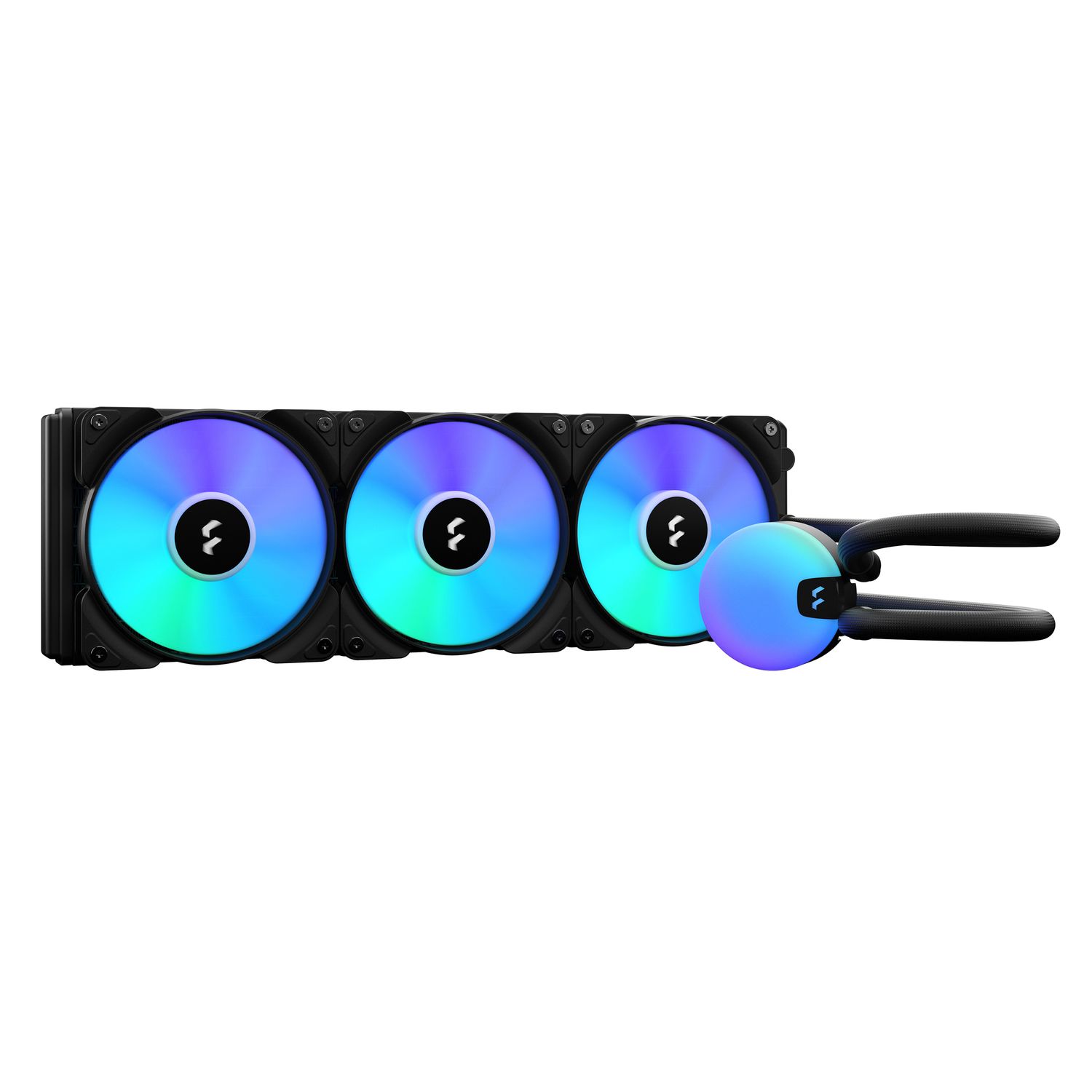

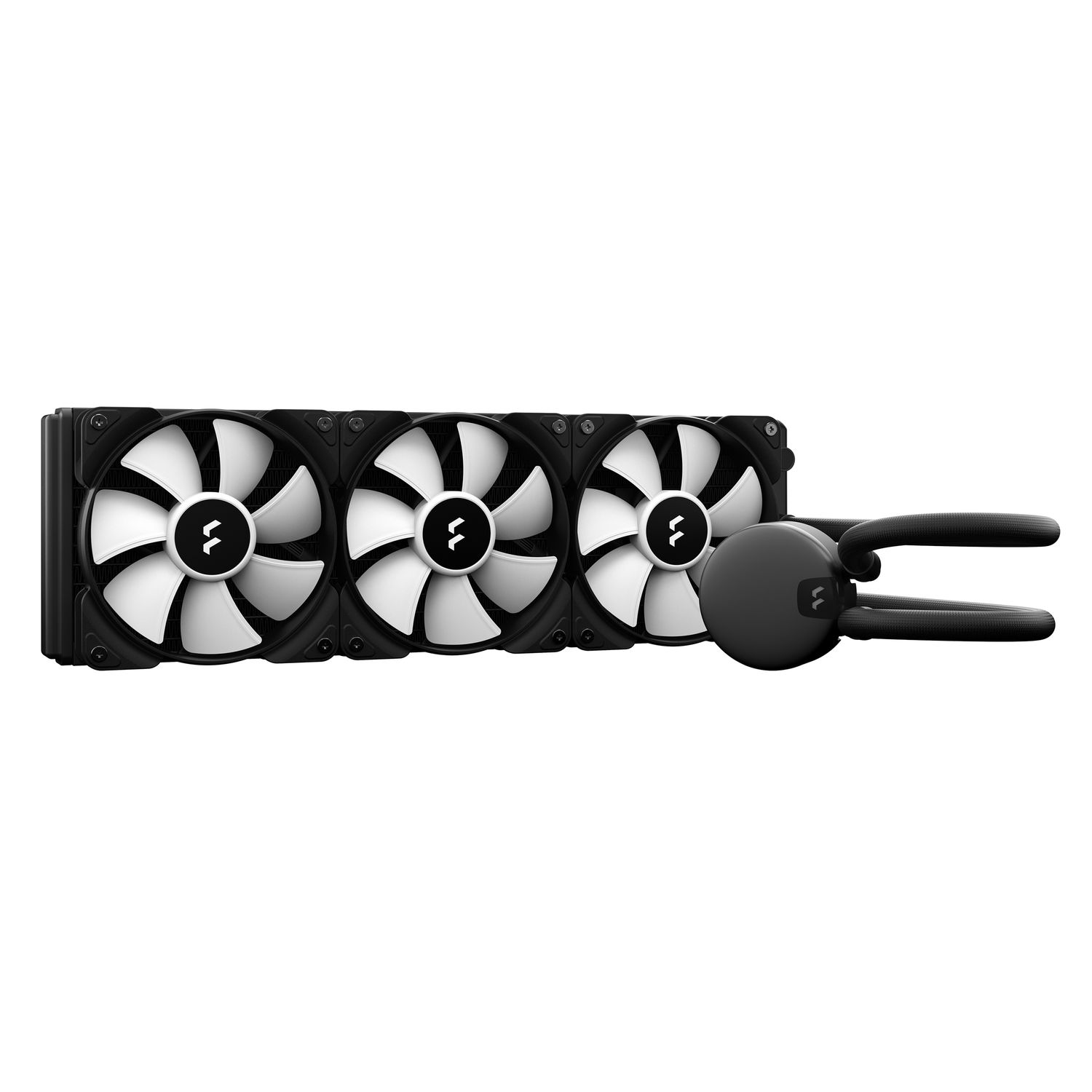

Fractal Design Lumen S36 - CPU Water Cooling, RGB
- — Warranty: 3 Years Warranty
- — Return and exchange up to 30 days
- — Best price

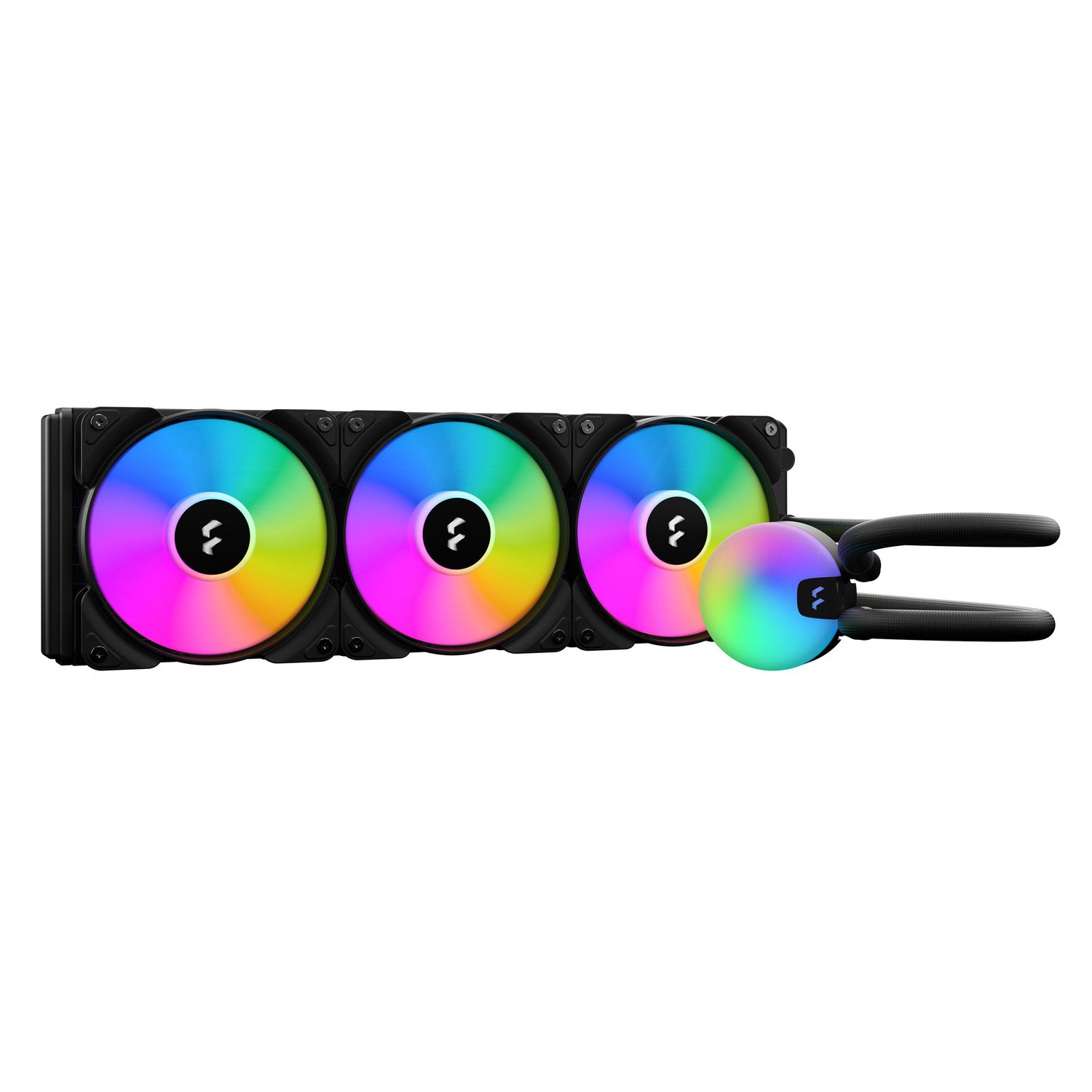

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.
General specifications
-
Sockets supported (Intel): LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
-
Sockets supported (AMD): AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
-
* Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
-
Cold plate material: Copper
-
Thermal paste: Pre-applied
-
Tube length: 400mm
-
Tube material: Low-permeability rubber with braided nylon sleeve
-
Fittings, block side: Articulating 90-degree Elbow
-
Fittings, radiator side: Barbed fitting
-

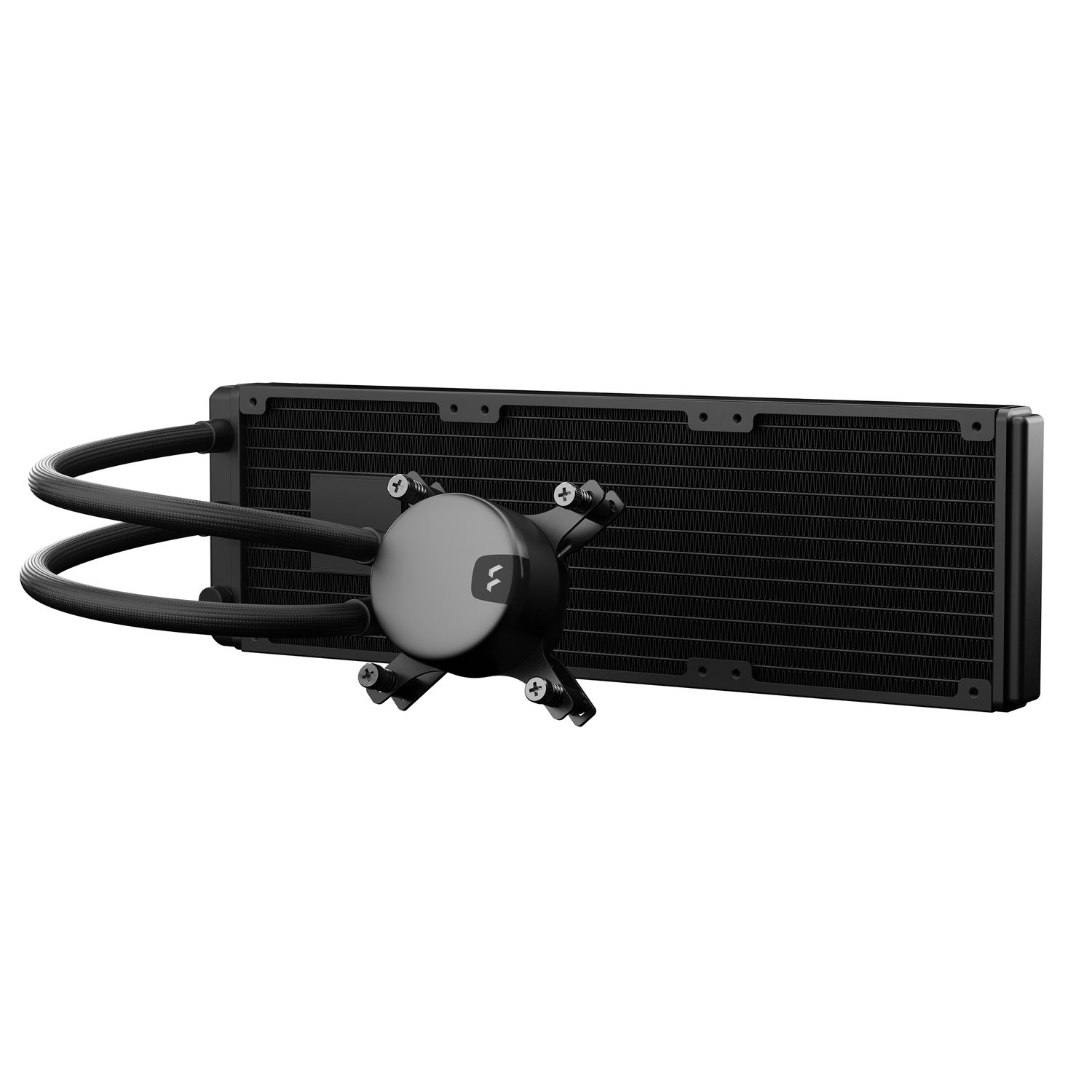

Block height: 43mm
-
Block measurements (with fittings): 79 x 67 mm
-
Block diameter (main block body): 67 mm
Fan specifications
-
Fan type: Aspect 12 RGB PWM
-
Rotational speed: 500–2000 RPM
-
Fan bearing: Rifle bearings
-
Fan PWM control: Yes
-
Fan acoustical noise: <10–33.2 dBA
-
Fan maximum air flow: 13-56 CFM
-
Fan maximum static pressure: 0.230–2.34 mm H2O
-
Fan input voltage: 12V
-
Fan maximum input current: 0.37A
-
Fan MTTF: 90,000 hours
Pump specifications
-
Rotational speed: 4000 ± 10% RPM
-
Bearing type: Ceramic
-
PWM control: No
-
Acoustical noise (full speed): 22 dBA
-
Maximum pressure: 1.8 mm H2O/ 17.6 kPa / 2.5 PSI
-
Input voltage: 12V DC
-
Input current (without fans): 0.34 A
-
MTTF: 50 000 hours
Radiator specifications
-
Radiator dimensions: 392 x 120 x 27 mm
-
Radiator housing material: Aluminum
-
Radiator fin material: Aluminum
-
Radiator fan screw threads: 6-32
Other
-

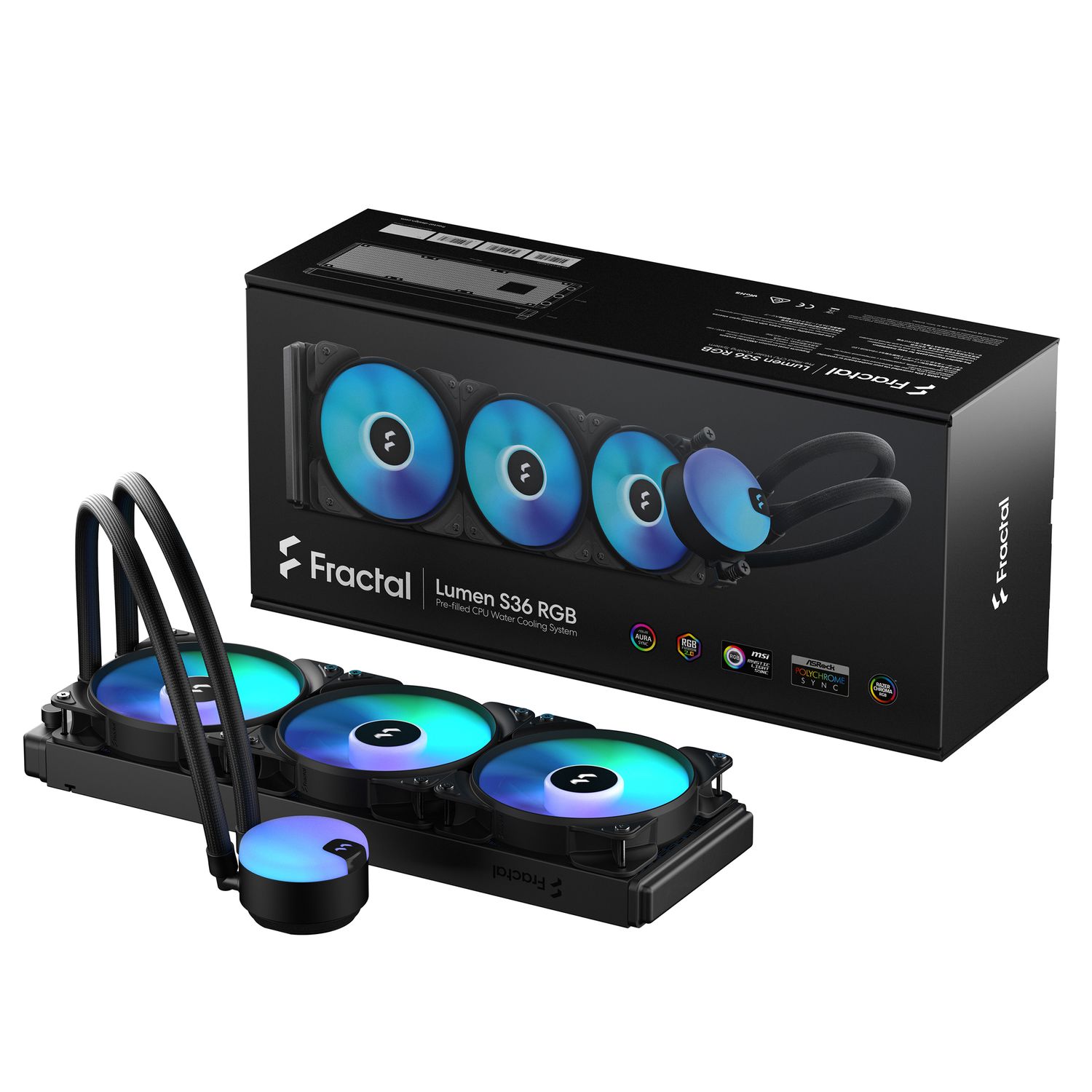

Package contents: CPU Cooler Assembly, 3x Aspect 12 RGB fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable
-
Package dimensions: 448 x 205 x 137 mm
-
Package weight: 2.20kg
