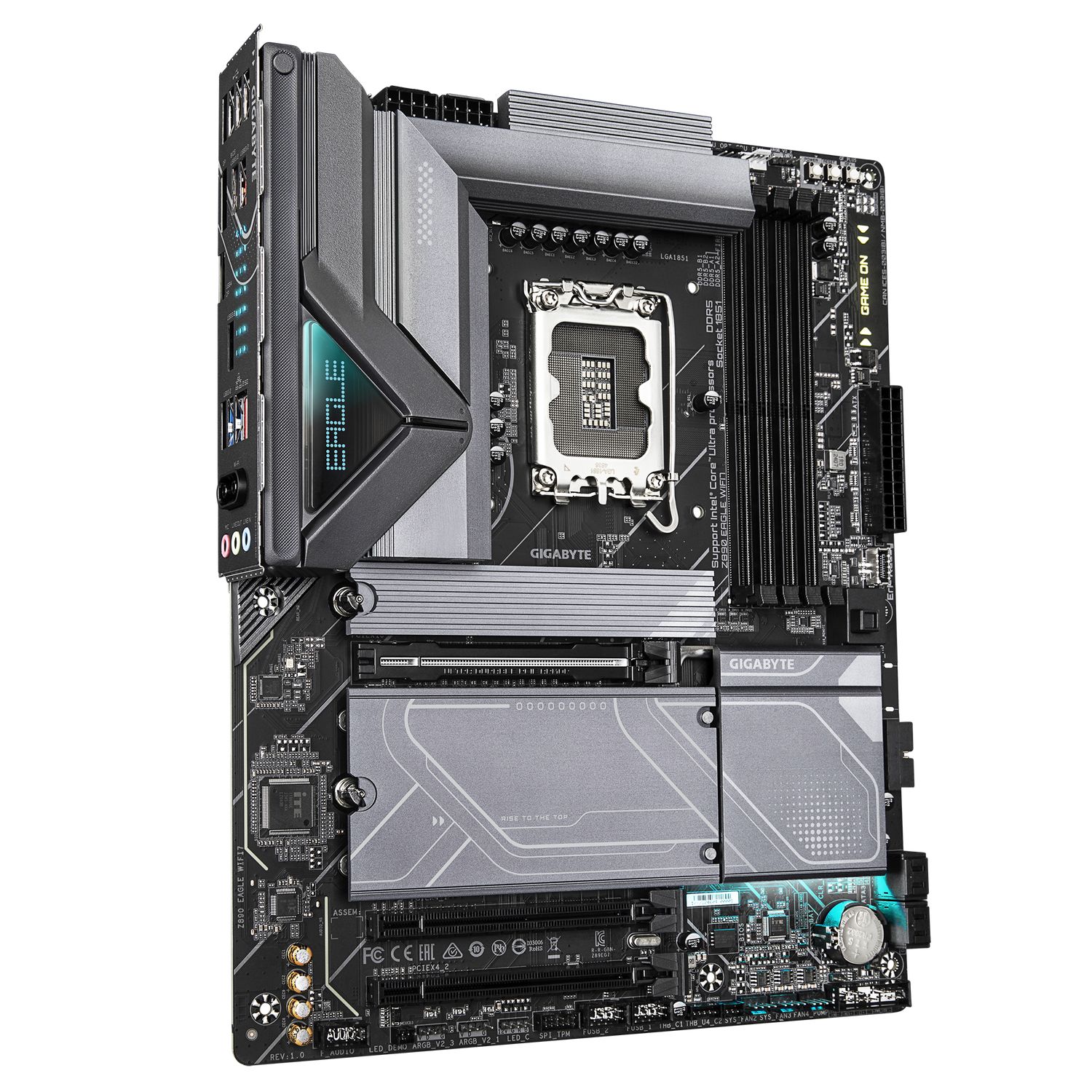

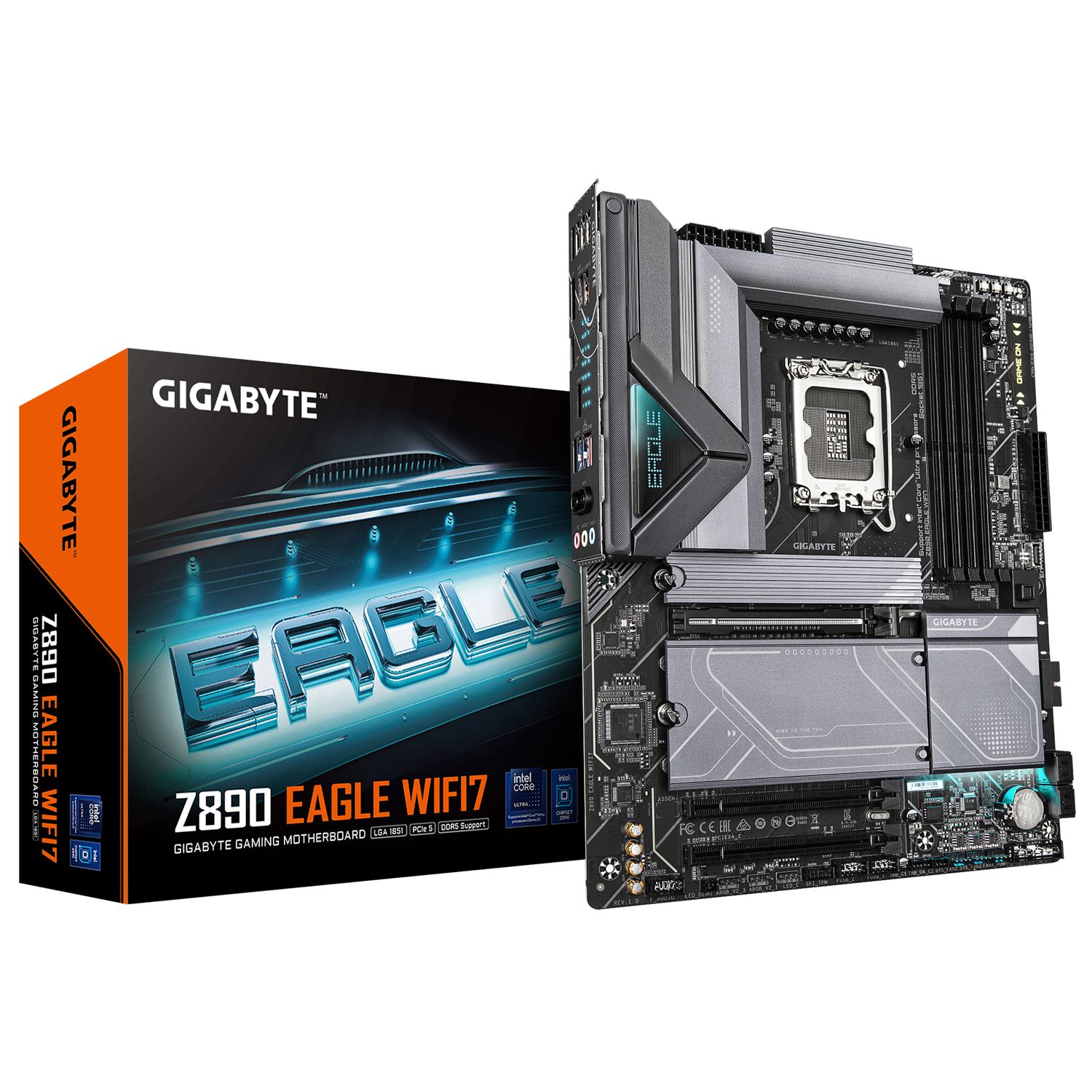

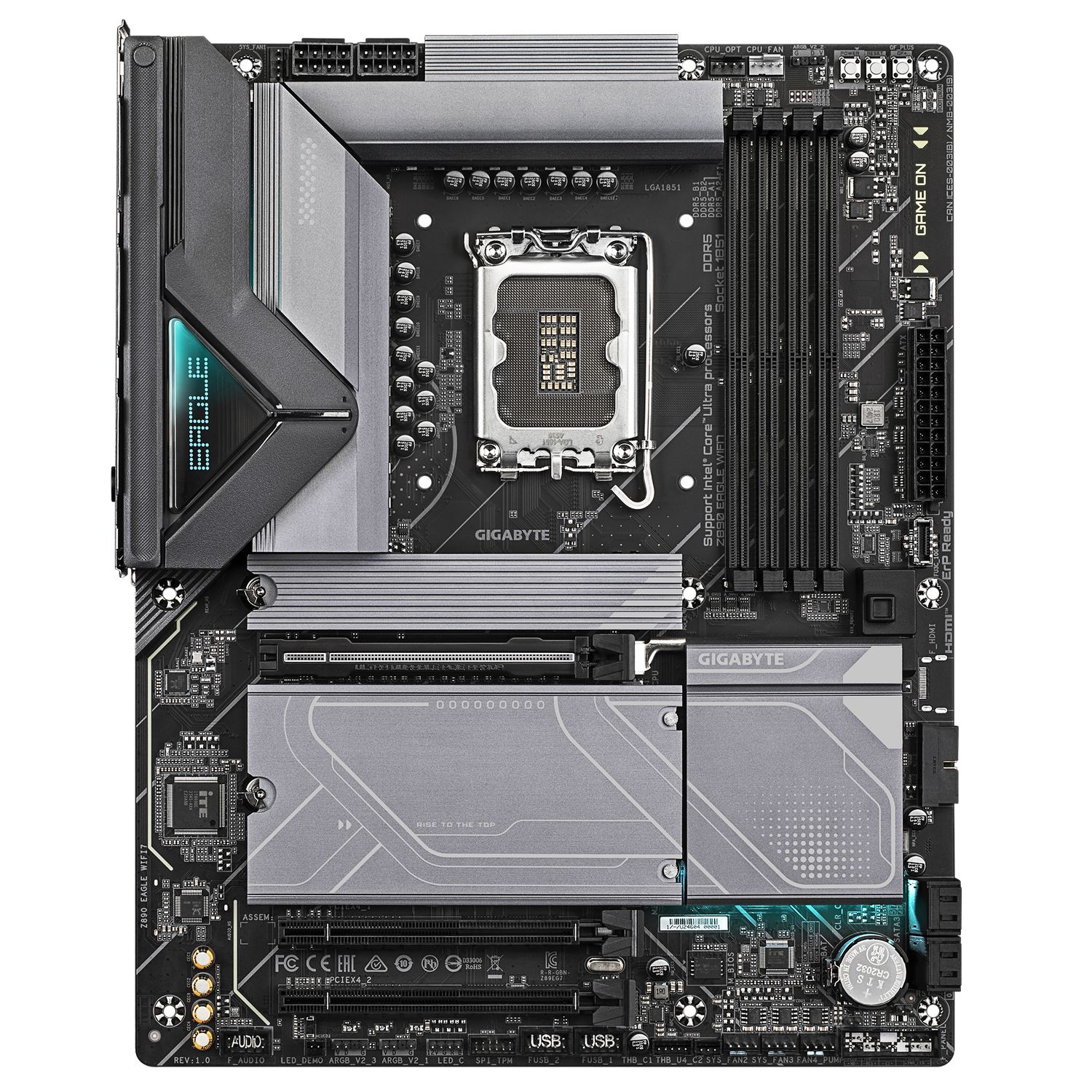

GIGABYTE Z890 EAGLE WIFI7 - Motherboard, Intel Core Ultra (Series 2) CPUs, ATX
GZ890EAGLE
Delivery
Payment options
Our advantages
- — Warranty: 3 Years Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
- Processor socketIntel Socket V1 (LGA 1851)
- Motherboard chipsetIntel Z890
- Supported memory typesDDR5-SDRAM
- Number of memory slots4
- Motherboard form factorATX
- All features
Gigabyte Z890 EAGLE WIFI7 is an ATX form factor motherboard that supports high-speed memory, has a wide set of interfaces, the latest data storage standards and excellent connectivity options to ensure the best performance. It will provide an unparalleled connection experience with high data transfer speed through a new generation network, drives and Wi-Fi.
Gaming motherboards boost DDR5 memory performance and offer first-class compatibility through a variety of advanced techniques. In particular, the available AI Snatch Engine is an AI model trained by AI TOP on various data sets for overclocking. It improves accuracy and stability while optimizing performance, and serves as the core of AI-powered auto-overclocking software.
For a reliable and fast connection, the motherboard supports Wi-Fi 7 , which provides fast data exchange, smooth streaming and significant advantages in the field of virtual reality thanks to high bandwidth and low latency.
Main
Brand
Gigabyte
Warranty
3 Years Warranty
Product code
GZ890EAGLE
EAN/UPC code
4719331864927
Networking
10G support
No
2G
No
3G
No
4G WiMAX
No
Auto MDI/MDI-X
No
Bluetooth
No
Broadcast storm control
No
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
BIOS
ACPI version
5.0
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System management BIOS (SMBIOS) version
2.7
Design
360° rotational base
No
Display
3D
No
Expansion slots
Number of M.2 (M) slots
4
PCI Express x16 slots
1
Features
FreeSync Range
No
24/7 operation
No
360° Spatial Audio
No
Audio chip
Realtek ALC1220
Audio output channels
7.1 channels
Component for
PC
Motherboard chipset
Intel Z890
Motherboard chipset family
Intel
PC health monitoring
Fan, Temperature, Voltage
Product colour
Black
Socket circuit breaker
No
Windows operating systems supported
Graphics
DirectX version
12.0
Internal I/O
ATX Power connector (24-pin)
Yes
EPS power connector (8-pin)
Yes
Number of SATA III connectors
4
RGB LED pin header
Yes
Total number of SATA connectors
4
TPM connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Memory
ECC сompatibility
Non-ECC
Maximum internal memory
256 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory clock speed (max)
8800 MHz
Supported memory clock speeds
5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8266,8400,8600 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Supported memory types
DDR5-SDRAM
Network
10G support
No
Bluetooth
Yes
Bluetooth version
5.4
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
WLAN controller model
MediaTek MT7925
Other features
2.5 mm connector
No
3.5 mm (1/8-inch) in
No
Weight
1.78 kg
Packaging content
Batteries included
Yes
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
CPU socket spacer(s)
No
Packaging data
Package depth
270 mm
Package height
80 mm
Package weight
2.02 kg
Package width
335 mm
Performance
2.4 GHz
No
360 camera support
No
360 video player support
No
Built-in power socket
No
Motherboard form factor
ATX
Processor
16-core Neural Engine
No
Maximum internal memory supported by processor
256 GB
Processor manufacturer
Intel
Processor socket
Intel Socket V1 (LGA 1851)
Compatible processor series
Intel Core Ultra (Series 2)

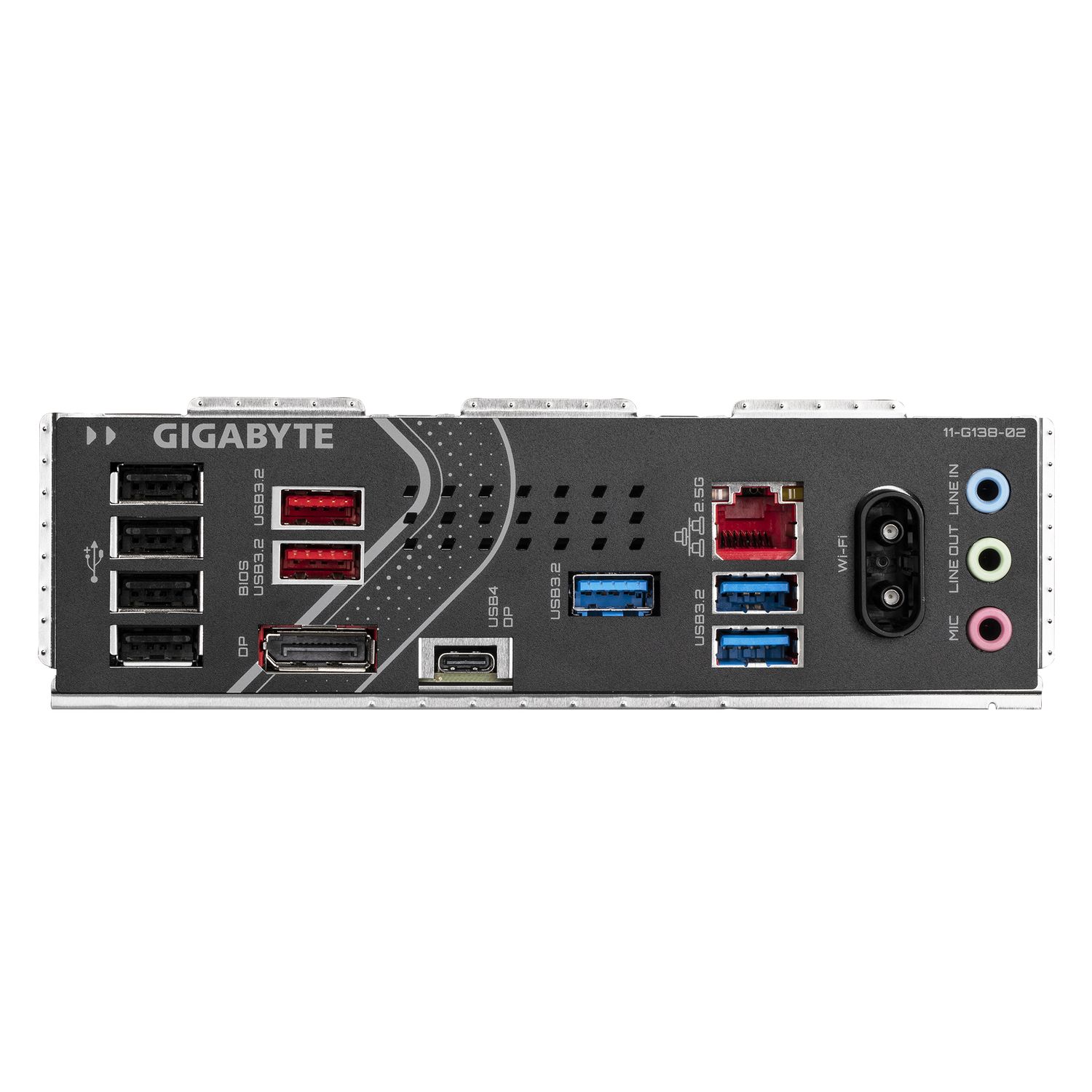

Rear panel I/O ports
DisplayPorts quantity
2
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
Microphone in
Yes
S/PDIF out port
Yes
Thunderbolt ports quantity
2
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Storage controllers
Number of HDDs supported
8
Number of storage drives supported
4
RAID levels
0, 1, 5, 10
RAID support
Yes
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Technical details
Warranty period
3 year(s)
Weight & dimensions
Depth
244 mm
Height
35 mm
Width
305 mm
