iiyama OPC51103BC - mini PC, i5-1135G7, 8GB, 256GB SSD, Win10 IoT Enterprise, Black
OPC51103BC
Delivery
Payment options
Our advantages
- — Warranty: 2 Years Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
- Processor modeli5-1135G7
- Processor cores4
- Internal memory8 GB
- Internal memory typeDDR4-SDRAM
- Total storage capacity256 GB
- Operating system installedWindows 10 IoT Enterprise
- Weight750 g
- All features
An Intel i5 OPS slot PC with Windows 10 IoT Enterprise and TPM 2.0 (Trusted Platform Module)

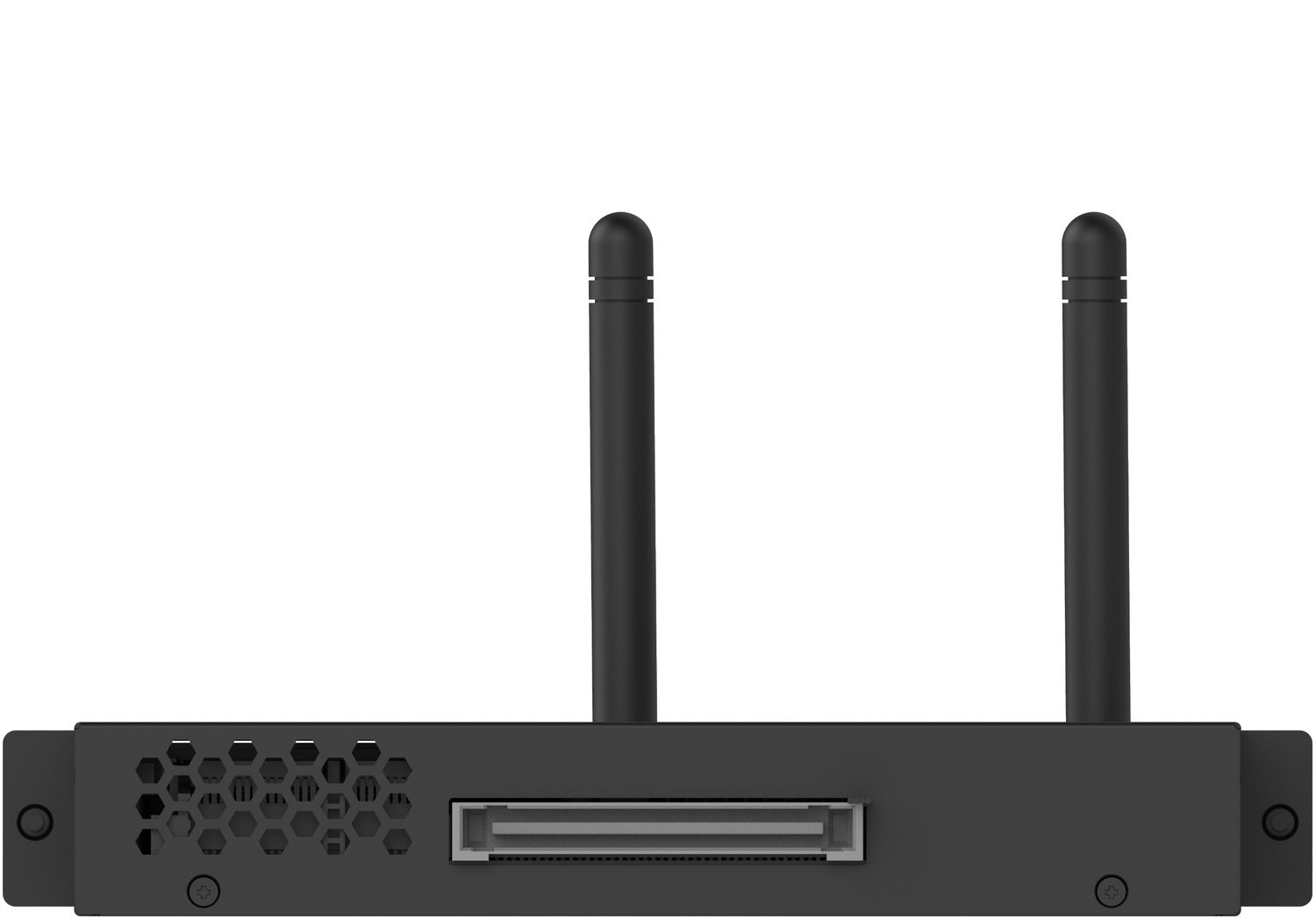

This mini OPS PC with Intel Core i5 inside turns your iiyama interactive large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. Simply slide in the iiyama OPS slot PC and get started right away.
Main
Brand
Iiyama
Warranty
2 Years Warranty
Product code
OPC51103BC
Networking
10G support
No
2G
No
3G
No
4G WiMAX
No
Auto MDI/MDI-X
No
Bluetooth
No
Broadcast storm control
No
Camera
3D depth front camera
No
3D depth rear camera
No
Design
360° rotational base
No
Chassis type
Mini PC
Intel® vPro™ Platform Eligibility
No
Product colour
Black
Display
3D
No
Features
24/7 operation
No
Graphics
Discrete graphics card
No
Number of execution units
80
On-board graphics card
Yes
On-board graphics card DirectX version
12.1
On-board graphics card family
Intel Iris Xe Graphics
On-board graphics card model
Intel Iris Xe Graphics
On-board graphics card OpenGL version
4.6
Memory
ECC
No
Internal memory
8 GB
Internal memory type
DDR4-SDRAM
Network
10G support
No
Bluetooth
Yes
Bluetooth version
4.2
Ethernet LAN data rates
10,100,1000 Mbit/s
LTE
No
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 45 ?C
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 60 ?C
Other features
2.5 mm connector
No
3.5 mm (1/8-inch) in
No
Packaging content
Display included
No
Mouse included
No
Performance
2.4 GHz
No
3D
No
Product type
Mini PC
Status
Launched
Trusted Platform Module (TPM)
Yes

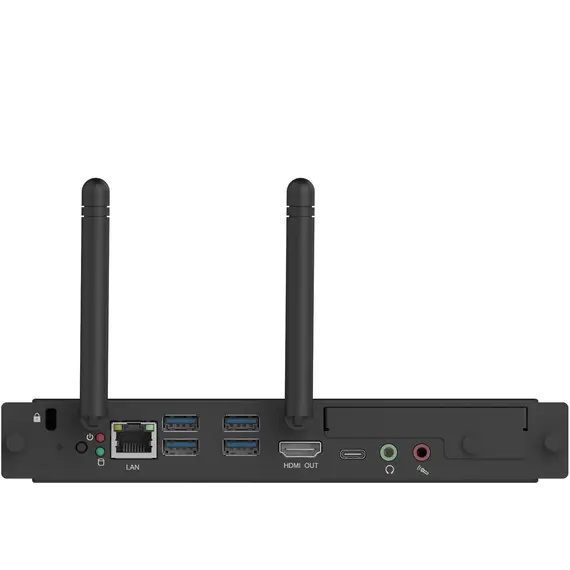

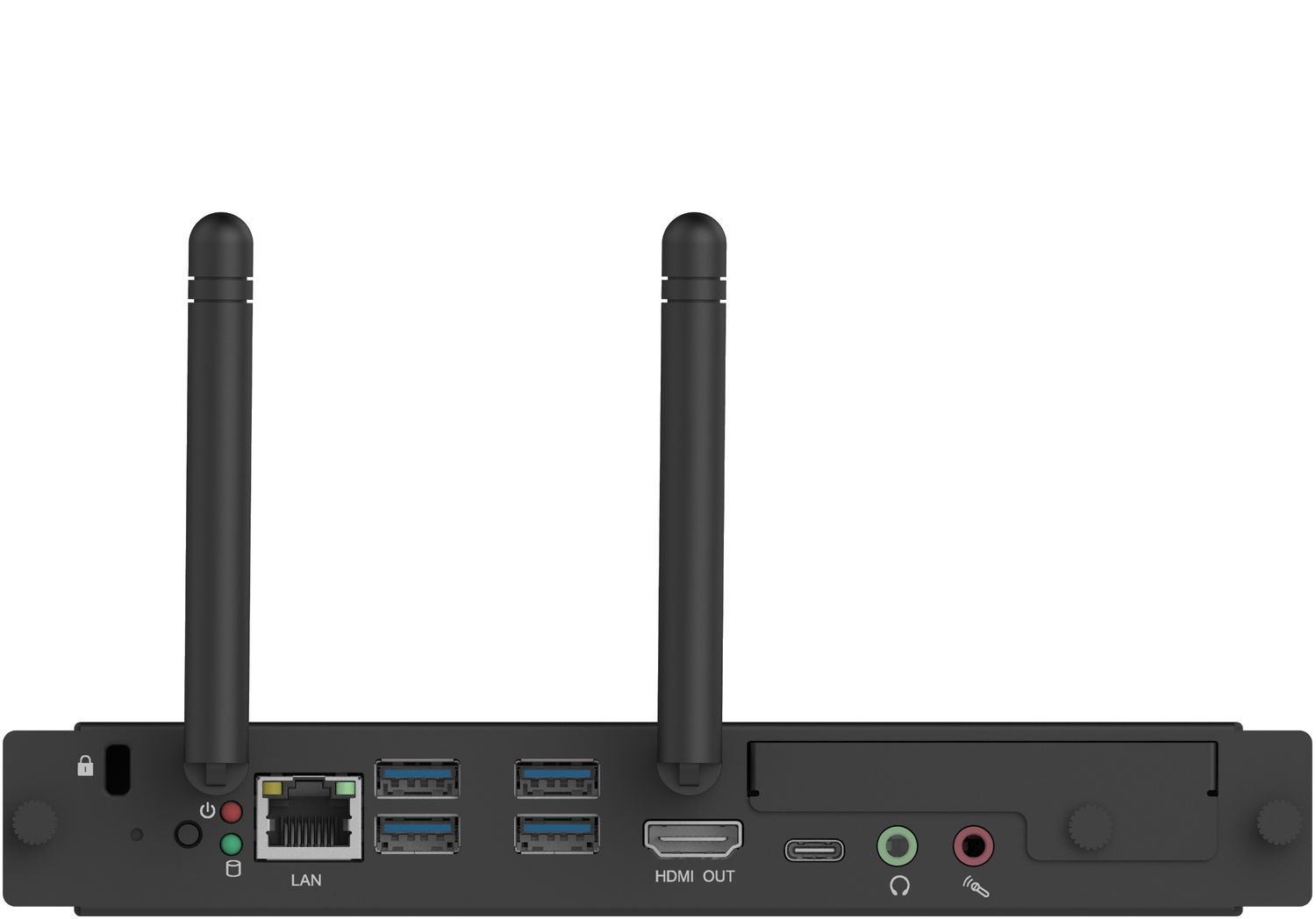

Ports & interfaces
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
Headphone outputs
1
Intel® Thunderbolt 4
Yes
Microphone in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Power
Power consumption (standby)
1.5 W
Power consumption (typical)
65 W
Processor
Configurable TDP-down
12 W
Configurable TDP-down frequency
0.9 GHz
Configurable TDP-up
28 W
Configurable TDP-up frequency
2.4 GHz
Processor boost frequency
4.2 GHz
Processor cache
8 MB
Processor cache type
Smart Cache
Processor cores
4
Processor family
Intel Core i5-11xxx
Processor generation
11th gen Intel Core i5
Processor manufacturer
Intel
Processor model
i5-1135G7
Processor socket
FCBGA1449
Processor special features
CPU configuration (max)
1
Embedded options available
No
Idle States
Yes
Intel Stable Image Platform Program (SIPP)
No
Intel Trusted Execution Technology
No
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Intel® OS Guard
Yes
Intel® Quick Sync Video Technology
Yes
Intel® Smart Sound Technology
Intel® Turbo Boost Technology
2.0
Supported instruction sets
AVX 2.0, AVX-512, SSE4.1, SSE4.2
Thermal Monitoring Technologies
Yes
Software
Operating system architecture
64-bit
Operating system installed
Windows 10 IoT Enterprise
Storage
Number of SSDs installed
1
Optical drive type
SSD capacity
256 GB
SSD interface
M.2
Storage media
SSD
Total SSDs capacity
256 GB
Total storage capacity
256 GB
Weight & dimensions
Depth
202 mm
Height
30 mm
Package depth
267 mm
Package height
72 mm
Package weight
970 g
Package width
192 mm
Weight
750 g
Width
133.5 mm
