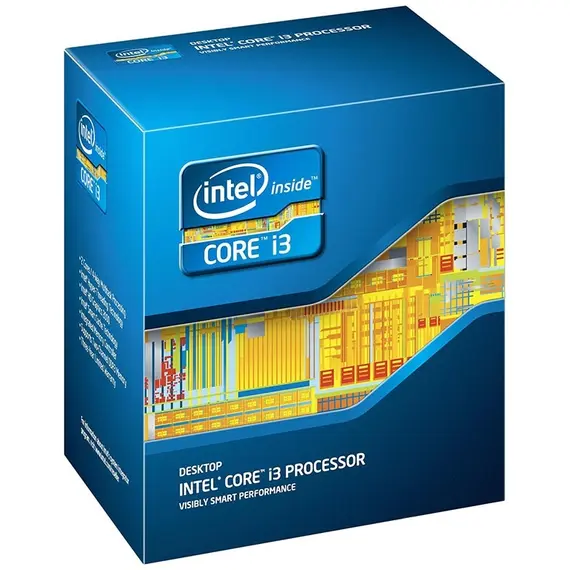

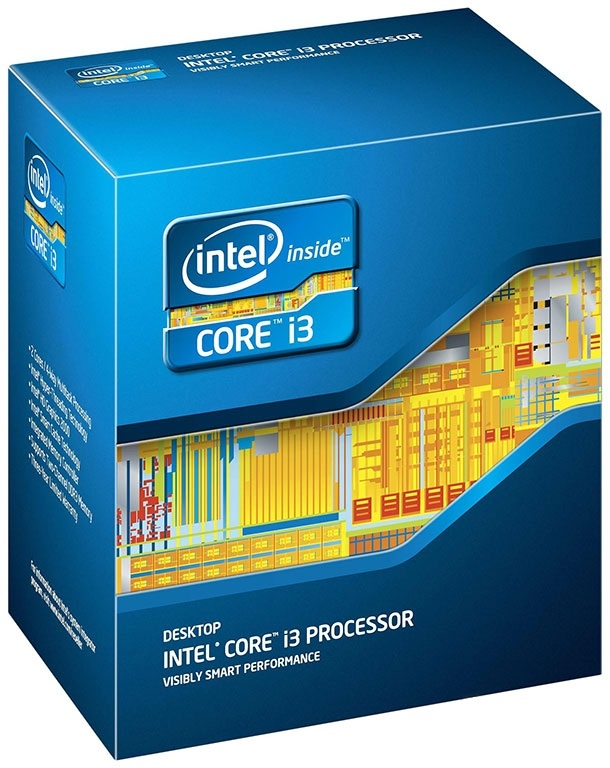

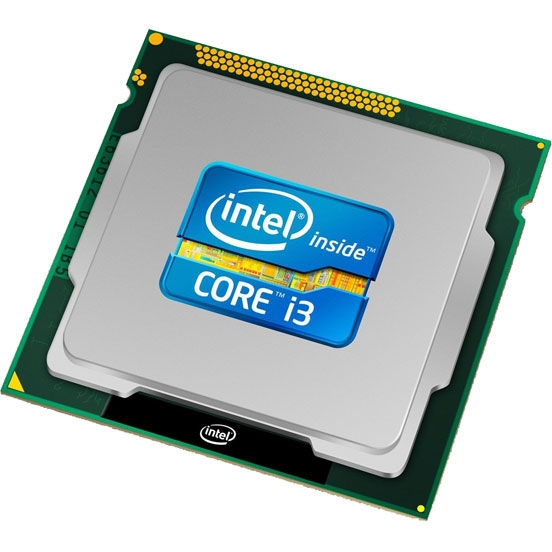

Intel Core i3-4170 - Processor, 3.7 GHz, 3 MB, Smart Cache Box
C4170T-P
Delivery
Payment options
Our advantages
- — Warranty: 6 Month Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
- Processor socketIntel Socket H3 (LGA 1150)
- Processor cores2
- Processor threads4
- Processor cache3 MB
- Thermal Design Power (TDP)54 W
- All features
Conflict Free
“Conflict free” means “DRC conflict free”, which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries.
Intel® Quick Sync Video
Intel® Quick Sync Video delivers fast conversion of video for portable media players, online sharing, and video editing and authoring.
Intel® InTru™ 3D Technology
Intel® InTru™ 3D Technology provides stereoscopic 3-D Blu-ray playback in full 1080p resolution over HDMI 1.4 and premium audio.
Intel® Wireless Display
Intel® Wireless Display is technology that enables wireless streaming of movies, photos, websites, and more from an UltrabookTM or PC to an HDTV.
Manufacturer site
Main
Brand
Intel
Warranty
6 Month Warranty
Product code
C4170T-P
EAN/UPC code
5032037073417, 0735858298414, 735858298414
Features
24/7 operation
No
Commodity Classification Automated Tracking System (CCATS)
G077159
CPU configuration (max)
1
Embedded options available
No
Execute Disable Bit
Yes
Export Control Classification Number (ECCN)
5A992C
Graphics & IMC lithography
22 nm
Harmonized System (HS) code
8542310001
Idle States
Yes
Market segment
Desktop
Maximum number of PCI Express lanes
16
PCI Express configurations
1x16,2x8,1x8+2x4
PCI Express slots version
3.0
Scalability
1S
Socket circuit breaker
No
Supported instruction sets
SSE4.1,SSE4.2,AVX 2.0
Thermal Monitoring Technologies
Yes
Thermal solution specification
PCG 2013C
Graphics
Maximum on-board graphics adapter memory
2 GB
Number of displays supported (on-board graphics)
3
On-board graphics adapter
Yes
On-board graphics adapter base frequency
350 MHz
On-board graphics adapter DirectX version
11.1/12
On-board graphics adapter dynamic frequency (max)
1150 MHz
On-board graphics adapter ID
0x41E
On-board graphics adapter maximum resolution (DisplayPort)
3840 x 2160 pixels
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel)
3840 x 2160 pixels
On-board graphics adapter maximum resolution (HDMI)
4096 x 2304 pixels
On-board graphics adapter maximum resolution (VGA)
1920 x 1200 pixels
On-board graphics adapter model
Intel HD Graphics 4400
On-board graphics adapter OpenGL version
4.3
On-board graphics adapter outputs supported
Embedded DisplayPort (eDP),DisplayPort,HDMI,DVI,VGA (D-Sub)
On-board graphics adapter refresh rate at maximum resolution (DisplayPort)
60 Hz
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel)
60 Hz
On-board graphics adapter refresh rate at maximum resolution (HDMI)
24 Hz
On-board graphics adapter refresh rate at maximum resolution (VGA)
60 Hz
Memory
ECC
Yes
Memory channels
Dual-channel
Memory clock speeds supported by processor
1333,1600 MHz
Memory types supported by processor
DDR3-SDRAM,DDR3L-SDRAM
Memory voltage supported by processor
1.5 V
Operational conditions
Tcase
72
Other features
2.5 mm connector
No
3.5 mm (1/8-inch) in
No
64-bit computing
No
Graphics output
eDP/DP/HDMI/DVI/VGA
Maximum internal memory
32768 MB
Video decoding
Yes
Packaging content
AC adapter included
No
CPU socket spacer(s)
No
Packaging data
AC adapter included
No
Package type
Retail box
Performance
2.4 GHz
No
5 GHz
No
Built-in power socket
No
Ports & interfaces
AC (power) in
No
Processor
Box
Yes
Bus type
DMI2
Compatible chipsets
Intel B85, Intel H81, Intel H87, Intel H97, Intel Q85, Intel Q87, Intel Z87, Intel Z97
Component for
PC
Cooler included
Generation
4th Generation
Memory bandwidth supported by processor (max)
25.6 GB/s
Processor ARK ID
77490
Processor base frequency
3.7 GHz
Processor cache
3 MB
Processor cache type
Smart Cache
Processor code
SR1PL
Processor codename
Haswell
Processor cores
2
Processor family
Intel Core i3-4xxx
Processor lithography
22 nm
Processor manufacturer
Intel
Processor model
i3-4170
Processor operating modes
64-bit
Processor series
Intel Core i3-4100 Desktop series
Processor socket
Intel Socket H3 (LGA 1150)
Processor threads
4
Stepping
C0
System bus rate
5 GT/s
Thermal Design Power (TDP)
54 W
Processor special features
Conflict-Free processor
Enhanced Intel SpeedStep Technology
Yes
Intel 64
Yes
Intel Enhanced Halt State
Yes
Intel Secure Key Technology version
1.00
Intel Small Business Advantage (SBA) version
1.00
Intel Stable Image Platform Program (SIPP)
No
Intel Stable Image Platform Program (SIPP) version
0.00
Intel Trusted Execution Technology
No
Intel TSX-NI
No
Intel TSX-NI version
0.00
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® InTru™ 3D Technology
Intel® Quick Sync Video Technology
Yes
Intel® Secure Key
Yes
Intel® Small Business Advantage (Intel® SBA)
Yes
Intel® Transactional Synchronization Extensions
No
Intel® Turbo Boost Technology
Intel® vPro™ Platform Eligibility
Intel® Wireless Display (Intel® WiDi)
Yes
Technical details
Bus bandwidth
5
Bus speed
5 GT/s
Bus type units
GT/s
Last change
63903513
Launch date
Q1'15
Maximum graphics adapter memory
2 GB
Maximum memory
32 GB
Maximum resolution & refresh rate (DisplayPort)
3840x2160@60Hz
Maximum resolution & refresh rate (HDMI)
4096x2304@24Hz
Maximum resolution & refresh rate (Integrated Flat Panel)
3840x2160@60Hz
Maximum resolution & refresh rate (VGA)
1920x1200@60Hz
Number of graphics cores
12
Processor brand name
Intel Core i3
Intel Core i3 Processor
Processor cache
3072 KB
Processor ID
0x41E
Product family
4th Generation Intel Core i3 Processors
Product type
Processor
Status
Discontinued
Supported memory types
DDR3-SDRAM,DDR3L-SDRAM
Weight & dimensions
Processor package size
37.5 x 37.5 mm
