MoxPlug CA-475800 - Industrial-Grade, 12-port, USB2.0 hub
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price

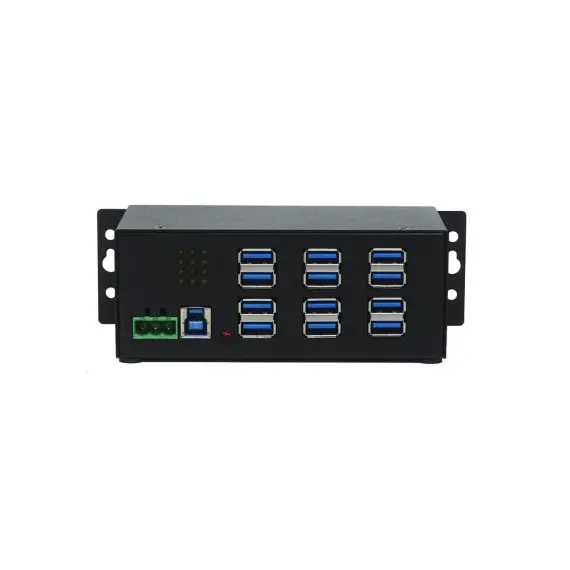

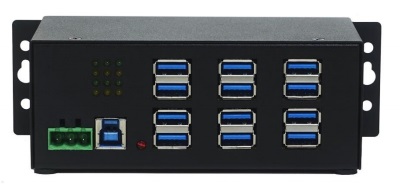

MH1230i is a robust, industrial-grade 12-port USB2.0 hub.
MH1230i expands one USB port into 12 USB3.0 ports.
The MH1230i supports USB3.0 5Gbps (super-speed) USB2.0 480Mbps (high speed) 12Mbps (full speed) and USB1.1 1.5Mbps (low speed) data rates.
It is powered by a high quality industrial-grade switching power supply and provides up to
900mA current to downstream devices.
There is no need for any driver or software installation.
By plugging the cable from the USB hub to the host USB port of the PC and connecting your USB devices to the downstream port of the hub, the host PC immediately gains 12 USB ports.
MH1230i USB hub is designed for use in industrial applications. It is housed in a DIN rail mountable metal case.
Features
- Expands one USB3.0 port into 12 USB3.0 ports
- Compliant with the USB3.0 specification
- Each port provides 5V 900mA power to downstream device
- Supports USB3.0 5Gbps(super-speed) USB2.0 480Mbps (high speed) 12Mbps (full speed) and USB1.1 1.5Mbps (low speed)
- Supports multiple transaction translator (TT) architecture to each downstream (DS) port
- Plug-and-play: no software or drivers required
- LEDs for power and USB status indication
- Input power range: DC9V ~ DC30V
- Included DC12V 5A switching power adapter
- Individual port power management
- Overcurrent protection Industrial-grade USB3.0 hub with metal case suitable for DIN rail mounting
- CE, FCC approval
Specifications
USB Bus
- Compliance: USB 3.0 compliant, USB 1.0/1.1 & 2.0 compatible
- Speed: 5Gbps, super-speed USB, 480Mbps, hi-speed USB, 12Mbps, full-speed USB, 1.5Mbps, low speed USB
- Number of Ports: 12
- Output Voltage: +5VDC per port
- Output Current: 900mA maximum per port
Power
- Power Input: 9V to 30V DC external power adapter
Mechanical
- Casing: SECC metal chassis with DIN rail brackets
- Dimensions: 155mm × 65mm × 53mm (W × L × H)
- Weight: 400g
Environmental
- Operating Temperature: 0°C to 45°C (32°F to 113°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Operating Humidity: 0% to 90% RH
- Safety Approvals: CE, FCC
