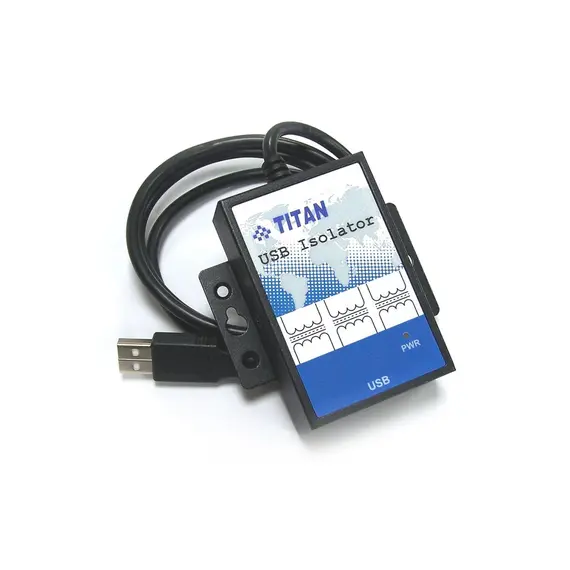

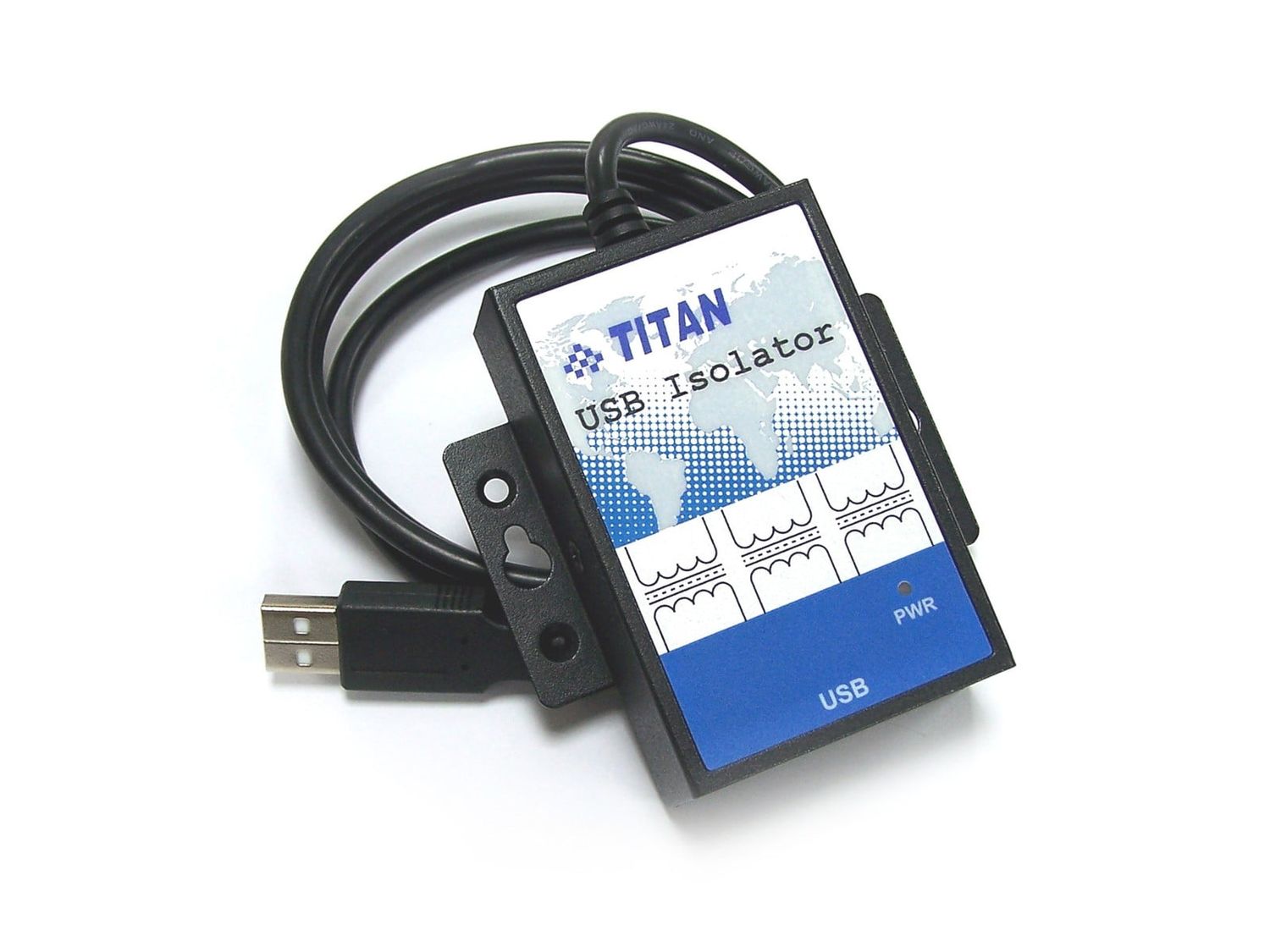

TITAN’s USB-ISO-M is a robust, industrial-grade full-speed USB isolator designed to ensure high-voltage 3kV isolation. This isolation serves to protect both the host computer and connected USB equipment from potential harm. The primary function of this industrial USB isolator is to establish protective isolation barriers for power and USB signals between the host computer and any connected USB devices.
The key features and benefits include:
-
Comprehensive Protection:
- Guards against harmful voltage, power surges, transient voltage spikes, ESD shock, and EMI/RFI interferences.
- Mitigates noise that can lead to damage and inaccurate measurements.
-
Efficient and Secured Isolation:
- Eliminates ground loop currents.
- Provides protection against overvoltage.
-
Flexible Data Transfer Rate:
- Configurable to either USB2.0 full speed (12Mbps) or USB1.1 low speed (1.5Mbps).
-
Bus-Powered and Current Supply:
- Bus-powered design.
- Supplies up to 420mA current to downstream devices.
-
Plug-and-Play Convenience:
- No need for driver or software installation.
- Connect the USB isolator to the host USB port and the USB device to the downstream port for immediate isolation protection.
-
System Stability Improvement:
- Enhances system stability, particularly valuable for industrial and medical equipment.
-
Ground Voltage Protection:
- Ideal protector when the USB host and USB devices operate at different ground voltages.
The USB-ISO-M ensures a reliable and secure environment for USB connections, making it an essential component for safeguarding both the host PC and connected USB devices in industrial and medical settings.
SPECIFICATIONS
Function Specification
- Downstream One
- Upstream One
LED
- Power indication
Power Mode
- Self-power mode
Output
- Voltage (per port): +5VDC
- Current (per port): 420mA maximum
Operating Temperature
- -40°C to 70°C
Housing
- Robust metal case
Dimensions
- 73mm × 52mm × 25mm (L × W × H)
- 73mm × 75mm × 25mm (L × W × H) with DIN rail bracket
Safety Approvals
- CE, FCC
