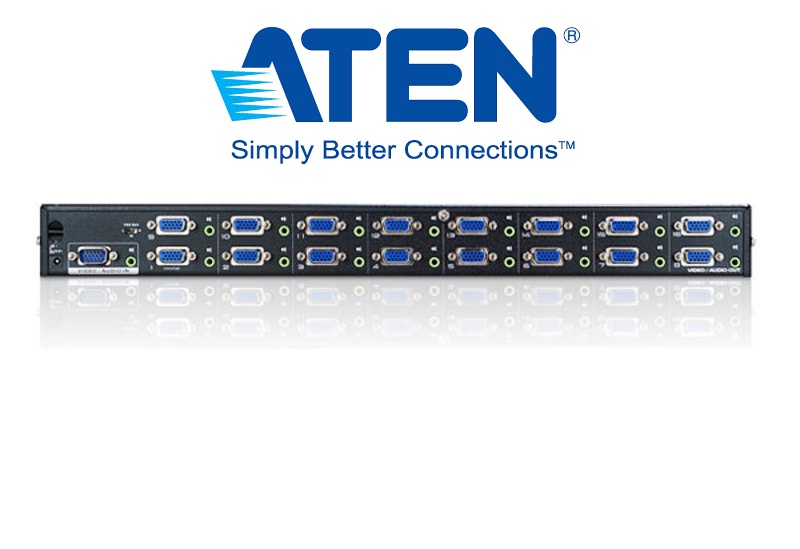

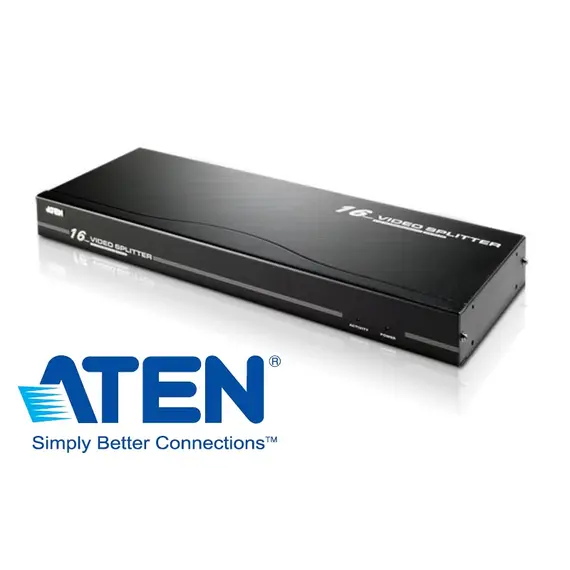

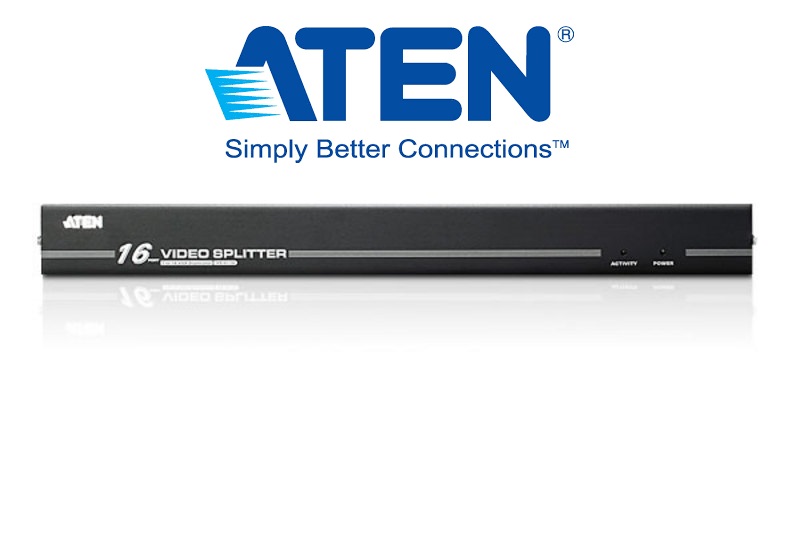

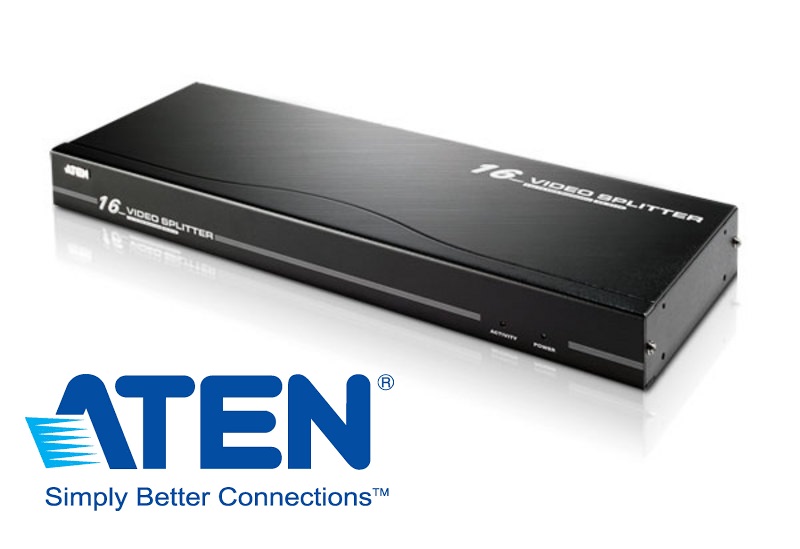

ATEN VS0116 - 16-Port VGA/Audio Splitter (250MHz)
CA-775780
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
The VS0116 16 Port Video Splitter with Audio duplicates and enhances the video and audio signals from an input source (i.e. a computer) and routes them to up to 16 output devices (monitors, projectors, etc.)Furthermore, it can be cascaded to additional ATEN video splitters to support hundreds of monitors.
Specifications
| Video Input | |
| Interfaces | 1 x HDB-15 Male (Blue) |
| Impedance | 75 Ω |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 16 x HDB-15 Female (Blue) |
| Impedance | 75 Ω |
| Video | |
| Max. Bandwidth | 250 MHz |
| Max. Resolution | Up to 1920 x 1440 |
| Max. Distance | Up to 30 m |
| Audio | |
| Input | 1 x Mini Stereo Jack Female (Green) |
| Output | 16 x Mini Stereo Jack Female (Green) |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5.3V:3.07W:14BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 2.80 kg ( 6.17 lb ) |
| Dimensions (L x W x H) | 43.72 x 15.81 x 4.40 cm (17.21 x 6.22 x 1.73 in.) |
Main
Brand
ATEN
Product code
CA-775780
Other features
2.5 mm connector
No
3.5 mm (1/8-inch) in
No
64-bit computing
No
Packaging content
AC adapter included
No
Packaging data
AC adapter included
No
Performance
2.4 GHz
No
5 GHz
No
Ports & interfaces
AC (power) in
No
