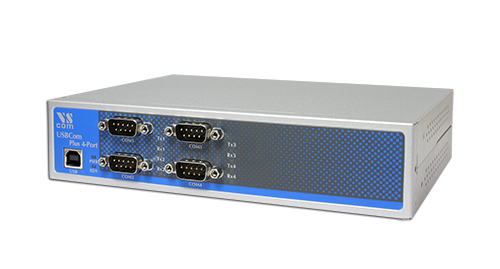

The USB-4COM Plus provides easy serial port expansion over USB 2.0 connecting to high speed RS232 or RS422/485 devices. The device is fully ESD and surge protected, bus powered and accommodated in a ruggedized metal housing. Furthermore, it can operate across a large range of temperature levels to cope with harsh operating conditions. The ISO version is 2.5kV electrically isolated to withstand unbalanced ground loops that arise in hazardous industrial environment. Lastly, both DIN-Rail and wall-mounting options are available.
Flexible Three-Way Serial Ports
The serial ports allow different operating modes — which are easily configured via a single DIP switch — to fully support RS232, RS422 and RS485 protocols. The operating mode of serial ports chosen via DIP switch is either same for all ports or individually for each port by "USBCOM Configuration Utility" software. The differential line termination for RS485 (120Ω) is automatically controlled by choosing the appropriate operating mode. High/Low biasing resistors are not needed; as such, hassle-free usage is guaranteed for the user.
Com Port drivers are available for Windows, Linux and Mac OS X. A configuration tool allows easy access to special Windows driver options.
High Speed and Isolation
USB 2.0 High Speed connection allows serial data rates of up to 12Mbps for RS422/485 and 921.6kbps for RS232. Every non-standard bitrate (e.g. 500kbps) can easily be set up in the range of up to 3.5Mbps.
USB-xCOM Plus adapters are 16kV ESD and surge protected at USB and serial ports interfaces. Additionally, the serial ports are 2.5kV electrically isolated (ISO version only), making them ideal for deployment in harsh industrial environments.
Power and Port Expansion

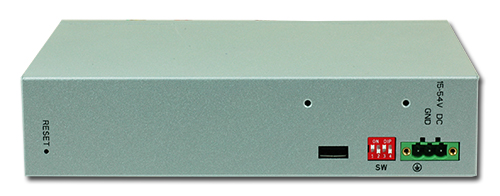

Multiple USB-xCOM Plus devices can be concatenated via the USB Type A at the rear side, creating up to 32 serial ports. In concatenated configuration, the local power input of each expansion module must be used.
USB-xCOM Plus 4 and 8 ports adapters can also be used to expand the serial ports for NetCom Plus Servers (4 and 8 ports).
Features
- USB 2.0 to 4 x RS232/422/485
- High-Speed serial ports 921.6kbps
- Driver for Windows, Linux, Mac OS X
- LEDs for Power and TxD/RxD activity
- ESD protection on USB and serial ports
- 2.5kV electrical isolation (ISO version only)
- Bus powered (non-ISO), Self powered (ISO version)
- Wide range of power input 9 - 54V DC
- Metal housing
- 19-inch rack and wall mounts
- Wide range of operating temperatures
SPECS
|
USB-Input |
USB 2.0 High Speed, USB 1.1 compliant |
|
Connector |
USB type B |
|
Circuits |
FTDI FT4232H |
|
No. of Ports/Type |
4 x RS232/422/485 configurable by DIP switch and software |
|
Connector |
DB-9 male |
|
Protection |
16kV ESD surge protection |
|
Operating Modes |
RS232 |
|
Configuration |
The single DIP switch at rear side configures all ports in the same operating mode or individually via software: |
|
Signals non-ISO |
RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
|
Signals ISO |
RS232: TxD, RxD, RTS, CTS, GND |
|
RS485 Data Direction Control |
ARTc (Automatic Receive Transmit control) |
|
Data Bits |
7, 8 |
|
Stop Bits |
1, 2 |
|
Parity |
None, Even, Odd, Mark, Space |
|
Flow Control |
RTS/CTS, XON/XOFF |
|
Baudrate |
RS232: 180bps - 921.6/1000kbps |
|
LEDs |
TxD/RxD for each port |
|
Connector |
USB 2.0 High Speed type A, 500mA @5V at rear side |
|
Expansion Ports |
connect USB-xCOM Plus to add more serial ports, also electrically isolated |
|
Drivers |
Windows 2000 to Windows 10 (x86 and x64) |
|
Installation |
The driver is already installed (Linux), or installs by automatic Download after Device connection (Windows). |
|
Input Voltage |
5V (USB) |
|
Power consumption USB-4COM Plus |
Bus-powered: 5V 500mA via USB |
|
Power consumption USB-4COM Plus ISO |
Bus powered: 5V 600mA via USB |
|
Port Expansion |
DCin supply is compulsory to support Port Expansion. |
|
Connector |
Bus powered: USB Type B, no external supply |
|
Case |
0.8mm sheet metal |
|
Weight |
0.9kg, w/h box 1.5kg |
|
Dimensions |
196×147×44 mm³ (W×L×H) |
|
Packaged |
310×192×60 mm³ |
|
Mounting |
19-inch Rack |
|
Operating Temp |
−25°C - 75°C |
|
Storage Temp |
−30°C – 85°C |
|
Ambient Humidity |
5-95% non condensing |
|
Declarations |
CE, FCC |
|
EMI |
EN 55022 Class B |
|
EMS (EN 55024) |
EN 61000-4-3: Radiated RFI |
|
ESD |
EN 61000-4-2 4kV contact 8kV air for |
|
MTBF non-ISO |
39.4 Years @ 25°C |
|
MTBF ISO |
29.2 Years @ 25°C |
|
Standard |
Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7 |
|
Packing list |
USB-4COM Plus device |
