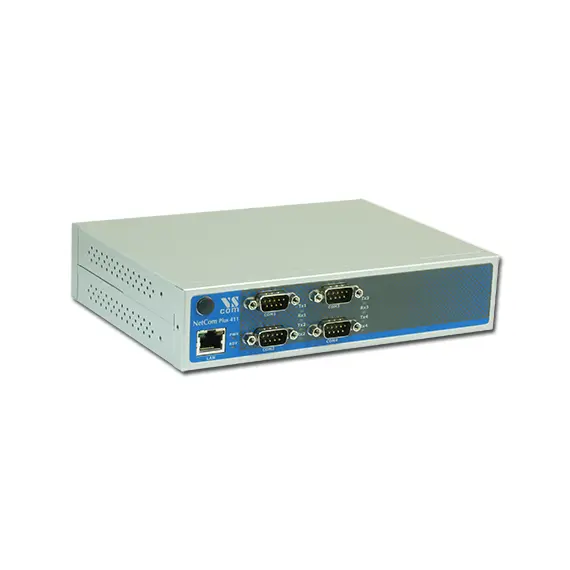

VSCOM ModGate Plus 413 - Networking Card, 4x RS232/422/485 by Modbus for LAN or WLAN
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
The ModGate Plus is an easy to use Gateway between Modbus/TCP on Ethernet or WLAN, Modbus/RTU and Modbus/ASCII. ModGate Plus 413 connects four Modbus serial lines to a network running TCP/IP. It can also connect Modbus/RTU and Modbus/ASCII busses.
Hardware Characteristics
With its metal case, a wide temperature range and a flexible DC power supply, the ModGate Plus classifies as an industrial-strength device. The product line is based on a state-of-the-art RISC processor, providing a cost-effective design and low power consumption. The serial ports can be configured to physically use RS232, RS422 or RS485, allowing the utilisation of multiple Modbus Slaves on a single serial line.
Operational Benefits
The ModGate Plus devices make Modbus operations independent of distance and OS platforms; they can be accessed and controlled via Internet and VPN connections. The messages received on the network are sent to the destination serial line; replies from serial port are sent back across the network and vice versa. A ModGate Plus device functions automatically, whether a Modbus Master is on a serial port or on the TCP/IP network. Modbus Master Multiplexing is implemented as an extension to the standard: Several Masters can connect to ModGate Plus using Modbus/TCP whilst slaves on serial lines may answer requests from multiple Masters. The configuration of ModGate Plus is done via browser. The user interface is based on modern web technologies to allow for an easy navigation through the configuration options provided. Furthermore, UPnP provides a simple and standardized way to find the Gateway in the network. ModGate Plus devices can be ordered with an embedded module for WLAN 802.11b/g/n. A ModGate Plus 413 may be ordered as POE device, with additional power supply via Power-over-Ethernet complying with 802.3af (Class 0).
Features
- Converts between Modbus/RTU, Modbus/ASCII and Modbus/TCP over Ethernet, WLAN or Internet
- LAN 10/100 Fast Ethernet
- Configuration over Web interface
- Supports Modbus Master Multiplexing
- Supports TCP/IP, DHCP, ICMP, HTTP, DNS
- RS232/422/485 interface selected by Software
- Optional: Wireless network IEEE 802.11b/g/n
Specifications
| Speed/Type | 100Mbps/10Mbps Auto-detecting |
| Connector | RJ45 (8P8C) 8 pin |
| LEDs | Power, WLAN, Ready, Ethernet Link / Speed |
| No. of Ports/Type | 4 × RS232/422/485 selected by software |
| Connector | DB-9 male |
| Protection | 16kV ESD surge protection |
| Operating Modes | RS232 RS422 full duplex (120Ω on/off) RS485 4 wire, full duplex (120Ω on/off) RS485 2 wire, half duplex (120Ω on/off) |
| Configuration | Software sets operating mode and RS422/485 termination No High/Low biasing resistors needed |
| Signals | RS232: TxD,RxD, RTS,CTS, DTR,DSR, DCD, GND RS422: Tx+/-, Rx+/-, GND RS485 4 wire: Tx+/-, Rx+/-, GND RS485 2 wire: Data+/-, GND |
| RS485 Data Direction control | ARTc (Automatic Receive Transmit control) |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity | None, Even, Odd |
| Baudrate | ModBus: up to 115.2 kbps RS232: 200 bps to 921.6/1000 kbps (physical) RS422/485: 200 bps to 3.7Mbps (physical) |
| LEDs | TxD/RxD for each port |
| Installation | DIP switches set the device to DHCP or a defined fixed IP Address to be contacted via WEB Browser |
| Operating mode | Promiscous ModeMessages received from the network are sent to the defined serial port, messages from the serial port are sent to the connected network host. (Circuit Switching)Direct Mapping ModeReceived messages are scanned for their target address. This address is found in the mapping table, the message is sent to the defined connection. (Packet Switching) |
| Network Protocols | Modbus/TCP, TCP/IP, DHCP, ICMP, HTTP, DNS, UDP, UPnP/SSDP |
| Serial Protocols | Modbus/RTU and Modbus/ASCII |
| Modbus Master Multiplexing | An extension to the standard. Slaves on serial lines may answer requests from multiple masters. The masters connect to ModGate Plus by Modbus/TCP. |
| Configuration | Configuration over WEB Browser |
| Detection | Announces presence in the network via Universal Plug and Play (UPnP) protocol |
| DNS | Domain Name Server support |
| Firmware | Firmware update over WEB Browser |
| Security | Webinterface is password protected. The password can be changed in the Webinterface. |
| USB 2.0 | for logging/debugging |
| Standards | 2.4GHz Radio, supports IEEE Std. 802.11b/g/n |
| WLAN Modes | Access Point (AP) or Client (Station) |
| TX Power | 802.11b:Typ. 15.5dBm ±1.5 dBm @ 1Mbps (DSSS)Typ. 15.5dBm ±1.5 dBm @ 11Mbps (OFDM)802.11g:Typ. 15.6dBm ±1.5 dBm @ 6Mbps (CCK)Typ. 13.5dBm ±1.5 dBm @ 54Mbps (OFDM)802.11n:Typ. 13.4dBm ±1.5 dBm @ 6.5Mbps (OFDM)Typ. 13.3dBm ±1.5 dBm @ 150 Mbps(OFDM) |
| RX Sensitivity | 802.11b:-95.6dBm @ 1Mbps, -88dBm @ 11Mbps802.11g:-91.3dBm @ 6Mbps, -74.2dBm @ 54 Mbps802.11n:-88.8dBm @ 6.5Mbps (20 MHz), -72dBm @ 72.2Mbps (20 MHz) |
| Transmission Rate | 802.11b: 11Mbps 802.11g: 6 to 54Mbps 802.11n: 6.5 to 150Mbps |
| Transmission Distance | Up to 100m in open areas |
| Wireless security | WEP WPA WPA2 WPA2-Enterprise (IEEE 802.1X/RADIUS) |
| Antenna Connector | RP (Reverse-Polarity) SMA |
| Input Voltage | 9 - 54V DC |
| Power Consumption | 0.3A @ 12V, 4W max |
| Connector | 3-pin Terminal Block |
| Power over Ethernet | PoE Class 0 Device, IEEE 802.3.af, 8W max. Automatic switch between PoE and local power for POE Version only |
| Case | 0.8mm sheet metal |
| Weight | w/o box 0.9kg; w/h box 1.35kg |
| Dimensions | 196×147×44 mm³ (W×L×H) |
| Packaged | 310×192×60 mm³ |
| Mounting | 19-inch Rack Wall mount |
| Operating Temp | −20°C - 65°C |
| Storage Temp | −20°C – 85°C |
| Ambient Humidity | 5-95% non condensing |
| Declarations | CE, FCC |
| EMI | EN 55022 Class B EN 61000-3-2: Limits of harmonic current emissions EN 61000-3-3: Limitation of voltage changes 47 CFR FCC Part 15 Subpart B |
| EMS (EN 55024) | EN 61000-4-3: Radiated RFI EN 61000-4-4: Electrical Fast Transient EN 61000-4-5: Surge EN 61000-4-6: Induced RFI EN 61000-4-8: Power Frequency Magnetic Field EN 61000-4-11: Power supply dips |
| ESD | EN 61000-4-2 4kV contact 8kV air for Serial Ports USB Ethernet DC Power connector |
| MTBF | 24.8 Years @ 25°C 9.9 Years @ 45°C |
| Standard | Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7 |
| Packing list | ModGate Plus 413 Mounting brackets for 19-inch rack Wall mount plates Terminal block for Power Supply |
