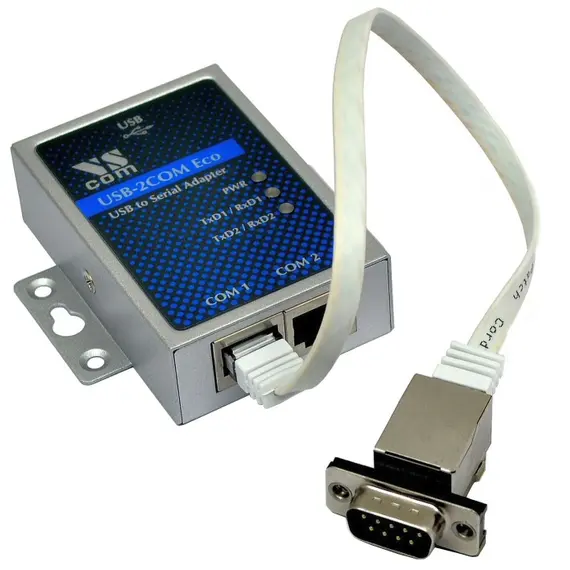

VSCOM USB- 2COM ECO - USB to 2x RS232 ports RJ45
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
USB-2COM ECO provides easy serial port expansion over USB 2.0 connecting to RS232 devices over RJ45 connectors. It is fully ESD and surge-protected, bus-powered, and accommodated in a very small metal housing. It works over a wide temperature range to cope with harsh operating conditions. DIN-Rail and Wall-mounting options are available.
RJ45-to-DB9M adapters needed to change wiring from CAT5 to DB9 are included. The customer supplies his own cables in suitable lengths.
Serial Ports Configuration
The serial ports fully support 8 x signals RS232 protocol. LEDs for PWR and TxD/RxD show the activity status for the user. Com Port Drivers are available for Windows, Linux, and Mac OS X. A configuration tool, called USB-COM Configurator, allows easy access to special Windows driver options to optimize settings and performance.
High-Speed Rates and ESD Protection
USB 2.0 Full Speed connection allows serial data rates of up to 460.8kbps. Every non-standard bitrate (e.g. 31250bps for MIDI) can be easily set up. USB-COM ECO is fully ESD and surge-protected at USB and serial port interfaces.
Features
- USB 2.0 to 2 x RS232 ports
- High-Speed Serial ports 460.8kbps
- Driver for Windows, Linux, Mac OS X
- LEDs for Power and TxD/RxD activity
- ESD protection on USB and serial ports
- Small metal housing and Bus powered
- DIN-Rail and Wall mount options
- Wide range operating temperature
Specifications
- USB-Input: USB 2.0 Full Speed, USB 1.1 compliant
- Connector: USB type B
- Circuits: FTDI FT2232D
- No. of Ports/Type: 2 x RS232
- Connector: RJ45 (8P8C) 8 pin/ 2 x RJ45-to-DB9M Adapters to change to DB9 wiring included
- Protection: 16kV ESD surge protection
- Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Data Bits: 7, 8
- Stop Bits: 1, 2
- Parity: None, Even, Odd, Mark, Space
- Flow Control: RTS/CTS, XON/XOFF
- Baudrate: 180bps - 460.8/500kbps
- LEDs: bicolor TxD/RxD for each port
- Drivers: Windows 2000 to Windows 10 (x86 and x64) / Windows Server 2000 to 2016 (x86 and x64) / Linux (Kernel 3.4 and later built-in) / Mac OS X
- Installation: The driver is already installed (Linux), or installs by automatic Download after Device connection (Windows).
- Input Voltage: 5V (USB)
- Power Consumption: max 60mA, 300mW
- Connector: USB Type B, bus powered, no external supply
- Case: 0.8mm sheet metal
- Weight: 150g, w/h box 0.3kg
- Dimensions: 50×72×22 mm³ (W×L×H) Case / 72×72×22 mm³ (W×L×H) with mounting wings
- Packaged: 85×122×55 mm³
- Mounting: Desktop use / DIN-Rail (optional) / Wall mount
- Operating Temp: −25°C - 75°C
- Storage Temp: −30°C – 85°C
- Ambient Humidity: 5-95% non condensing
- Declarations: CE, FCC
- EMI: EN 55022 Class B / 47 CFR FCC Part 15 Subpart B
- EMS (EN 55024): EN 61000-4-3: Radiated RFI / EN 61000-4-4: Electrical Fast Transient / EN 61000-4-5: Surge /
- EN 61000-4-6: Induced RFI / EN 61000-4-8: Power Frequency Magnetic Field / EN 61000-4-11: Power supply dips
- ESD: EN 61000-4-2 4kV contact 8kV air for / Serial Ports / USB
- MTBF: 139.2 Years @ 25°C / 73.7 Years @ 45°C
- Standard: Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7
- Packing list: USB-2COM ECO device / USB 2.0 High-Speed cable / 2 adapters RJ45-TO-DB9M / 4 rubber feet for table mode
