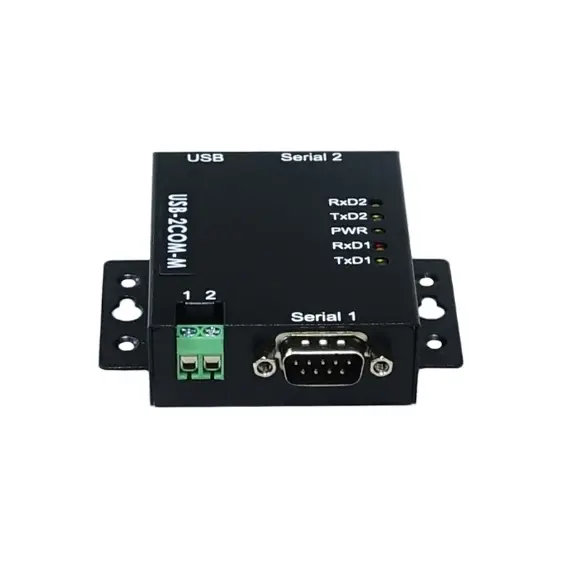

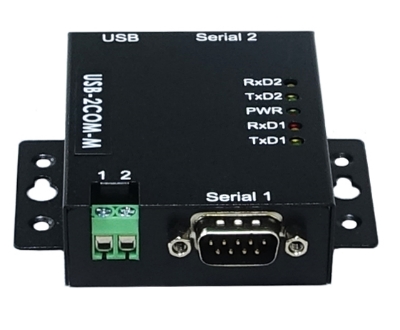

VScom USB 2COM-M - USB to serial adapter (RS232) with metal case
CA-850280
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
Features:
- Adds two high speed RS-232 serial ports by connecting to a USB port
- SECC metal chassis with DIN rail bracket
- Provides DC +5V power for external devices
- Powered by USB port, no external power adapter required
- LEDs indicate TxD and RxD for easy port monitoring and diagnosis
- Installs as a standard Windows COM port
- Full RS-232 modem control signals and hardware/software flow control
- Serial port protected with surge protection of 10kV
- Non-standard baudrates supported
- Easy plug and play installation and RS-232 device connection
- High speed serial port with baud rate up to 921.6kbps
- Supports Windows XP to 10, Server 2000 to Server 2016 (WHQL certified)
- Supports Linux Kernel 2.4 and above
- Supports Mac OS X 10.9 and above, driver signed by Apple
Specifications:
| Compliance | USB 1.0/1.1 compliant, USB 2.0 & 3.0 compatible |
| Speed | 12Mbps, full-speed USB |
| FIFO | 128 byte transmit 384 byte receive |
| Interface | RS-232 |
| Number of Ports | 2 |
| Connector | DB9 male |
| Max. Speed | 921.6kbps for transmit & receive |
| RS-232 Signals | DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI |
| Protection | 10kV ESD protection for all signals |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, odd, even, mark, space |
| Stop Bit | 1, 1.5, 2 |
| Flow Control | Hardware (RTS, CTS), XON/XOFF |
| Power Input | Power supplied via USB (5V) connector No external power needed |
| Power Output | 5V, 150mA through PIN 1 and 2 of terminal block |
| Casing | SECC metal chassis with DIN rail bracket |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 75°C (-4°F to 167°F) |
| Operating Humidity | 5% to 95% RH |
| Safety Approvals | CE, FCC |
