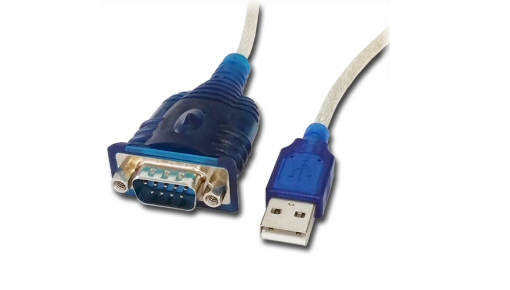

VScom USB-COM Mini - USB to 1x RS232 port (DB9, male, LED)
CA-850100
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
Serial ports on USB allow further use of existing serial devices, even when the computer doesn't offer serial ports.
High Speed RS232
The high speed serial port with the 128 byte FIFO allows fast data communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows every unusual speed settings like 31.250bps.
Molding Case with LEDs
Model USB-COM Mini provides LED for serial Tx/Rx, visible through the blue plastic housing.
Features
- RS232 DB9 male port
- Speed up to 500 kbps
- no external power supply
- Translucent blue with LED for Serial Tx/Rx
- Black plastic housing without LED
Specifications
| USB-Input | USB 2.0 Full Speed, USB 1.1 compliant |
| Connector | USB type A on fixed cable |
| Circuits | FTDI FT232R |
| No. of Ports/Type | 1 x RS232 |
| Connector | DB-9 male |
| Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd, Mark, Space |
| Flow Control | RTS/CTS, XON/XOFF |
| Baudrate | 180bps - 460.8/500kbps |
| LEDs | TxD/RxD |
| Drivers | Windows 2000 to Windows 10 (x86 and x64) Windows Server 2000 to 2012 (x86 and x64) Linux (Kernel 2.6 and later built-in) Mac OS X |
| Installation | The driver is already installed (Linux), or installs by automatic Download after Device connection (Windows). |
| Input Voltage | 5V (USB) |
| Power Consumption | 5V @40mA max, 0.2W |
| Connector | USB Type A, bus powered, no external supply |
| Case | translucent molded plastic (blue) |
| Weight | 45g |
| Dimensions | 34×65×18 mm³ (W×L×H) |
| Mounting | Desktop use |
| Operating Temp | −25°C – 75°C |
| Storage Temp | −30°C – 85°C |
| Ambient Humidity | 5-95% non condensing |
| Declarations | CE, FCC |
| EMI | EN 55022 47 CFR FCC Part 15 Subpart B |
| EMS (EN 55024) | EN 61000-4-3: Radiated RFI EN 61000-4-8: Power Frequency Magnetic Field |
| ESD | EN 61000-4-2 4kV contact 8kV air for Serial Port |
| Packing list | VScom USB-COM Mini Adapter USB cable 0.3m fixed |
