Install the appASUS 90MB1EK0-M1EAYC PRIME B760M-A-CSM Motherboard - LGA 1700, Intel B760, Micro-ATX, 1YR
90MB1EK0-M1EAYC
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 31 days
- — Best price
Find similar
Key specifications
- BrandASUS
- Processor socketLGA 1700
- Motherboard chipsetIntel B760
- Motherboard form factorMicro-ATX
- Supported memory typesDDR5-SDRAM
- Number of memory slots4
- Number of M.2 (M) slots2
- Maximum internal memory128 GB
- Compatible processor seriesIntel Core 14th Gen, Intel Core 13th Gen, Intel Core 12th Gen
- Top Wi-Fi standardWi-Fi 6 (802.11ax)
- Video outputsHDMI, DisplayPort
- Weight1.1 kg
- Warranty1 Year Warranty

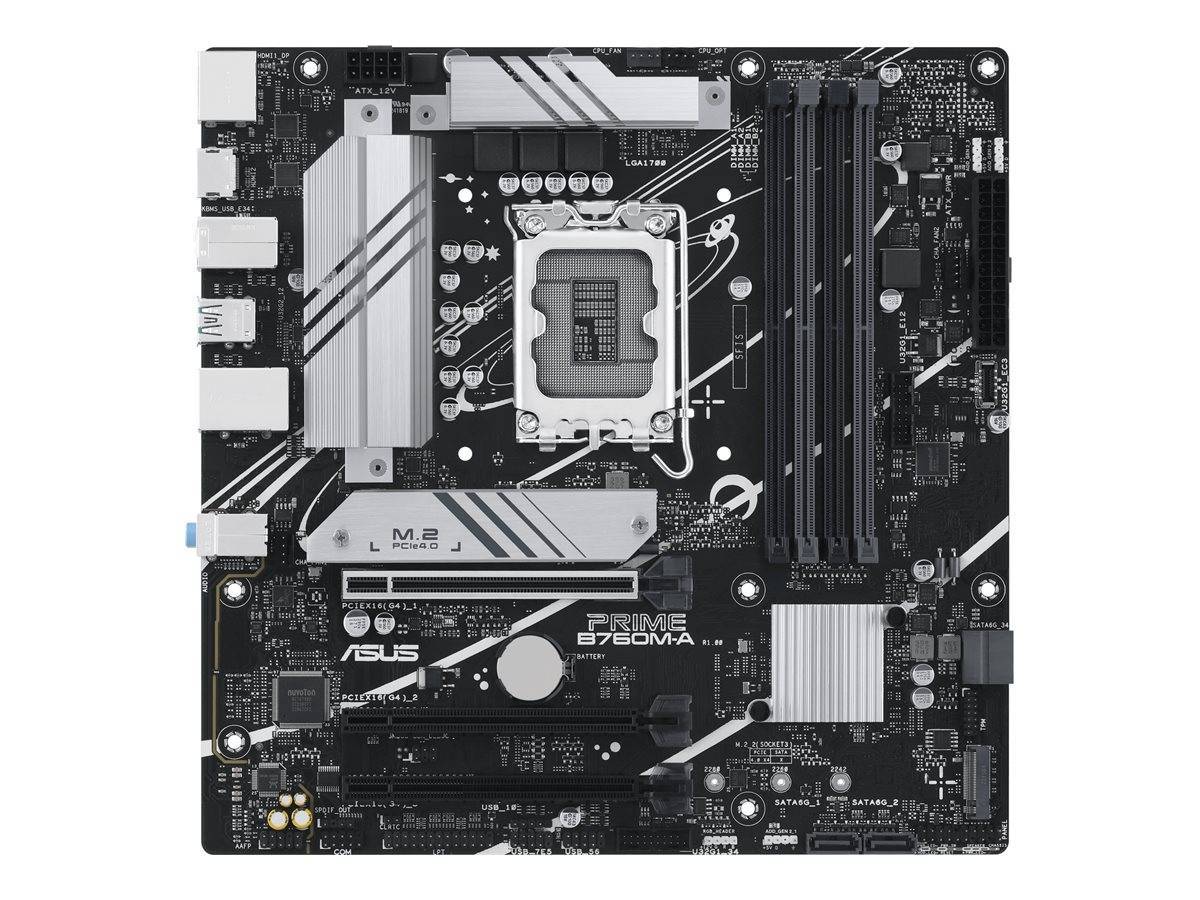

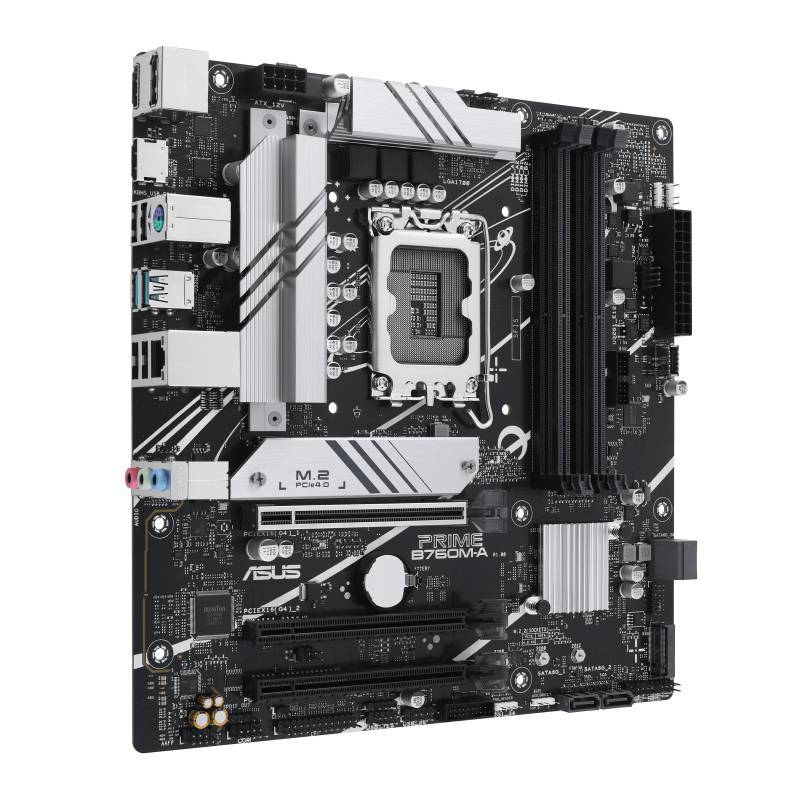

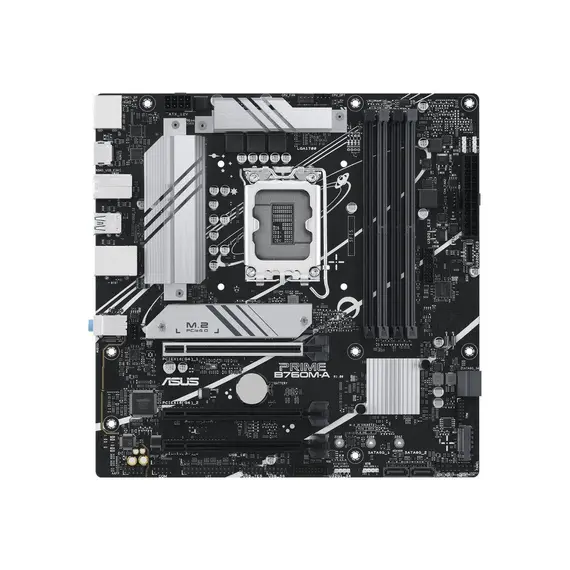

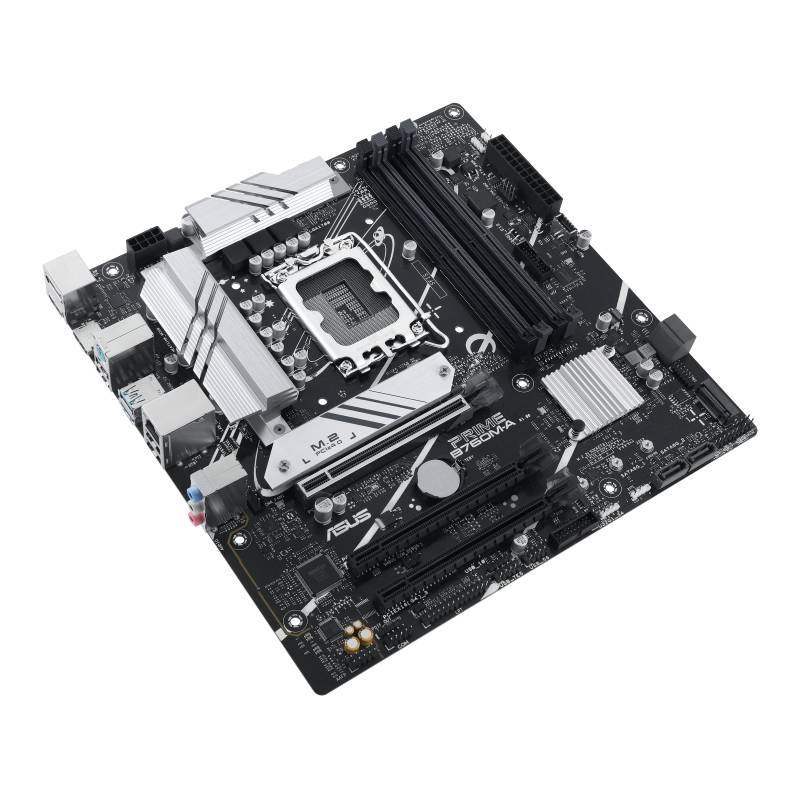

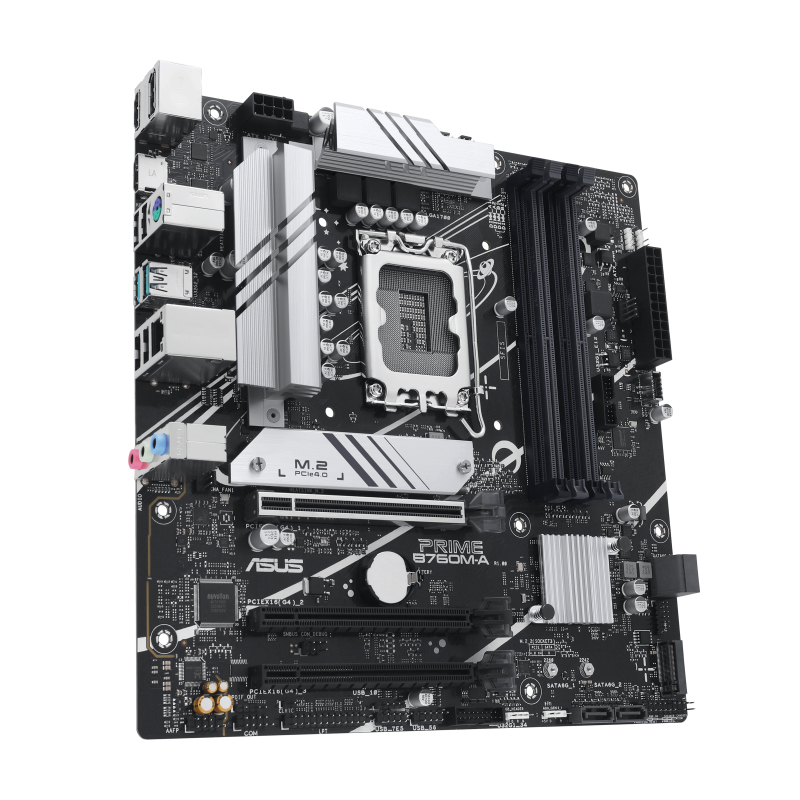

ASUS PRIME B760M-A-CSM Motherboard
Build a reliable, compact desktop system with the ASUS PRIME B760M-A-CSM, a Micro-ATX motherboard designed for Intel® Core™ processors from the 12th, 13th and 14th generations. Based on the Intel B760 chipset and an LGA 1700 socket, it combines DDR5 memory support, fast storage options and practical connectivity for everyday computing and productivity builds.
Memory and Storage
Four DDR5 DIMM slots support up to 192 GB of memory, with overclocked memory speeds of up to 5333 MHz stated in the supplied product information. Intel® Extreme Memory Profile (XMP) support and ASUS OptiMem II help provide flexible memory configuration and improved signal integrity. For storage, the board offers two M.2 slots supporting PCIe 4.0 x4 mode, plus four SATA 6 Gb/s connectors.
Connectivity, Cooling and Features
- Wired networking: Realtek 2.5 Gb Ethernet for high-speed wired connections.
- Display outputs: Two HDMI ports and one DisplayPort. Display output availability depends on the installed processor.
- USB: USB 3.2 Gen 2 and USB Type-C® connectivity are described in the supplied product information.
- Cooling: VRM, M.2 and PCH heatsinks, together with Fan Xpert 2+ fan controls, help support effective thermal management.
- Custom lighting: Aura Sync RGB support and LED headers allow compatible lighting effects.
- Audio: Realtek 7.1-channel surround sound codec with audio shielding and dedicated PCB layers.
- BIOS FlashBack™: Provides a convenient BIOS update method without requiring a CPU or memory during the update.
Note: The supplied specifications list Wi-Fi and Bluetooth as not included. The motherboard is equipped with wired 2.5 Gb Ethernet.
Specifications
| Product name | ASUS PRIME B760M-A-CSM |
|---|---|
| Product code | 90MB1EK0-M1EAYC |
| Product category | Motherboard |
| Form factor | Micro-ATX |
| Processor socket | Intel LGA 1700 |
| Processor compatibility | Intel® Core™ processors, 12th, 13th and 14th generations |
| Chipset | Intel® B760 |
| Memory slots | 4 × DIMM |
| Memory type | DDR5 |
| Maximum memory | 192 GB |
| Memory overclocking speed | Up to 5333 MHz (as stated in the supplied description) |
| Memory technologies | Intel® Extreme Memory Profile (XMP), ASUS OptiMem II |
| M.2 slots | 2 × M.2, PCIe 4.0 x4 mode |
| SATA connectors | 4 × SATA 6 Gb/s |
| Display outputs | 2 × HDMI, 1 × DisplayPort |
| Wired network | 1 × Realtek 2.5 Gb Ethernet |
| Wi-Fi | Not included |
| Bluetooth | Not included |
| USB connectivity | USB 3.2 Gen 2 and USB Type-C® (as stated in the supplied description) |
| Audio | Realtek 7.1-channel surround sound; audio shielding; dedicated PCB layers |
| Cooling features | VRM heatsinks, M.2 heatsink, PCH heatsink, Fan Xpert 2+ |
| Lighting | Aura Sync RGB support and LED headers |
| BIOS update feature | BIOS FlashBack™; update supported without a CPU or memory installed during the process |
| Warranty | 1 year |
What's in the Box
- ASUS PRIME B760M-A-CSM motherboard
- SATA cable
Find similar by key specs
Compatible processor series
Intel Core 14th Gen, Intel Core 13th Gen, Intel Core 12th Gen
Tick the specs you need — we will find similar products
Find similar →
All specifications 67
Main2
- Brand
- ASUS
- Warranty
- 1 Year Warranty
Processor3
Performance1
- Motherboard chipset
- Intel B760
Features4
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset family
- Intel
- Motherboard form factor
- Micro-ATX
Memory9
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 128 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 7200 MHz
- Supported memory clock speeds
- 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
Expansion slots2
- Number of M.2 (M) slots
- 2
- PCI Express x16 (Gen 4.x) slots
- 3
Network4
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi
- Yes

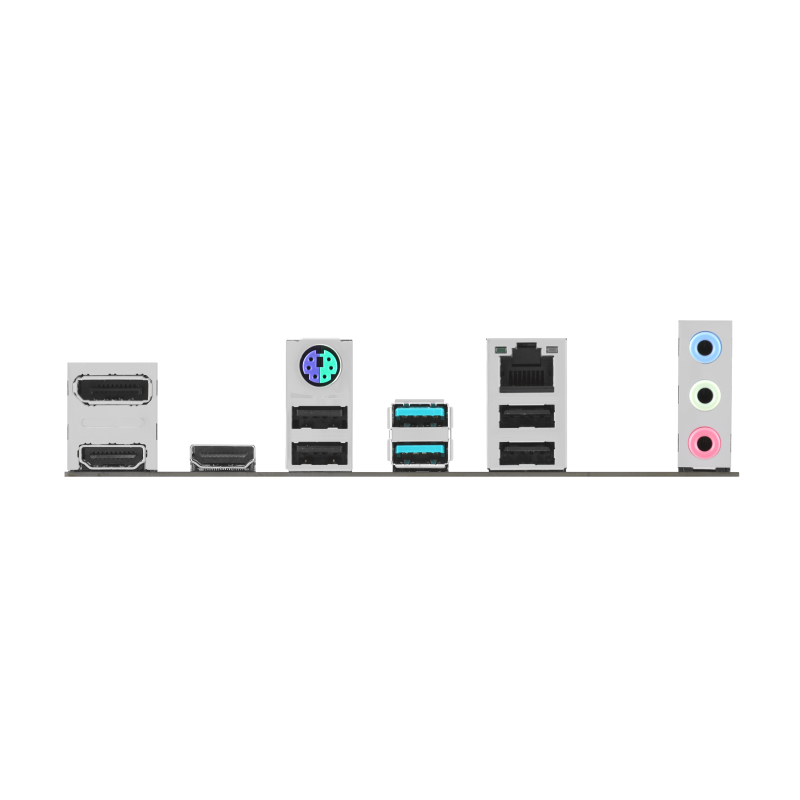

Ports & interfaces14
- DisplayPorts quantity
- 1
- DVI-D ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 2
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- VGA (D-Sub) ports quantity
- 0
- Video outputs
- HDMIDisplayPort
BIOS3
- BIOS memory size
- 128 Mbit
- BIOS type
- UEFI AMI
- Clear CMOS button
- Yes
Graphics1
- Parallel processing technology support
- Not supported
Internal I/O15
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 2
- Number of COM connectors
- 1
- Number of SATA III connectors
- 4
- RGB LED pin header
- Yes
- S/PDIF out connector
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 3
- USB 3.0 (3.1 Gen 1) connectors
- 3
- USB 3.1 (3.1 Gen 2) connectors
- 0
Packaging content1
- Cables included
- SATA
Rear panel I/O ports2
- PS/2 ports quantity
- 1
- WiFi-AP antenna jack
- 1
Storage controllers4
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
Weight & dimensions2
- Depth
- 244 mm
- Width
- 244 mm
