Install the appASUS 90MB1MY0-M0EAYC PRIME A620AM-A-CSM Motherboard - AM5, AMD A620A, Micro-ATX, 1YR
- — Warranty: 1 Year Warranty
- — Return and exchange up to 31 days
- — Best price
Key specifications
- BrandASUS
- Processor socketAM5
- Motherboard chipsetAMD A620A
- Motherboard form factorMicro-ATX
- Supported memory typesDDR5-SDRAM
- Number of memory slots4
- Number of M.2 (M) slots2
- Maximum internal memory256 GB
- Compatible processor seriesAMD Ryzen 9000 Series
- Video outputsHDMI, DisplayPort, VGA
- Performance profileAMD EXPO
- Weight1.1 kg
- Warranty1 Year Warranty

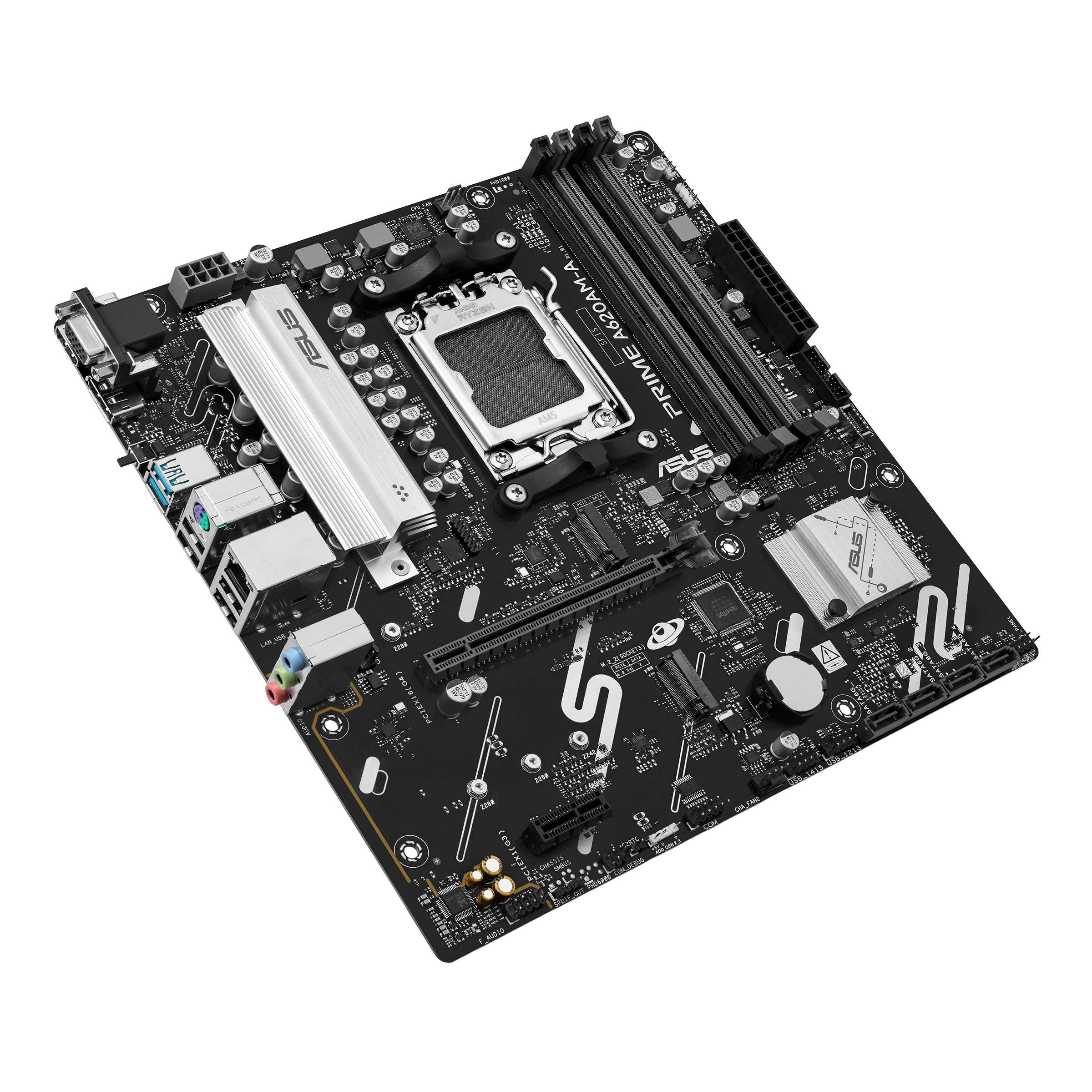

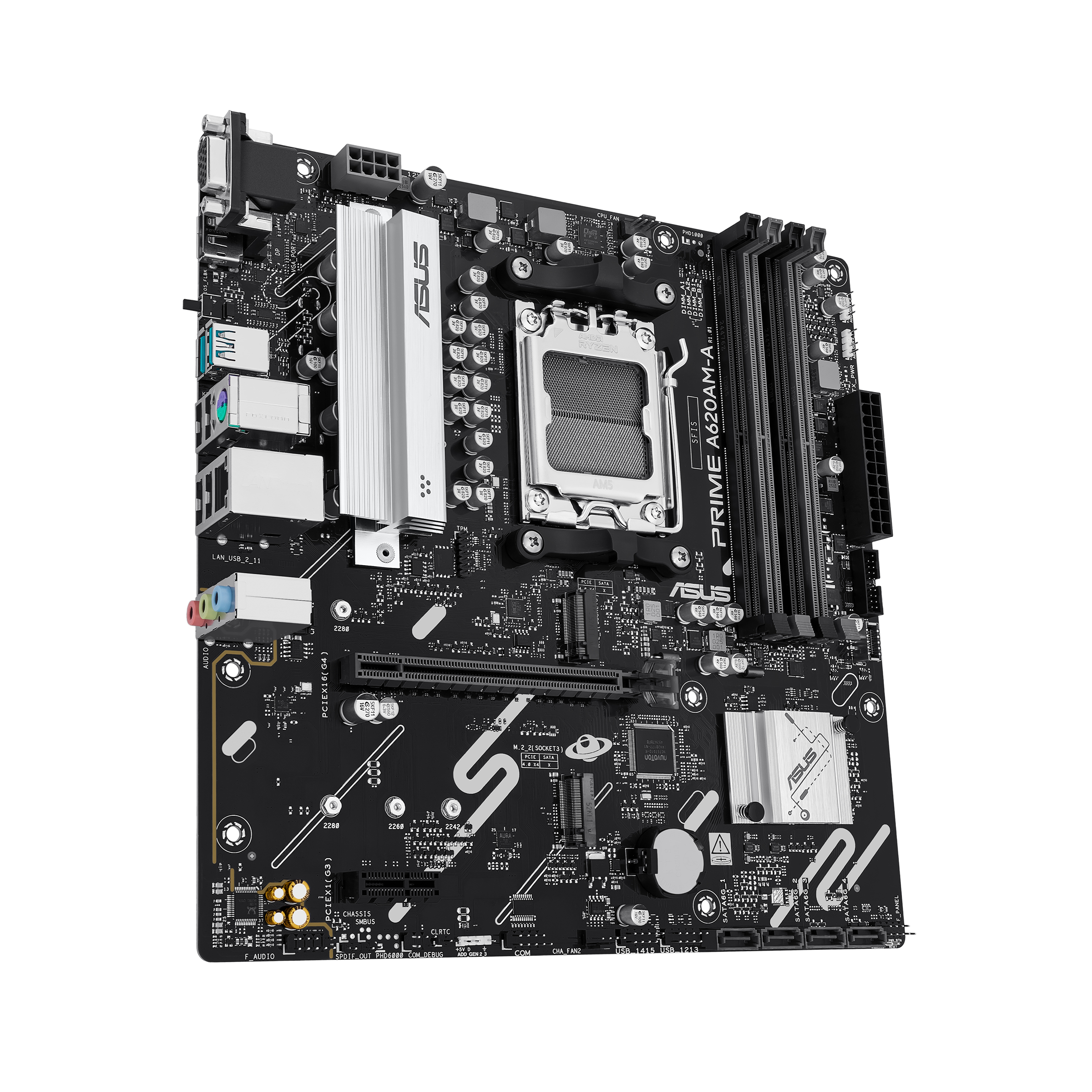

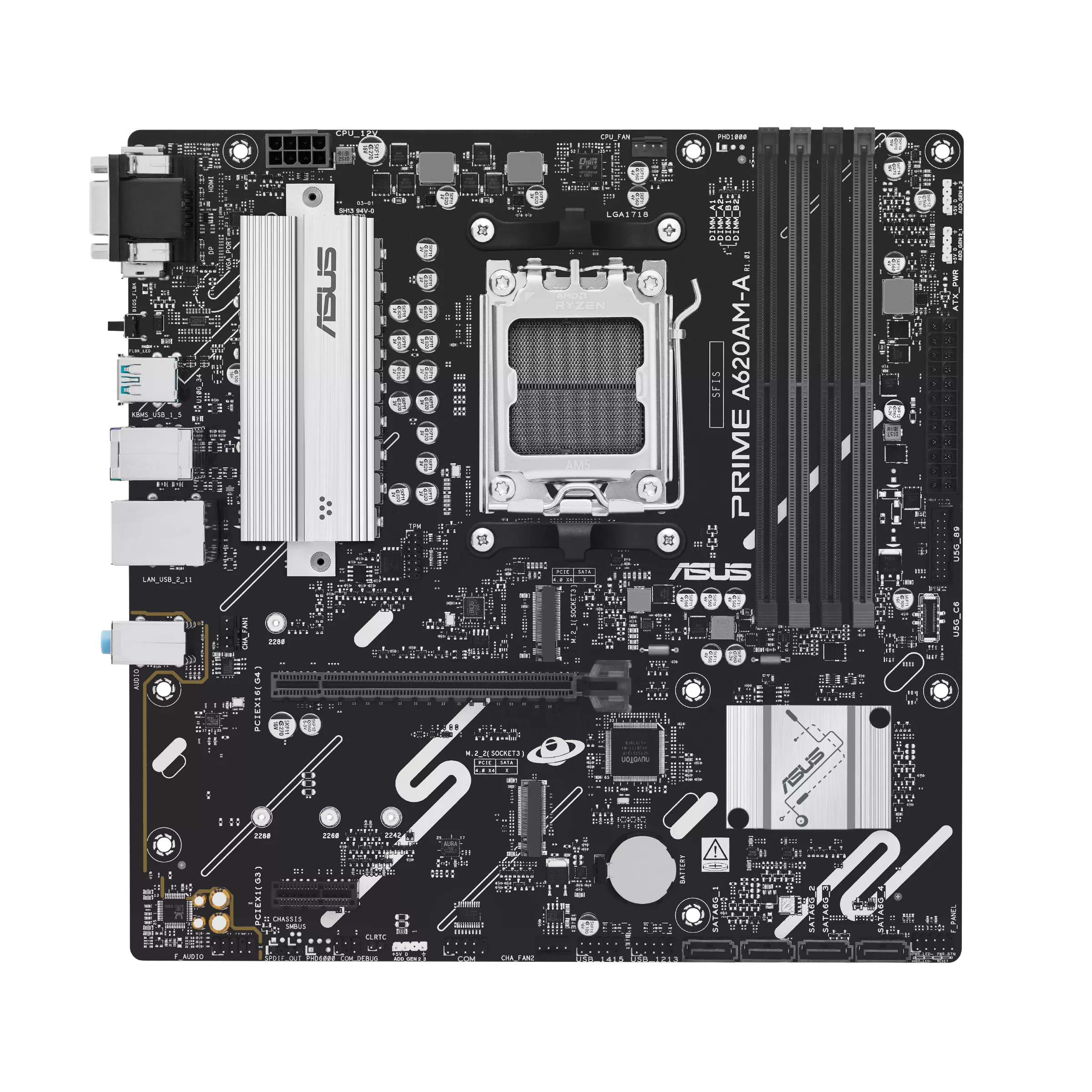

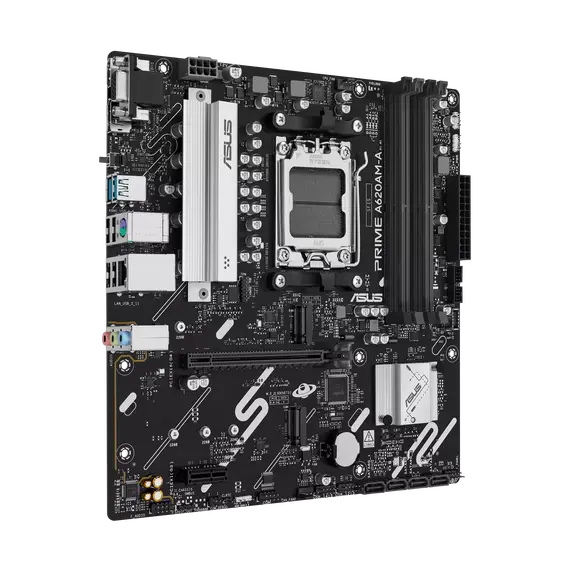

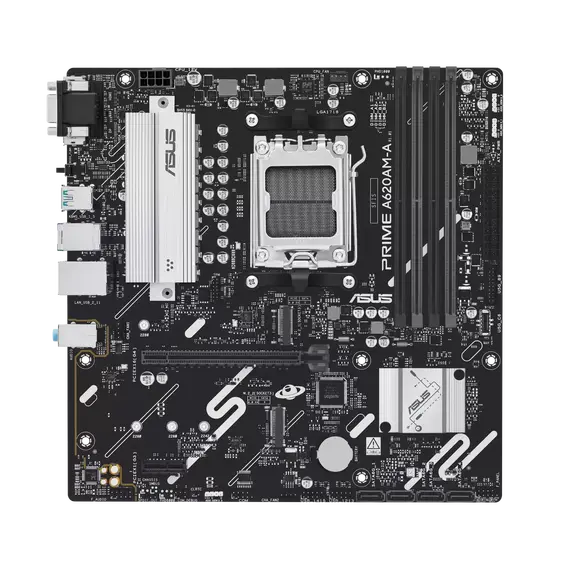

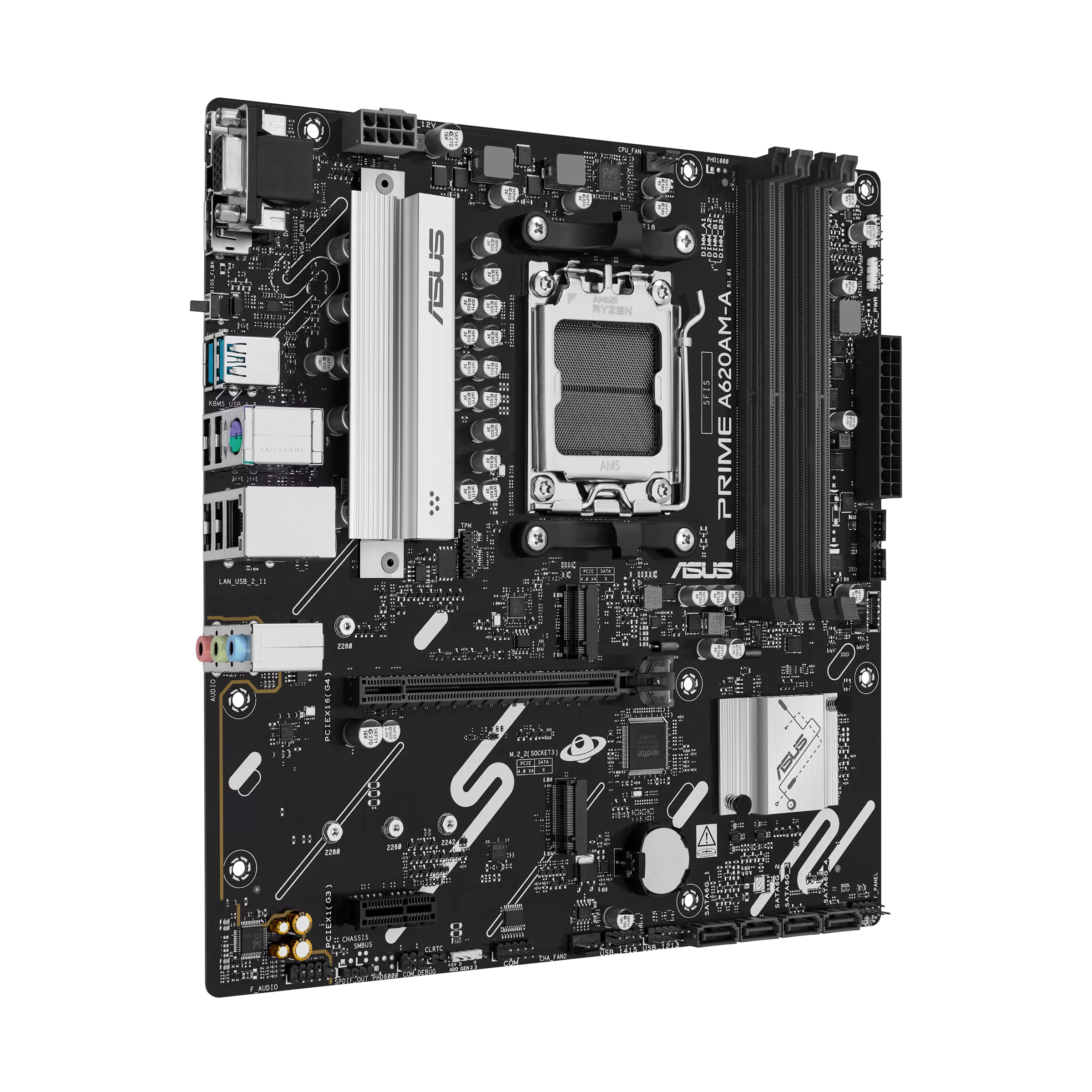

ASUS PRIME A620AM-A-CSM AM5 Micro-ATX Motherboard
Build a modern AMD desktop with the ASUS PRIME A620AM-A-CSM motherboard. Designed for the AM5 platform, it pairs the AMD A620 chipset with DDR5 memory support, flexible storage options and practical connectivity for home, office and DIY PC builds. The compact Micro-ATX design fits a wide range of compatible cases.
AM5 Platform for AMD Ryzen Processors
The PRIME A620AM-A-CSM supports AMD Ryzen 7000 Series desktop processors, providing a foundation for current-generation systems. Its A620 chipset delivers essential platform features for everyday computing and productivity.
DDR5 Memory and Flexible Storage
Four DDR5 DIMM slots support up to 192 GB of memory. AMD EXPO and ASUS AEMP support help simplify memory configuration and tuning. For storage, the board features two M.2 PCIe 4.0 x4 slots and four SATA 6 Gb/s connectors. AMD RAIDXpert2 support enables RAID configurations, subject to the installed processor.
Practical Connectivity and ASUS Protection

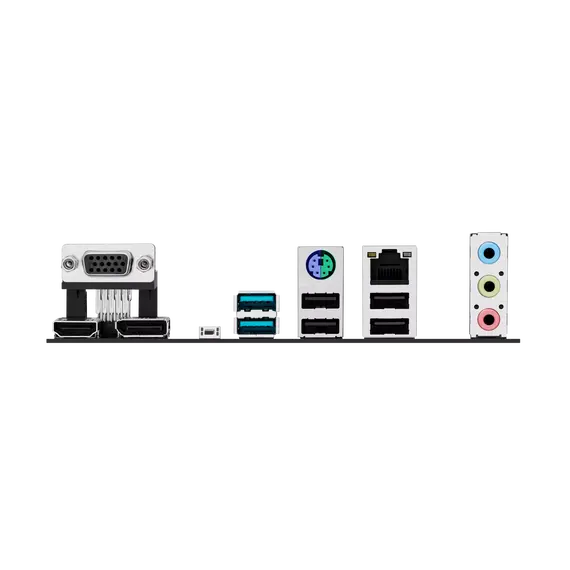

Display connections include HDMI and DisplayPort, while Realtek 1 Gb Ethernet provides wired networking. The board also offers front-panel USB connections, including USB-C at 5 Gb/s, along with rear USB ports, audio connections, PS/2 and BIOS FlashBack. ASUS 5X Protection III features include DIGI+ VRM, LANGuard, overvoltage protection and SafeSlot Core. Q-DIMM and Q-LED Core help make installation and troubleshooting more convenient.
Product Specifications
| Brand | ASUS |
|---|---|
| Product name | PRIME A620AM-A-CSM |
| Product code | 90MB1MY0-M0EAYC |
| Product category | Motherboard |
| Form factor | Micro-ATX |
| Processor socket | AMD AM5 |
| Processor compatibility | AMD Ryzen 7000 Series desktop processors |
| Chipset | AMD A620 / A620A |
| Memory type | DDR5 |
| Memory slots | 4 DIMM |
| Maximum memory capacity | 192 GB |
| Memory architecture | Dual-channel |
| Memory speed | Up to 7600+ MT/s (OC), with compatible processors and memory |
| Memory technologies | AMD EXPO, ASUS AEMP |
| M.2 slots | 2 × PCIe 4.0 x4 |
| SATA connectors | 4 × SATA 6 Gb/s |
| RAID support | AMD RAIDXpert2; configuration depends on the installed processor |
| Display outputs | 1 × HDMI, 1 × DisplayPort; VGA also described in the source |
| Wired networking | 1 × Realtek 1 Gb Ethernet |
| Wi-Fi | Not included |
| Bluetooth | Not included |

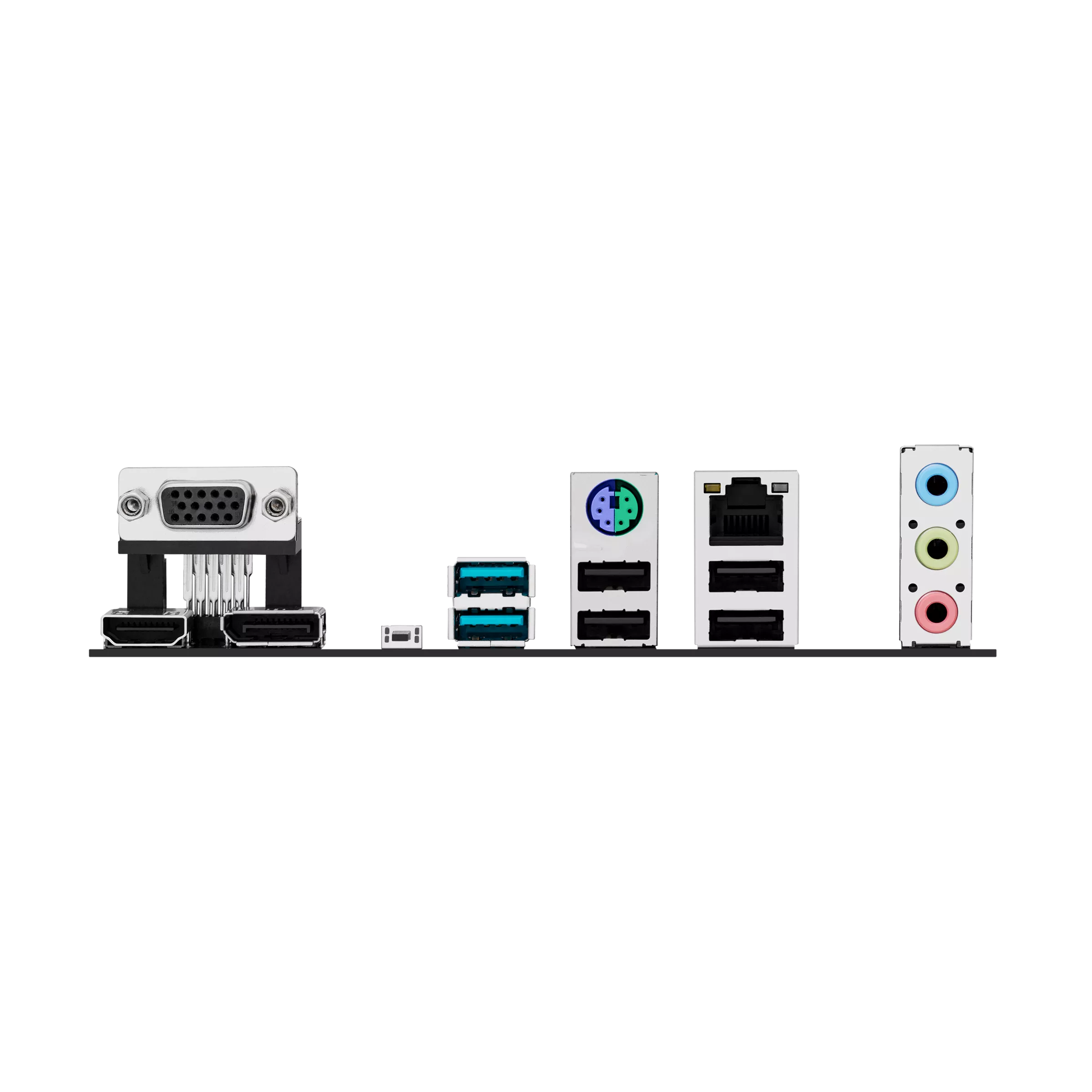

| Rear USB ports | 2 × USB 10 Gb/s, 4 × USB 2.0 |
| Front USB connectivity | Includes USB-C at 5 Gb/s |
| Audio connections | 3 audio connectors |
| Additional rear connections | Combined PS/2, BIOS FlashBack button |
| Protection and convenience features | ASUS 5X Protection III, DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core, Q-DIMM, Q-LED Core, BIOS FlashBack |
| Warranty | 1 year |
What's in the Box

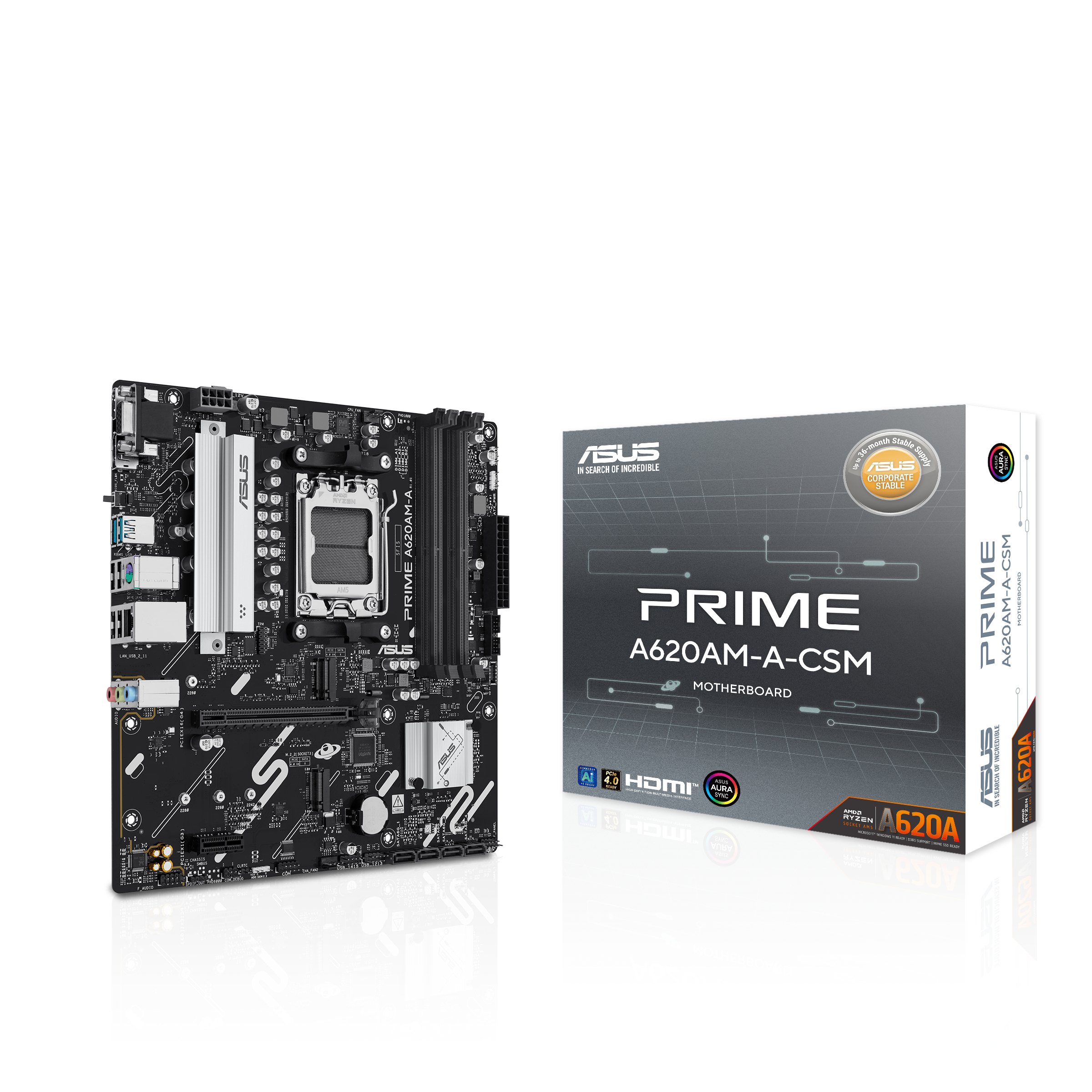

- ASUS PRIME A620AM-A-CSM motherboard
- SATA cable
- Screws
All specifications 72
Main3
- Brand
- ASUS
- Warranty
- 1 Year Warranty
- EAN/UPC code
- 4711636234405
Processor3
Performance2
- Motherboard chipset
- AMD A620A
- Performance profile
- AMD EXPO
Features4
- Audio output channels
- 7.1 channels
- Component for
- PC
- Motherboard chipset family
- AMD
- Motherboard form factor
- Micro-ATX
Memory7
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 256 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
Expansion slots7
- 1st M.2 highest PCI Express generation
- 4.0
- 1st M.2 largest key size
- 2280
- 2nd M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 2280
- Number of M.2 (M) slots
- 2
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
Ports & interfaces11
- DisplayPorts quantity
- 1
- DVI-D ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 0
- VGA (D-Sub) ports quantity
- 1
- Video outputs
- HDMIDisplayPortVGA
BIOS2
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
Graphics1
- Parallel processing technology support
- Not supported
Internal I/O17
- 12V power connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 2
- Number of COM connectors
- 1
- Number of CPU fan connectors
- 1
- Number of RGB LED pin headers
- 3
- Number of SATA III connectors
- 4
- RGB LED pin header
- Yes
- S/PDIF out connector
- Yes
- TPM connector
- Yes
- USB 2.0 connectors
- 2
- USB 3.0 (3.1 Gen 1) connectors
- 2
- USB 3.1 (3.1 Gen 2) connectors
- 0
Network2
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN
- Yes
Packaging content2
- Cables included
- SATA
- Screws included
- Yes
Packaging data3
- Package depth
- 275 mm
- Package height
- 67.5 mm
- Package width
- 275 mm
Rear panel I/O ports1
- PS/2 ports quantity
- 1
Storage controllers5
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID support
- Yes
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
Weight & dimensions2
- Depth
- 244 mm
- Width
- 244 mm
