ASUS 90MB1P20-M0EAY0 ROG STRIX X870E-E GAMING WIFI7 NEO Motherboard - AM5, AMD X870E, ATX, EXPO
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
ASUS 90MB1P20-M0EAY0 ROG STRIX…Processor socketAM5Motherboard chipsetAMD X870ESupported memory typesDDR5-SDRAM
7 more parts to a full buildEquip →
- BrandASUS
- Processor socketAM5
- Motherboard chipsetAMD X870E
- Motherboard form factorATX
- Supported memory typesDDR5-SDRAM
- Number of memory slots4
- Number of M.2 (M) slots5
- Maximum internal memory256 GB
- Compatible processor seriesAMD Ryzen 9000 Series
- Video outputsHDMI
- Top Wi-Fi standardWi-Fi 7 (802.11be)
- BluetoothYes
- Weight1.9 kg
- All features

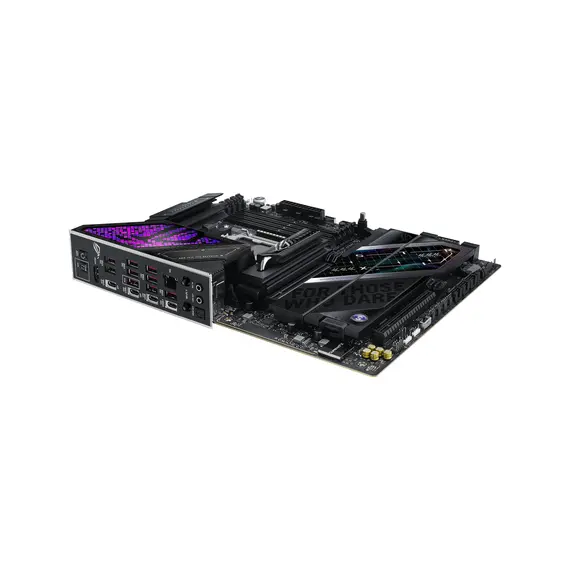

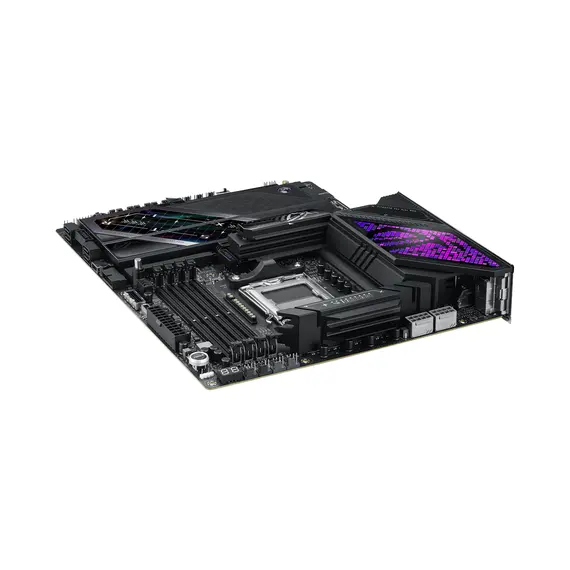

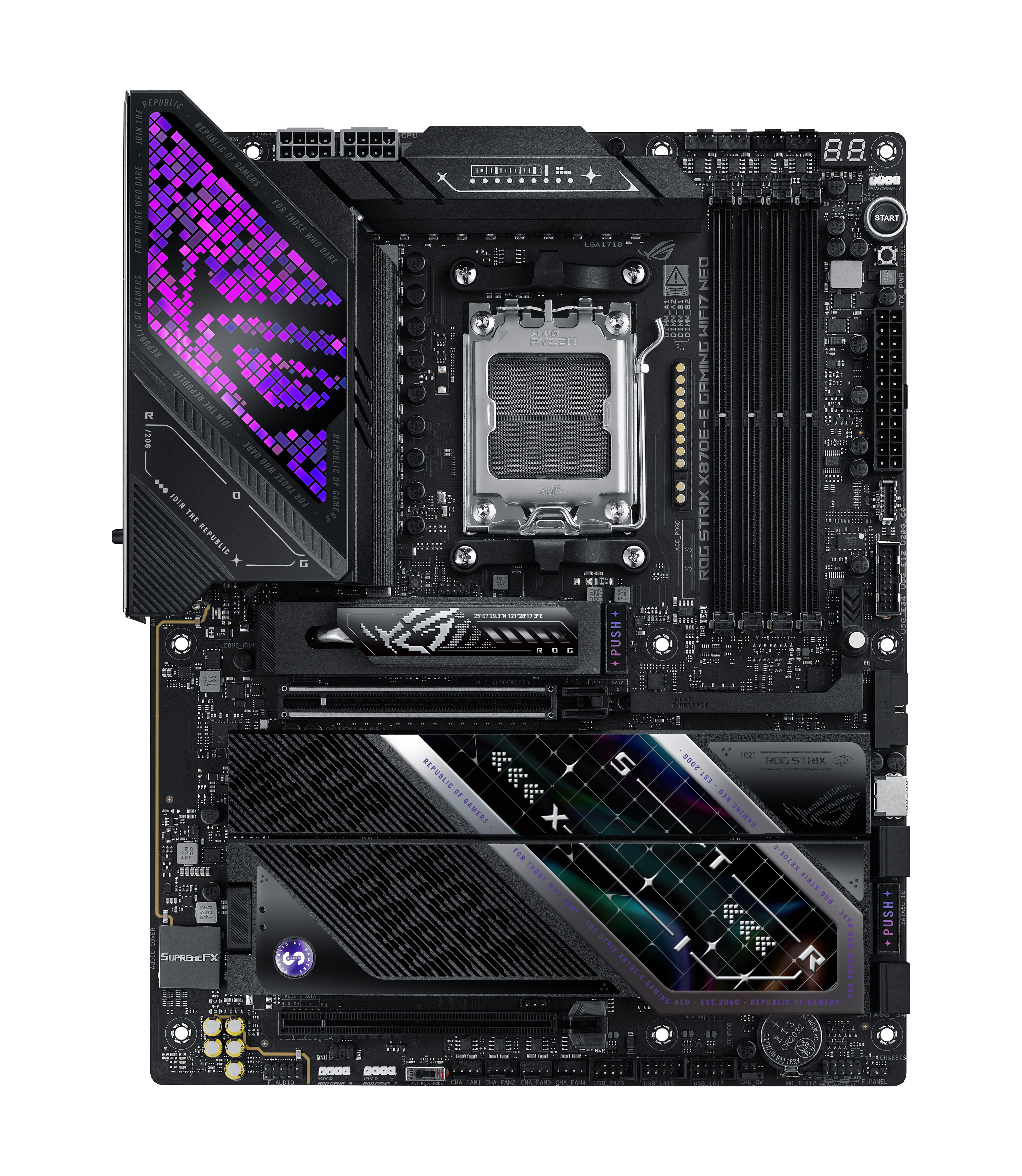

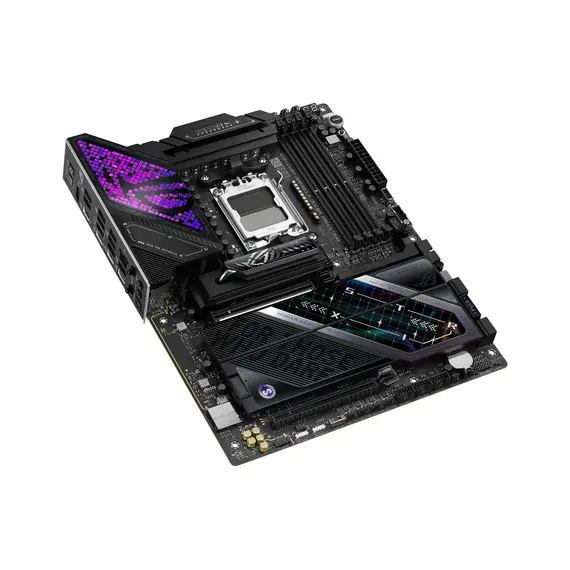

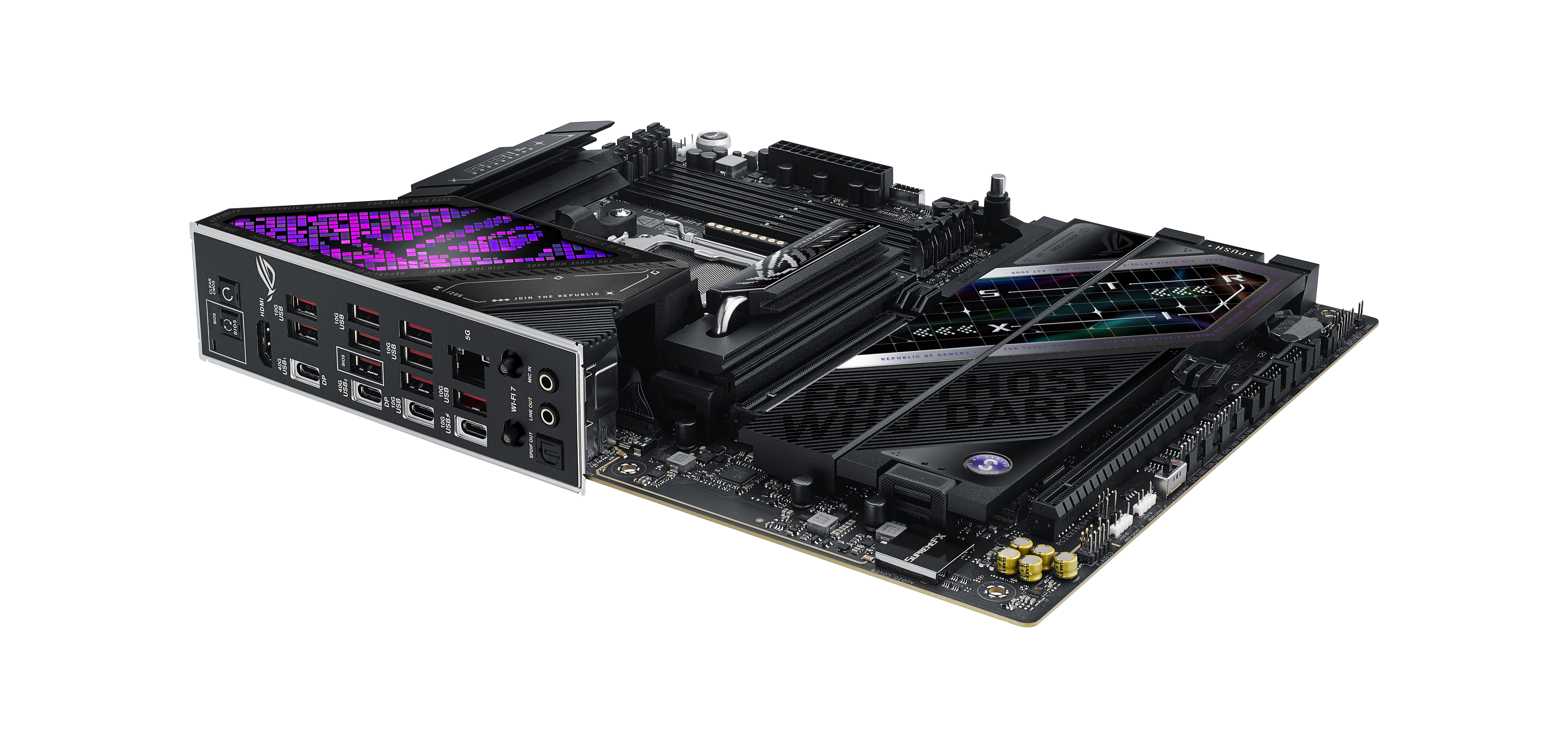

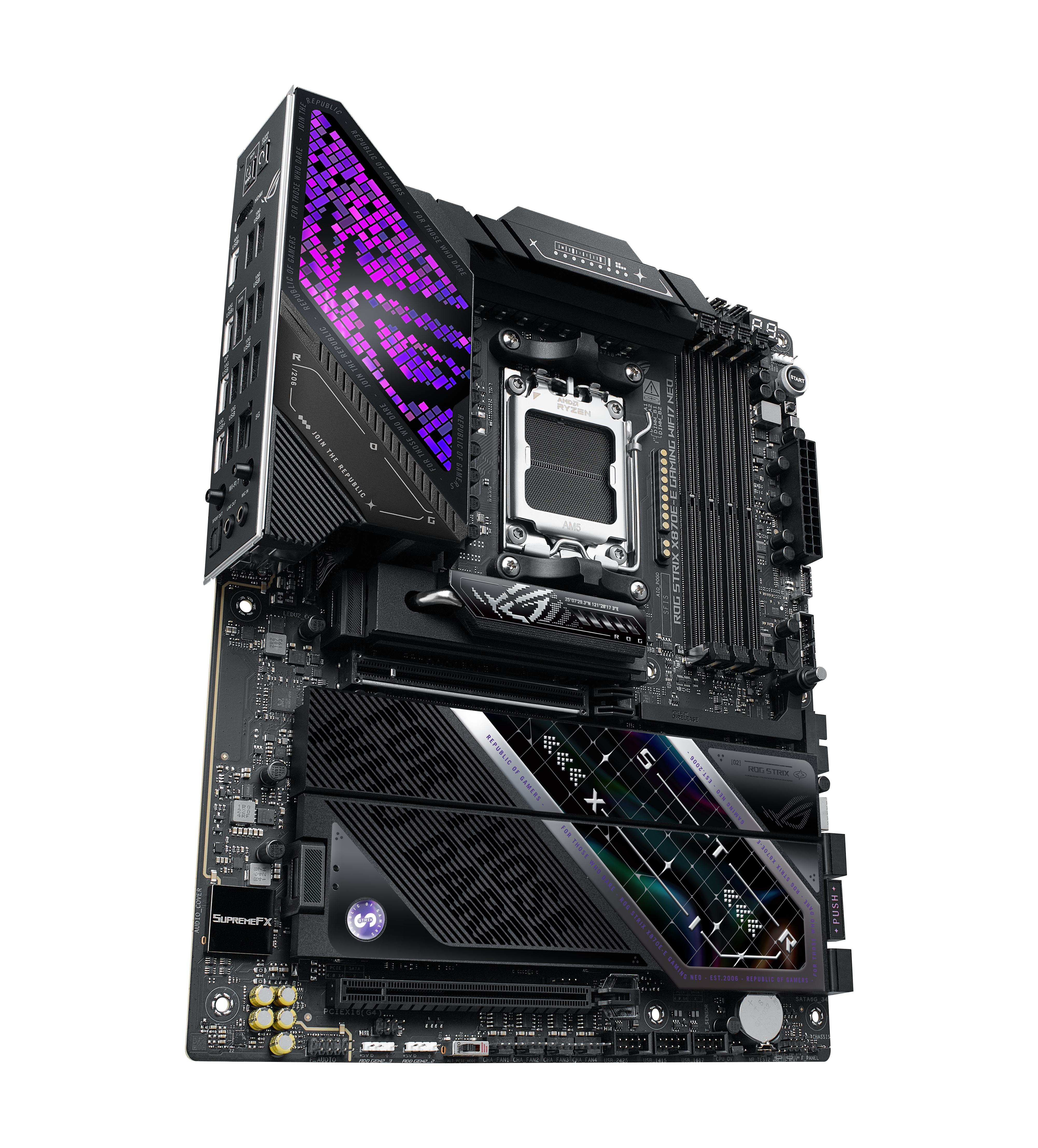

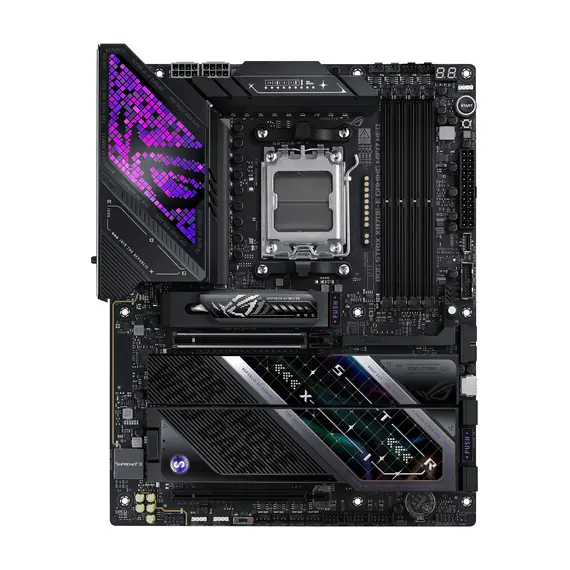

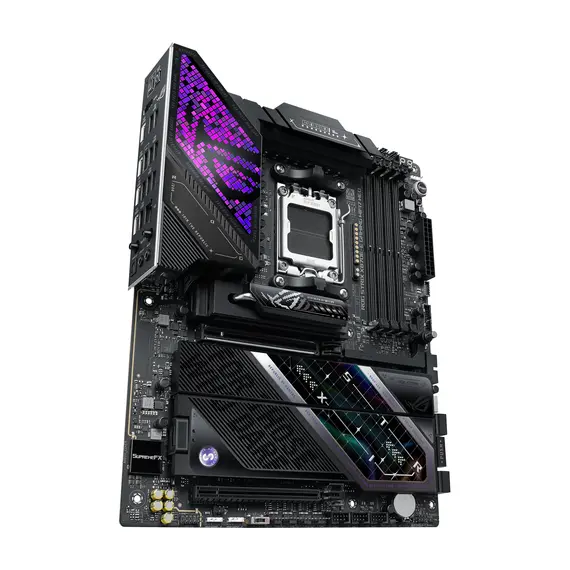

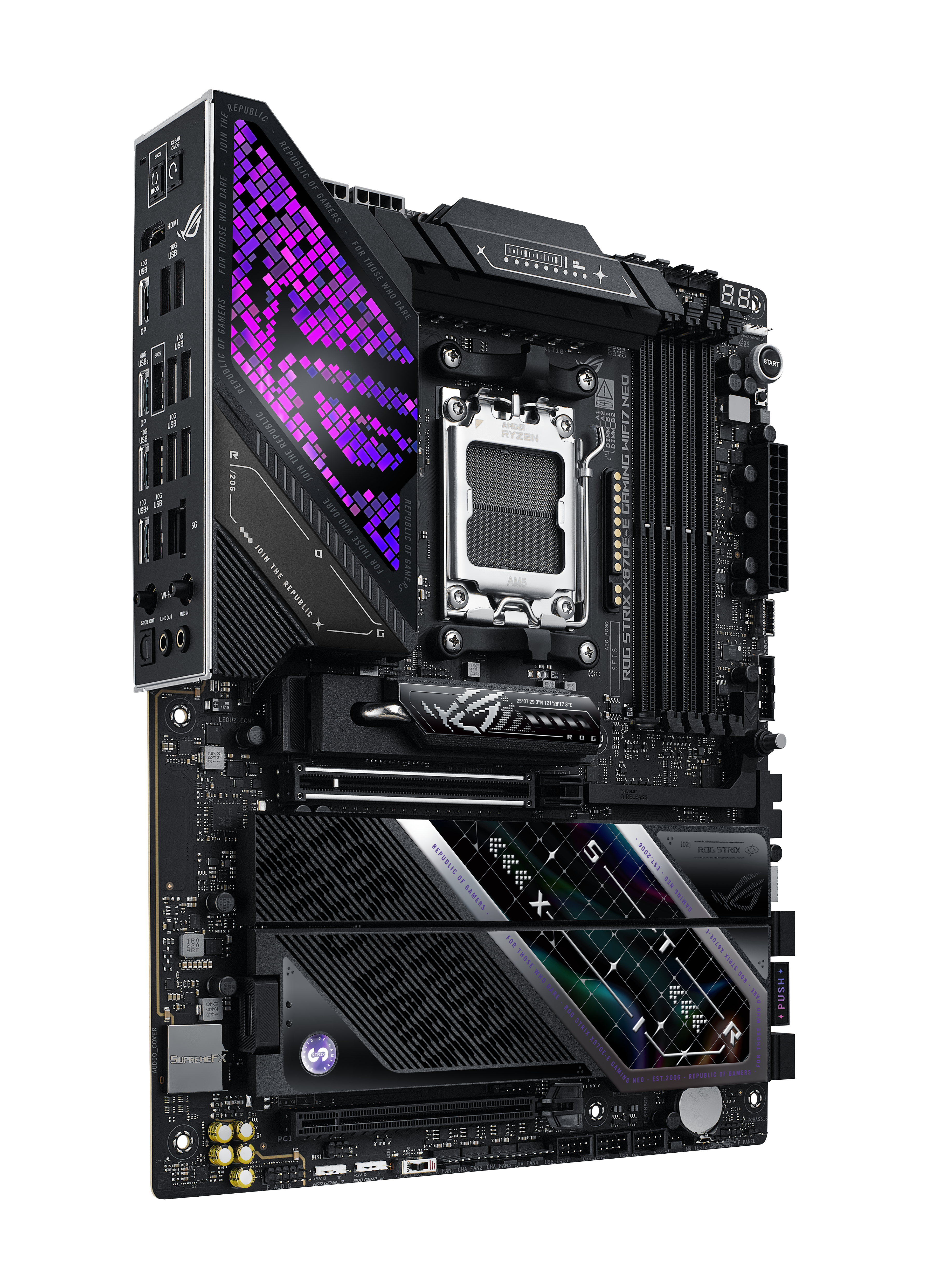

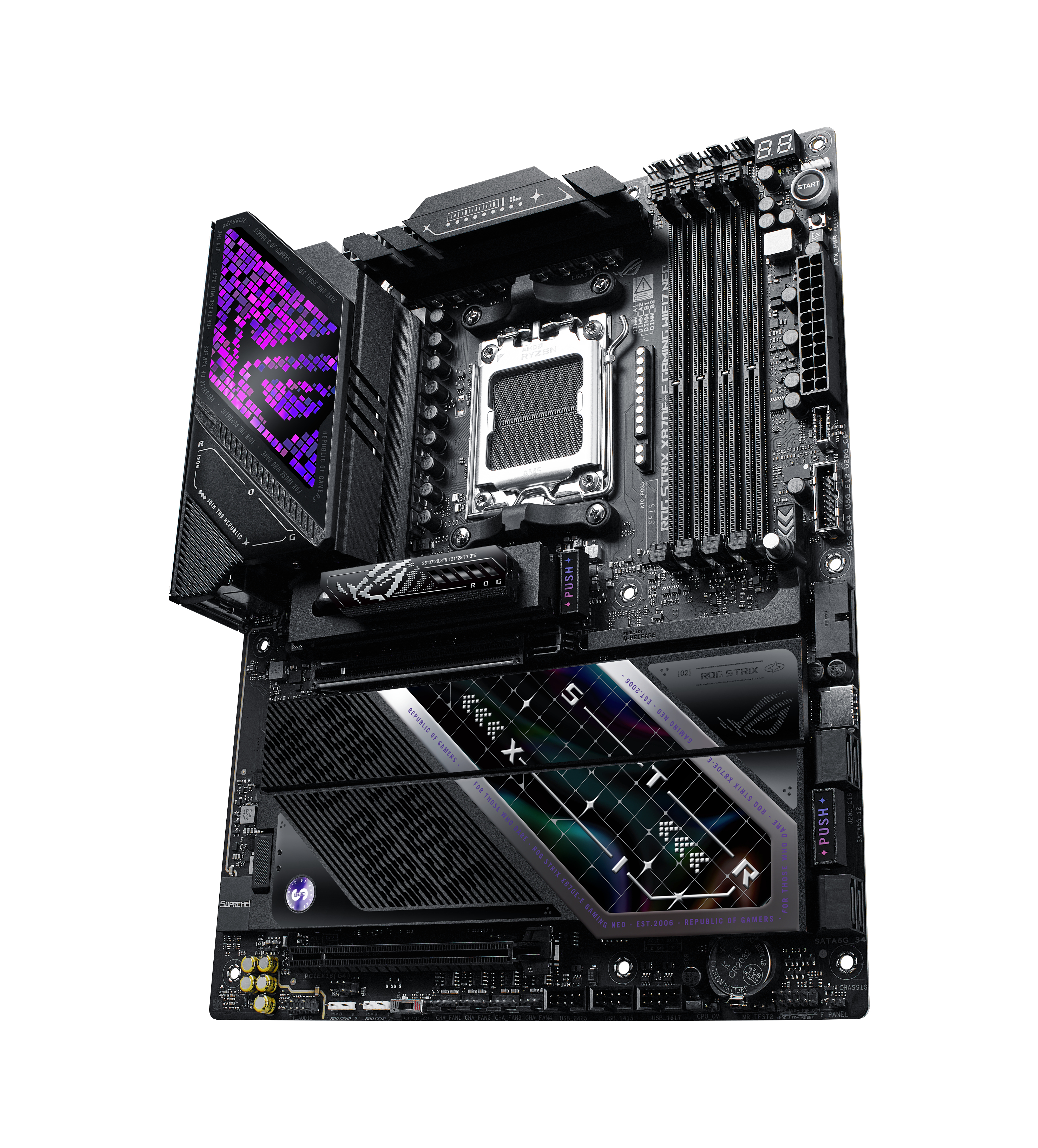

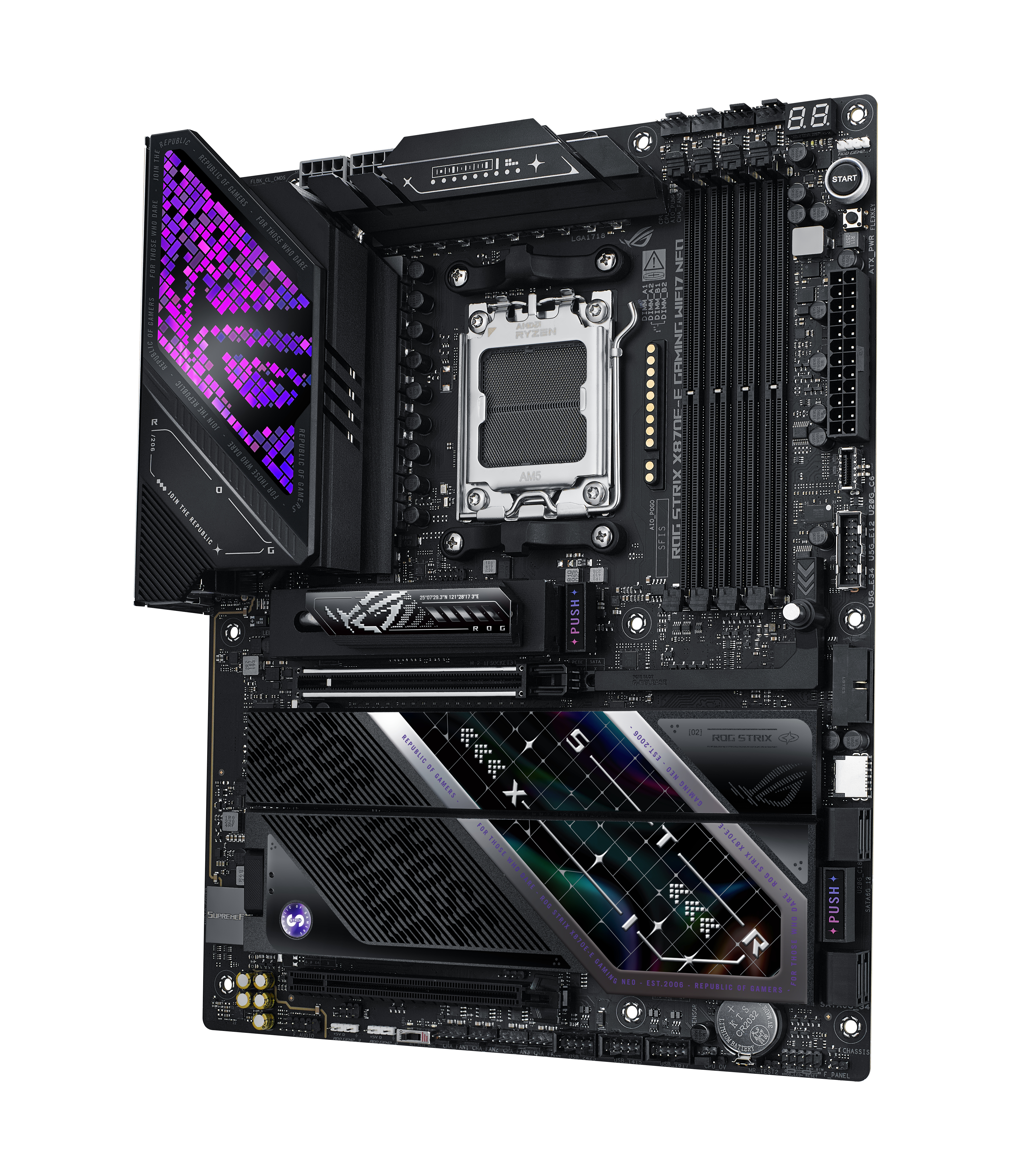

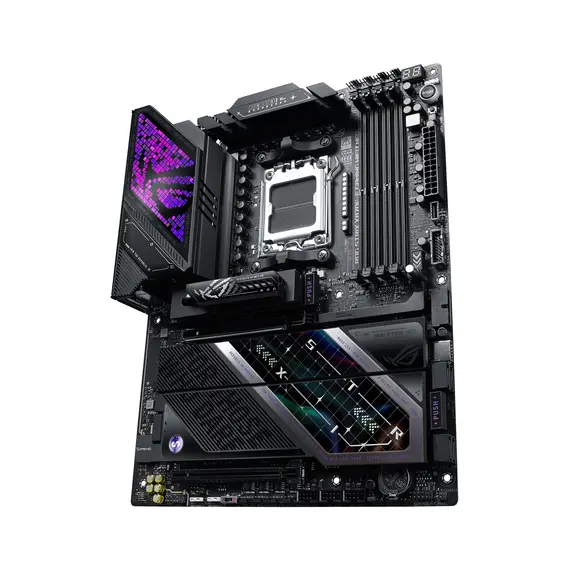

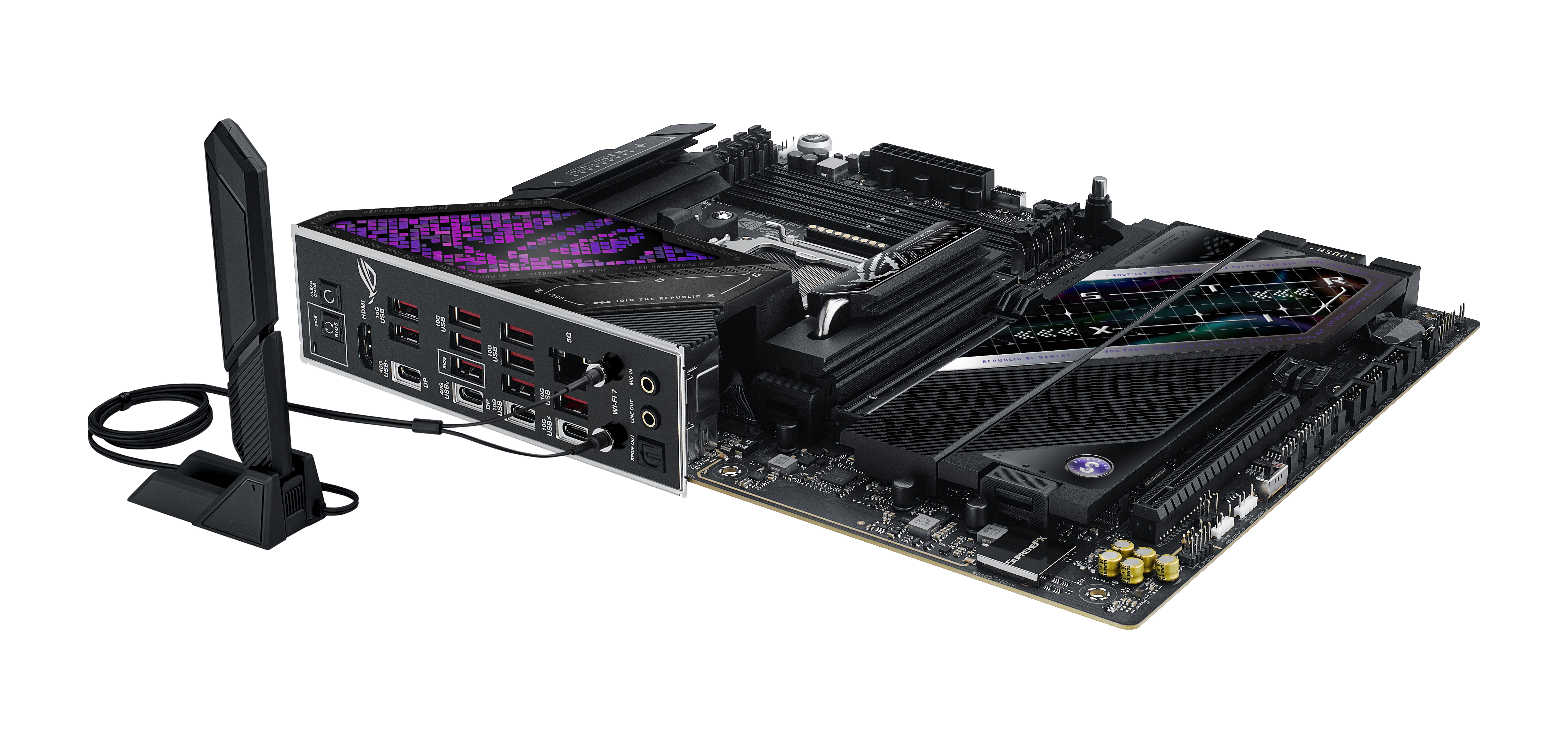

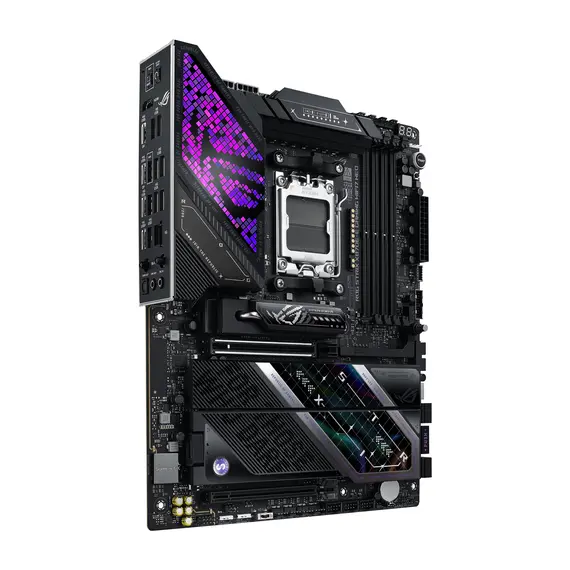

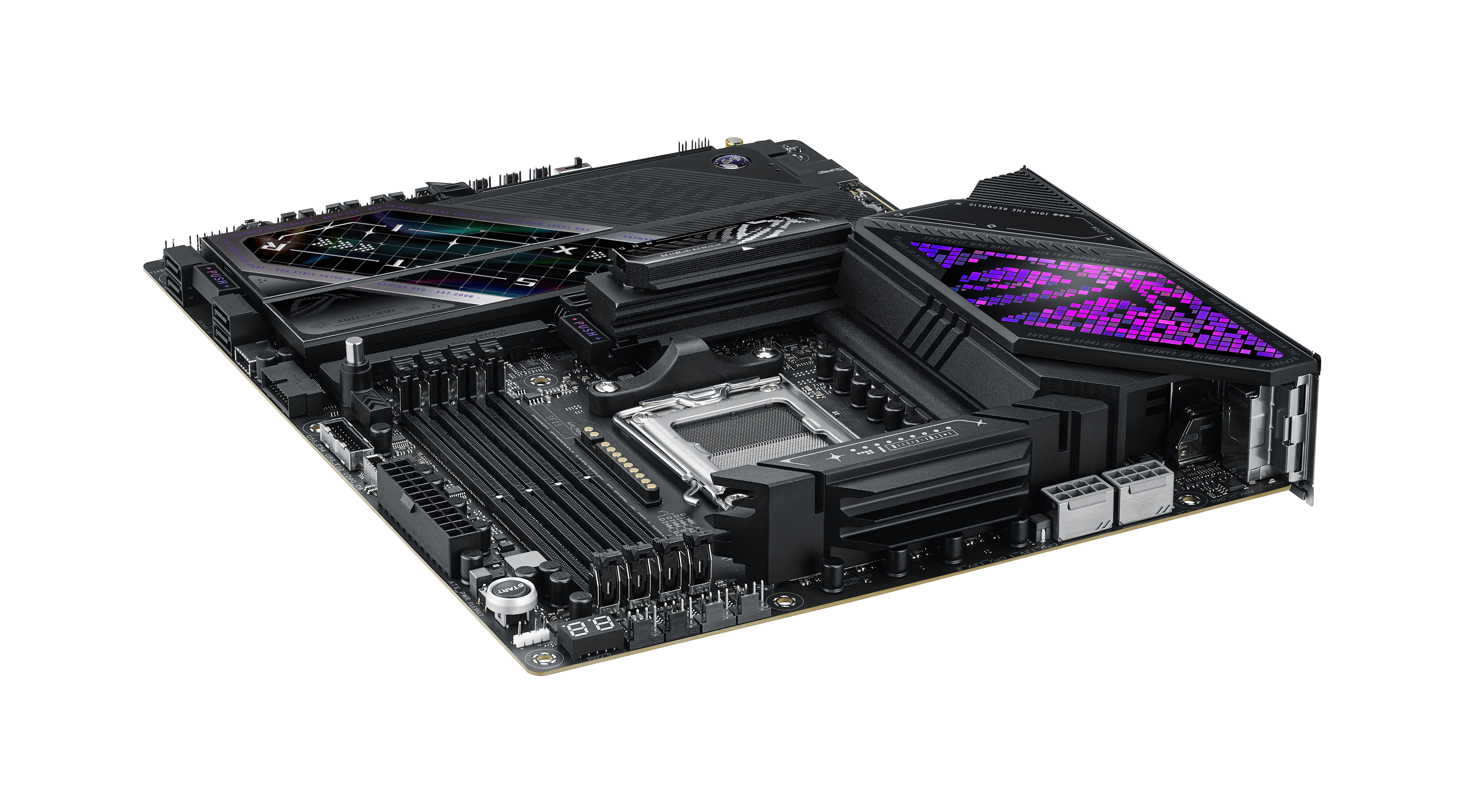

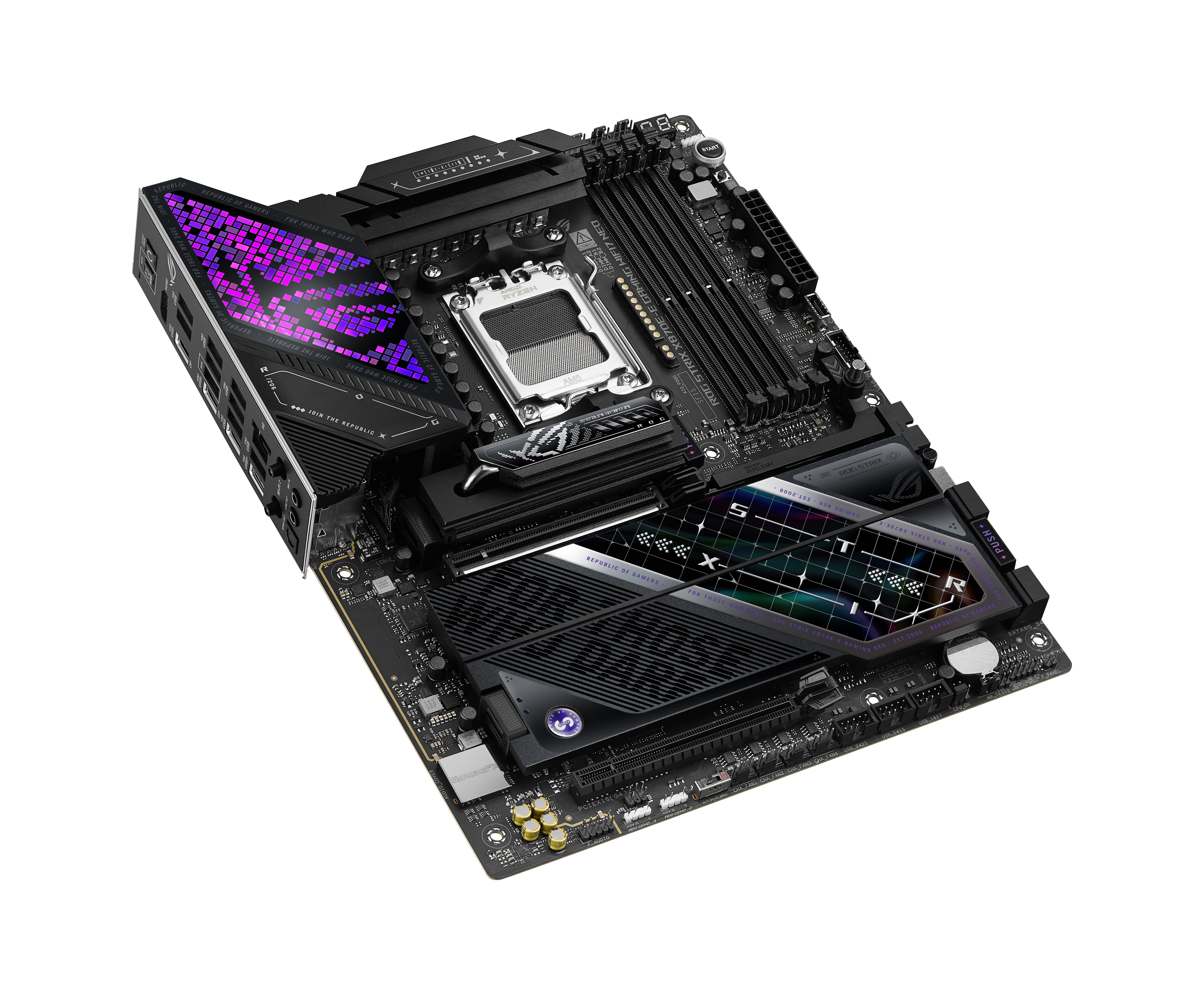

ASUS ROG STRIX X870E-E GAMING WIFI7 NEO Motherboard
Build a powerful AMD desktop with the ASUS ROG STRIX X870E-E GAMING WIFI7 NEO motherboard. Designed for gaming, content creation and demanding applications, this ATX board pairs the AMD X870E chipset and AM5 socket with DDR5 support, advanced networking and features that simplify installation and system tuning.
Flexible AM5 performance
The motherboard supports AMD Ryzen™ 9000, 8000 and 7000 Series processors. Four DDR5 DIMM slots accommodate up to 192 GB of memory, with speeds of up to 8400+ MT/s available through overclocking, as stated in the source description.

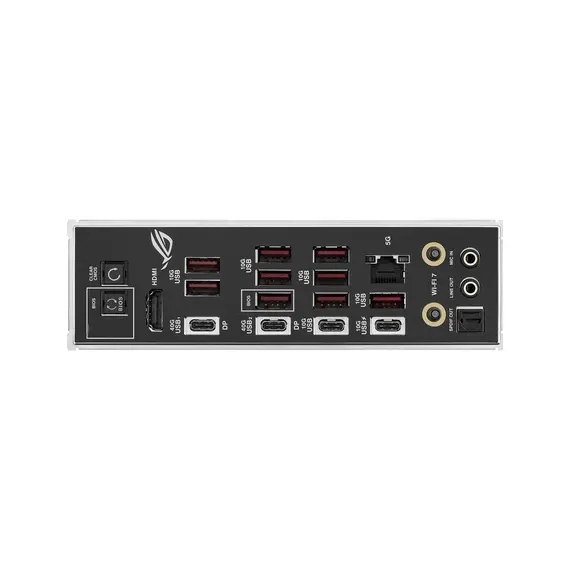

Next-generation connectivity

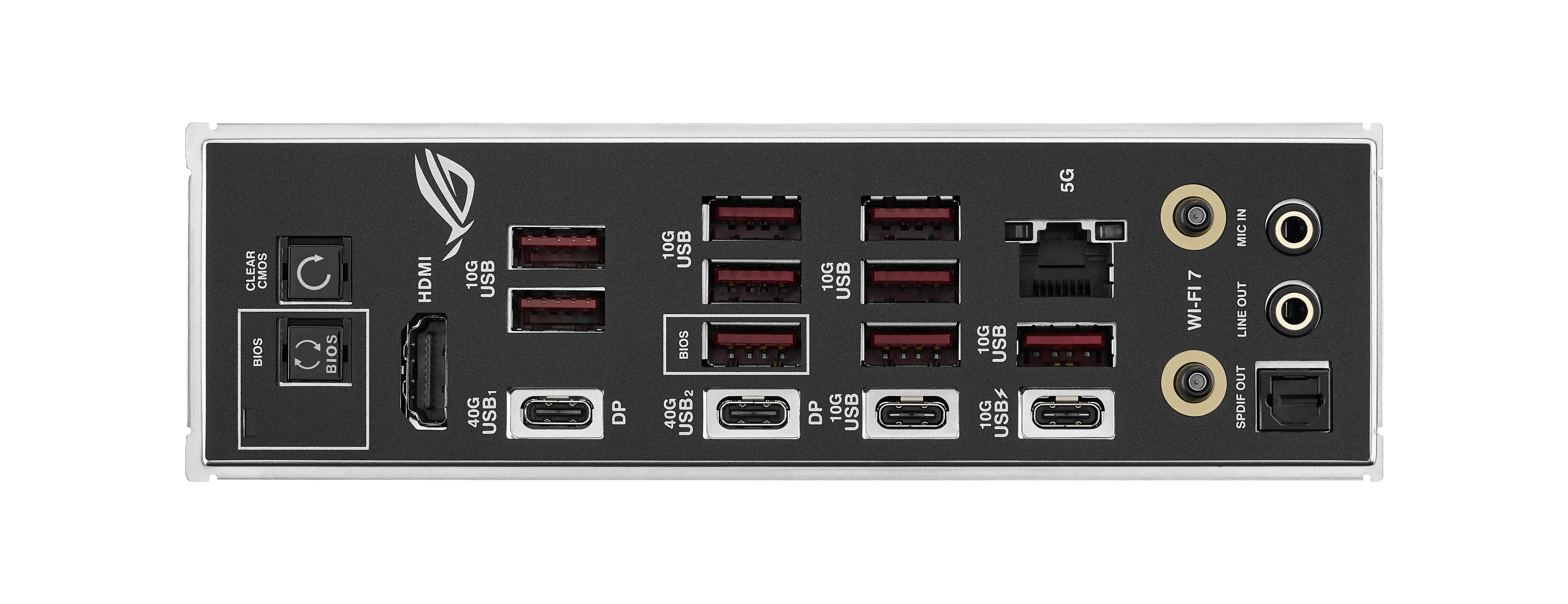

Choose 2x2 Wi-Fi 7 for wireless networking or connect through the integrated Intel® 2.5 Gb Ethernet port. Bluetooth® 5.4 supports wireless peripherals, while USB4® connectivity offers speeds of up to 40 Gbps. The board also supports USB speeds of up to 20 Gbps and includes HDMI output for compatible displays.
Cooling and convenient installation
M.2 heatsinks and a VRM heatsink design help manage temperatures during intensive use. ASUS Q-Design features, including M.2 Q-Latch and Q-Slot, are designed to make installing selected components easier. AI Overclocking provides an additional option for tuning system performance.
Immersive ROG audio
Enjoy detailed sound with ROG SupremeFX 7.1-channel high-definition audio, featuring the ALC4080 codec and Savitech SV3H712 amplifier. The audio solution supports playback up to 32-bit/384 kHz with compatible equipment.
Specifications
| Product name | ASUS ROG STRIX X870E-E GAMING WIFI7 NEO Motherboard |
|---|---|
| Product code | 90MB1P20-M0EAY0 |
| Motherboard chipset | AMD X870E |
| Form factor | ATX |
| Processor socket | AMD AM5 |
| Supported processors | AMD Ryzen™ 9000, 8000 and 7000 Series |
| Memory type | DDR5 |
| Memory slots | 4 x DIMM |
| Maximum memory | 192 GB |
| Memory speed | Up to 8400+ MT/s (overclocked, as stated in the source description) |
| Wireless networking | 2x2 Wi-Fi 7 (802.11be) |
| Wired networking | 1 x Intel® 2.5 Gb Ethernet |
| Bluetooth | Bluetooth® 5.4 |
| Display output | 1 x HDMI |
| USB connectivity | 2 x USB4® (up to 40 Gbps); USB up to 20 Gbps, as stated in the source description |
| Audio | ROG SupremeFX 7.1-channel HD Audio; ALC4080 codec; Savitech SV3H712 amplifier; up to 32-bit/384 kHz |
| Cooling features | M.2 heatsinks and VRM heatsink design |
| Installation and tuning features | M.2 Q-Latch, Q-Slot and AI Overclocking |
| Importer | Official importer – Visual D.G. |

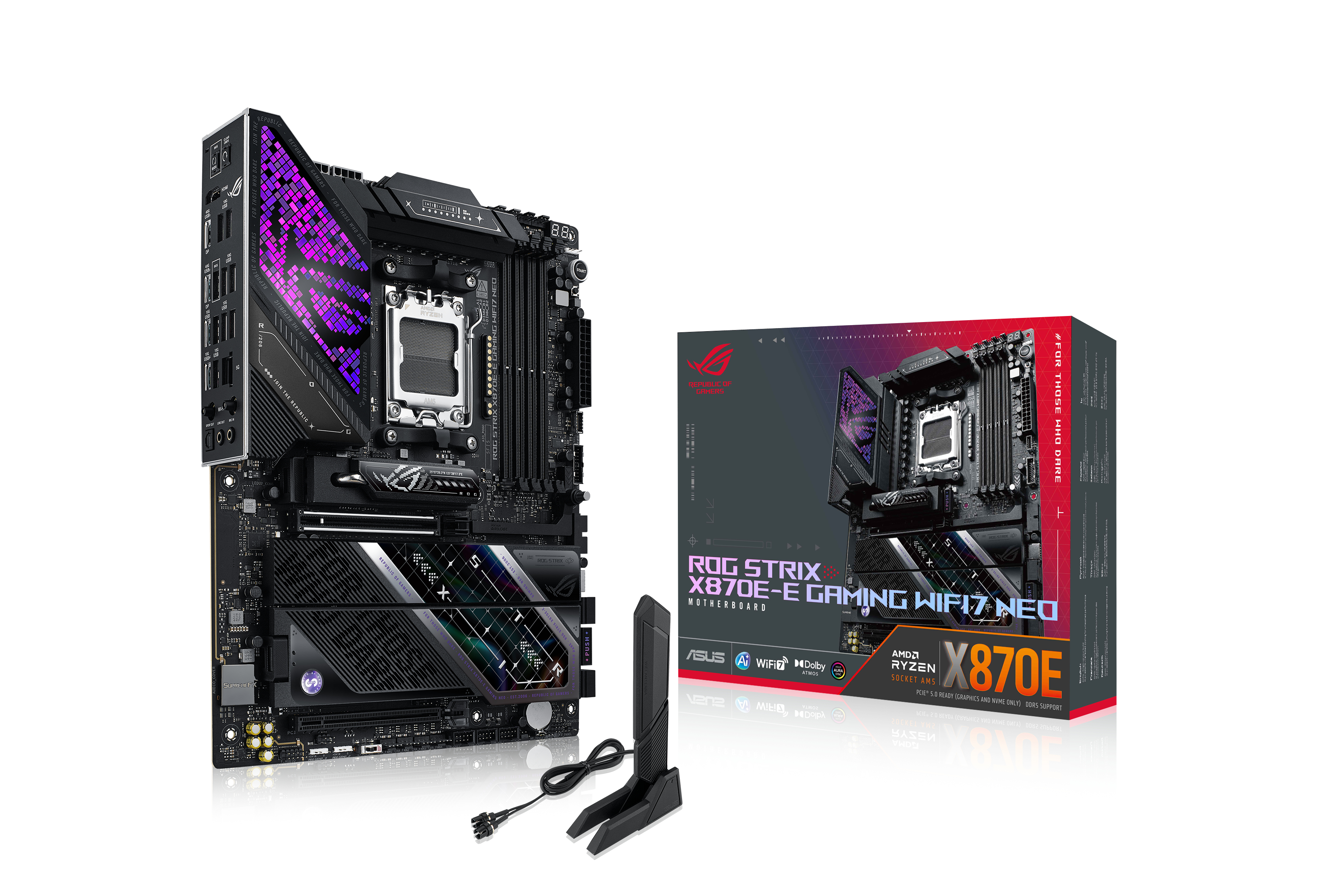

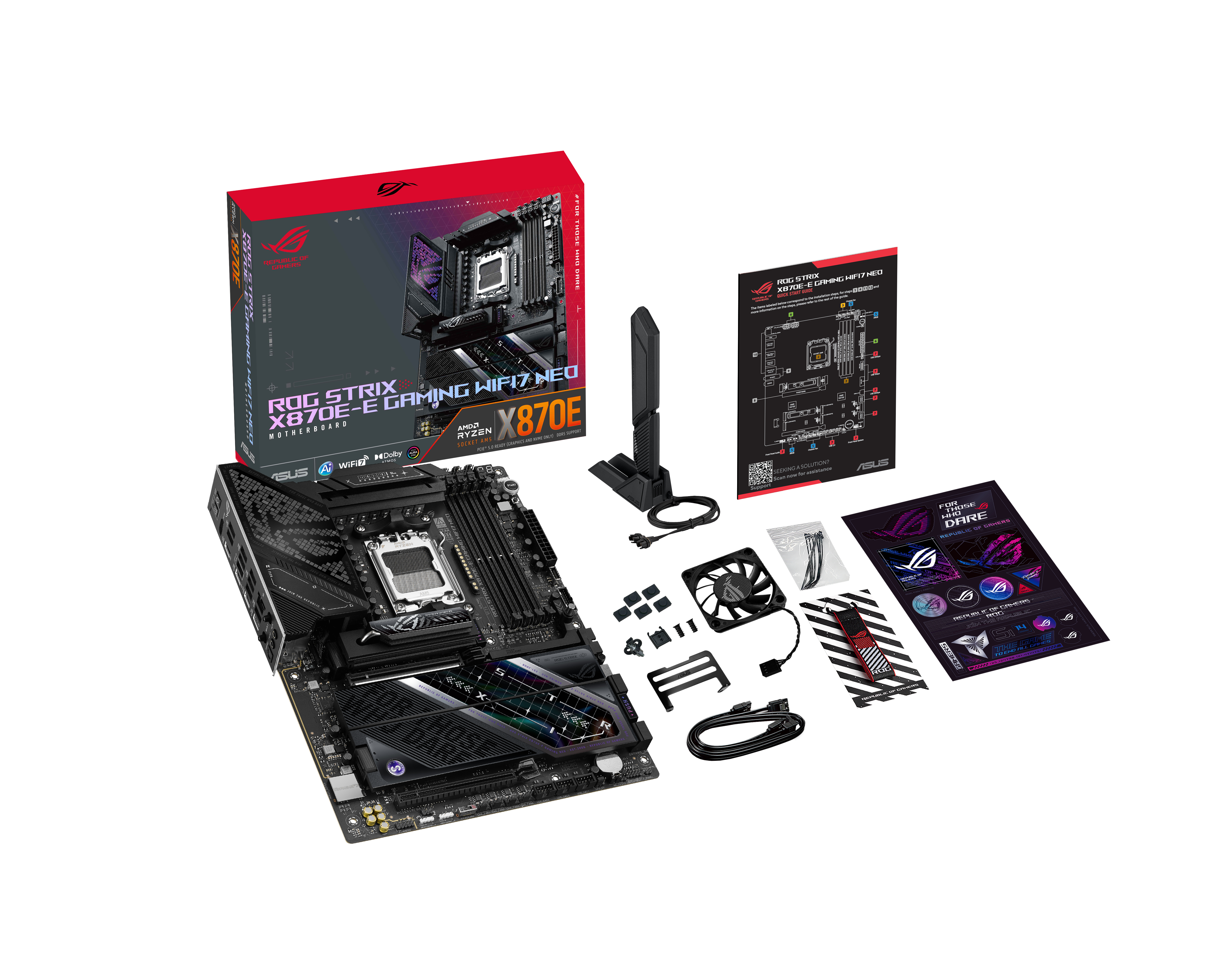

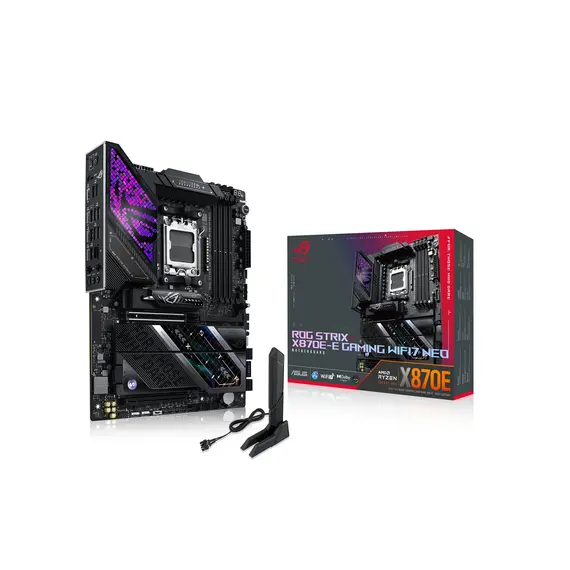

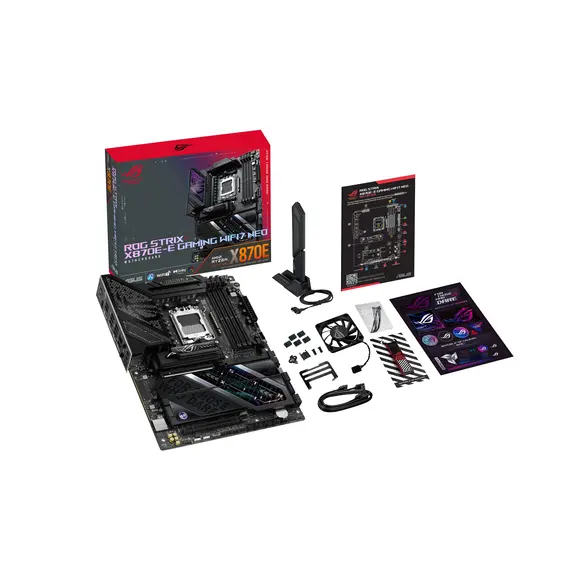

What's in the Box
- ASUS ROG STRIX X870E-E GAMING WIFI7 NEO motherboard
- SATA cable
- Screws
- Antenna
- HDMI
- AMD Ryzen 9000 Series
