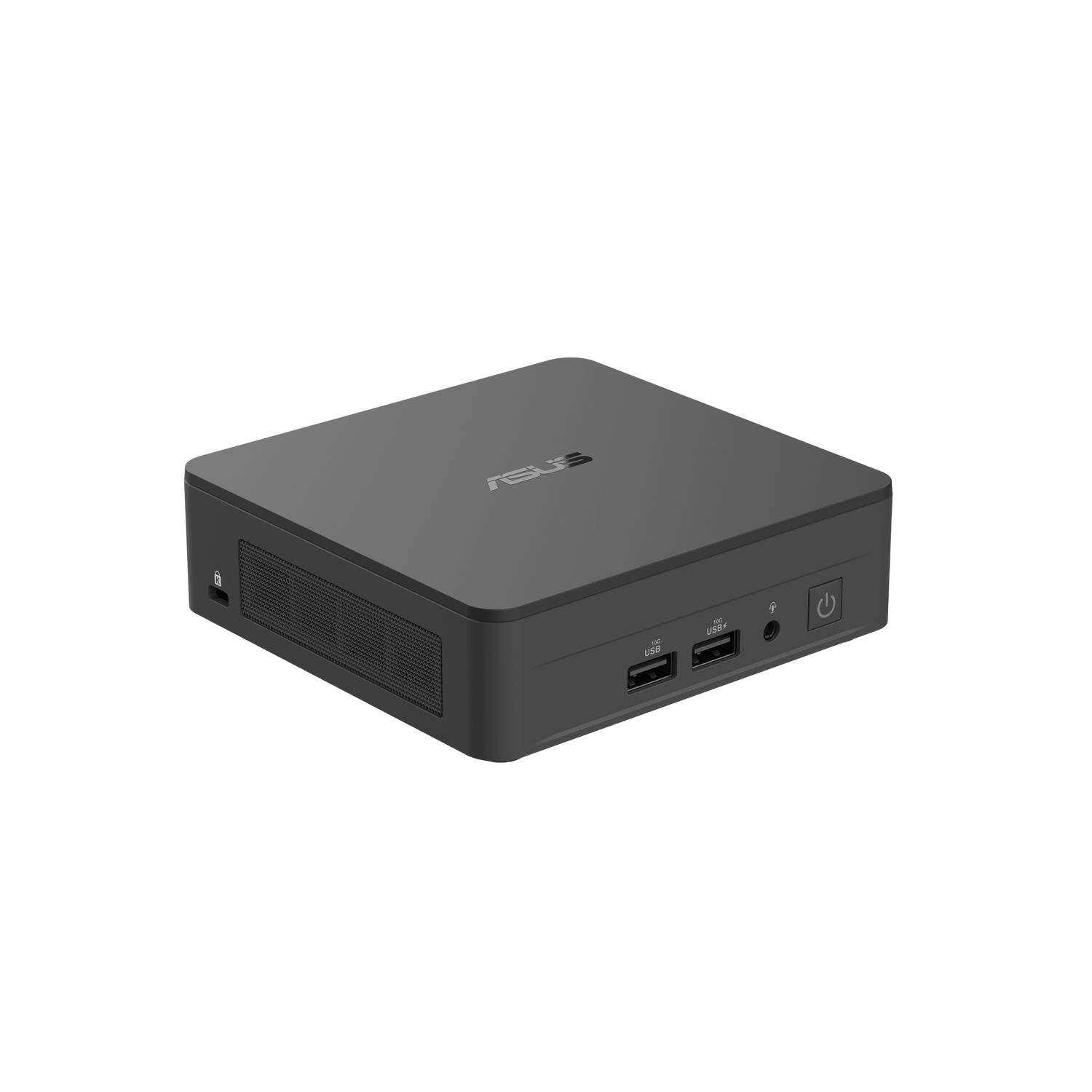

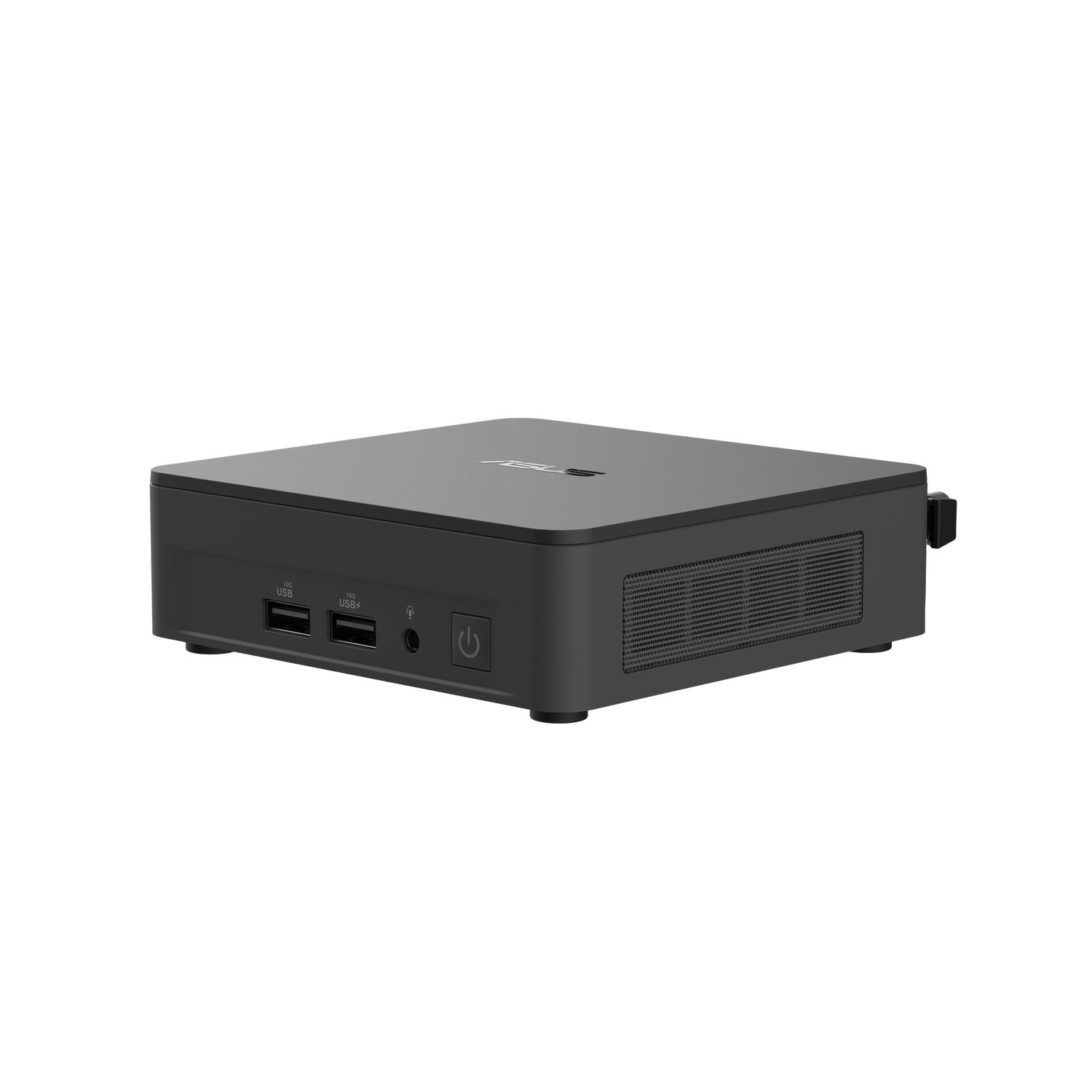

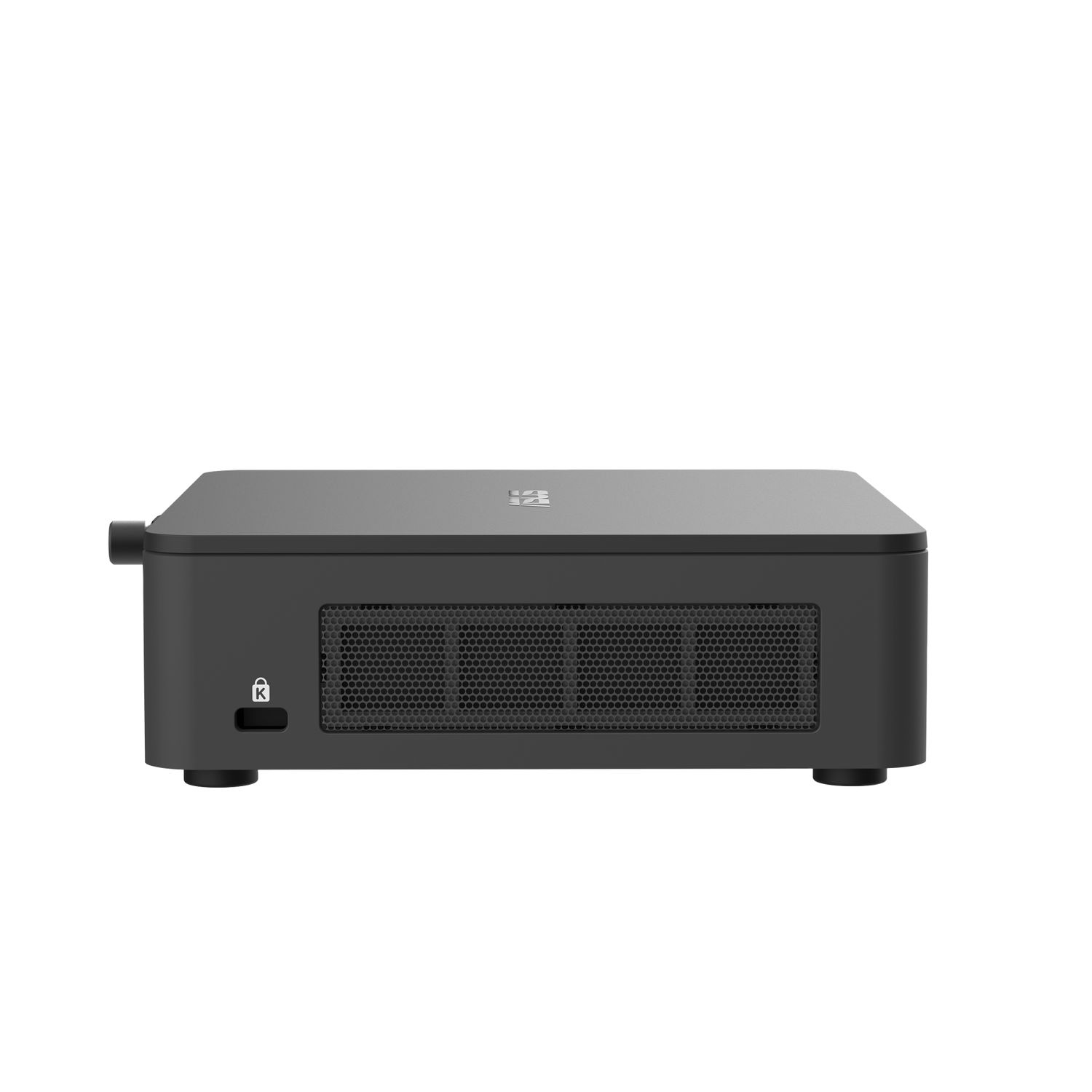

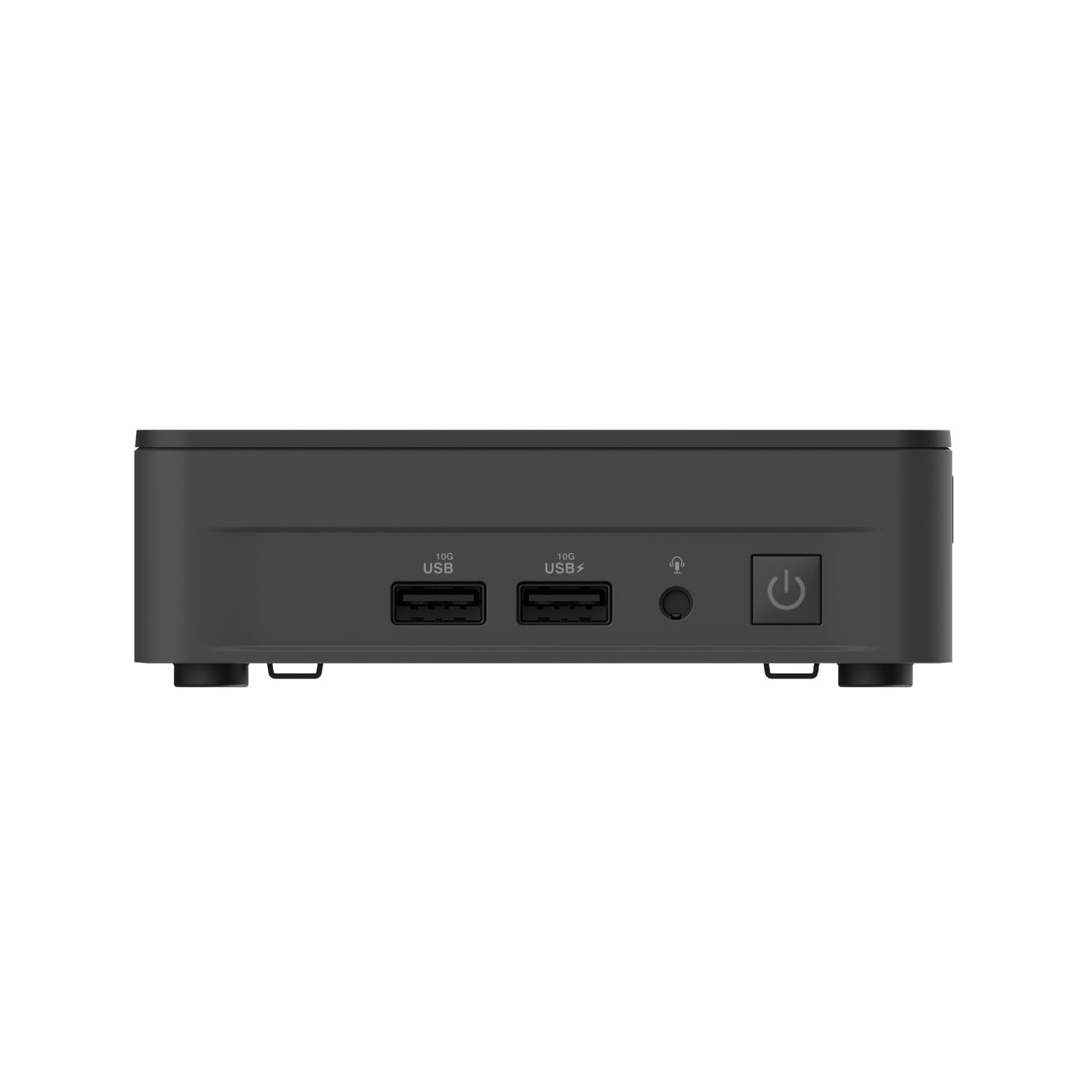

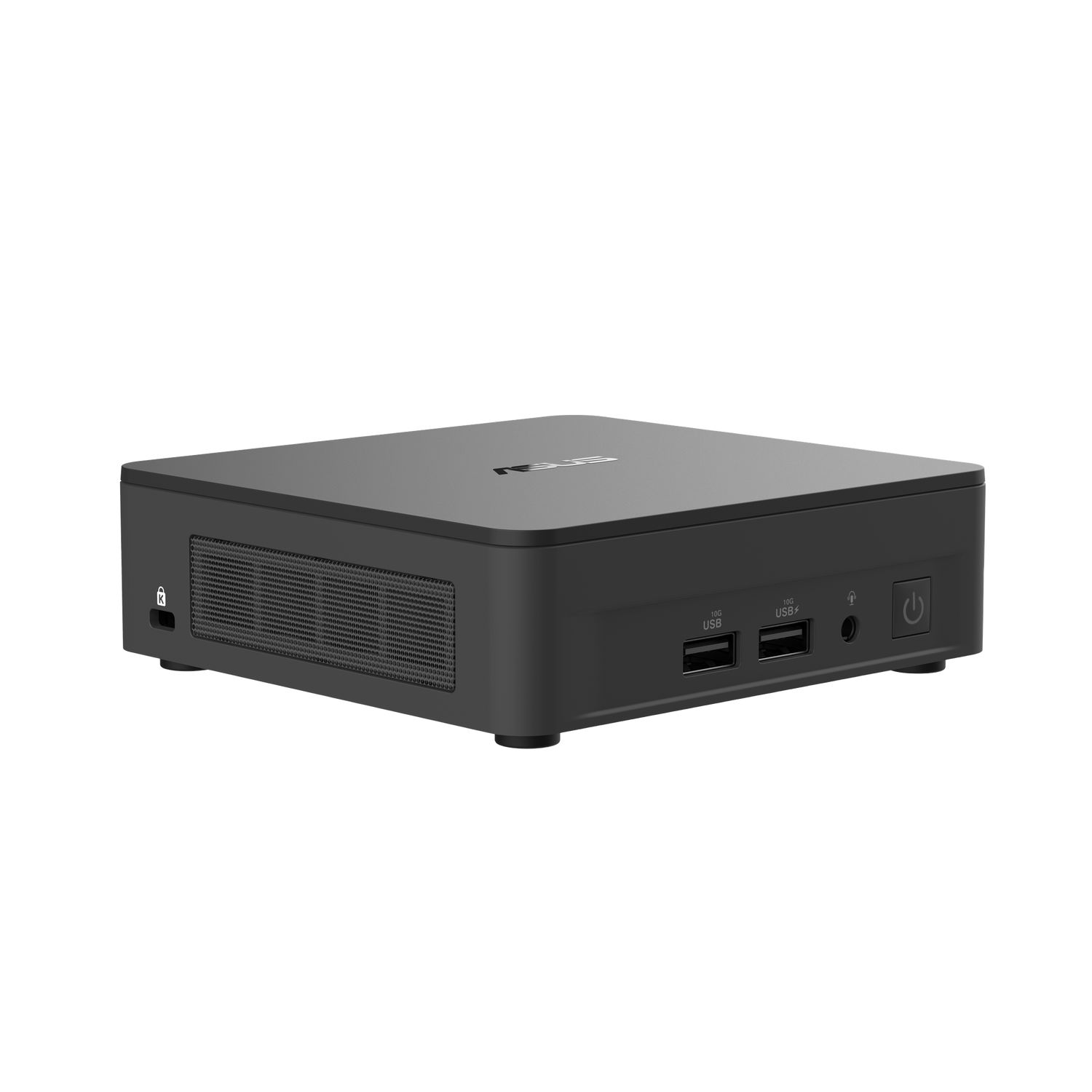

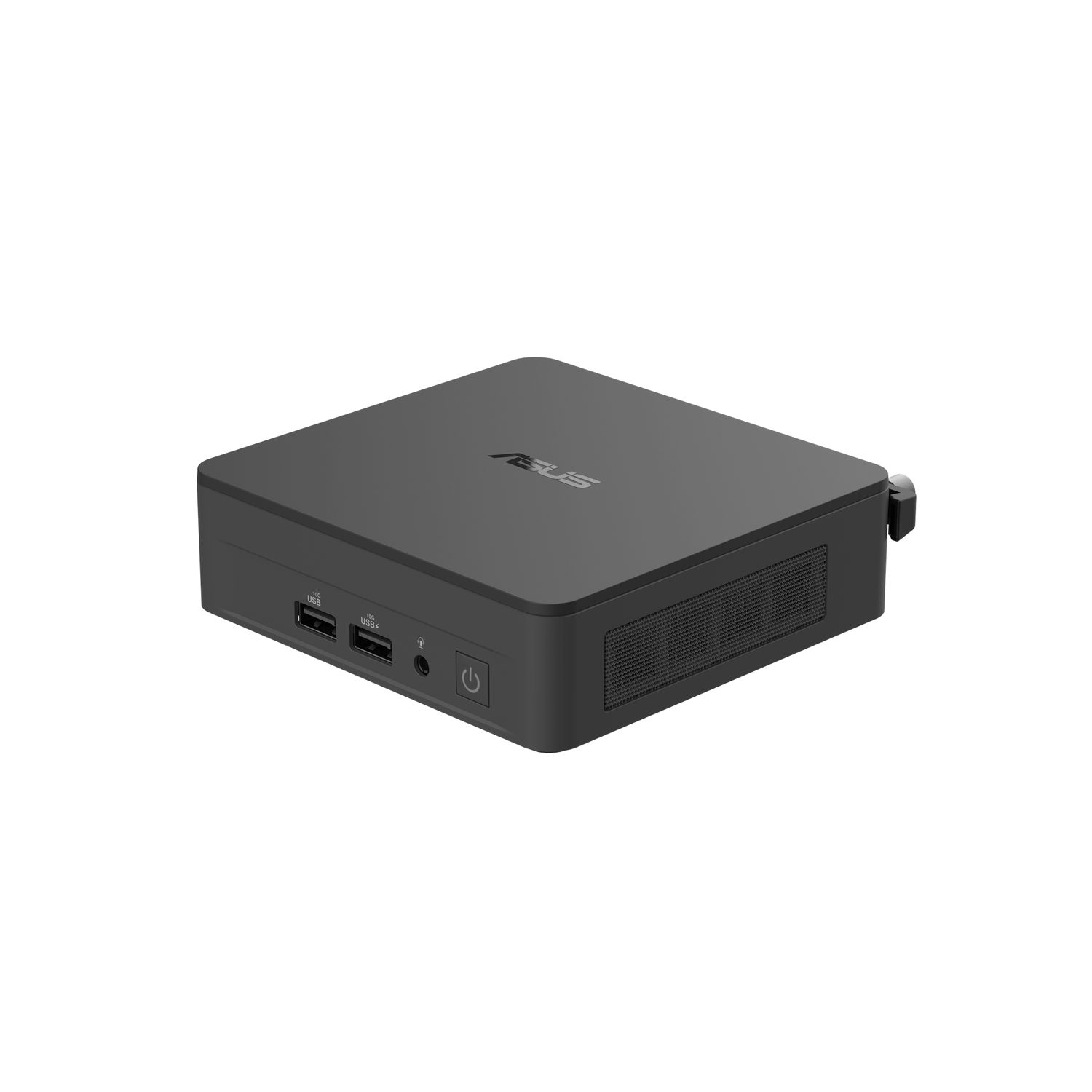

ASUS NUC 12 Pro Kit NUC12WSKi5 UCFF - i5-1240P, Black
90AB2WSK-MR6120
Delivery
Payment options
Our advantages
- — Warranty: 3 year warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
- Processor modelIntel Core i5-1240P
- Processor cores12
- Processor threads16
- All features
Built for Business. NUC 12 Pro
Boost business performance with 12th Gen Intel® Core™ processors and the latest features to support productivity, collaboration, and edge compute.
NUC 12 Pro Mini PCs, Kits, & Boards
Ready to work, wherever it’s needed—the 4x4 compact device is designed to go where you go, and fit into any space.
Surprising size. Supercharged performance
Level up your business with the latest technologies.
Manufacturer site
Main
Brand
ASUS
Warranty
3 year warranty
Product code
90AB2WSK-MR6120
Design
Cooling type
Active
On/off switch
Yes
Product type
Mini PC barebone
VESA mounting
Yes
Product colour
Black
Expansion slots
PCI Express slots version
4.0
Features
Chassis type
UCFF
Memory voltage
1.2 V
Motherboard form factor
UCFF
Graphics
Graphics card family
Intel
Number of displays supported
4
On-board graphics card
Yes
On-board graphics card model
Intel UHD Graphics
Memory
Maximum internal memory
64 GB
Memory slots type
SO-DIMM
Number of memory slots
2
Supported memory clock speeds
3200 MHz
Supported memory types
DDR4-SDRAM
Network
Bluetooth
Yes
Bluetooth version
5.3
Ethernet LAN
Yes
LAN controller
Intel I225-V
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Other features
LED indicators
Yes
Performance
Number of processors supported
1

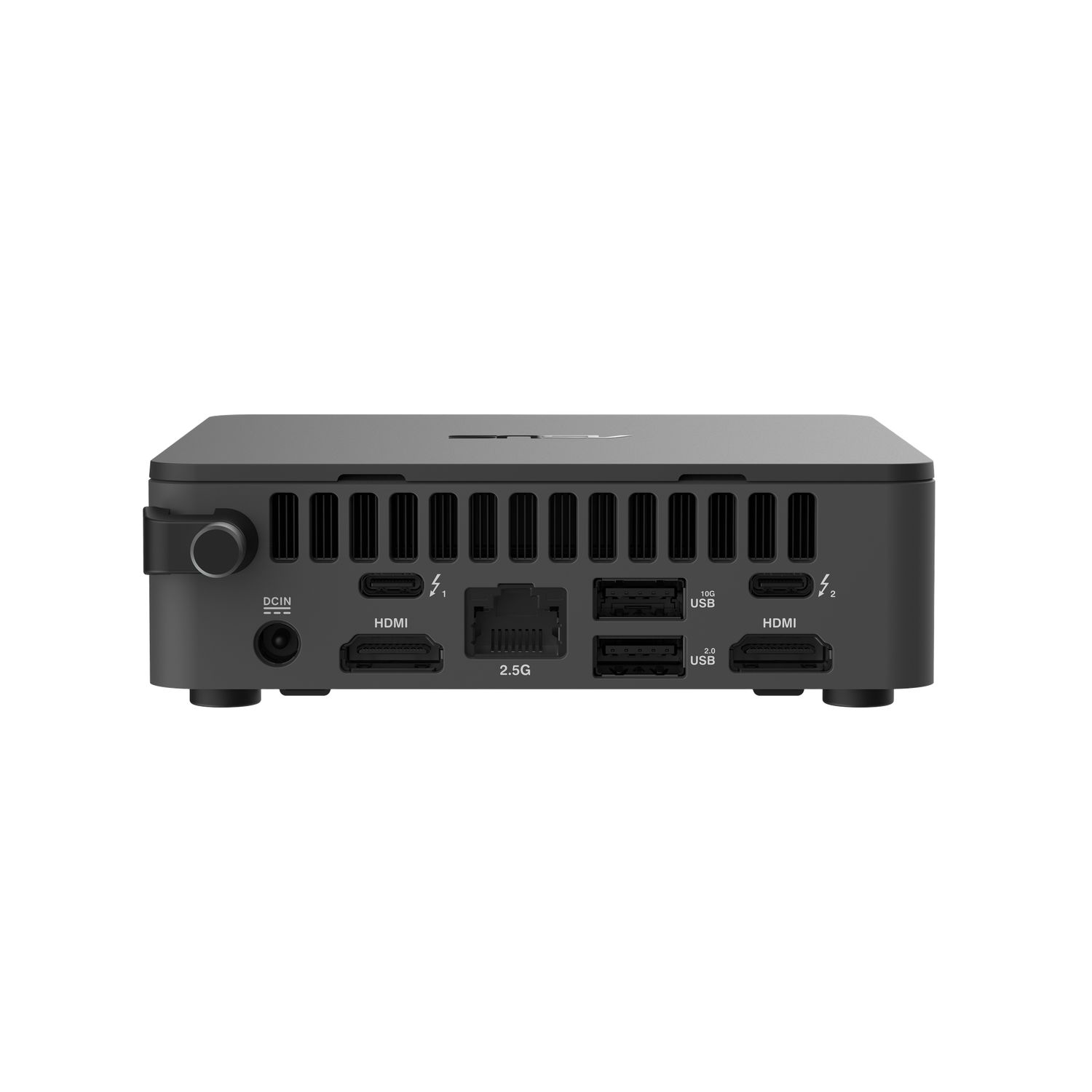

Ports & interfaces
Combo headphone/mic port
Yes
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
2
HDMI version
2.1
Thunderbolt 4 ports quantity
2
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Power
Power supply type
External AC adapter
Processor
Built-in processor
Yes
Processor boost frequency
4.4 GHz
Processor cache
12 MB
Processor cores
12
Processor generation
12th gen Intel Core i5
Processor manufacturer
Intel
Processor threads
16
Thermal Design Power (TDP)
35 W
Processor model
Intel Core i5-1240P
Processor special features
Intel ME Firmware Version
16
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Software
Linux operating systems supported
Yes
Windows operating systems supported
Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro
Storage
Number of storage drives supported
2
NVMe
Yes
SSD form factor
M.2
Storage drive interface
M.2, Serial ATA III
Storage drive sizes supported
M.2
Supported storage drive types
SSD
Weight & dimensions
Depth
112 mm
Product Height
37 mm
Width
117 mm
