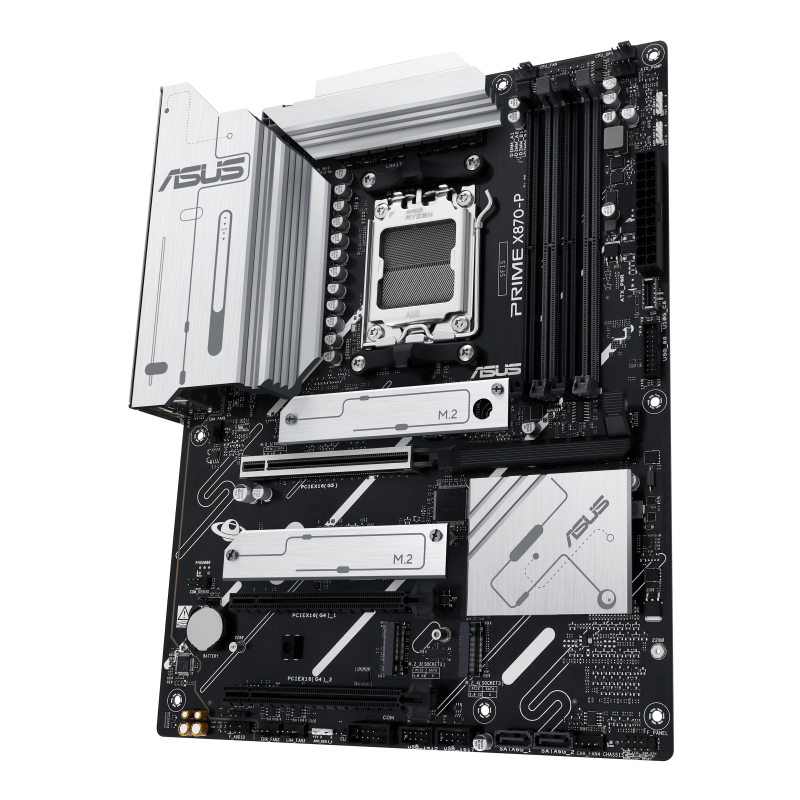

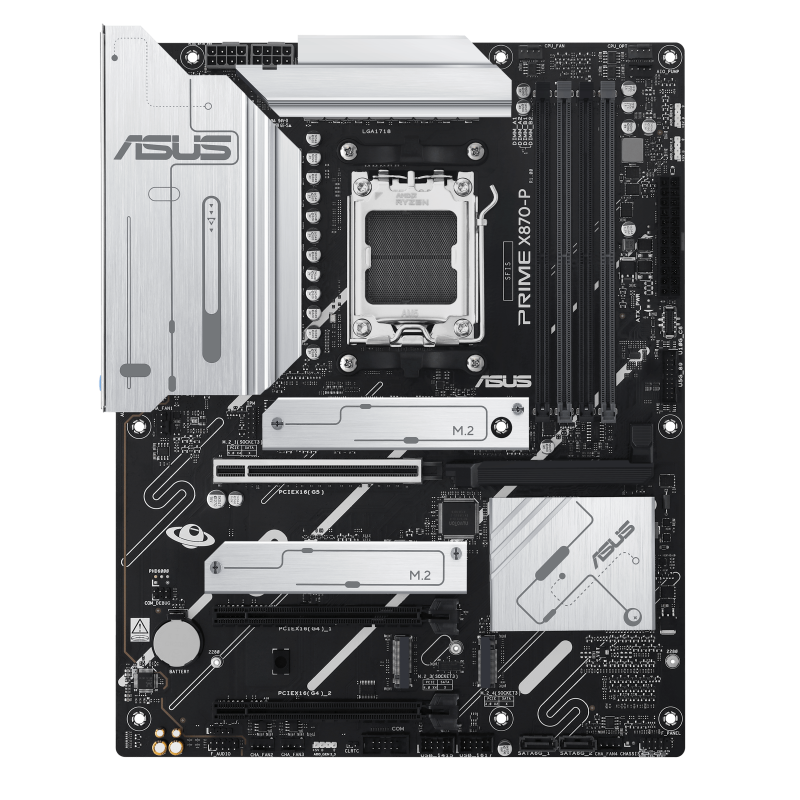

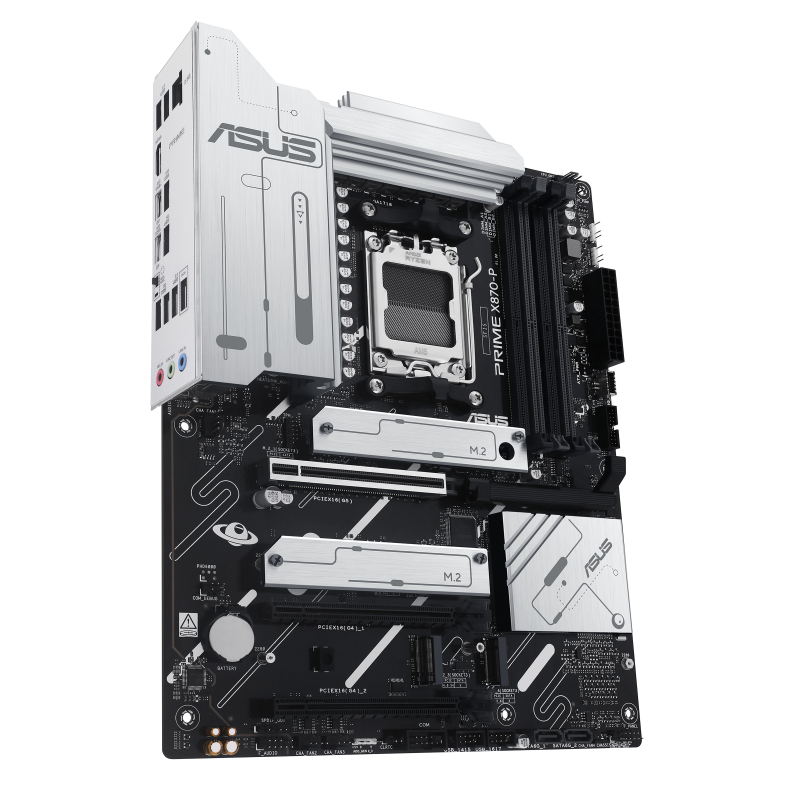

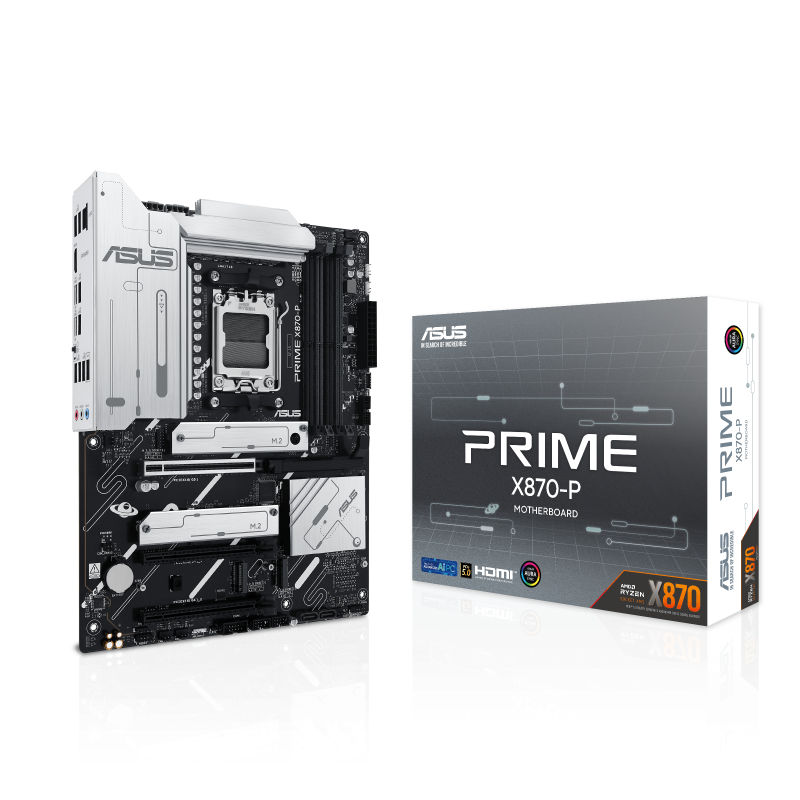

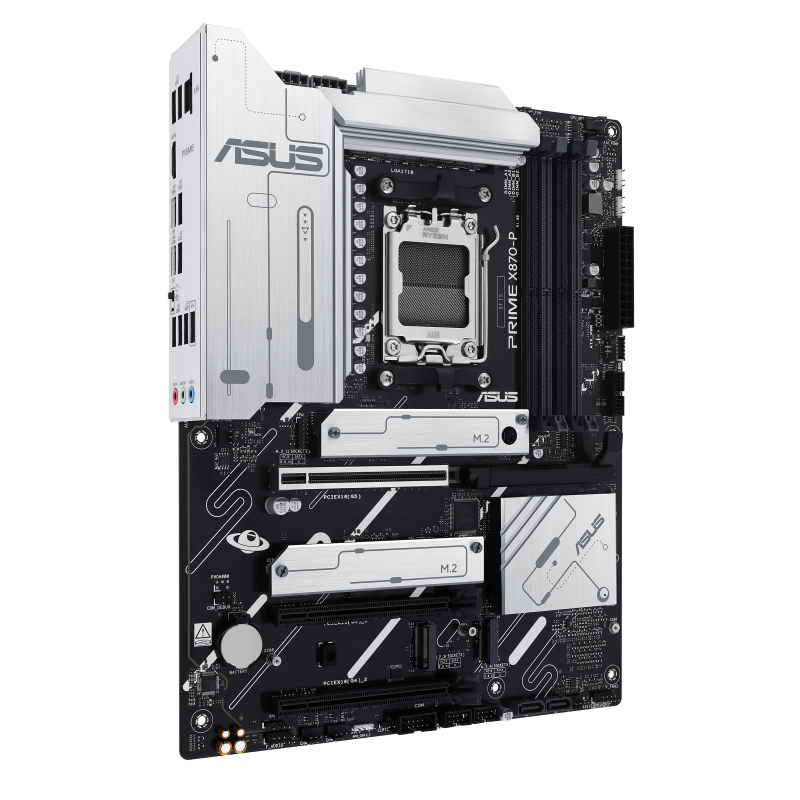

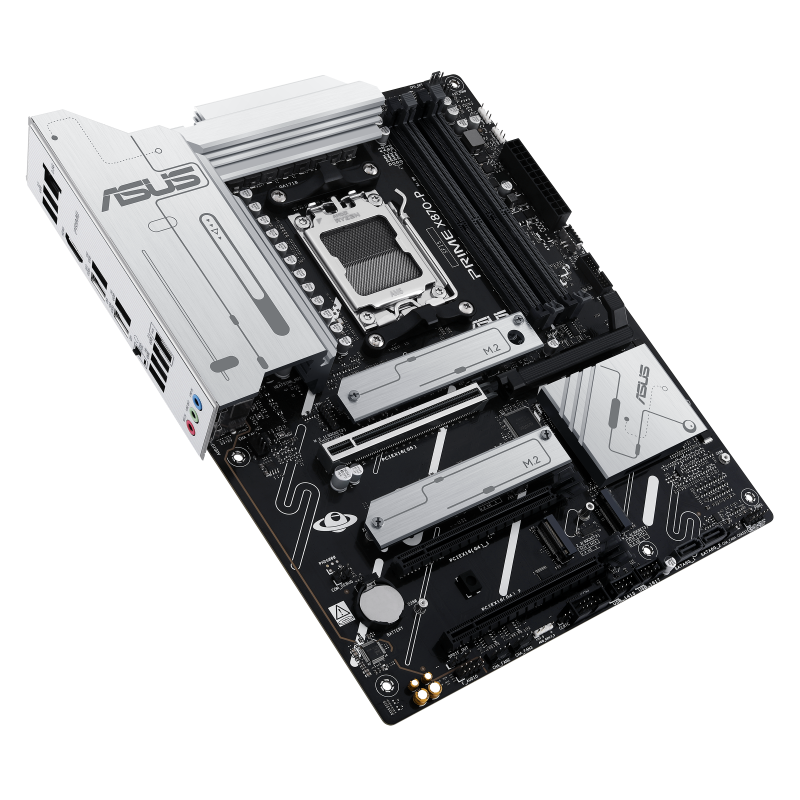

ASUS PRIME X870-P - Motherboard, AMD X870, Socket AM5, ATX

Unleash your build's potential with the ASUS PRIME X870-P Motherboard!
Delivery
Payment options
Our advantages
  • — Warranty: 3 Years Warranty
  • — Return and exchange up to 14 days
  • — Best price
Find similar
Build a PC with this motherboardCompatible parts are picked automaticallyOpen the builder →

Key specifications

  • BrandASUS
  • Processor socketAM5
  • Motherboard chipsetAMD X870
  • Motherboard form factorATX
  • Supported memory typesDDR5-SDRAM
  • Number of memory slots4
  • Number of M.2 (M) slots4
  • Maximum internal memory192 GB
  • Compatible processor seriesAMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
  • Video outputsHDMI
  • USB-C ports (rear)USB4
  • Performance profileAMD EXPO
  • Product colorBlack
  • Weight1.44 kg
  • Warranty3 Years Warranty

The ASUS PRIME X870-P Motherboard is expertly crafted to harness the power of AMD Ryzen™ 9000 series processors, making it a prime choice for gamers, creators, and PC DIY enthusiasts alike. With an exceptional power design, advanced cooling systems, and smart tuning features, this ATX motherboard offers optimal performance and connectivity for demanding applications.

Performance

Robust Power Design
Ensuring stable power is essential for extracting the most from high-core-count AMD processors. The PRIME X870-P is equipped with an innovative power stage setup of 14(80A) + 2(80A) + 1(80A), combining both high-side and low-side MOSFETs. This ensures exceptional power delivery, stability, and efficiency for current and future AMD CPUs.

Enhanced Memory & Storage

Optimized DDR5 Performance
Experience comprehensive memory tuning capabilities that maximize the potential of DDR5 modules, whether they're entry-level or high-speed variants. For modules lacking EXPO™ support, the ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and adjusts settings for peak performance. Additionally, extensive AMD Extended Profiles for Overclocking (EXPO™) support are available for enthusiasts looking to push beyond stock speeds.

Four M.2 Slots
With a total of four M.2 slots, the PRIME X870-P supports lightning-fast data transfer speeds of up to 128 Gbps via PCIe 5.0, alongside two slots offering 64 Gbps via PCIe 4.0, and one slot supporting PCIe 3.0. Experience faster boot-ups and application load times, ensuring your system operates at top efficiency.

Cooling Solutions

Engineered for Cool Operation
To enhance stability during intense workloads, the PRIME X870-P features multiple onboard heatsinks and a selection of hybrid fan headers. This combination ensures that your system remains cool and efficient.

Smart Cooling Technologies
Leverage the ASUS Fan Xpert 4 software for comprehensive control over fans and AIO coolers, featuring one-click auto-tuning and an Extreme Quiet mode for silent operation. Dynamic fan speed adjustments via AI Cooling II optimize thermal performance while minimizing noise.

Connectivity Options

Empowering Connectivity
This motherboard includes PCIe 5.0 support, Realtek 2.5Gb Ethernet, and a multitude of USB ports for flexible connectivity. Each USB 40Gbps Type-C® port delivers high-speed data for the latest devices, capable of handling dual 4K displays.

PCIe 5.0 Slot
The PRIME X870-P takes advantage of the latest processors with PCIe 5.0 support, doubling the data transfer rates compared to PCIe 4.0, while maintaining backward compatibility.

Customization and User Experience

Personalization Features
Enhance your setup with customizable RGB lighting controls and an intuitive UEFI BIOS interface for users of all skill levels. Streamline driver management with ASUS DriverHub for efficient system performance.

Armoury Crate
Control and customize Aura Sync RGB settings seamlessly while providing product registration and updates for all your ASUS devices.

DIY Friendly Innovations

Simple DIY Experience
The PRIME X870-P is equipped with EZ PC DIY innovations that simplify the building process. The PCIe Slot Q-Release allows for easy removal of PCIe cards, while the innovative M.2 Q-Latch enables effortless installation or removal of M.2 SSDs without needing tools.

Q-LED Core and Pre-Mounted I/O Shield

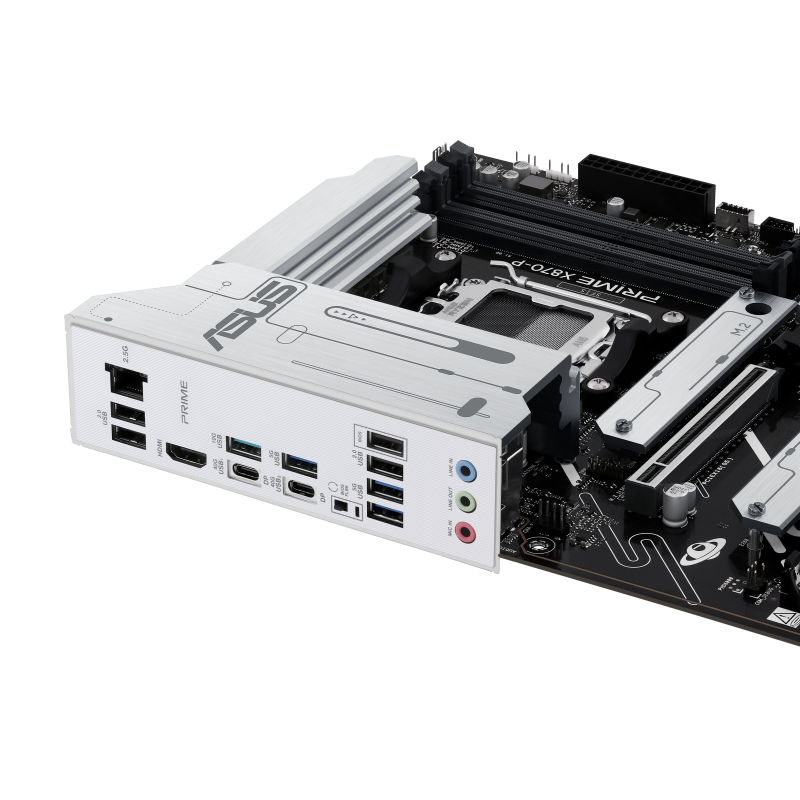

The Q-LED Core display indicates color-coded statuses during POST to aid troubleshooting, while a pre-mounted I/O shield enhances functionality and aesthetics, making this motherboard an ideal choice for DIY enthusiasts.

Build the Future

Designed for Advanced Gaming and Creation
With USB 4.0 support and robust overclocking potential, the ASUS X870E/X870 motherboards are engineered for those who demand the fastest speeds. Embrace the revolutionary performance for gaming, content creation, and beyond with compatibility for AMD Ryzen™ 9000, 8000, and 7000 series processors.

Find similar by key specs

Compatible processor series AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Tick the specs you need — we will find similar products Find similar →

All specifications 69

Main4
Brand
ASUS
Warranty
3 Years Warranty
Product code
90MB1IT0-M0EAY0
EAN/UPC code
4711387723036
Processor3
Processor socket
AM5
Compatible processor series
AMD Ryzen 9000 SeriesAMD Ryzen 8000 SeriesAMD Ryzen 7000 Series
Processor manufacturer
AMD
Performance2
Motherboard chipset
AMD X870
Performance profile
AMD EXPO
Features4
Audio output channels
7.1 channels
Motherboard chipset family
AMD
Motherboard form factor
ATX
Windows operating systems supported
Windows 10, Windows 11
Memory8
ECC сompatibility
ECC & Non-ECC
Maximum internal memory
192 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory clock speed (max)
8000 MHz
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Expansion slots3
Number of M.2 (M) slots
4
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
1

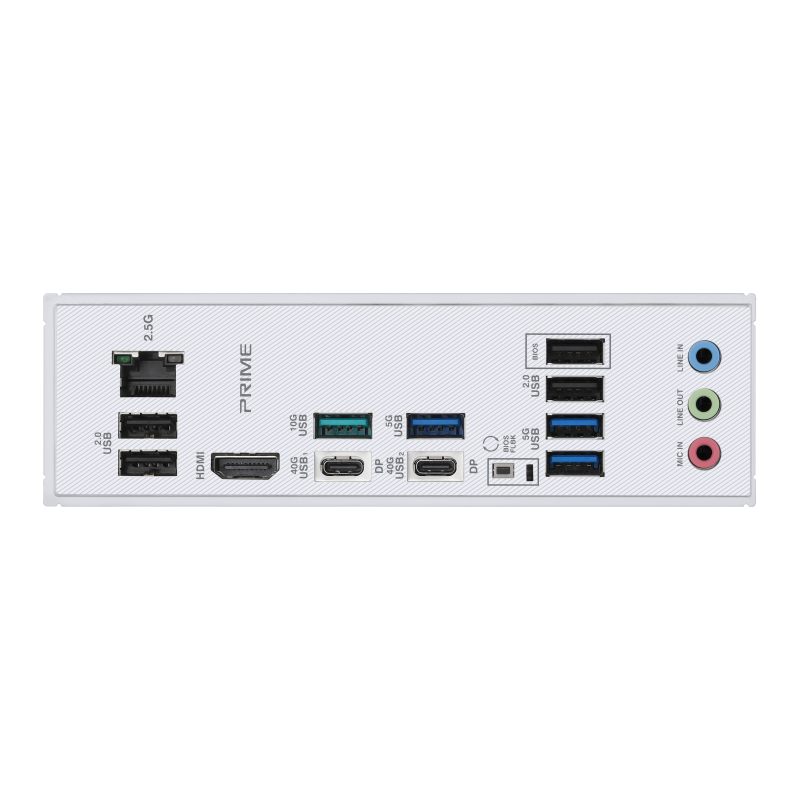

Ports & interfaces12
DisplayPort version
1.4a
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Line-in
Yes
Microphone in
Yes
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB-C ports (rear)
USB4
USB4 Gen 2x2 ports quantity
2
Video outputs
HDMI
BIOS2
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Design2
Cooling type
Passive
Product color
Black
Graphics1
Parallel processing technology support
Not supported
Internal I/O12
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Number of chassis fan connectors
4
Number of COM connectors
1
Number of SATA III connectors
2
RGB LED pin header
Yes
TPM connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Network2
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Other features1
Back-to-BIOS button
Yes

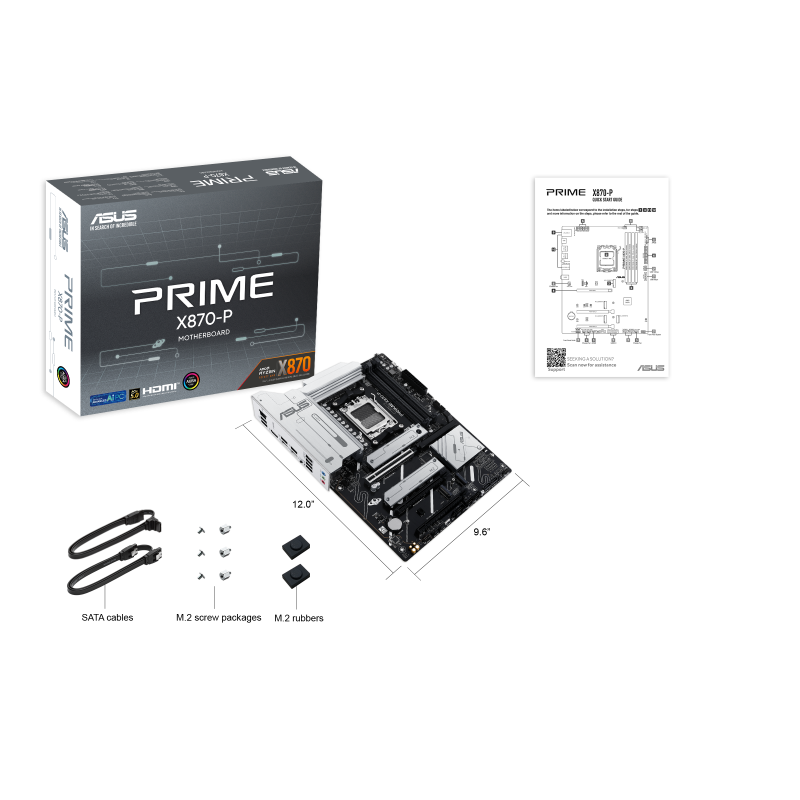

Packaging content1
Cables included
SATA
Packaging data3
Package depth
273 mm
Package height
68 mm
Package width
353 mm
Power1
Power source type
ATX
Storage controllers6
Number of HDDs supported
2
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
RAID support
Yes
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Weight & dimensions2
Depth
244 mm
Width
305 mm
