ASUS PRIME Z790-A WIFI - Motherboard, Intel Z790, LGA 1700, ATX

Unleash your build's potential with the ASUS PRIME Z790-A WIFI motherboard!
Delivery
Payment options
Our advantages
  • — Warranty: 3 years warranty
  • — Return and exchange up to 30 days
  • — Best price
Find similar
  • Processor socketLGA 1700 (Socket V)
  • Compatible processor seriesIntel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
  • Motherboard chipsetIntel Z790
  • Supported memory typesDDR5-SDRAM
  • Number of memory slots4
  • Motherboard form factorMicro ATX
  • All features

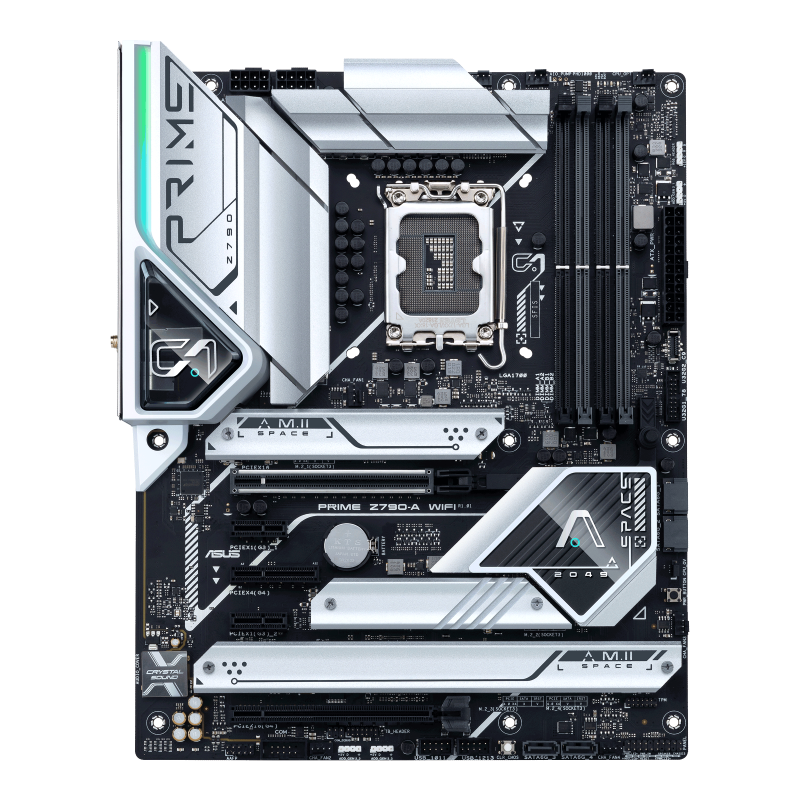

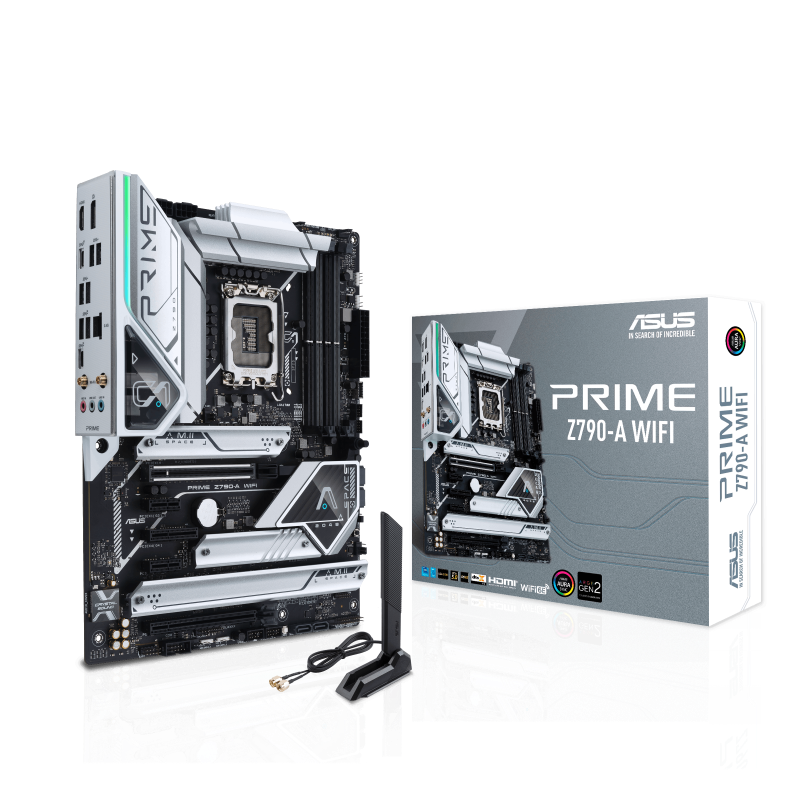

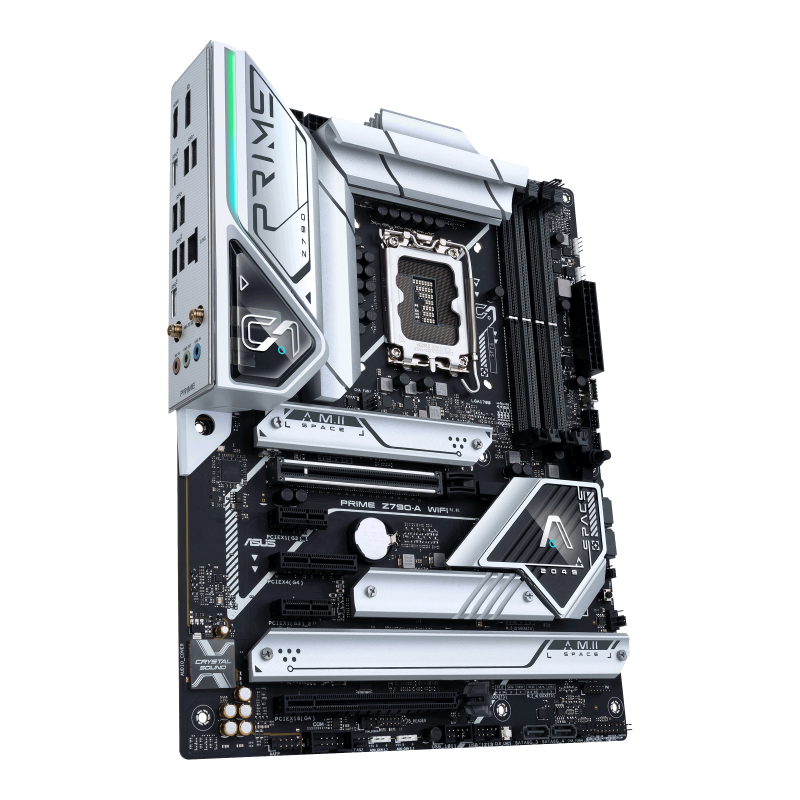

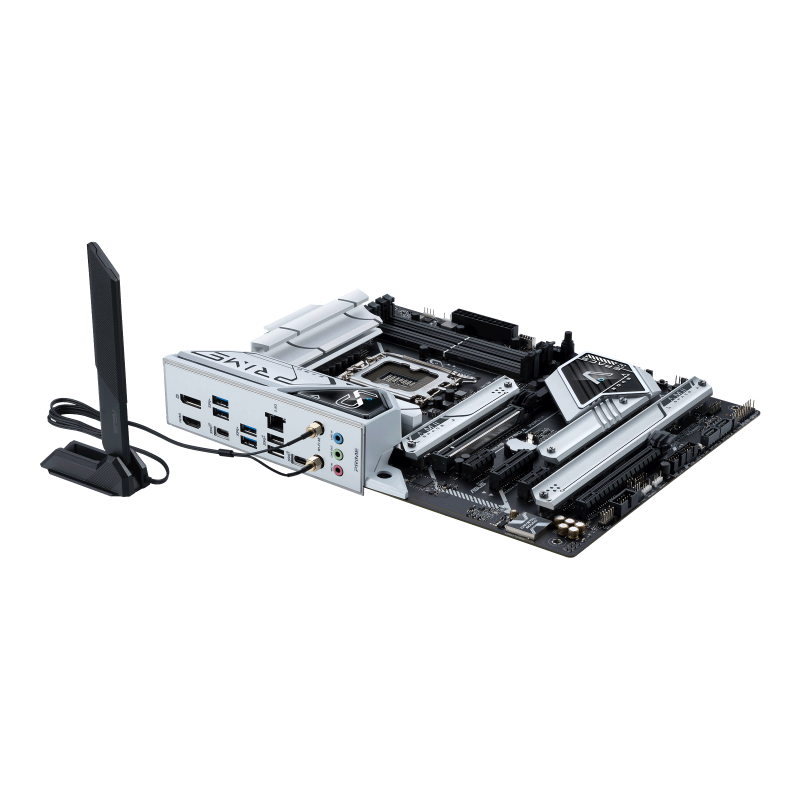

ASUS PRIME Z790-A WIFI Motherboard

Unleash the full potential of your computing experience with the ASUS PRIME Z790-A WIFI, a high-performance motherboard designed for the latest 13th Gen Intel® Core™ processors. This ATX motherboard features the Intel Z790 chipset and LGA 1700 socket, providing a solid foundation for your custom-built PC.

Advanced Power Design

Engineered for stability and performance, the PRIME Z790-A WIFI boasts a robust power delivery system. With 8+8 pin ProCool connectors, this motherboard ensures a direct and stable power supply to your CPU, allowing you to extract maximum performance from high-core-count processors.

Exceptional Cooling Solutions

The PRIME Z790-A WIFI is equipped with innovative cooling features to prevent throttling during intense workloads:

  • Multiple M.2 Heatsinks: Three heatsinks cover four M.2 slots, eliminating heat build-up during sustained data transfers.
  • VRM Heatsinks and Thermal Pads: The extensive heatsink surface area improves heat dissipation, ensuring optimal performance.
  • Fan Control: Customize cooling settings through Fan Xpert 4 software or UEFI BIOS, with options to reference multiple thermal sensors.
  • AIO Pump Header: Dedicated PWM/DC header for efficient self-contained water-cooling setups.

Intelligent Control Features

With ASUS Intelligent Control, you can easily manage your system’s performance. This feature offers automatic tuning and simplifies complex adjustments for newcomers while providing deeper customization options for experienced users.

Energy Efficiency

Optimize your energy consumption with built-in power-saving features. Adjust CPU power limits, control Aura lighting, and modify fan profiles to achieve the best balance between performance and efficiency.

Enhanced Audio Experience

Experience superior sound quality with the PRIME Z790-A WIFI. Its premium onboard components and intelligent design deliver audio performance that elevates your gaming and multimedia experiences.

Sleek Design

The ASUS PRIME Z790-A WIFI showcases a futuristic spaceship design with a stylish silver-toned nameplate and chipset cover, making it a perfect centerpiece for your gaming rig.

Upgrade your system with the ASUS PRIME Z790-A WIFI motherboard and enjoy unparalleled performance, intelligent tuning capabilities, and advanced cooling features—all packaged in a stunning design.

Main
Brand
ASUS
Warranty
3 years warranty
Product code
90MB1CS0-M0EAY0
EAN/UPC code
4711081939320, 0195553939324, 195553939324, 4711081939337
BIOS
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Clear CMOS button
Yes
Expansion slots
Number of M.2 (M) slots
4
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
PCI Express x4 (Gen 4.x) slots
1
Features
Audio output channels
7.1 channels
Motherboard chipset
Intel Z790
Motherboard chipset family
Intel
Motherboard form factor
Micro ATX
Power source type
ATX
Product colour
Black, White
Graphics
Parallel processing technology support
Not supported
Internal I/O
ATX Power connector (24-pin)
Yes
Chassis intrusion connector
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Number of chassis fan connectors
4
Number of COM connectors
1
Number of SATA III connectors
4
RGB LED pin header
Yes
Thunderbolt headers
1
TPM connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Memory
Maximum internal memory
192 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Non-ECC
Yes
Number of memory slots
4
Supported memory clock speed (max)
7200 MHz
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Network
Bluetooth
Yes
Bluetooth version
5.3
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Packaging content
Cables included
SATA
Drivers included
Yes
Packaging data
Package depth
265 mm
Package height
71 mm
Package weight
1.27 kg
Package width
280 mm
Processor
Processor manufacturer
Intel
Processor socket
LGA 1700 (Socket V)
Supported processor sockets
LGA 1700
Compatible processor series
Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold

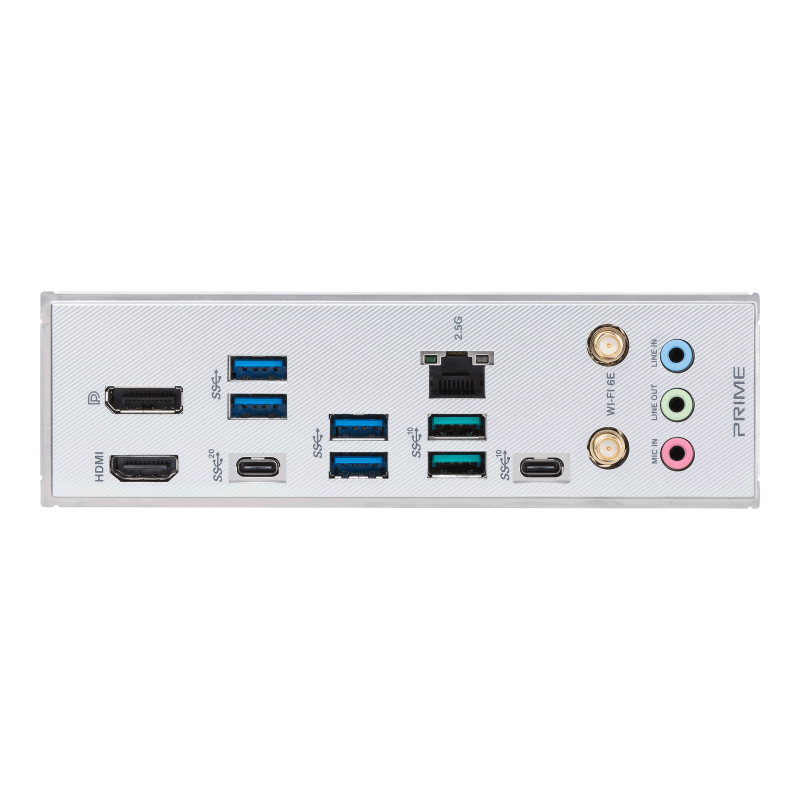

Rear panel I/O ports
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
WiFi-AP antenna jack
1
Storage controllers
RAID levels
0, 1, 5, 10
RAID support
Yes
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Weight & dimensions
Depth
244 mm
Width
305 mm

Automated video search by product name (the results maybe not the some as product in our store).

Manual (mmo_101956133_1666088857_5245_18571.pdf, 6,332 Kb) [Download]
