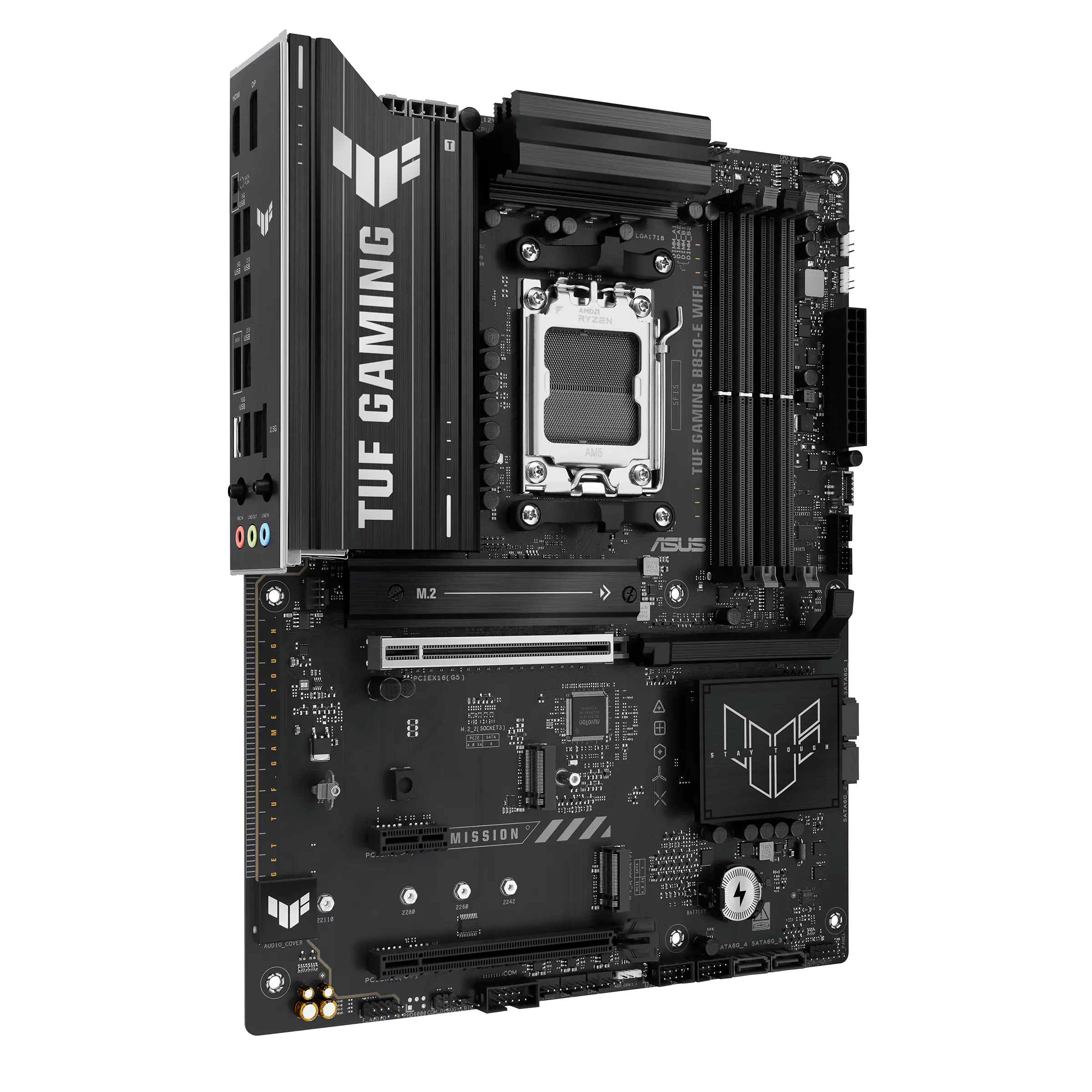

Install the appASUS TUF GAMING B850-E WIFI - Motherboard, AMD B850, Socket AM5, ATX
- — Warranty: 3 Years Warranty
- — Return and exchange up to 31 days
- — Best price
ASUS TUF GAMING B850-E WIFI -…Processor socketAM5Motherboard chipsetAMD B850Supported memory typesDDR5-SDRAM
7 more parts to a full buildEquip →
Key specifications
- BrandASUS
- Processor socketAM5
- Motherboard chipsetAMD B850
- Motherboard form factorATX
- Supported memory typesDDR5-SDRAM
- Number of memory slots4
- Number of M.2 (M) slots3
- Maximum internal memory256 GB
- Compatible processor seriesAMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
- Top Wi-Fi standardWi-Fi 6E (802.11ax)
- BluetoothYes
- Video outputsHDMI, DisplayPort
- USB-C ports (rear)USB 3.2 Gen 2
- Product colorMulticolour
- Weight1.21 kg
- Warranty3 Years Warranty

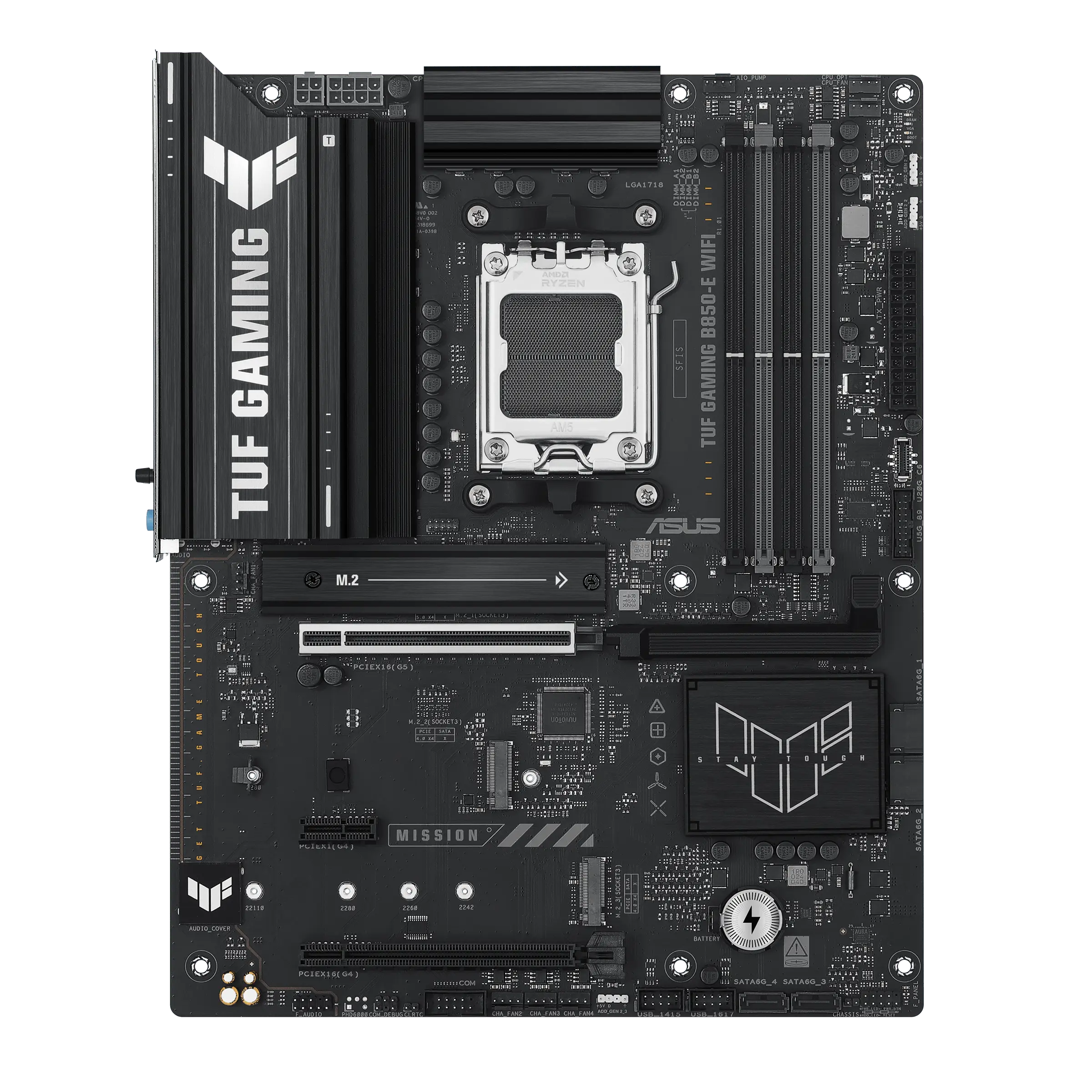

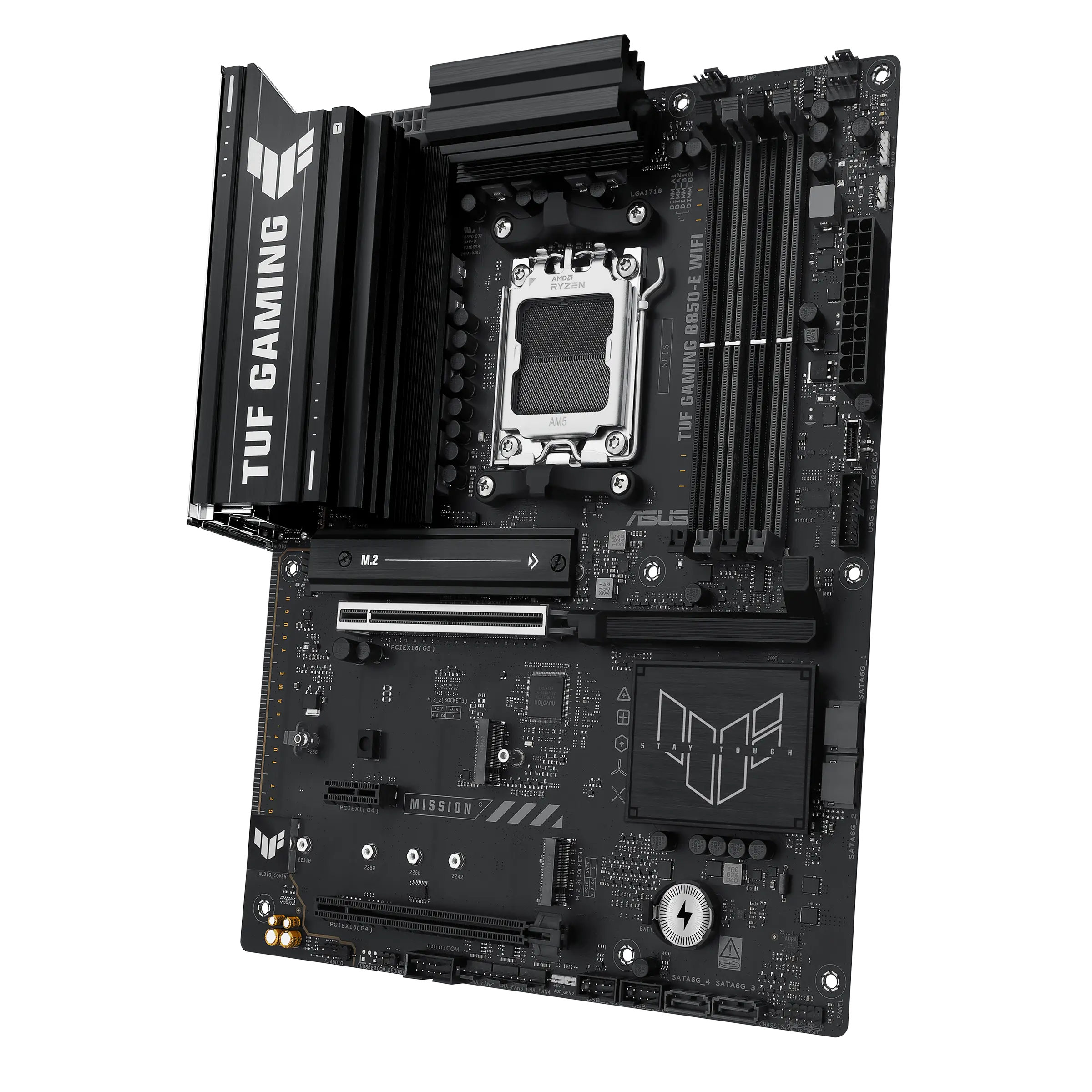

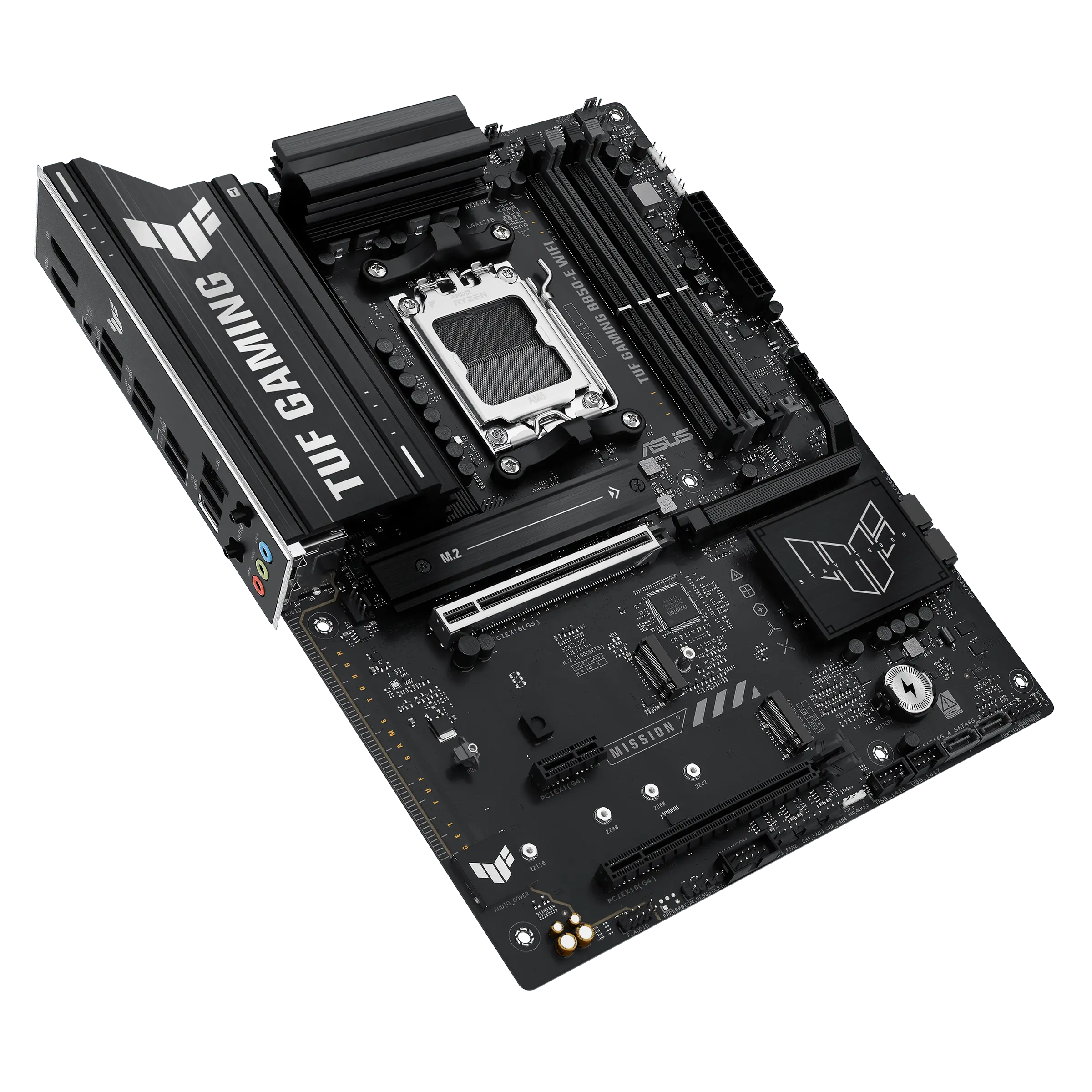

ASUS TUF GAMING B850-E WIFI – Versatile ATX Motherboard for AMD AM5 Socket
The ASUS TUF GAMING B850-E WIFI motherboard provides an exceptional foundation for your gaming rig. Built on the robust AMD B850 chipset and compatible with the renowned AM5 socket, it fully supports the latest Ryzen 7000, 8000, and 9000 series processors. Combining military-grade durability with cutting-edge features, it’s engineered for outstanding gaming performance as well as handling demanding AI applications.
Reliable Power Supply with Superior Cooling
Experience stability and performance with the innovative VRM design, featuring an 8+2+1 DrMOS phase configuration alongside an oversized heatsink. This advanced solution ensures optimal performance even under hefty workloads or during extensive overclocking sessions.
Expansive Expansion and Storage Capabilities
Boasting a PCIe 5.0 x16 slot for high-performance graphics cards, the motherboard also includes multiple PCIe 4.0 x16/x1 slots. It supports an impressive three M.2 slots—one PCIe 5.0 and two PCIe 4.0—as well as SATA drives, enabling RAID 0/1/5/10 arrays for versatile storage solutions.
Fast DDR5 Memory Support
Maximize your system’s efficiency with four DDR5 slots accommodating up to 256GB of memory and overclocking speeds that can reach approximately 8000MT/s through AMD EXPO profiles. This feature is particularly beneficial for high-performance tasks.
Enhanced Connectivity for Smooth Networking

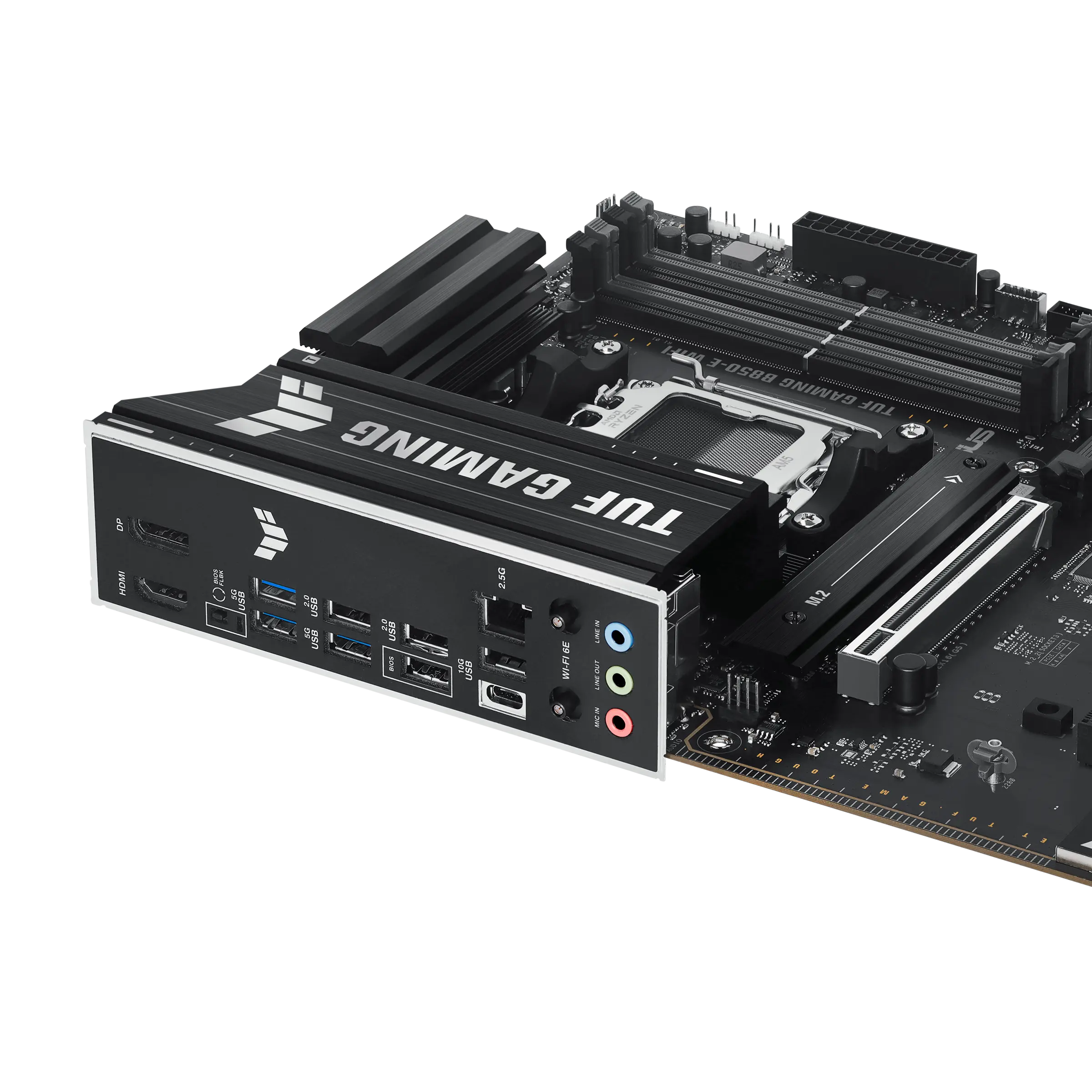

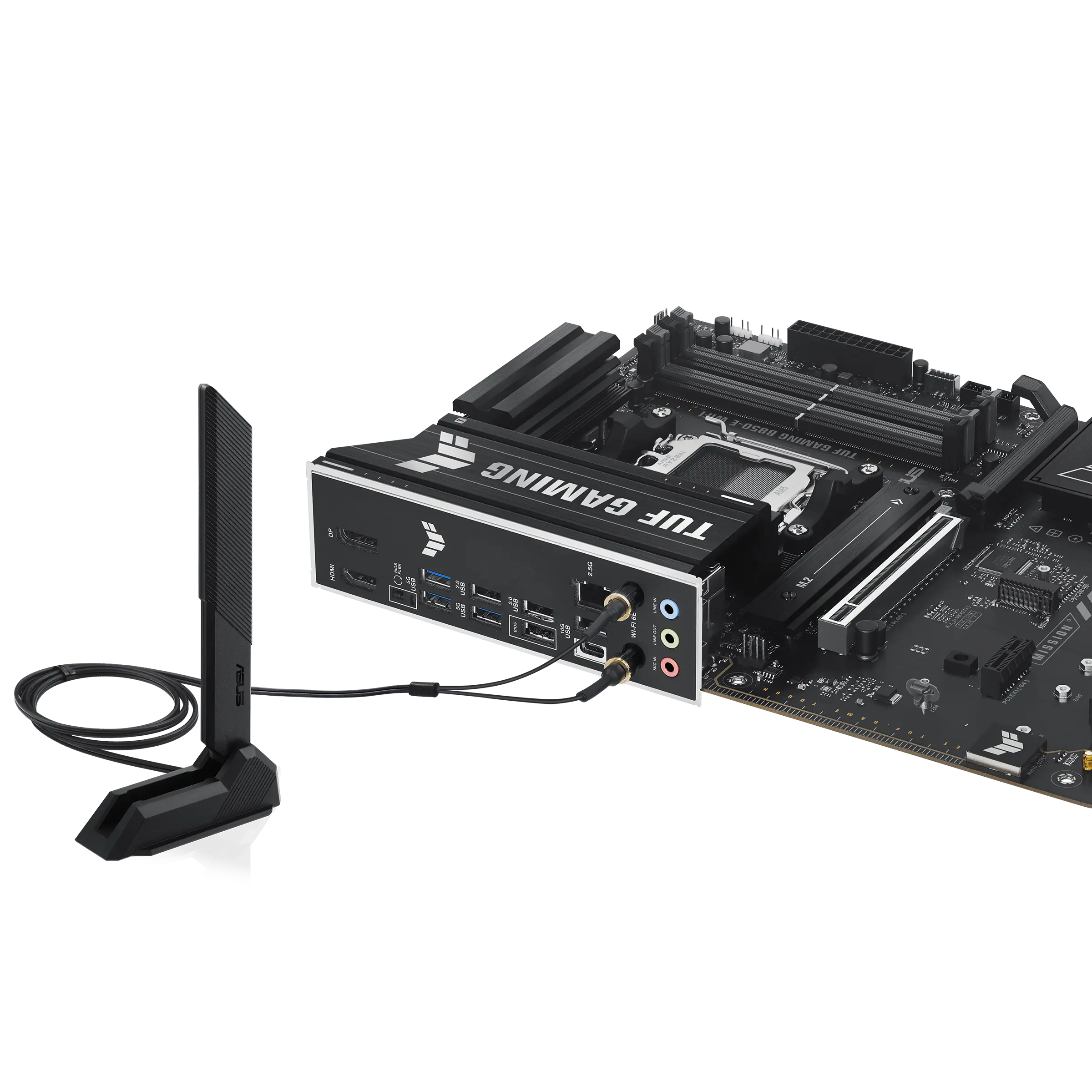

Stay connected with cutting-edge features, including 20Gbps rear USB-C, front USB-C, and USB 3.2 Gen 2. The board also supports Realtek 2.5GbE networking, Wi-Fi 6E, and Bluetooth 5.3, ensuring seamless wired and wireless connectivity.
User-Friendly Self-Assembly Tools
This motherboard is equipped with practical tools for easy installation, including the EZ-Latch interface for PCIe and M.2 slots, a pre-installed I/O shield, Q-Release buttons, Q-LEDs, Wi-Fi Q-Antenna, BIOS FlashBack, and Aura Sync lighting support—simplifying your setup and customization process.
Exceptional Durability and Comprehensive Warranty
Constructed with military-grade components that meet rigorous durability standards, the ASUS TUF GAMING B850-E WIFI offers peace of mind with long-term warranty support, making it an ideal choice for users who require high reliability for gaming and advanced AI tasks.
Value-Driven Performance
With a retail price ranging from approximately £195 to £255, this motherboard is an affordable yet powerful option. Its impressive combination of DDR5 support, PCIe 5.0, and Wi-Fi 6E makes it a top choice for building your next high-performance AM5 platform.
Find similar by key specs
All specifications 78
Main4
- Brand
- ASUS
- Warranty
- 3 Years Warranty
- Product code
- 90MB1L20-M0EAY0
- EAN/UPC code
- 4711387987544, 0197105987548, 197105987548
Processor3
Performance1
- Motherboard chipset
- AMD B850
Features4
- Audio output channels
- 7.1 channels
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- Windows operating systems supported
- Windows 10 x64, Windows 11
Memory8
- ECC сompatibility
- ECC & Non-ECC
- Maximum internal memory
- 256 GB
- Memory channels
- Dual-channel
- Memory slots type
- DIMM
- Number of memory slots
- 4
- Supported memory clock speed (max)
- 8000 MHz
- Supported memory types
- DDR5-SDRAM
- Unbuffered memory
- Yes
Expansion slots5
- 1st M.2 highest PCI Express generation
- 5.0
- 1st M.2 largest key size
- 22110
- Number of M.2 (M) slots
- 3
- PCI Express x1 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
Network6
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi
- Yes

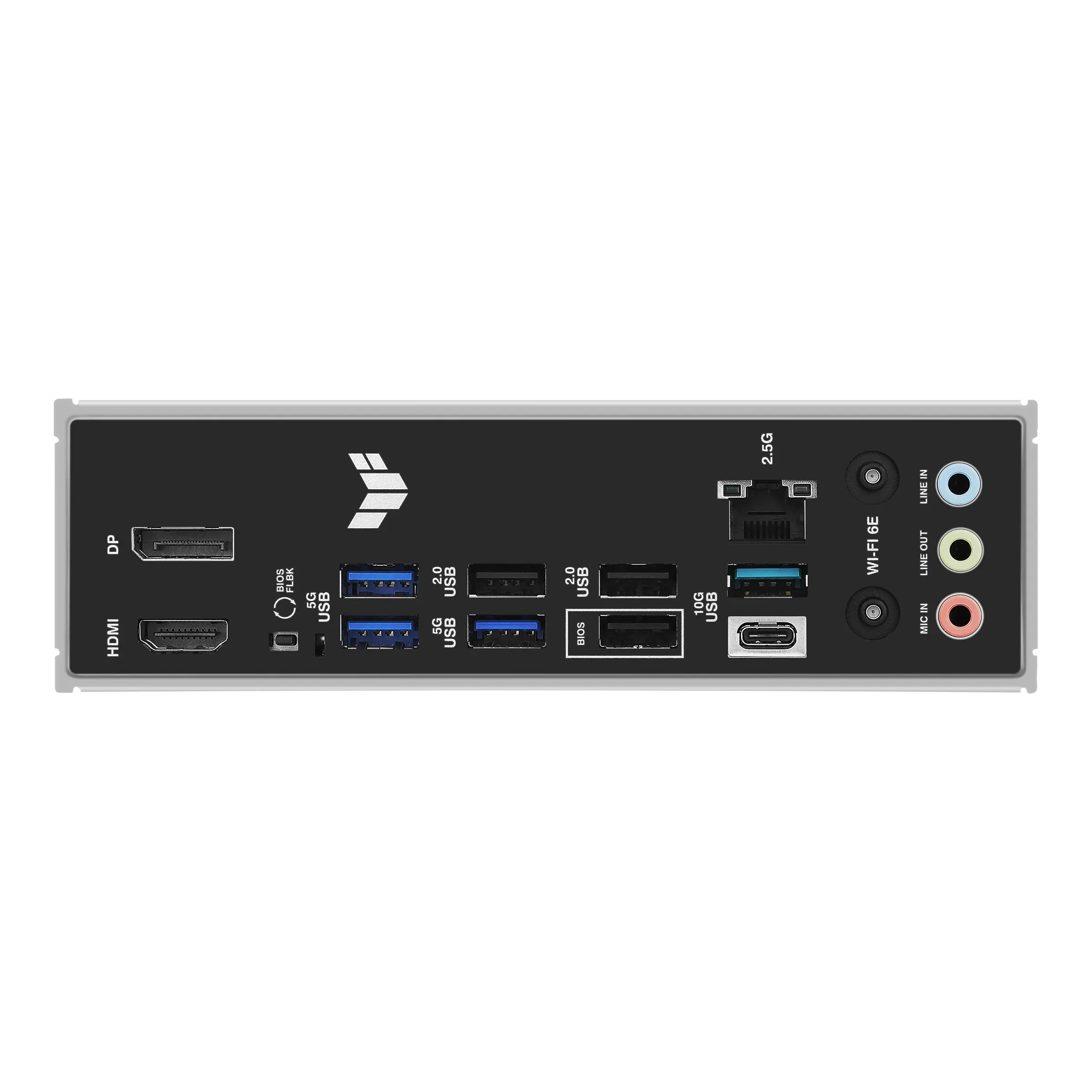

Ports & interfaces12
- DisplayPorts quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Line-in
- Yes
- Microphone in
- Yes
- USB 2.0 ports quantity
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB connector type
- USB Type-A, USB Type-C
- USB-C ports (rear)
- USB 3.2 Gen 2
- Video outputs
- HDMIDisplayPort
BIOS2
- BIOS memory size
- 256 Mbit
- BIOS type
- UEFI AMI
Design2
- Cooling type
- Passive
- Product color
- Multicolour
Graphics1
- Parallel processing technology support
- Not supported
Internal I/O16
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- EPS power connector (8-pin)
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- Number of chassis fan connectors
- 4
- Number of COM connectors
- 1
- Number of CPU fan connectors
- 1
- Number of RGB LED pin headers
- 3
- Number of SATA III connectors
- 4
- Number of water pump connectors
- 1
- RGB LED pin header
- Yes
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
Packaging content1
- Antenna included
- Yes
Packaging data3
- Package depth
- 273 mm
- Package height
- 68 mm
- Package width
- 353 mm
Rear panel I/O ports1
- WiFi-AP antenna jack
- 2
Storage controllers6
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- RAID levels
- 0, 1, 5, 10
- RAID support
- Yes
- Supported storage drive interfaces
- M.2, SATA III
- Supported storage drive types
- HDD & SSD
Weight & dimensions3
- Depth
- 244 mm
- Height
- 48 mm
- Width
- 305 mm
