ASUS PRIME B650-PLUS WIFI - Motherboards, AMD B650, Socket AM,5 ATX

Unlock your PC's potential with the ASUS PRIME B650-PLUS WIFI motherboard!
Delivery
Payment options
Our advantages
  • — Warranty: 3 Years Warranty
  • — Return and exchange up to 14 days
  • — Best price
Find similar
Build a PC with this motherboardCompatible parts are picked automaticallyOpen the builder →

Key specifications

  • BrandASUS
  • Processor socketAM5
  • Motherboard chipsetAMD B650
  • Motherboard form factorATX
  • Supported memory typesDDR5-SDRAM
  • Number of memory slots4
  • Number of M.2 (M) slots2
  • Maximum internal memory192 GB
  • Compatible processor seriesAMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
  • Top Wi-Fi standardWi-Fi 6E (802.11ax)
  • BluetoothYes
  • Video outputsHDMI, DisplayPort
  • USB-C ports (rear)USB 3.2 Gen 2
  • Performance profileAMD EXPO
  • Weight1.35 kg
  • Warranty3 Years Warranty

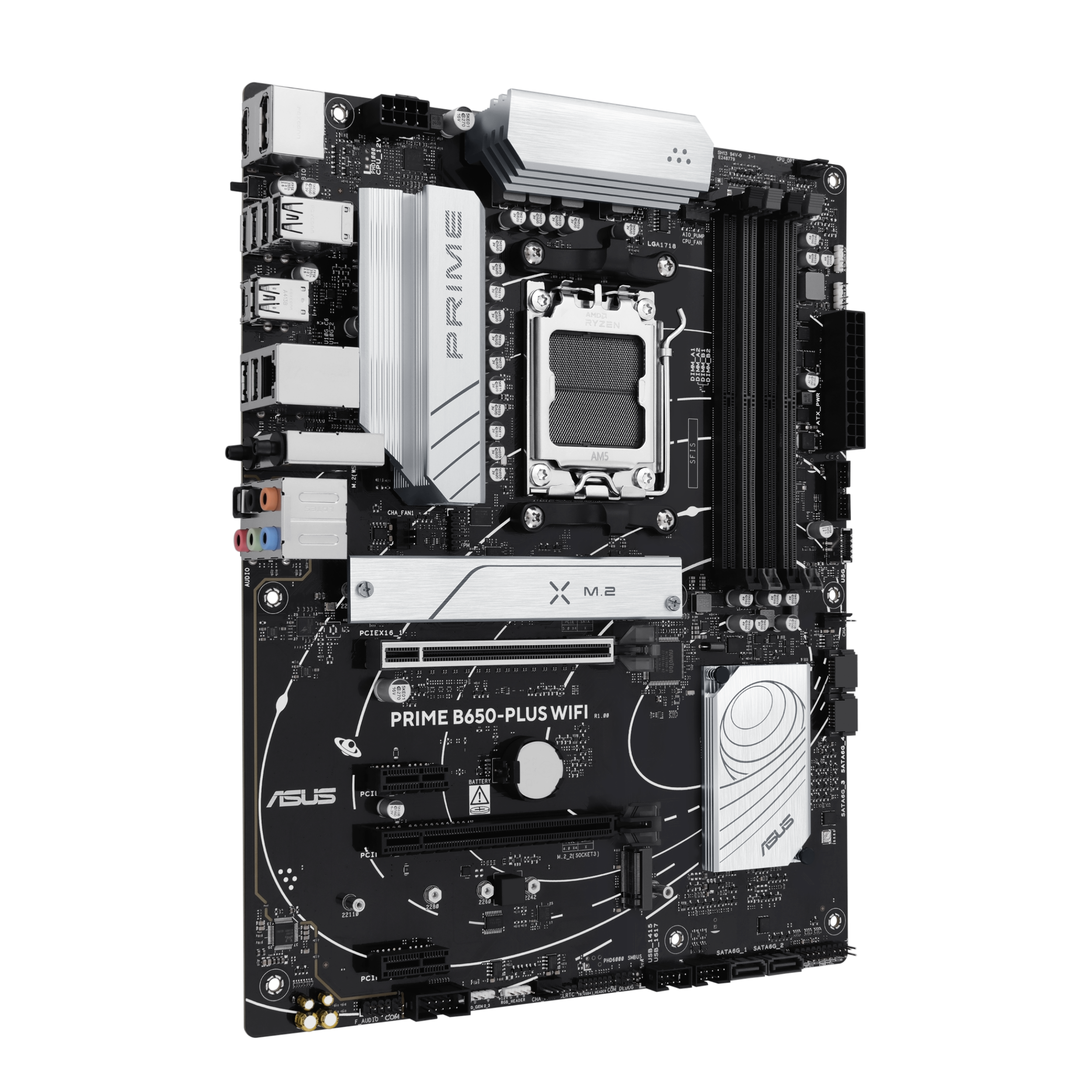

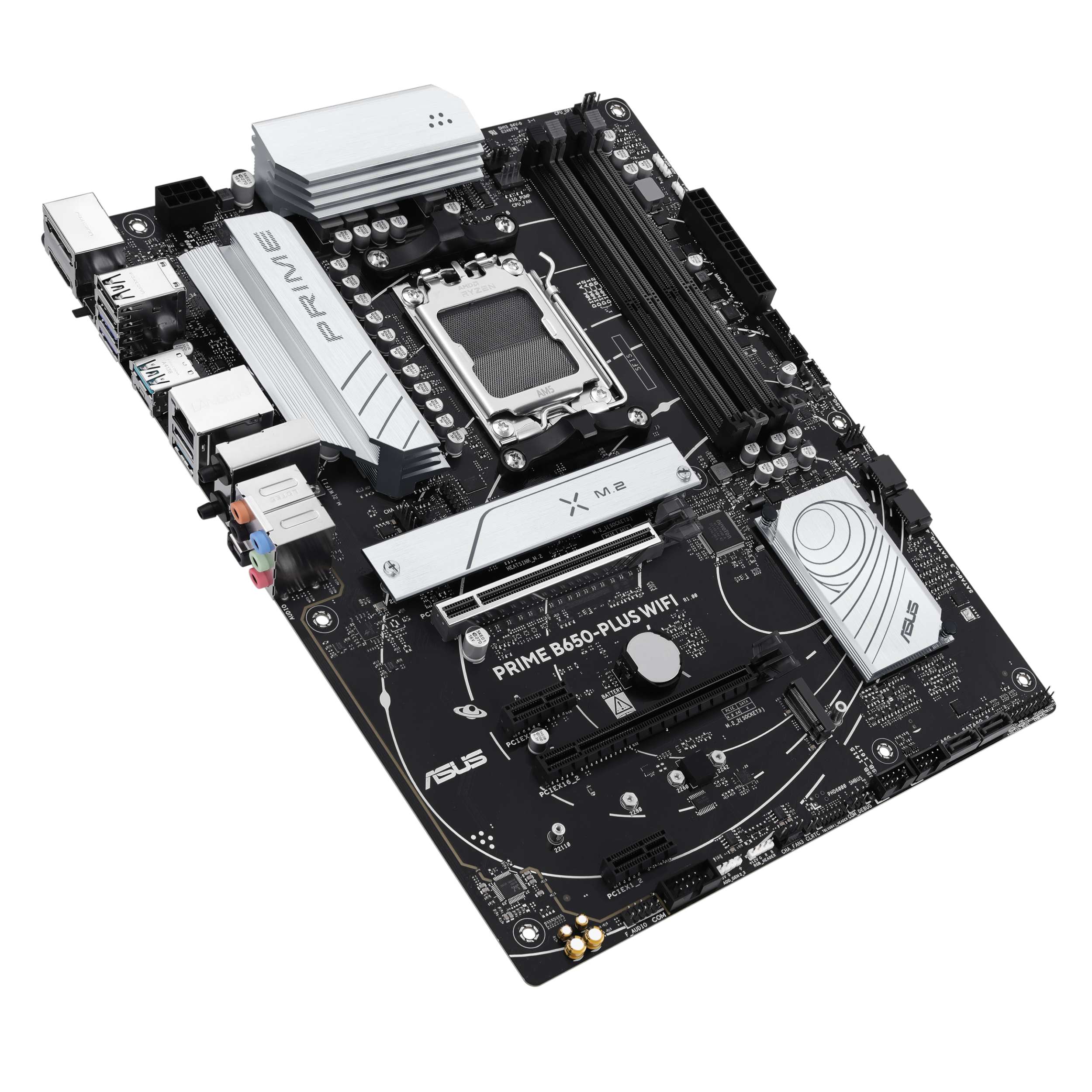

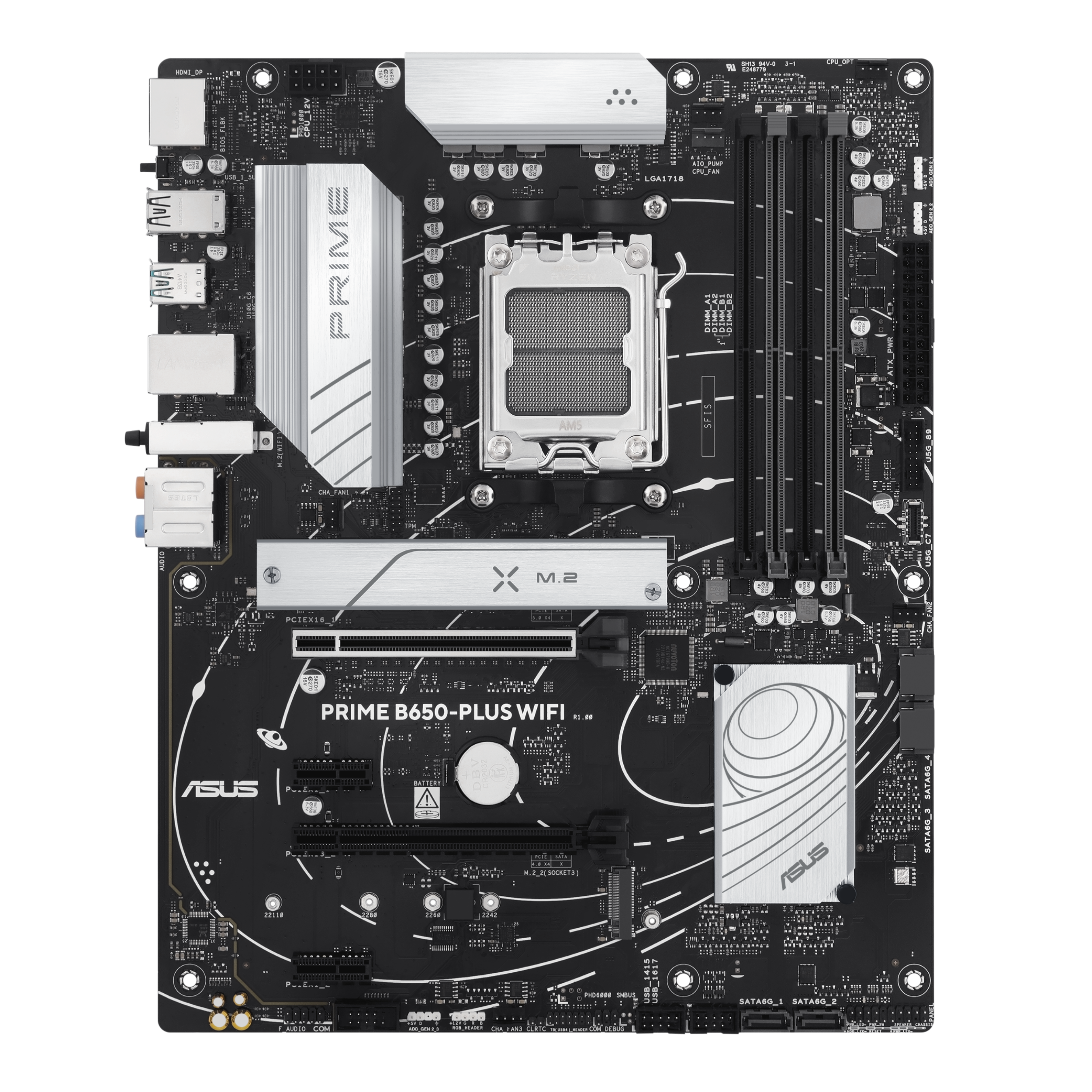

ASUS PRIME B650-PLUS WIFI Motherboard

Unleash the Power of AMD Ryzen Processors

The ASUS PRIME B650-PLUS WIFI motherboard is meticulously designed to maximize the capabilities of the AMD Ryzen 9000, 8000, and 7000 Series processors. This ATX motherboard offers an exceptional balance of power, efficiency, and advanced technology, making it an ideal choice for both casual users and dedicated PC builders.

Robust Power Design

  • Stable performance with high-quality components
  • Power delivery systems optimized for high-performance CPUs

Comprehensive Cooling Solutions

Stay cool under pressure with a diverse range of cooling options. The ASUS PRIME B650-PLUS WIFI features:

  • Multiple fan headers for customizable cooling
  • Advanced thermal management systems

Intelligent Tuning Options

Make the most of your hardware with intuitive software tools that allow for easy overclocking and performance tuning. This motherboard is equipped with:

  • AI Overclocking technology for smart performance adjustments
  • User-friendly BIOS interface to streamline your settings

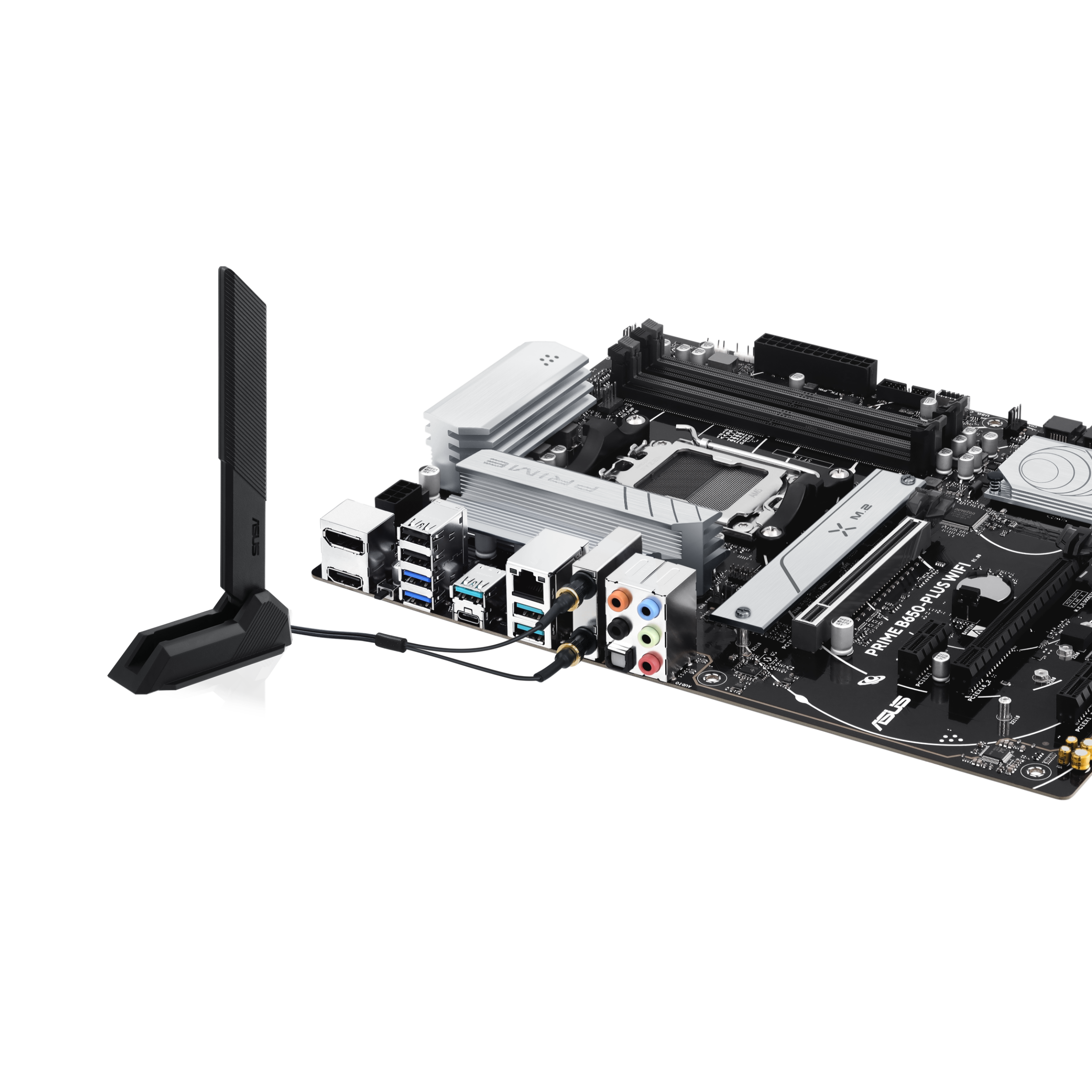

Versatile Connectivity

The ASUS PRIME B650-PLUS WIFI is packed with features to meet the demands of modern applications:

  • Integrated Wi-Fi for seamless wireless connectivity
  • Multiple USB ports including USB 3.2 Gen 2 for rapid data transfer
  • PCIe 4.0 support for advanced graphics cards and SSDs

Specifications at a Glance

  • Product Code: 90MB1KP0-M0EAY0
  • Socket: AM5
  • Form Factor: ATX

Upgrade your PC building experience with the ASUS PRIME B650-PLUS WIFI motherboard, where performance meets innovation. Perfect for gamers, professionals, and anyone seeking a powerful computing solution.

Find similar by key specs

Compatible processor series AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Tick the specs you need — we will find similar products Find similar →

All specifications 82

Main4
Brand
ASUS
Warranty
3 Years Warranty
Product code
90MB1KP0-M0EAY0
EAN/UPC code
4711387760895
Processor4
Processor socket
AM5
Compatible processor series
AMD Ryzen 9000 SeriesAMD Ryzen 8000 SeriesAMD Ryzen 7000 Series
Processor manufacturer
AMD
Supported processor sockets
AM5
Performance2
Motherboard chipset
AMD B650
Performance profile
AMD EXPO
Features5
Audio output channels
7.1 channels
Component for
PC
Motherboard chipset family
AMD
Motherboard form factor
ATX
Windows operating systems supported
Windows 10 x64, Windows 11
Memory9
ECC сompatibility
ECC & Non-ECC
Maximum internal memory
192 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory clock speed (max)
7600 MHz
Supported memory clock speeds
7400,4800,7600,7800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Expansion slots7
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
Number of M.2 (M) slots
2
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
2
Network7
Bluetooth
Yes
Bluetooth version
5.3
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6E (802.11ax)

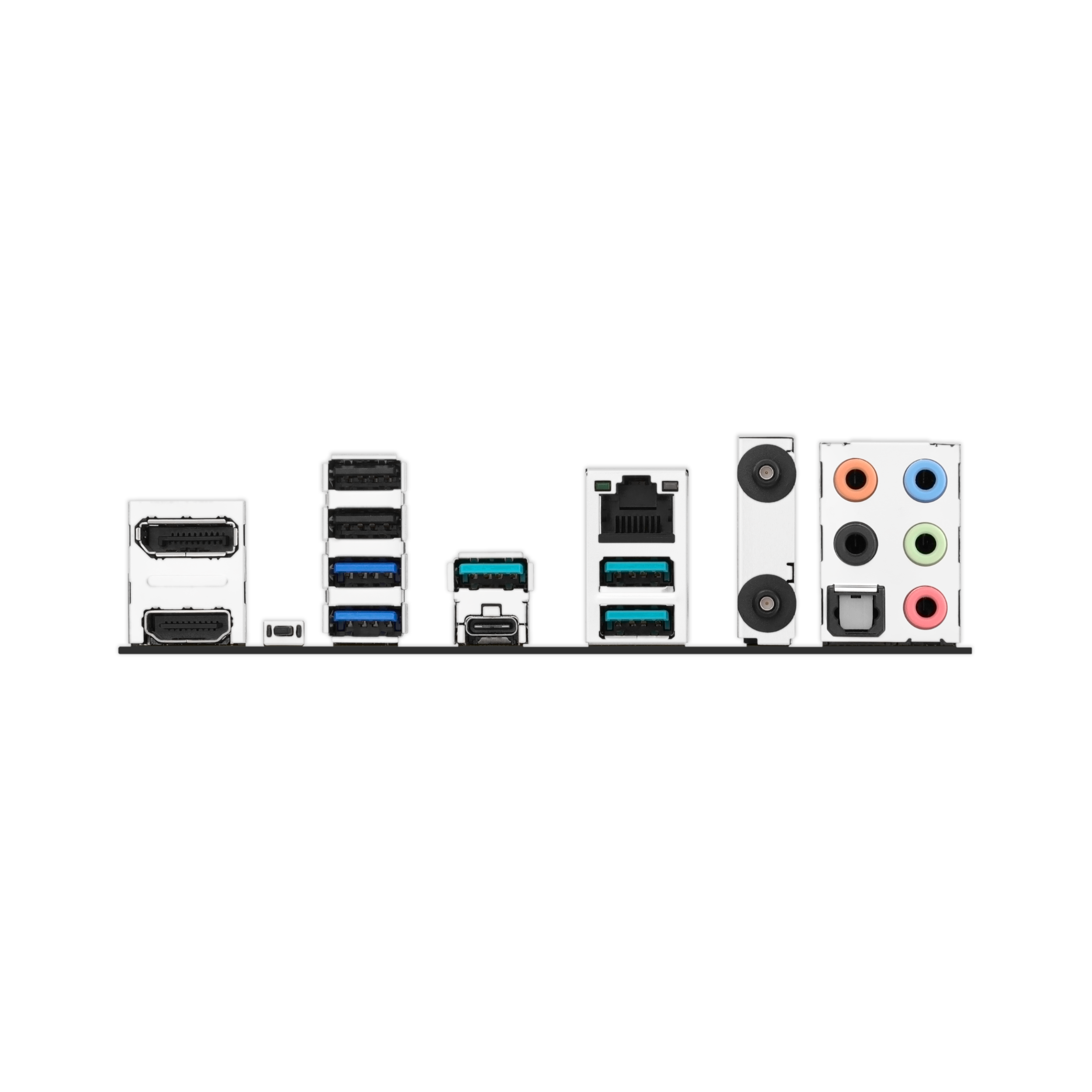

Ports & interfaces9
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB-C ports (rear)
USB 3.2 Gen 2
Video outputs
HDMIDisplayPort
BIOS2
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Graphics1
Parallel processing technology support
Not supported
Internal I/O16
12V power connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Front panel connector
Yes
Number of chassis fan connectors
3
Number of COM connectors
1
Number of CPU fan connectors
2
Number of RGB LED pin headers
1
Number of SATA III connectors
4
RGB LED pin header
Yes
Thunderbolt headers
1
TPM connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

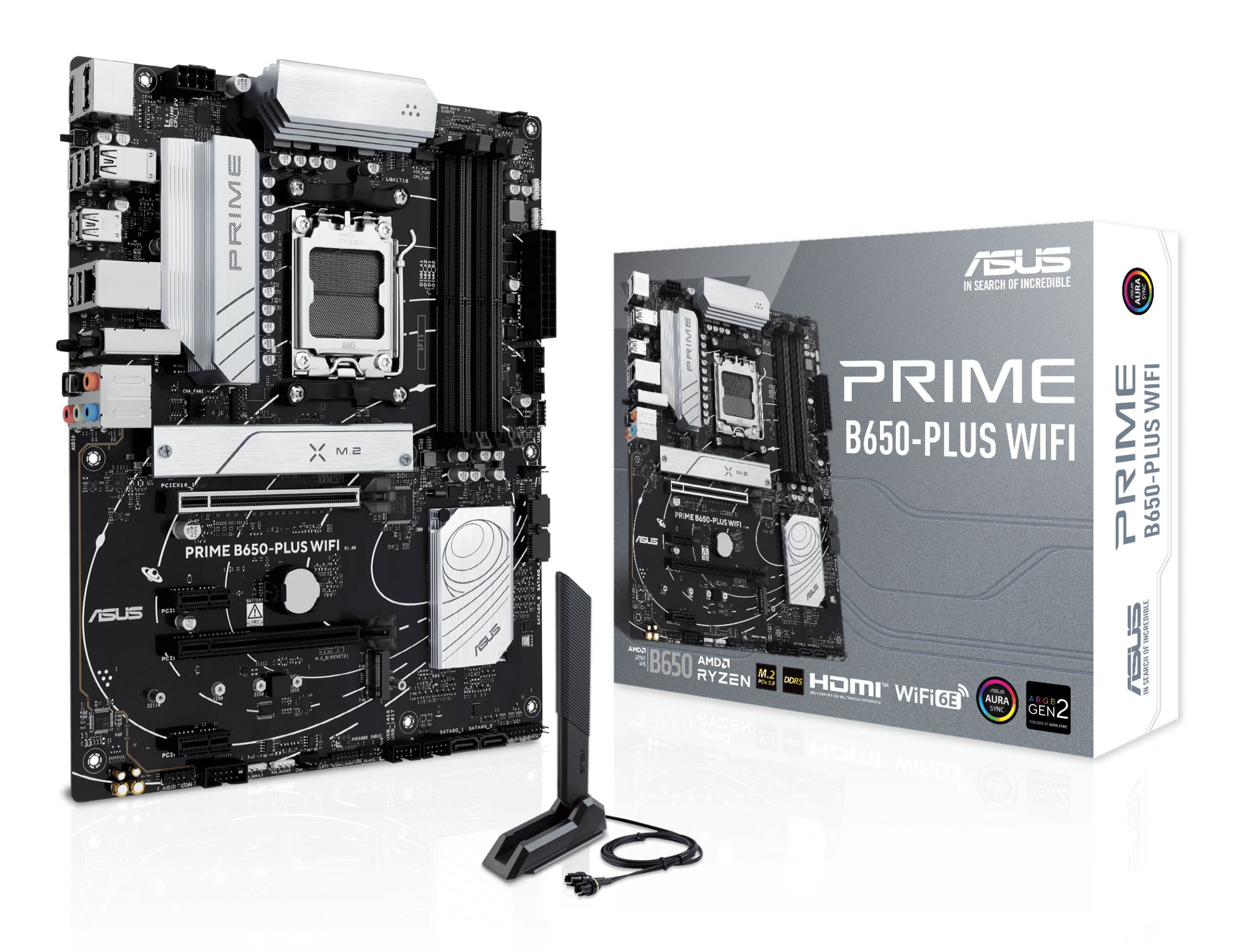

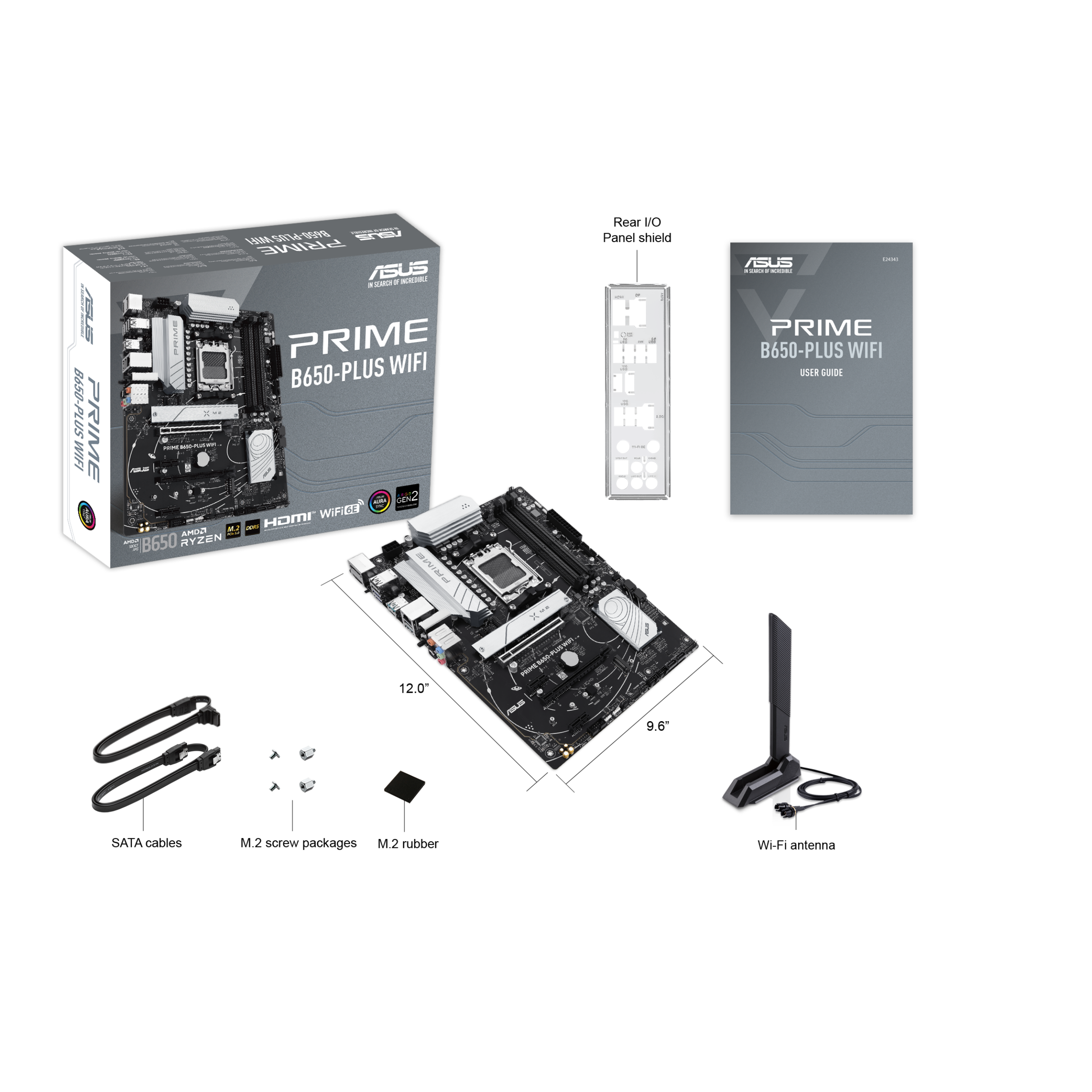

Packaging content3
Antenna included
Yes
Cables included
SATA
Screws included
Yes
Packaging data3
Package depth
373 mm
Package height
68 mm
Package width
338 mm
Rear panel I/O ports2
S/PDIF out port
Yes
WiFi-AP antenna jack
1
Storage controllers6
Number of HDDs supported
4
Number of storage drives supported
6
RAID levels
0, 1, 10
RAID support
Yes
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Weight & dimensions2
Depth
244 mm
Width
305 mm
Nothing found

Automated video search by product name (the results maybe not the some as product in our store).

Manual (mmo_124885090_1738142940_5594_809235.pdf, 3,644 Kb) [Download]
