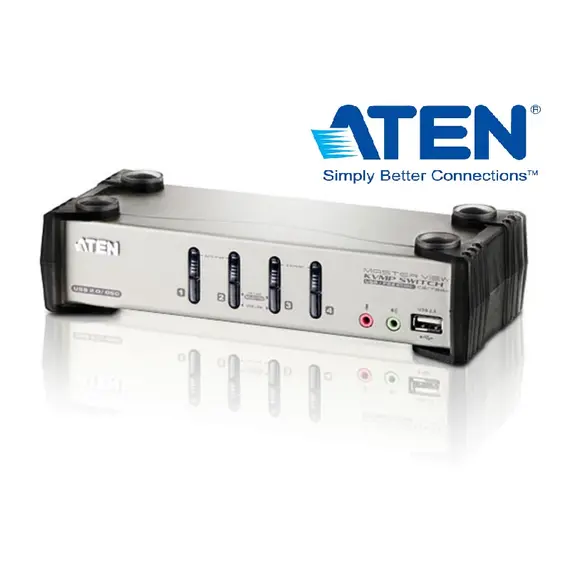

ATEN CS1734B - 4-Port KVMP™ Switch with OSD, PS/2-USB, VGA/Audio
CA-775390
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
The CS1734B is 4-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access four computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
Specifications
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton, OSD, Mouse |
| Connectors | |
| Console Ports | 2 x USB Type A Female (Black) 1 x HDB-15 Female (Blue) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink) |
| KVM Ports | 4 x SPHD-15 Female (Yellow) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink) |
| Firmware Upgrade | 1 x 4-conductor 3.5mm Jack (Black) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (White) |
| Switches | |
| Selected | 4 x Pushbutton |
| LEDs | |
| Online / Selected | 4 (Orange) |
| USB Link | 4 (Green) |
| Emulation | |
| Keyboard / Mouse | PS/2; USB |
| Video | 2048 x 1536 @ 60Hz; DDC2B |
| Scan Interval | 1-255 Seconds (Default: 5 sec.) |
| Power Consumption | DC5.3V:2.8W:39BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.78 kg ( 1.72 lb ) |
| Dimensions (L x W x H) | 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.) |
Main
Brand
ATEN
Product code
CA-775390
Display
3D
No
Features
24/7 operation
No
Network
10G support
No
Other features
2.5 mm connector
No
3.5 mm (1/8-inch) in
No
Performance
2.4 GHz
No
5 GHz
No
