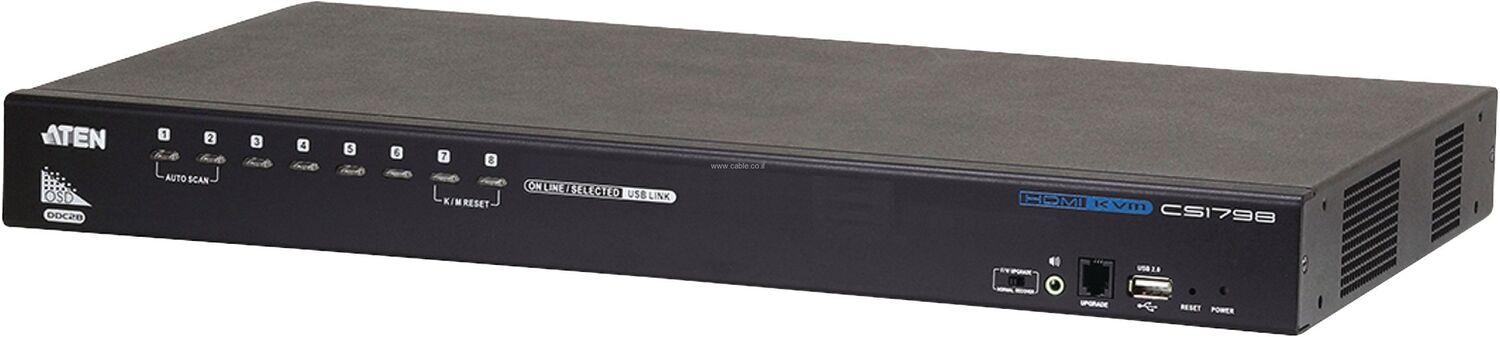

ATEN CS1798 - 8Port HDMI KVM Switch
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
The ATEN CS1798 - 8-Port HDMI KVM Switch is an essential tool for anyone looking to efficiently manage multiple HDMI computers from a single console. This versatile KVM (Keyboard, Video, Mouse) switch allows seamless control over up to 8 computers using just one USB keyboard, mouse, and monitor, making it ideal for both home and professional environments.

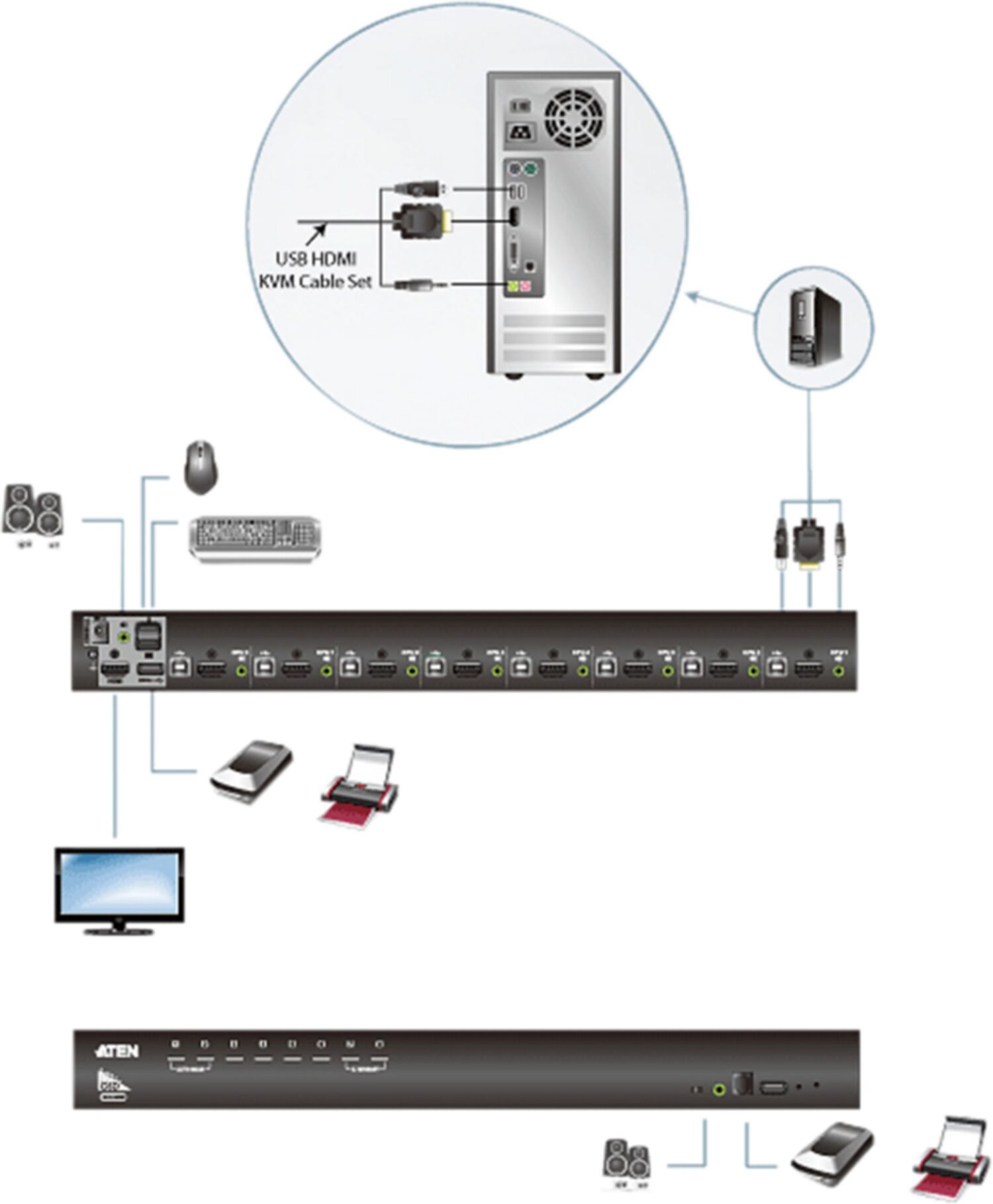

One of the standout features of the CS1798 is its ability to cascade up to 3 levels, allowing you to control a staggering total of 512 computers from a single console. This capability is invaluable for users with extensive computer setups, such as IT professionals, video editors, or anyone needing to share resources among multiple systems.
Multi-Display Functionality
The CS1798 extends its versatility with multi-display functionality. By utilizing standard USB cables, you can connect and stack up to 8 switches, creating a comprehensive multi-display installation. This feature is perfect for users who require robust video output options and need to run multiple video cards for enhanced performance.
On-Screen Display (OSD) Functionality
Accessing your computers is simpler than ever thanks to ATEN’s on-screen display (OSD) function. This feature not only allows you to switch between computers but also offers backup and restore options for your OSD settings, ensuring your preferred configurations are always at your fingertips.
Audio and Multimedia Support
The CS1798 is equipped with multimedia keyboard support and features audio capabilities that allow you to switch audio output between computers. Enjoy high-quality audio from two sets of speakers, ensuring sound is convenient and easily manageable.
Specifications
| Computer Connections | |
| Direct | 8 |
| Maximum | 512 (via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Connectors | |
| Console Ports | 1 x HDMI Female 2 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) |

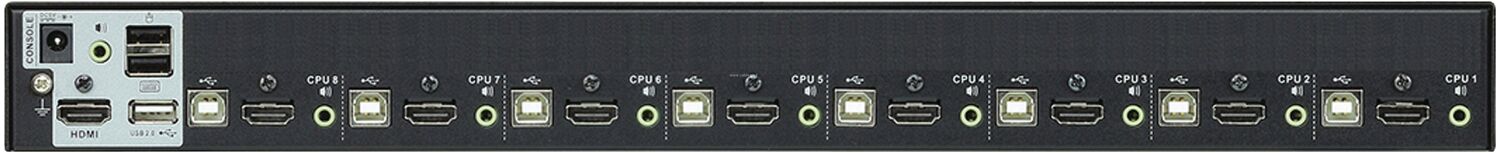

| KVM Ports | 8 x HDMI Female 8 x USB Type B Female 8 x 3.5mm Audio Jack Female (Green) |
| Firmware Upgrade | 1 x RJ11 Female (Black) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (1 x front, 1 x rear) |
| Switches | |
| Port Selection | 8 x Pushbutton |
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch |
| LEDs | |
| USB Link | 8 (Green) |
| Power | 1 (Dark Green) |
| On Line / Selected | 8 (Orange) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz |
| Scan Interval | 1 – 255 seconds (default: 5 secs.) |
| Power Consumption | DC5V: 5.8W: 53BTU |
| Environmental | |
| Operating Temperature | 0 – 50°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 3.49 kg (7.69 lb) |
| Dimensions (L x W x H) | 43.24 x 25.72 x 4.40 cm (17.02 x 10.13 x 1.73 in.) |
