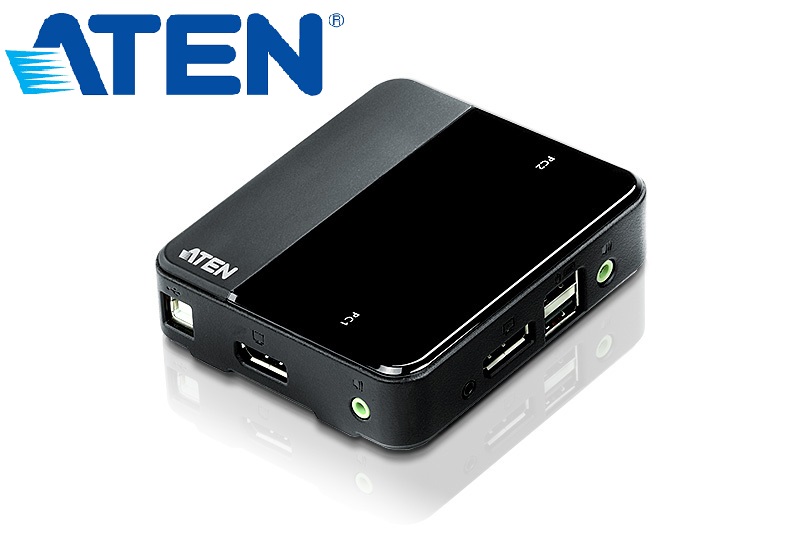

ATEN CS782DP - 2-Port USB DisplayPort KVM Switch
Experience seamless control over multiple high-resolution computers with the ATEN CS782DP - 2-Port USB DisplayPort KVM Switch. Perfectly suited for professionals in graphic design, video editing, and animation, this KVM switch helps you access two 4K-enabled systems from a single USB keyboard, USB mouse, and DisplayPort video console.
With its ability to support up to 4K UHD resolution, the CS782DP is designed to meet the increasing demands of modern visual applications. The switch is equipped with advanced features that enhance your productivity and streamline your workflow.
Key Features
- Controls two USB computers from a single DisplayPort video console.
- Fully compliant with DisplayPort 1.2 standards.
- Three convenient switching methods: remote port selector, mouse, or hotkeys.
- Superior video quality up to 4K UHD (3840 x 2160 @ 60Hz).
- Cross-platform compatibility with Windows, Mac, Sun, and Linux systems.
- HDCP compliant and supports MST (Multi-Stream Transport) for multiple monitors via a single DisplayPort connection.
- Full audio support for a rich multimedia experience.
- Power on detection automatically switches to the active computer.
- Compatible with multifunction mice and multimedia keyboards.
- Supports wireless keyboard and mouse setups.
- Firmware upgradable for future enhancements.
Specifications
| Computer Connections | 2 |
| Port Selection | Hotkey, Mouse, Remote Port Selector |
| Connectors | |

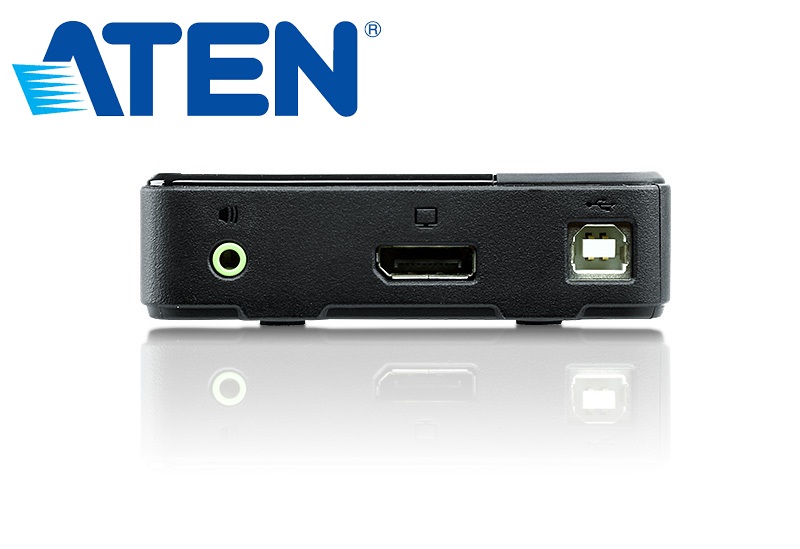

| Console Ports | 2 x USB Type A Female 1 x DisplayPort Female (Black) 1 x 3.5mm Audio Jack Female (Green) |
| KVM (Computer) Ports | 2 x USB Type B Female 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) |
| Remote Port Selector | 1 x 2.5mm Audio Jack Female |
| LEDs | |
| KVM | 2 (White) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 4096 x 2160 @ 60Hz |
| Scan Interval | 3, 5, 10, 20 seconds (Default: 5 seconds) |
| Power Consumption | DC5V: 2.18W, 23BTU |
| Environmental | |
| Operating Temperature | 0 – 50°C |
| Storage Temperature | –20 – 60°C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.12 kg (0.26 lb) |
| Dimensions (L x W x H) | 9.37 x 9.30 x 2.68 cm (3.69 x 3.66 x 1.06 in.) |
Whether you're managing a sophisticated workstation or setting up a simple home office, the ATEN CS782DP delivers a reliable and efficient solution for all your KVM needs.
