Delock USB GaN Charger 1 x USB Type-C™ PD 3.1 with 140W
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
Product Overview

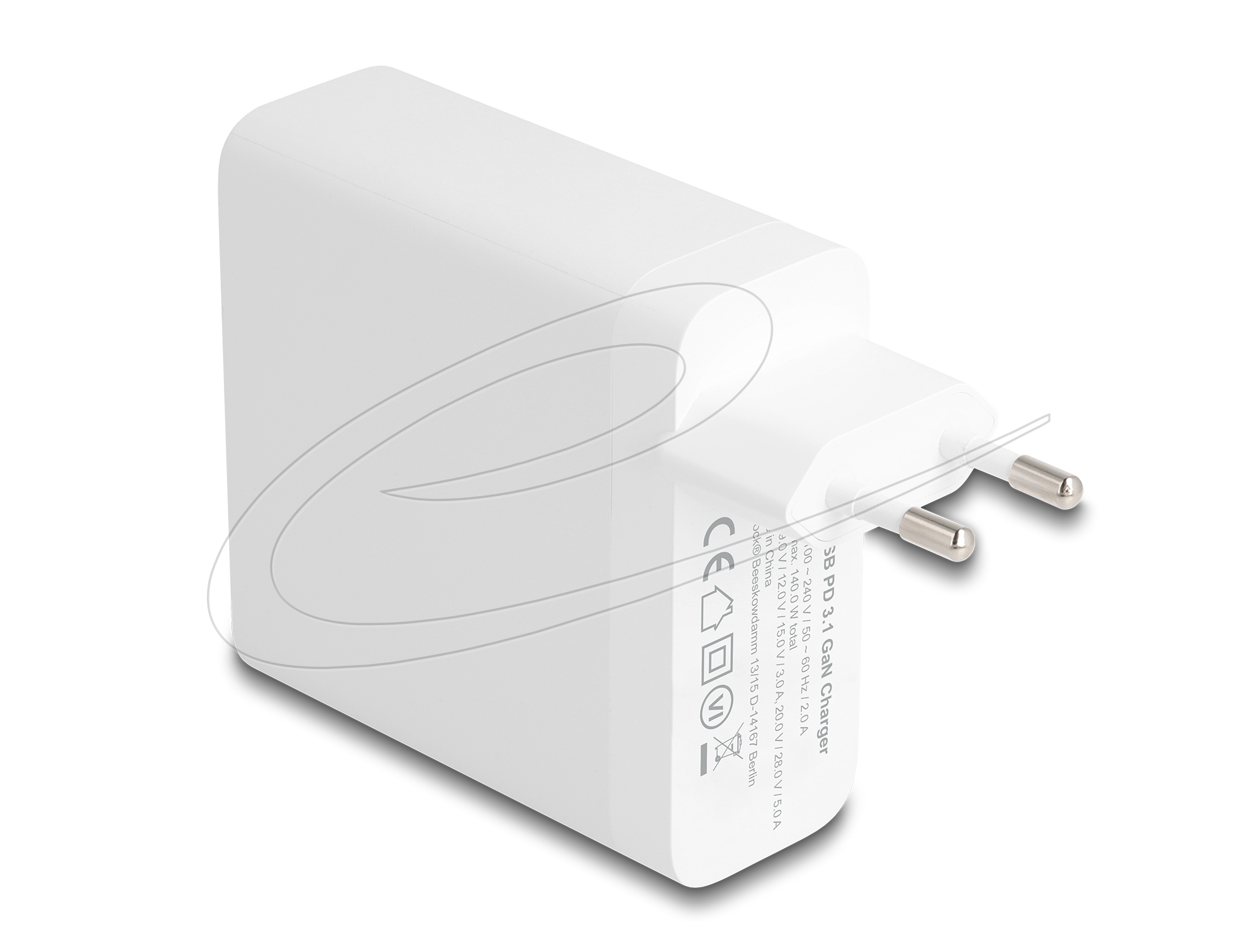

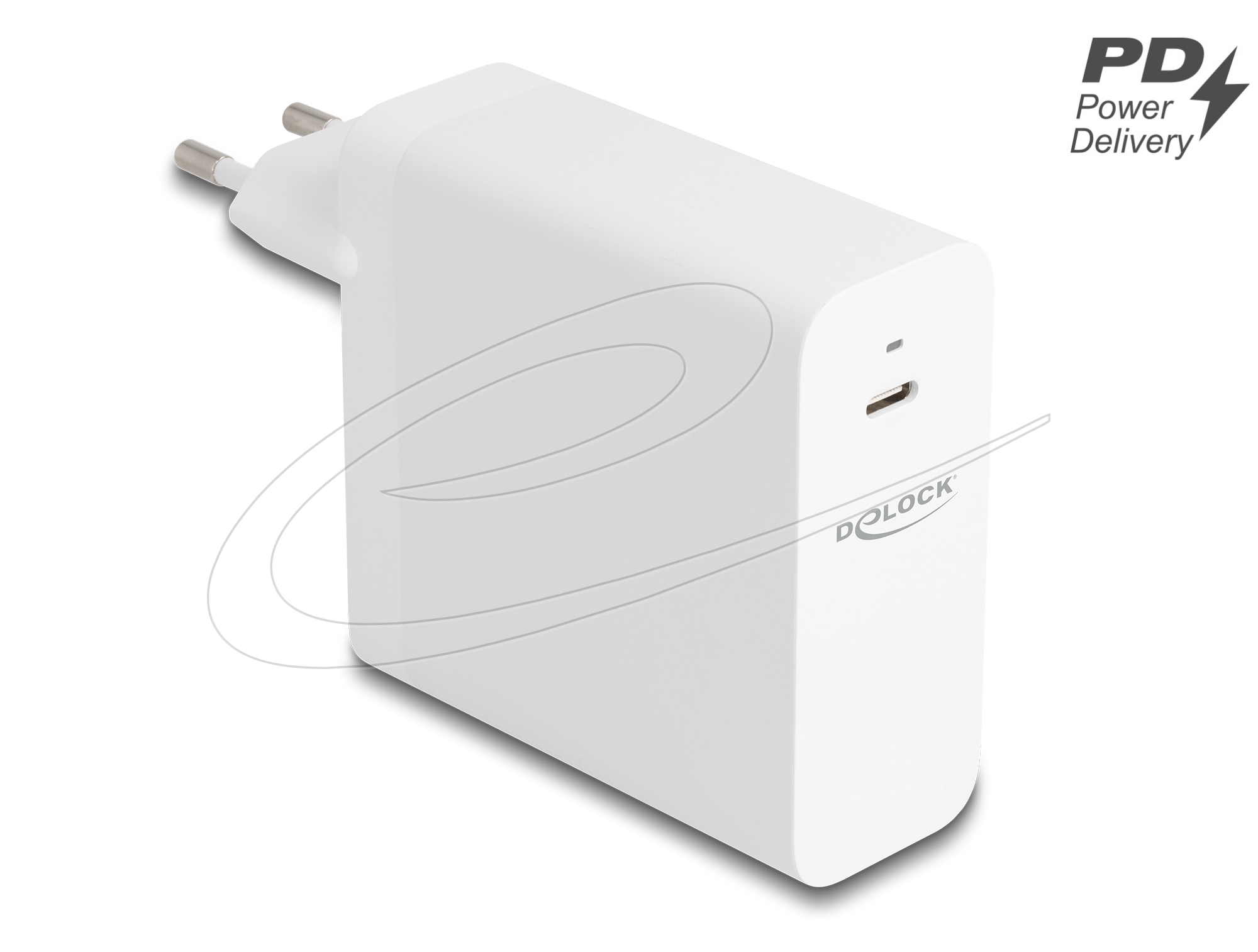

Introducing the Delock USB GaN Charger — your ultimate charging solution designed for efficiency and power. This high-performance charger features one USB Type-C™ port equipped with Power Delivery 3.1 (PD 3.1) technology, allowing you to charge compatible devices such as laptops and tablets with a remarkable maximum output of 140 Watts.
Advanced Charging Technology
With the latest USB PD 3.1 specifications, this charger supports various voltage levels including 28V, 36V, and 48V, each facilitating a current of up to 5A. Experience exceptional power for high-performance laptops and desktop computers, thanks to the charger’s capability to deliver an impressive 240W maximum rated power output (48V / 5A). The charger operates efficiently at 28V and 5A.
GaN Technology for Superior Efficiency
The Gallium Nitride (GaN) technology employed in this charger significantly enhances efficiency compared to traditional silicon designs. Despite its compact form factor, enjoy high output power without compromising on space.
Important Usage Notes
To utilize the Extended Power Range (EPR) mode (28V, 36V, 48V / 5A), it is essential to use a USB cable equipped with an E-marker. Should this be unavailable, the maximum current transmitted will be limited to 3A. Delock offers suitable cables that can be purchased separately.
Technical Specifications
- Connectors: 1 x USB Type-C™ female, 1 x CEE 7/16 plug
- Input: AC 100 ~ 240V / 50 ~ 60Hz / 2.0A
- Output:
- PD 3.1: 5.0V / 9.0V / 12.0V / 15.0V / 3.0A
- 20.0V / 28.0V / 5.0A
- Output Power: Max. 140W total
- Average Active Efficiency: 89.75%
- Efficiency at Low Load (10%): 87.28%
- No-Load Power Consumption: 0.182W
- USB Power Delivery: PD 3.1
- Safety Features: Overload protection, overcurrent protection, overheating protection, short-circuit protection
- Color: White
- Dimensions (LxWxH, excluding plug): approx. 113 x 75 x 35 mm
Package Contents
- Delock USB GaN Charger
- USB Type-C™ to USB Type-C™ cable (approx. 1 m)
- User manual
Packaging
- Retail Box
