Fractal Design Celsius+ S36 Prisma - CPU Water Cooling

Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5.

General specifications

• Sockets supported (Intel): 1700*, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066

• Sockets supported (AMD): AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+

• Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version

• Coldplate material: Copper

• Thermal paste: Pre-applied

• Tube length: 400 mm

• Tube material: Low-permeability rubber with braided nylon sleeve

• Fittings, block side: Articulating 90-degree elbow

• Fittings, radiator side: Straight rotary

• Fan control: Dual mode (Auto/PWM)

• Note:: The Celsius+ is NOT compatible with the Adjust R1

Fan specifications

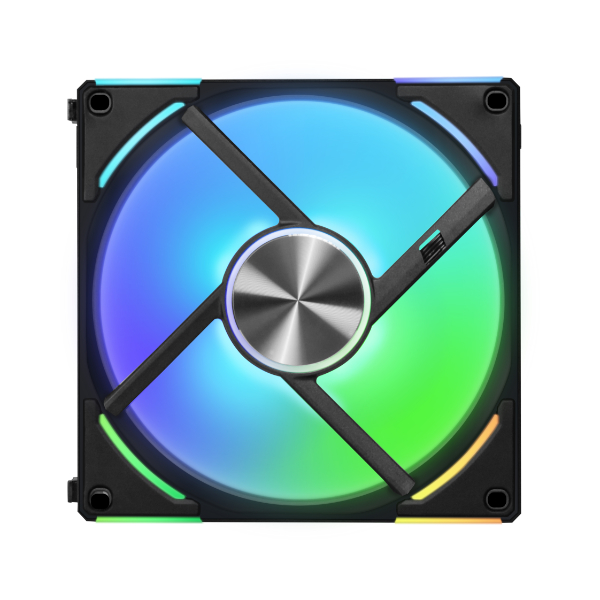

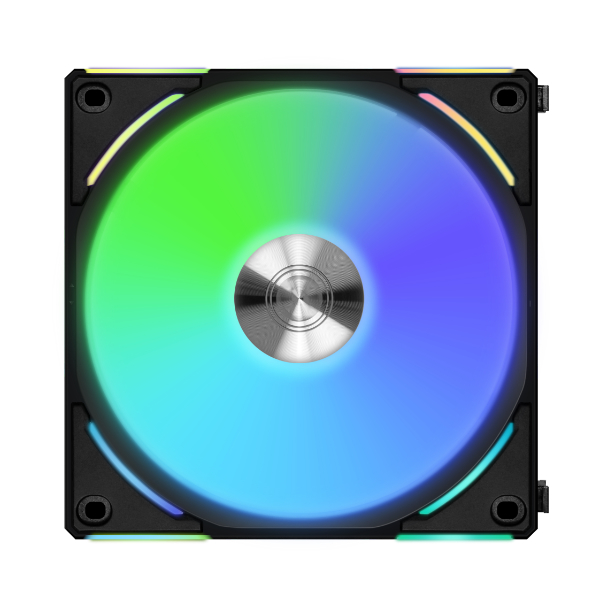

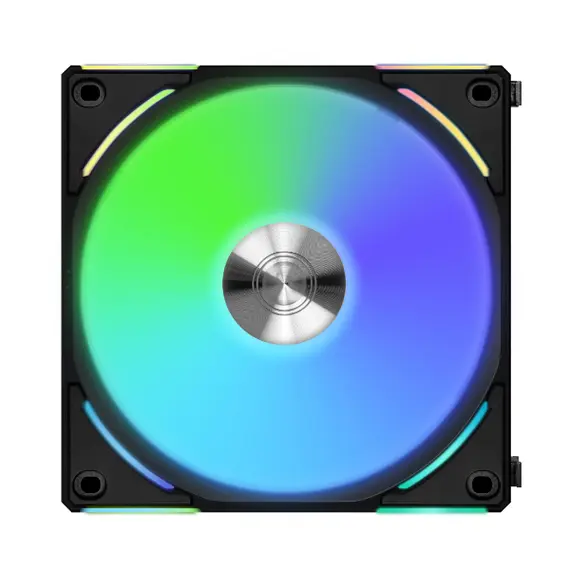

• Fan type: Prisma AL-12 PWM ARGB

• Rotational speed: 500 – 2000 RPM

• Bearing: LLS

• PWM control: Yes

• Acoustical noise (full speed): 32.7 dBA

• Maximum air flow: 85.71 CFM

• Maximum static pressure: 2.78 mm H2O

• Input voltage: 12V DC

• Maximum input current: 0.18A

• MTBF: 100,000 hours

Pump specifications

• Rotational speed: 800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C

• Bearing type: Ceramic bearing and shaft

• PWM control: Yes

• Acoustical noise (full speed): 20 dBA

• Maximum pressure: 14.4 kPa / 1.46 mm H2O /2.0 PSI

• Input voltage: 12V DC

• Input current (without fans): 0.36A

• MTTF: 50,000 hours

• Block height: 45 mm

• Block measurements (with fittings): 86 x 75 mm

• Block diameter (main block body): 62 mm

Radiator specifications

• Dimensions: 123 x 30 x 403 mm

• Housing material: Aluminum

• Fin material: Aluminum

• Fan screw threads: 6-32

Other

• Package contents: Celsius+ S36 unit, 3 x 120 mm fans, User manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws

• Package Dimensions: 470 x 180 x 145 mm
